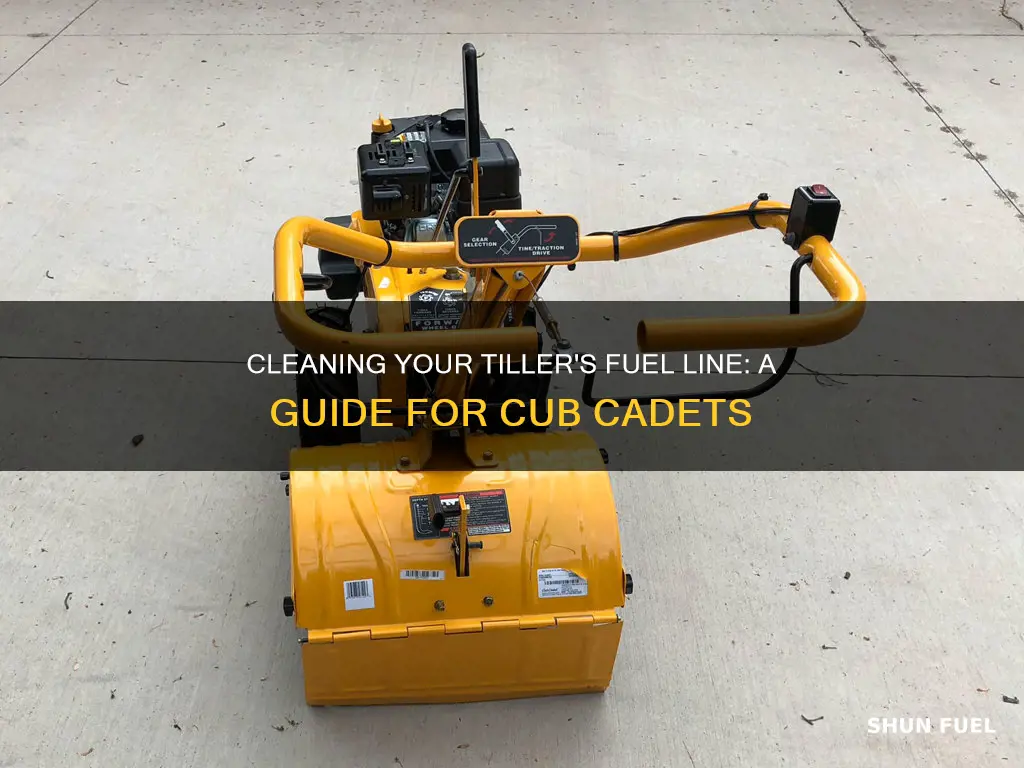

If your Cub Cadet tiller is having trouble starting, it may be time to clean the fuel lines. This can be done by first checking for blockages in the fuel lines and then cleaning the carburetor. If you don't have an air compressor, you can use a fine wire to clean out the small hole in the fuel jet. You can also try replacing the air filter or dropping the carburetor bowl to clean it. Additionally, it's important to check for debris in the fuel tank port, fuel filter, and fuel float needle. By following these steps, you can help ensure that your Cub Cadet tiller is running smoothly.
Explore related products
What You'll Learn
Cleaning the carburetor
The carburetor is the part of the engine that links air and gas, converting gas in the mower engine into the mechanical force needed to power the motor. It is important to clean the carburetor regularly to keep the engine running smoothly. Signs of a dirty or clogged carburetor include black smoke coming out of the muffler, increased fuel consumption, uneven blade movement, or a stuttering engine. If left for too long, the engine might not start at all.
Before cleaning the carburetor, it is important to identify its location in the engine. The carburetor is usually a small, metal device shaped like a box or cylinder, located close to the air filter and the engine. It is secured with screws or bolts, and can also be found by tracing the fuel line from the gas to the engine.
To clean the carburetor, first, turn off the engine and allow it to cool down. Clean the outside of the engine, and ensure your work area is clear and well-lit. Remove the spark plug cable by pulling it directly away from the engine to prevent the engine from starting suddenly. Next, remove the carburetor from the engine and disassemble it. Clean each individual component with a carburetor cleaner spray, and then reassemble the parts. Finally, reinstall the carburetor and secure it with the screws or bolts.
It is recommended to clean the carburetor two to three times a year, with one of those being a thorough cleaning. It is also important to ensure that the fuel is fresh and, if possible, add a fuel stabilizer to the fuel to prevent the carburetor from becoming clogged.
Fuel Line Issues: Injectors and the Lack of Fuel
You may want to see also
Explore related products
Checking the fuel filter
First, locate the fuel filter. It is usually found along the fuel line, which runs from the fuel tank to the carburetor. The fuel filter's purpose is to prevent debris and impurities from entering the carburetor and engine, so it is important to keep it clean and free of clogs.
Next, inspect the fuel filter for any signs of debris or clogging. Depending on the model of your Cub Cadet tiller, the fuel filter may be made of paper or foam. If it is a paper filter, it is generally recommended to replace it rather than clean it. However, if you have a foam filter, you can try cleaning it first.
To clean the fuel filter, start by removing it from the fuel line. This may require disconnecting the fuel line from the tank or carburetor, so have a container and rags ready to catch any spilled fuel. Once the fuel filter is removed, use a fine wire to carefully clean the small holes and remove any debris. You can also try using compressed air to blow out any blockages if you have access to an air compressor.
After cleaning, inspect the fuel filter again to ensure that all debris has been removed. If the filter is damaged or excessively dirty, it is best to replace it with a new one. Reinstall the clean or new fuel filter, ensuring that all connections are secure and that the fuel lines are away from any heat sources.
Finally, test your Cub Cadet tiller to see if it runs smoothly. If the engine is still having trouble starting or running, you may need to clean the carburetor or check for other issues, such as debris in the fuel tank port, fuel float needle, or bowl nut.
Fuel Log Book Entries: Understanding the Right Line
You may want to see also
Explore related products
Insulating the fuel line
Identify the Fuel Line:
First, locate the fuel line of your Cub Cadet tiller. It is important to ensure that the fuel line is easily accessible and that there is enough space to work comfortably.
Clean the Fuel Line:
Before insulating, it is crucial to clean the fuel line thoroughly. Disconnect the fuel line from the tank and inspect it for any debris, clogs, or blockages. Use a thin, flexible cleaning tool, such as a wire, to clear out any debris in the fuel jet and ensure that the line is free-flowing.
Choose the Right Insulation:
There are various types of fuel line insulation available in the market. Common options include insulation sleeves, wraps, and heat shields. Choose an option that best suits your Cub Cadet tiller's fuel line configuration and the level of protection required.
Install the Insulation:
Follow the instructions provided with the chosen insulation product. For example, the Vapor Block™ fuel line sleeve features an easy installation process. It has a split design and an adhesive flap. Simply wrap the sleeve around the fuel line, remove the adhesive liner, and secure the flap in place. Ensure that the insulation covers the entire fuel line, providing adequate protection from heat sources.
Verify Insulation Effectiveness:
After installing the insulation, it is important to verify its effectiveness. Start the engine and observe whether the insulation is successfully protecting the fuel line from heat. Ensure that the insulation is not trapping heat, as this could lead to vapor lock issues. If necessary, adjust the insulation or consider a different type that suits your specific Cub Cadet tiller model.
By following these steps, you can effectively insulate the fuel line of your Cub Cadet tiller, helping to prevent fuel-related issues and ensuring the optimal performance of your equipment.
Locating the Fuel Line in Your Honda Civic
You may want to see also
Explore related products
Removing debris from the fuel jet
If your Cub Cadet tiller is having trouble starting, it may be due to debris in the fuel jet. To remedy this, you can use a thin-bladed screwdriver to remove orifice jet 19 and jet 10 for cleaning and then reinstall them. Alternatively, if you do not have access to an air compressor, you can use a fine wire to clean out the small hole in the fuel jet.
It is also important to check other components of the Cub Cadet for debris, such as the fuel tank port, fuel filter, fuel float needle, and the bowl nut. These areas are prone to clogging, which can disrupt the flow of fuel to the carburetor.
If you are still experiencing issues with your Cub Cadet tiller, it may be necessary to clean the carburetor. This can be done by dropping the carburetor bowl and cleaning it thoroughly. Additionally, you can try running the engine on the gravity system with the fuel line from the tank disconnected to identify any blockages.
By following these steps and regularly cleaning the fuel jet and related components, you can help ensure the optimal performance of your Cub Cadet tiller and minimize the impact of debris on its functionality.
Fuel Line and Intake Manifold: What's the Connection?
You may want to see also
Explore related products
Replacing the air filter
To replace the air filter of your Cub Cadet tiller, follow these steps:
First, place your tiller on a flat, level surface. Turn the engine off, engage the parking brake, and remove the ignition key. Allow the engine to cool before proceeding.
Next, disconnect the spark plug ignition wire. Remove the air cleaner cover from the engine, and then uninstall the air filter. If your air filter is a paper element, gently tap it to remove dust. If it is very dirty, or if it is a foam element, replace it with a new one. Do not attempt to clean a foam element, as this can compromise airflow.
If you are cleaning a paper element, ensure you do not use gasoline or low flash-point solvents. Once the paper element is clean, reinstall the air filter inside the housing, and then reinstall the air cleaner cover, making sure it is secure. Finally, reconnect the spark plug ignition wire, and your tiller is ready to use.
It is recommended that you clean or replace your engine air filter every 50 operating hours, or more frequently in dry and dusty conditions.
Fuel Filters: Where Are They on the Fuel Return Line?
You may want to see also
Frequently asked questions
You can try running the engine on the gravity system with the fuel line disconnected to see if fuel comes out. If it doesn't, go back a step and try again until you find the blockage. You can also try cleaning the carburetor with a fine wire or a carb kit.
There could be debris in the float bowl and the jet where the bowl nut threads into the bottom of the carb. You can also try setting the choke to start, and then releasing it when the engine backfires.
Check the fuel tank port for debris, the fuel filter for clogs, and the fuel float needle for debris. You can also try replacing the air filter or dropping the carburetor bowl.
