Regan Brown

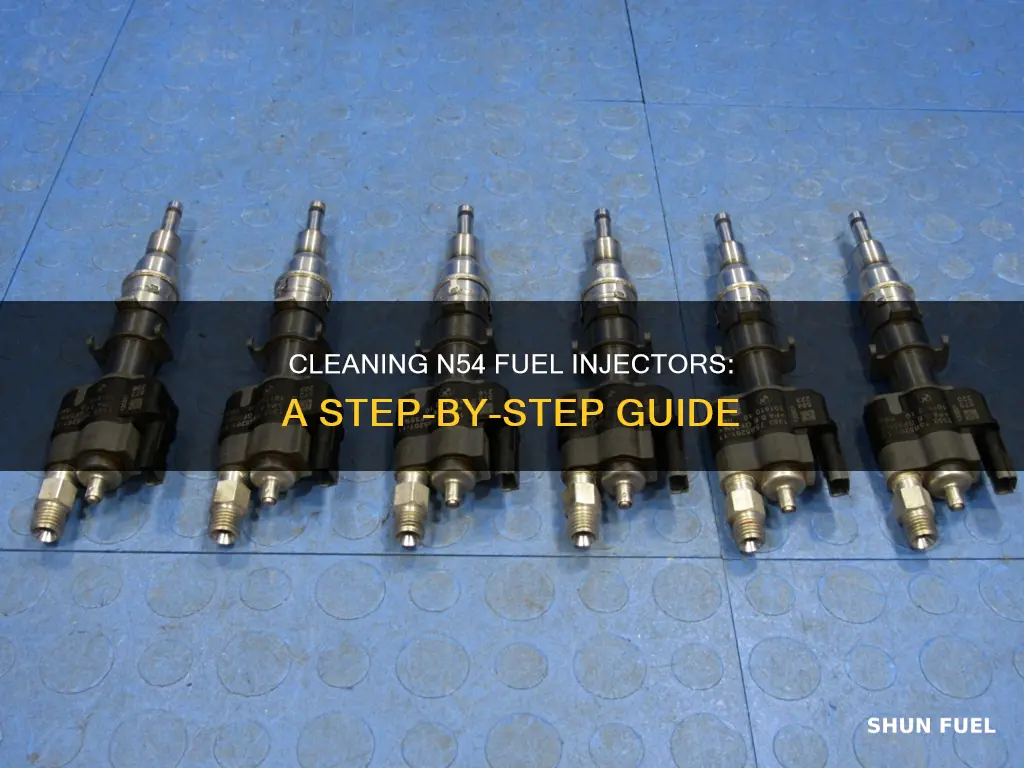

BMW's N54 engine is a popular choice for car enthusiasts due to its potential for high performance. However, the N54 fuel injectors are piezo-electric injectors, which are more similar to diesel injection systems than regular gas injectors. This means that they are prone to clogging and can be affected by foreign debris. To clean your N54 fuel injectors, you can either send them out for professional cleaning or replace them yourself. Professional services include cleaning, testing, and flow analysis, but can be costly and time-consuming. Alternatively, you can purchase a fuel injector cleaner or additive to remove carbon and other deposits, or you can attempt to replace the injectors yourself, which will require a calibration process.
Characteristics and Values Table for Cleaning N54 Fuel Injectors
| Characteristics | Values |
|---|---|
| Injector Type | Piezoelectric Injectors |
| Injector Kit | N54 Injector Kit |
| Calibration Tools | INPA, ISTA, or any other scan tool capable of DME calibration |
| Cleaning Service | $45 per injector |
| Cleaning Process | Removal of compression seal, inlet piping, filter, external grease, oils, and gasoline |
| Testing Process | Real-time oscilloscope testing, parts replacement, precision measurement of liquid flow |
| Turnaround Time | 18-24 business days |
| Common Failure | Clogging and foreign debris restricting flow |
| Fuel Cleaner Additive | Octanium Unleaded, 7-in-1 Fuel Treatment |
Explore related products
What You'll Learn
Calibrating the flow rates for direct injectors
To calibrate fuel injectors, you will need to gather the necessary tools and equipment, including a torque wrench, socket set, pressure gauges, and the manufacturer's calibration specifications. It is important to refer to the manufacturer's guidelines throughout the calibration process. The first step is to remove the fuel injectors from the engine, ensuring that each injector is labelled to maintain their original positions.
The next step is to set up the injectors for calibration. Connect the injectors to the fuel rail, pump, and regulator, simulating their configuration in the vehicle. The injector should spray into a collection vessel, such as a graduated cylinder for measuring volume or a test tube for weighing the fuel. The fuel pressure is typically around 3.5 bar (350kPa or 50 psi) for automotive systems.
To measure the flow rate, power up the pump and open the injector for several seconds. Ensure that the injector does not overheat, as low impedance injectors can heat up quickly and may be damaged if kept on for too long. Measure the amount of fuel delivered and the time the injector was held open. Calculate the flow rate by dividing the weight of the fuel delivered by the time. For example, if 25 grams of fuel were delivered in 10 seconds, the flow rate would be 2.5 grams per second.
The injector opening time is another critical factor in calibration. During the "injector opening time," very little fuel is delivered. Once the injector is fully open, fuel is delivered at a constant rate. To determine the injector opening time, actuate the injector multiple times at a consistent injection duration. For example, operate the injector at 1.5 milliseconds one thousand times by connecting it to the controller and simulating the speed signal.
After calibrating the injectors, they can be reinstalled into the engine, following the manufacturer's torque specifications. Start the engine and monitor its performance to ensure the injectors are functioning correctly. Conduct a final check to verify that each injector delivers the desired flow rate at the correct pressure and timing. Finally, perform a test drive to assess the engine's overall performance and fuel efficiency with the newly calibrated injectors.
The Polarity Puzzle: Fuel Injector Wire Woes in Duramax Engines
You may want to see also
Explore related products
Removing the cowl cover/air filter housing
First, gather the necessary tools, such as a flat-head screwdriver and expanding rivet pliers. The cowl cover is typically held in place with clips and expanding rivets, so having the right tools on hand will make the removal process easier. Once you have the tools, locate the cowl cover, which is usually found near the rearmost injector feed line and injectors.
To remove the cowl cover, start by using the flat-head screwdriver to carefully pry it off. Be gentle to avoid damaging the surrounding components or the cowl cover itself. Once the clips are disengaged, use the expanding rivet pliers to remove the expanding rivets that are holding the cowl cover in place. With the clips and rivets removed, the cowl cover should come off easily. Set it aside in a safe place to ensure it doesn't get damaged or lost during the rest of the fuel injector replacement process.
With the cowl cover out of the way, you can now access the rearmost injector feed line and injectors. The next step is to remove the ignition coil by pulling up on the lock tab and disconnecting the connector. After the connector is disconnected, pull the coil off the plug. It is recommended to remove all six ignition coils simultaneously to streamline the process.
By following these steps, you will successfully remove the cowl cover/air filter housing and be one step closer to accessing and replacing the fuel injectors in your BMW N54-powered vehicle. Remember to work carefully and have the necessary tools on hand to make the process smoother and to avoid any potential damage to your car's components.
Fuel Injectors in Crown Victorias: What You Need to Know
You may want to see also
Explore related products
Using a fuel injector cleaner
One of the easiest ways to clean clogged fuel injectors is by using a high-quality fuel injector cleaner. These can be found at most auto parts retailers. Products like Techron Fuel Injector Cleaner, Lucas Injector Cleaner, or Techron Fuel System Cleaner are designed to break down deposits in the injectors. Simply add the recommended amount of cleaner to your fuel tank and drive as usual to let the cleaner work through the system.
For a more thorough cleaning, consider using a fuel injector cleaner kit. This process requires disconnecting the fuel rail and throttle body, attaching the cleaner directly to the system. The cleaner runs through the injectors without the interference of fuel from the tank, providing a deep clean that removes stubborn buildup.
Some types of cleaning kits will come in an aerosol can similar to carb cleaner, while more professional-grade kits require a source of compressed air to force their compounds through the injector plug and blow any contaminants out of the nozzle. If you're not experienced with auto maintenance, consult a professional mechanic.
To prevent clogged fuel injectors in the future, use fuel additives periodically and keep your fuel system clean. For vehicles that you plan to store over the long term, pour a fuel stabilizer additive into the tank and plan to run the engine in your driveway or around the block for at least a few minutes every couple of weeks to keep the fuel flowing.
Fuel Injectors for Toyota Camry: How Many Are Needed?
You may want to see also
Explore related products
Cleaning and testing services
Injector-Rehab:
Injector-Rehab specializes in BMW N54 Piezoelectric Injector Cleaning and Flow Testing. They do not perform "before" testing, assuming that all injectors require cleaning. Their service includes testing the injectors at actual operating pressures, which can go as high as 400 bar, using specialized test equipment. The testing process involves analyzing the waveform of the injectors through a built-in oscilloscope on the flow bench, which allows them to understand the injector's "turn-on" point and hold current. Injector-Rehab's turnaround time is approximately 18-24 business days, and they have a two-injector minimum.
The Injector Shop:
The Injector Shop offers cleaning and testing services for BMW N54 Piezo GDI injectors. They utilize specialized GDI test equipment and precision measuring devices to test the injectors at operating pressures against OEM BMW test plans. This allows for precise measurement and digital analysis against the flow test plans set by the injector manufacturer. The Injector Shop's service costs $45 per injector, and they provide easy-to-understand computer-generated test results.
Spool Performance:
Spool Performance provides a BMW N54 Piezo DI Injector cleaning service, which includes testing the injectors through a test program that mimics the actual operating parameters at the pressures found in the vehicle. They can test the injectors at up to 400 bar pressures with varying pulse widths using their specialized testing equipment. Spool Performance offers a 10% discount to existing customers, and they provide a full analysis report with all test results at various operating pressures and pulses.
It is important to note that these services are not quick processes, and customers should expect a turnaround time of several business days to a few weeks. Additionally, some companies, like Injector-Rehab, do not offer refunds on injectors that fail the testing or are counterfeit.
Cleaning E30 Fuel Injectors: A Step-by-Step Guide
You may want to see also
Explore related products
Checking for fuel leaks
A faulty N54 fuel injector can cause a multitude of problems for your engine, so it's important to regularly check for fuel leaks and other issues.
One of the first signs of a faulty N54 fuel injector is increased fuel consumption in your engine, as fuel may not be combusted effectively in the cylinder. This can lead to uncombusted fuel mixing with the exhaust gases, resulting in black tailpipe emissions. If you notice a thick cloud of black smoke when you accelerate, it's a good idea to check your injectors.
Another sign of a faulty injector is difficulty starting your car. If your engine cranks but doesn't turn over, it could be due to the injectors not spraying enough fuel into the cylinders. This can also cause misfires on startup and while driving.
To check for fuel leaks, you can start by looking for any error codes that may indicate a problem with the fuel injectors. Plug a diagnostic device into your vehicle to read these codes. Some common error codes related to fuel injectors include those indicating fuel entering the catalytic converter, which can cause irreparable damage over time.
Additionally, keep an eye out for physical signs of leakage, such as wet spark plugs, which can indicate an internal leak in the injector. This can make ignition more difficult and cause misfires.
It's important to address fuel injector issues promptly to prevent costly engine failure or even an engine fire. Regular maintenance and servicing of your BMW N54 engine are crucial to ensure optimal performance and prevent problems.
Fuel Additives: Mixing Octane Booster and Injector Cleaner
You may want to see also
Frequently asked questions
The N54 fuel injectors are piezo-electric injectors, which have more in common with diesel injection than regular gas injectors. The main failure on earlier injectors is clogging and foreign debris restricting flow.
You can use a fuel injector cleaner to clean your N54 fuel injectors. Alternatively, you can send your injectors to a company that provides injector cleaning services.
First, remove the cowl cover/air filter housing to access the injectors. Then, remove the ignition coil by pulling the lock tab up and the connector out. After that, pull the coil off the plug. Now you can start removing the injectors. Once you've replaced the injectors, check for any fuel leaks. If there aren't any, perform a DME calibration for the new fuel injectors using a tool like INPA or ISTA.
Some signs that your N54 fuel injectors may need to be cleaned or replaced include decreased engine performance, higher fuel consumption, and rough idling.
