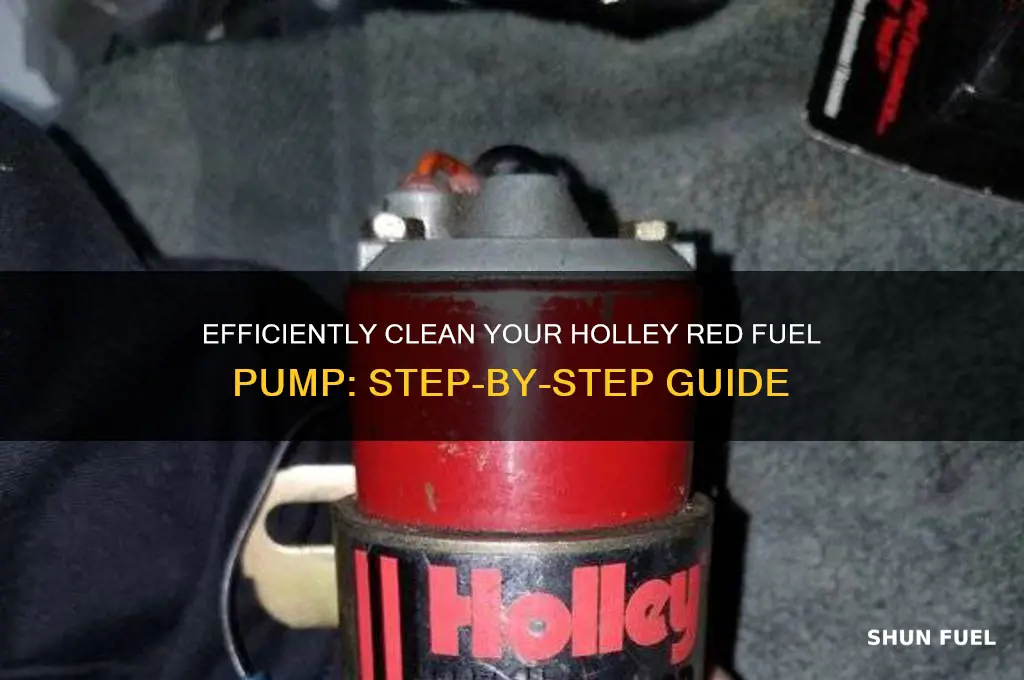

Cleaning a Holley Red fuel pump is essential for maintaining optimal performance and ensuring reliable fuel delivery in your vehicle. Over time, dirt, debris, and varnish can accumulate within the pump, leading to reduced efficiency or even failure. To clean the Holley Red fuel pump effectively, start by disconnecting the fuel lines and removing the pump from the vehicle. Disassemble the pump carefully, taking note of the components' arrangement for reassembly. Use a suitable solvent, such as carburetor cleaner, to dissolve and remove any buildup from the internal parts, including the diaphragm, valves, and housing. After cleaning, rinse the components thoroughly with clean solvent and allow them to dry completely. Reassemble the pump, ensuring all parts are properly seated and secured, then reinstall it in the vehicle. Regular maintenance and cleaning of the Holley Red fuel pump will prolong its lifespan and keep your fuel system operating smoothly.
| Characteristics | Values |
|---|---|
| Disassembly | Remove the pump from the vehicle, disassemble by removing the inlet and outlet fittings, and take off the cover to access internal components. |
| Cleaning Solution | Use a carburetor or fuel injection cleaner (e.g., Berryman B-12, Sea Foam) or a mixture of isopropyl alcohol and water. |
| Cleaning Method | Soak components (diaphragm, valves, springs) in the cleaning solution for 20-30 minutes, then scrub with a soft brush. Avoid harsh chemicals that may damage the diaphragm. |
| Diaphragm Inspection | Check for cracks, tears, or deformities; replace if damaged. Holley red fuel pumps use a neoprene diaphragm. |
| Valve and Seat Cleaning | Clean the inlet and outlet valves and seats with a soft brush or carburetor cleaner to ensure proper sealing. |
| Spring Inspection | Inspect the springs for fatigue or damage; replace if necessary. |
| Reassembly | Reassemble the pump in reverse order, ensuring all components are properly seated and tightened. Apply a light coat of vacuum grease to the diaphragm if recommended. |
| Lubrication | Use a small amount of silicone grease on O-rings and seals to prevent leaks. |
| Testing | Test the pump for proper operation by applying vacuum and checking for leaks or proper fuel flow. |
| Frequency of Cleaning | Clean every 10,000-15,000 miles or if fuel flow issues arise. |
| Replacement Parts | Available from Holley or authorized dealers; ensure compatibility with the red fuel pump model. |
| Safety Precautions | Work in a well-ventilated area, avoid open flames, and wear protective gloves when handling chemicals. |
Explore related products
What You'll Learn
- Disassembly Steps: Safely remove components for cleaning without causing damage to the pump
- Cleaning Solutions: Use recommended solvents to remove dirt, varnish, and debris effectively
- Inspecting Parts: Check diaphragms, valves, and gaskets for wear or damage during cleaning
- Reassembly Tips: Properly reinstall components, ensuring seals and connections are secure
- Testing Procedure: Verify pump functionality and pressure after cleaning for optimal performance
Disassembly Steps: Safely remove components for cleaning without causing damage to the pump
Before disassembling your Holley Red fuel pump, gather the necessary tools: a wrench or socket set, screwdrivers, and a clean workspace with a parts tray. Lay out components in order of removal to simplify reassembly. Start by relieving fuel system pressure—disconnect the battery and run the engine until it stalls, ensuring safety and preventing spills.
Begin disassembly by removing the fuel lines. Loosen the fittings with a wrench, but avoid over-tightening on reassembly to prevent damage. Next, detach the pump’s mounting bolts, taking note of their positions for accurate reinstallation. Lift the pump carefully, ensuring no residual fuel spills onto surrounding components.
With the pump removed, focus on the inlet and outlet check valves. These are critical for maintaining fuel flow direction. Use a small screwdriver to gently pry them out, inspecting for wear or debris. Clean these valves with carburetor cleaner, ensuring no residue remains. Avoid using abrasive materials that could scratch surfaces and compromise sealing.
Finally, disassemble the pump’s diaphragm and housing. Remove the retaining screws and lift the diaphragm assembly, noting its orientation. Inspect the diaphragm for cracks or tears, replacing it if necessary. Clean the housing and internal components with a non-corrosive solvent, ensuring all passages are clear. Reassembly should mirror these steps in reverse, ensuring all components are securely seated without overtightening.
Troubleshooting Electric Fuel Pump Wiring: A Comprehensive Step-by-Step Guide
You may want to see also
Explore related products
Cleaning Solutions: Use recommended solvents to remove dirt, varnish, and debris effectively
The Holley Red fuel pump's performance hinges on cleanliness, and the right solvents are your secret weapon. Dirt, varnish, and debris accumulate over time, restricting fuel flow and compromising efficiency. To combat this, Holley recommends specific cleaning solutions designed to dissolve these contaminants without damaging the pump's components. Carburetor cleaner, a common choice, effectively breaks down varnish and gum, but it’s crucial to select a non-corrosive, ethanol-free formula to protect the pump’s internal parts. For stubborn deposits, a mixture of mineral spirits and a small amount of acetone can be used, but always follow Holley’s guidelines to avoid chemical reactions that could harm the pump.
When applying solvents, precision is key. Start by disassembling the pump according to the manufacturer’s instructions, ensuring all gaskets and seals are removed. Submerge the components in the cleaning solution for 15–20 minutes, allowing the solvent to penetrate and loosen the buildup. Use a soft-bristle brush to gently scrub away remaining debris, paying special attention to passages and small crevices. Rinse thoroughly with clean solvent or distilled water to remove any residue, as leftover chemicals can contaminate the fuel system. Proper ventilation is essential during this process, as fumes from solvents can be hazardous.
Comparing cleaning methods reveals the superiority of recommended solvents over DIY alternatives. While household cleaners like vinegar or dish soap may seem convenient, they lack the strength to dissolve varnish and can leave behind residue that clogs the pump. Similarly, abrasive tools or harsh chemicals risk scratching or corroding the pump’s surfaces, leading to premature failure. Holley’s approved solvents are formulated to balance effectiveness and safety, ensuring thorough cleaning without compromising the pump’s integrity.
A practical tip for maintaining long-term cleanliness is to incorporate regular cleaning into your maintenance routine. For pumps in frequent use, a quarterly cleaning can prevent the buildup of contaminants. After cleaning, reassemble the pump with new gaskets and seals to ensure an airtight seal. Test the pump for leaks and proper operation before reinstalling it in your vehicle. By using the right solvents and techniques, you’ll not only restore the pump’s performance but also extend its lifespan, saving time and money in the long run.
In conclusion, the effectiveness of cleaning a Holley Red fuel pump relies heavily on the solvents used. By choosing recommended solutions, applying them methodically, and adhering to safety precautions, you can achieve professional-grade results. This approach not only ensures optimal fuel delivery but also preserves the pump’s functionality for years to come. Remember, the goal is not just to clean but to protect—a principle that applies as much to fuel pumps as it does to any precision machinery.
Removing Fuel Pump Relay in a 1998 Nissan Frontier: Step-by-Step Guide
You may want to see also
Explore related products
Inspecting Parts: Check diaphragms, valves, and gaskets for wear or damage during cleaning
During the cleaning process of a Holley Red fuel pump, inspecting internal components is crucial for ensuring optimal performance and longevity. Diaphragms, valves, and gaskets are particularly vulnerable to wear and tear due to constant exposure to fuel and mechanical stress. Even minor damage, such as cracks, warping, or brittleness, can lead to fuel leaks, reduced pressure, or complete pump failure. Therefore, a meticulous examination of these parts is essential before reassembly.
Begin by disassembling the fuel pump according to the manufacturer’s instructions, ensuring all components are laid out in an organized manner. Inspect the diaphragms for signs of deterioration, such as thinning material, punctures, or stiffness. A healthy diaphragm should be flexible yet resilient, capable of withstanding the pump’s pressure cycles. If the diaphragm shows any signs of wear, replace it immediately to prevent fuel contamination or loss of efficiency. Holley offers replacement diaphragms specifically designed for their Red fuel pumps, ensuring compatibility and performance.
Next, examine the valves for wear or debris buildup. Valves control the flow of fuel into and out of the pump, and any damage can disrupt this process. Look for pitting, erosion, or a rough surface on the valve seats, which can cause improper sealing. Use a magnifying glass if necessary to detect fine cracks or imperfections. Clean the valves with a solvent-safe brush and carburetor cleaner, ensuring all residue is removed. If the valves are damaged beyond cleaning, replace them to maintain proper fuel delivery.
Gaskets play a critical role in sealing the pump’s internal chambers, preventing leaks and maintaining pressure. Inspect gaskets for brittleness, tears, or compression set, which occurs when the gasket loses its ability to rebound after being compressed. Even a small leak can compromise the pump’s performance, leading to fuel starvation or pressure loss. Replace gaskets with genuine Holley parts to ensure a precise fit and reliable seal. Silicone-based gaskets are often recommended for their durability and resistance to fuel degradation.
In conclusion, inspecting diaphragms, valves, and gaskets during the cleaning process is a proactive measure to identify potential issues before they escalate. By replacing worn or damaged components, you ensure the Holley Red fuel pump operates efficiently and reliably. This step not only extends the pump’s lifespan but also safeguards your vehicle’s fuel system from avoidable failures. Always refer to Holley’s service manual for specific part numbers and reassembly instructions to maintain factory standards.
How BMW Fuel Pump Control Modules Fail: Causes and Fixes
You may want to see also
Explore related products
Reassembly Tips: Properly reinstall components, ensuring seals and connections are secure
Reassembly is a critical phase in the maintenance of a Holley Red fuel pump, where precision and attention to detail can make the difference between a smoothly functioning system and potential leaks or failures. Begin by laying out all components in the order they were removed, ensuring nothing is missing or misplaced. This systematic approach not only streamlines the process but also minimizes the risk of overlooking a crucial step. Before reinstalling any part, inspect seals, gaskets, and O-rings for wear, cracks, or deformation. Replace any compromised components with genuine Holley parts to maintain optimal performance and reliability.
When reinstalling the pump body, align it carefully with the mounting surface, ensuring threads are clean and undamaged. Tighten bolts in a diagonal pattern to achieve even pressure distribution, using a torque wrench to meet the manufacturer’s specifications—typically 15 to 20 foot-pounds for Holley Red fuel pumps. Over-tightening can warp the housing, while under-tightening may lead to leaks. For threaded connections, apply a thin coat of thread sealant (e.g., Loctite 565) to enhance sealing without risking contamination of the fuel system.
Electrical connections demand equal scrutiny. Reconnect wiring harnesses securely, ensuring terminals are free of corrosion or debris. Use dielectric grease on connectors to protect against moisture and corrosion, which can cause intermittent operation or failure. Test the pump’s electrical functionality before fully reassembling the unit to confirm proper operation. If the pump fails to prime or runs erratically, recheck connections and inspect for loose wires or damaged components.
Finally, reattach fuel lines with care, ensuring clamps are snug but not overtightened, as this can damage the lines. Use new hose clamps if the originals show signs of fatigue or corrosion. Once reassembled, perform a leak test by pressurizing the system and inspecting all joints for fuel seepage. A small spray bottle with soapy water can help detect even minor leaks. Address any issues immediately, as fuel leaks pose safety risks and can compromise engine performance. Proper reassembly not only restores functionality but also extends the pump’s lifespan, ensuring it operates efficiently for years to come.
Step-by-Step Guide to Testing Your External Electric Fuel Pump
You may want to see also
Explore related products
Testing Procedure: Verify pump functionality and pressure after cleaning for optimal performance
After cleaning your Holley Red fuel pump, the critical next step is verifying its functionality and pressure to ensure optimal performance. This process not only confirms the success of your cleaning efforts but also safeguards your engine from potential fuel delivery issues. Begin by reconnecting the pump to your fuel system, ensuring all fittings are tight and fuel lines are securely attached. Use a fuel pressure gauge to measure the output, comparing it against the Holley Red pump’s specified operating pressure range, typically 6 to 8 psi for carbureted applications. If the gauge reads outside this range, inspect for leaks or recalibrate the pump’s regulator.
A systematic testing procedure involves priming the pump before starting the engine. Turn the ignition to the "on" position for 10–15 seconds to allow the pump to build pressure, then check for consistent fuel flow at the carburetor inlet. Start the engine and monitor the pressure gauge while idling and under load. Fluctuations or drops in pressure may indicate residual debris or a faulty diaphragm, requiring further inspection. For electric Holley Red pumps, verify the amperage draw using a multimeter; it should align with the manufacturer’s specifications, typically 3–5 amps at operating pressure.
To ensure accuracy, perform a static pressure test with the engine off. Disconnect the fuel line at the carburetor and place the gauge inline. Activate the pump and observe the pressure; it should stabilize within 30 seconds. If the pressure fails to hold, check the check valve for proper operation. A failing check valve allows fuel to drain back into the tank, compromising performance. Replace the valve if necessary, as it is a common wear point in fuel pumps.
Practical tips include using a catch container during testing to prevent fuel spillage and employing a pressure regulator test kit for precise adjustments. Always test the pump in a well-ventilated area, away from open flames or sparks, due to the flammable nature of fuel. For older Holley Red pumps, consider upgrading to a modern electric model if consistent pressure issues persist, as age-related wear can compromise performance despite thorough cleaning.
In conclusion, verifying pump functionality and pressure post-cleaning is a non-negotiable step in maintaining fuel system reliability. By following a structured testing procedure, you not only confirm the pump’s operational integrity but also identify potential issues before they escalate. This proactive approach ensures your Holley Red fuel pump delivers consistent fuel flow, optimizing engine performance and longevity.
Understanding Outboard Fuel Pump Mechanics: A Comprehensive Guide
You may want to see also
Frequently asked questions
Cleaning frequency depends on usage and fuel quality, but it’s recommended to inspect and clean the pump every 10,000 miles or if you notice reduced performance.
You’ll need a wrench or socket set, carburetor cleaner, a soft brush or cloth, and a container to catch fuel. Always work in a well-ventilated area and avoid open flames.
No, regular soap and water are not suitable. Use carburetor cleaner specifically designed for fuel systems to ensure proper cleaning without damaging components.
