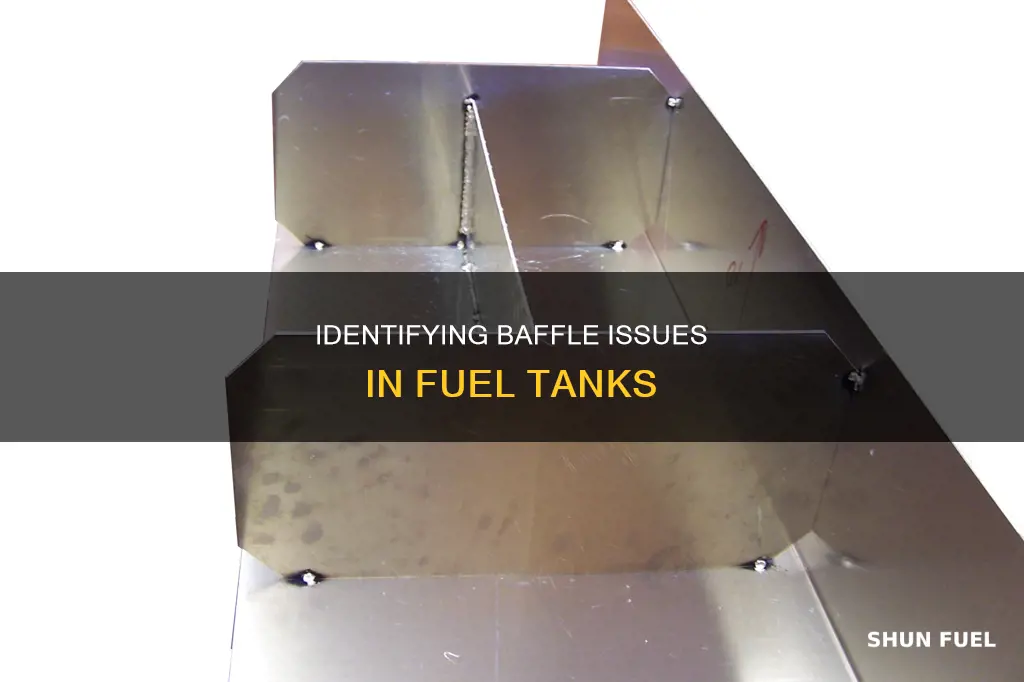

Baffles are plates in fuel tanks that prevent fuel sloshing, which can cause fluctuations in readings and even fuel starvation. To check for issues with baffles, one can observe the behaviour of the fuel gauge at different levels of incline and decline. If the fuel level readings fluctuate, it could indicate an issue with the baffles. Another method is to remove the sender and inspect it, replacing it if it is not within specifications. Additionally, the float arm may need adjusting if the gauge sweep is off. In some cases, it may be necessary to cut open the tank and insert or adjust baffles to ensure they are in the proper location and effectively control fuel sloshing.
| Characteristics | Values |
|---|---|
| Baffle Issues | Fuel starvation, fluctuating readings, incorrect gauge readings |
| Causes | Incorrect baffle placement, short arm float, improper mounting of the fuel pump, inadequate pickup tube length |
| Solutions | Consult experts, adjust float arm, replace sender, add a day tank, install interlocking baffle plates, use a scavenge pump with a fuel/air separator, weld in baffles, use a strain gauge to measure fuel weight |
Explore related products
What You'll Learn
Baffle location and fuel starvation
Baffles are used in fuel tanks to prevent fuel from sloshing around during movement, which can cause fuel starvation. Fuel starvation occurs when the fuel pump is unable to draw fuel due to the movement of fuel inside the tank. This can be caused by improper baffle placement, with some tanks having baffles that are too far back, causing issues with filling the tank and allowing the fuel too much movement during acceleration. The location of the fuel pump can also contribute to fuel starvation, with pumps mounted at the front corner of the tank causing issues during right turns.
In racing applications, fuel starvation can affect lap times and speed in the corners, as the fuel is pulled away from the pump during certain turns. To solve this issue, the baffled area for the fuel pump needs to be optimized to control fuel slosh. This can be achieved by ensuring the baffle is built around the pump rather than the overall size of the tank. Additionally, the size and shape of the baffle are critical in preventing fuel starvation. NASA studies have shown that the ideal baffle design consists of rigid annular rings, but this adds significant weight to the vehicle, making it unsuitable for automobiles. Alternative designs, such as semi-round baffles in different locations or a traverse baffle molded into the tank, offer lighter weight but may be more complex to manufacture or provide inadequate support.
In some cases, the use of a fuel cell is a viable solution to control fuel slosh, especially in drag racing. However, this option may not be ideal for regular drivers as it sacrifices valuable trunk space and fuel volume. Another method to manage fuel slosh is to use a strain gauge to measure the weight of the fuel tank and calculate the volume of liquid, avoiding any modifications to the inside of the fuel tank. While this approach eliminates the need for drilling holes or mounting sensors, it presents challenges in finding suitable mounting locations and compensating for mounting pressure.
The placement of baffles within a fuel tank is critical to their effectiveness in preventing fuel starvation. Improper baffle location can hinder their ability to control fuel slosh and maintain stable fuel supply during vehicle maneuvers. It is important to consider the design and placement of baffles in relation to the fuel pump to ensure optimal performance and mitigate issues related to fuel starvation.
Fuel Tank Maintenance: Adding a Strainer
You may want to see also
Explore related products
Fuel sloshing and measurement
Fuel sloshing is a highly nonlinear oscillatory movement of the free surface of liquid inside a container, such as a fuel tank, under the effect of continuous or instantaneous forces. This phenomenon can cause issues related to vehicle stability, safety, component fatigue, audible noise, vibrations, and fuel level measurement. It is particularly important to address fuel sloshing in vehicles with fuel injection systems, as consistent fuel pressure is necessary for proper functioning.
To prevent fuel sloshing, fuel tanks are often fitted with baffles, which are plates inside the tank that restrict the movement of the fuel. Baffles can be very effective in reducing sloshing, but their design and placement must be carefully considered. If baffles are not in the proper location, they may not control fuel sloshing effectively and can even make the problem worse. For example, if the fuel pump is mounted in the front corner of the tank, a poorly placed baffle can cause fuel starvation during certain types of turns.
Measuring fuel levels in a fuel tank with baffles can be challenging. Traditional methods such as float sensors may not work due to the presence of the baffle plate. Alternative methods such as radar sensors, ultrasonic sensors, or hall sensors may be used, but the baffle plate can interfere with their measurements. One possible solution is to measure the weight of the fuel tank using a strain gauge and calculate the volume of the liquid inside. However, mounting these sensors and compensating for mounting pressure can be difficult.
Another approach to fuel measurement in vehicles is to calculate fuel usage based on data from the ECU (Engine Control Unit) and a known starting quantity of fuel in the tank. This method does not require real-time fuel level measurements and may be sufficient for certain applications, especially if mid-event refueling is not required.
Fabricating a Fuel Tank Vent: A Comprehensive Guide
You may want to see also
Explore related products
$129.68
Fuel starvation and acceleration
Fuel starvation is a critical issue that can lead to engine failure and even accidents. It occurs when the fuel system fails to supply enough fuel for the engine to function properly, despite there still being fuel in the tank. This can be due to a variety of issues, such as blockage, vapor lock, water contamination, or a faulty fuel pump.
In the context of fuel tanks with baffles, fuel starvation can occur if the baffles are not in the correct location. For example, if the fuel pump is mounted at the front corner of the tank, right turns can pull the fuel away from the pump, resulting in fuel starvation. This can significantly impact lap times and speed in corners.
To address fuel starvation and acceleration issues, it is important to identify the root cause. Here are some steps to help diagnose and resolve the problem:
- Check the fuel filter: A dirty fuel filter can restrict fuel flow and cause starvation. Replace the filter and ensure it is clean and functioning properly.
- Inspect the fuel pickup: Ensure that the fuel pickup tube is clear of debris and properly positioned. A clogged or misaligned pickup can disrupt fuel delivery to the engine, leading to starvation during acceleration.
- Verify fuel pump functionality: A faulty or weak fuel pump may not be able to deliver fuel at the required pressure and flow rate during acceleration, resulting in starvation. Consider testing and replacing the pump if necessary.
- Examine the fuel tank and baffles: Ensure that the baffles are correctly positioned to control fuel slosh. If the baffles are in the wrong location, they can allow excessive fuel movement during acceleration, causing starvation.
- Check for leaks: Inspect the fuel system for any signs of leaks, as leaks can lead to insufficient fuel delivery to the engine during acceleration.
- Monitor fuel levels: Ensure that the fuel tank is adequately filled and that fuel levels are monitored to prevent running out of fuel during acceleration or extended use.
By systematically checking these areas, you can identify and address issues contributing to fuel starvation and acceleration problems. It is important to refer to manufacturer guidelines and seek professional assistance if needed, as fuel systems can be complex and vary across different vehicles.
Additionally, preventative measures can be taken to mitigate fuel starvation. This includes regular maintenance, such as cleaning or replacing fuel filters, ensuring correct fuel pump operation, and verifying that the fuel tank and baffles are in good condition. Proper fuel management is also crucial, especially for aircraft, to avoid selecting an empty tank or incorrect fuel quantity indicators.
Fueling Up: Efficiently Filling Your Tank with Bottles
You may want to see also
Explore related products
Fuel tank shape and size
The shape and size of a fuel tank are important factors to consider when addressing baffling issues. The placement of the fuel pump and fuel sender must be taken into account, and the baffling design must be built around these components, rather than simply the overall size of the tank.
The shape and size of the tank can impact the effectiveness of the baffling. For example, a tank that is lower in the front than the back may require a baffle to be mounted in the lowest section to prevent fuel from rushing away from the pickup during acceleration or cornering.
In some cases, the fuel tank shape and size may limit the options for baffling placement. For instance, a tank with a small cavity around the fuel pump may require small notches at the bottom to allow fuel to enter while also preventing it from escaping too quickly during spirited driving.
Additionally, the size and shape of the tank can influence the choice of baffle material. For instance, thicker baffles may be required for larger tanks to effectively control fuel slosh, while thinner baffles may be sufficient for smaller tanks.
Furthermore, the fuel tank shape and size can impact the overall cost and complexity of the baffling system. Custom-built tanks with unique shapes and sizes may require more specialised baffling solutions, which can increase the cost of the project.
It is important to note that not all fuel tanks require baffles. Some larger tanks, such as those found in Suburbans and Expeditions, do not have baffles, and the addition of baffles may not provide significant benefits for certain tank shapes and sizes.
Draining Fuel from a 1998 Ford F150: Step-by-Step Guide
You may want to see also
Explore related products
Fuel gauge accuracy
Fuel gauges should be calibrated to provide an accurate reading of the total usable fuel available. This is a requirement for flight crew members, who need to know the quantity of usable fuel in each tank during the flight.
There are several factors that can affect the accuracy of a fuel gauge. For example, if the fuel tank is not properly baffled, it can cause fuel starvation, impacting the accuracy of the gauge. In addition, factors such as the mounting location of the fuel pump, the shape and size of the tank, and the presence of a baffle plate can also affect fuel gauge accuracy.
Another factor that can impact fuel gauge accuracy is the fuel level and the position of the vehicle. For example, if a vehicle is parked on an incline, the fuel may rest on one side of the tank, causing the fuel gauge to deplete and then return to normal once the vehicle is level again. This can affect mileage and DTE calculations until the tank is refilled.
To ensure fuel gauge accuracy, it is recommended to have multiple means of cross-checking fuel levels. This can include visual checks of the fuel gauges, calculating fuel burn, and determining how long the aircraft can fly for, including any required fuel reserve. It is also important to consider the starting fuel amount and any potential errors in measurement or calculation.
In some cases, issues with fuel gauge accuracy may be due to problems with the fuel tank, fuel pump, or other components. It may be necessary to consult an expert or specialist to identify and resolve these issues.
Understanding Quarter Tank of Fuel: How Much is it?
You may want to see also
Frequently asked questions
If your fuel tank is baffle-less, you may experience fuel starvation issues, especially during hard turns or acceleration. Baffles are used to keep the fuel where it needs to be and prevent sloshing. If your vehicle experiences these issues, it may be due to a missing or improperly placed baffle.
You can visually inspect the fuel tank by cutting it open on one side or removing the top. This will allow you to see if there are baffles and if they are in the proper location.
Fluctuated fuel gauge readings, especially on inclines and declines, could indicate a baffle issue. If your vehicle runs out of gas when the gauge indicates there is still fuel, this could be due to the fuel sloshing away from the pump or filler tube.
