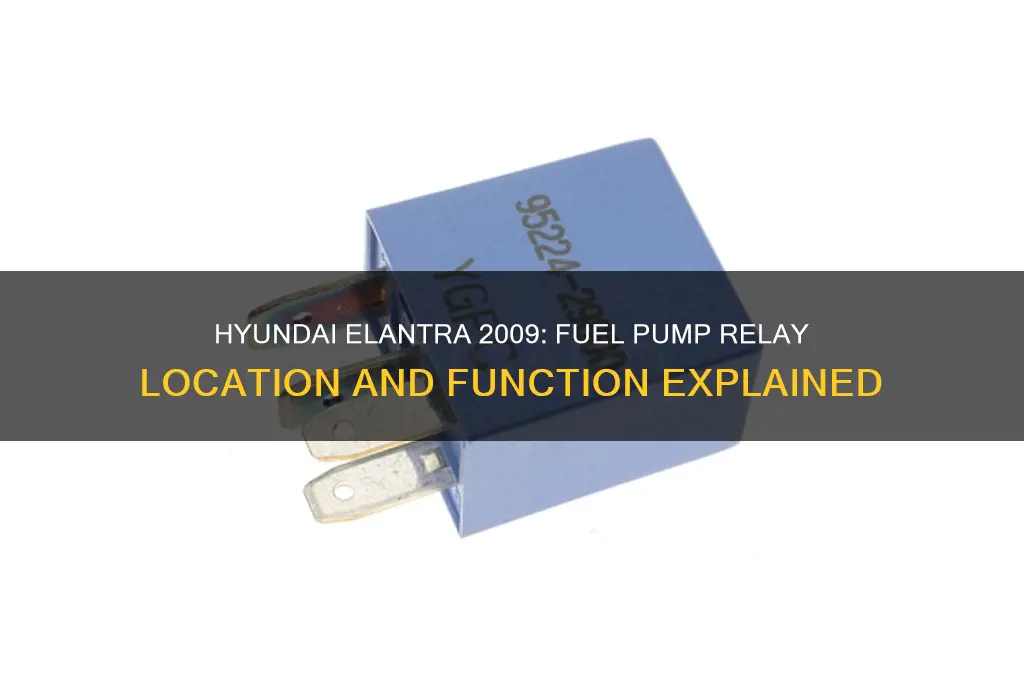

The 2009 Hyundai Elantra, like many modern vehicles, incorporates a fuel pump relay as part of its fuel delivery system. This relay plays a crucial role in controlling the operation of the fuel pump, ensuring it only activates when the engine is running or being started. Located in the fuse box, typically under the hood or near the driver's side dashboard, the fuel pump relay helps conserve energy and prevent the fuel pump from running continuously, which could lead to unnecessary wear or potential safety hazards. If you suspect issues with your Elantra's fuel pump relay, such as difficulty starting the engine or a lack of fuel pressure, it’s essential to inspect or test the relay for proper functionality. Consulting the vehicle’s manual or seeking professional assistance can help diagnose and resolve any related problems effectively.
| Characteristics | Values |
|---|---|
| Year & Model | 2009 Hyundai Elantra |
| Fuel Pump Relay Presence | Yes, the 2009 Hyundai Elantra is equipped with a fuel pump relay. |
| Location | Typically located in the engine bay fuse box or under the dashboard. |
| Function | Controls power supply to the fuel pump to prevent continuous operation. |
| Fuse Box Designation | Often labeled as "FP Relay" or "Fuel Pump Relay" in the fuse box diagram. |
| Replacement Part Number | Varies by manufacturer; common OEM part numbers include 95225-2D000. |
| Symptoms of Failure | Engine cranks but doesn’t start, no fuel pressure, or intermittent stalling. |
| Diagnostic Method | Check for power at the fuel pump connector or use a multimeter to test the relay. |
| Compatibility | Specific to 2009 Hyundai Elantra models; may vary by engine type (e.g., 2.0L). |
| Cost of Replacement | Approximately $20-$50 USD, depending on brand and retailer. |
| DIY Difficulty | Moderate; requires basic automotive knowledge and tools. |
Explore related products
What You'll Learn
Location of Fuel Pump Relay
The 2009 Hyundai Elantra does indeed have a fuel pump relay, a critical component in the vehicle's fuel system. This relay acts as a switch, controlling the flow of power to the fuel pump, ensuring it operates only when necessary. Locating this relay is essential for troubleshooting fuel-related issues or performing maintenance.
Identifying the Relay's Position:
In the 2009 Elantra, the fuel pump relay is typically found in the engine bay, within the fuse and relay box. This box is often located near the battery, making it relatively accessible for inspections and replacements. The exact position may vary slightly depending on the Elantra's trim and engine type, but it generally follows a consistent placement across models.
A Step-by-Step Guide to Locating the Relay:
- Open the hood and secure it in place.
- Identify the fuse and relay box, usually a black rectangular unit with a removable lid.
- Remove the lid to access the fuses and relays.
- Locate the fuel pump relay, often labeled as "FUEL PUMP" or "FP" on the box's diagram. It might be a black or gray rectangle with several pins.
- If unsure, consult the vehicle's manual for a detailed diagram of the fuse box layout.
Why Location Matters:
Knowing the fuel pump relay's location is crucial for several reasons. Firstly, it allows car owners to quickly diagnose potential fuel pump issues. If the engine cranks but doesn't start, a faulty relay could be the culprit. Secondly, for those comfortable with DIY repairs, accessing the relay enables them to test and replace it, potentially saving on repair costs.
Practical Tips:
- Always ensure the vehicle is turned off and the keys are removed before working in the engine bay.
- When handling relays and fuses, be gentle to avoid damage.
- If the relay is difficult to locate, consider taking a photo of the fuse box diagram for future reference.
- For those less experienced with car maintenance, consulting a professional mechanic is advisable to ensure accurate diagnosis and safe repairs.
Understanding the location and function of the fuel pump relay empowers car owners to take a proactive approach to vehicle maintenance, potentially saving time and money on repairs.
