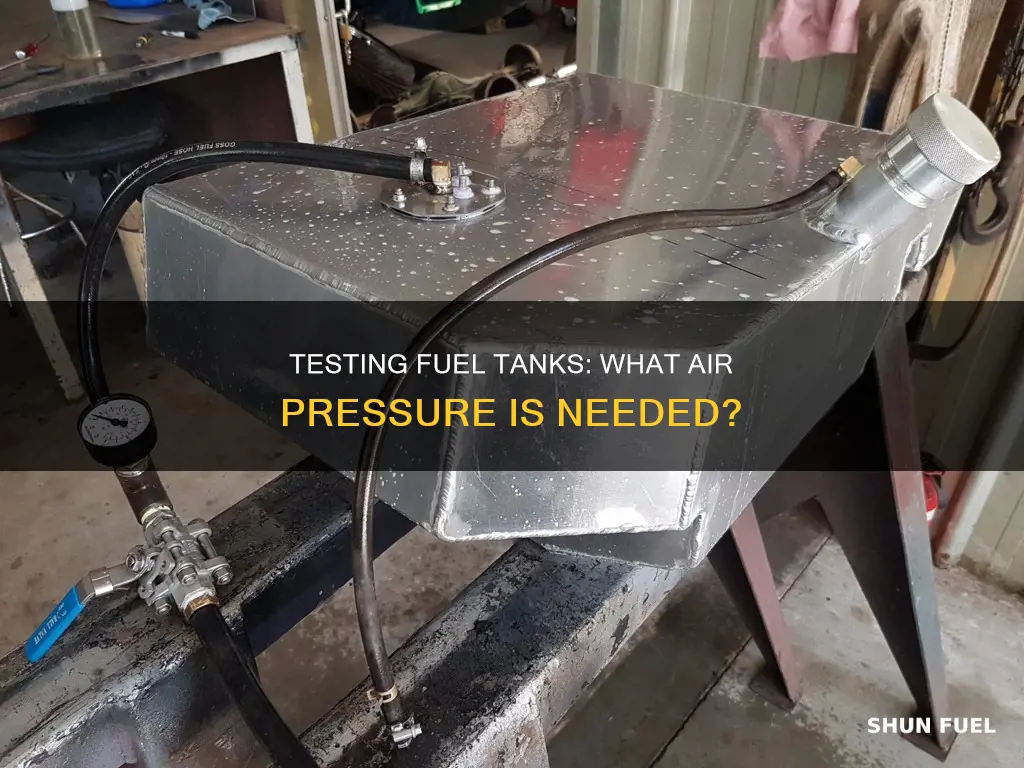

Fuel tank pressure testing is a crucial procedure that checks a fuel tank's ability to hold pressure. This process involves pressurizing the tank with compressed air and monitoring for leaks or pressure loss. It is important to understand the safe amount of air pressure to use when testing a fuel tank. Too much air pressure can destroy the tank, so it is recommended to not exceed 3 psi for square tanks and 5 psi for round tanks. This guide will explore the steps involved in fuel tank pressure testing and provide insights into the recommended air pressure levels to ensure safe and effective testing procedures.
Explore related products
What You'll Learn
The maximum air pressure is 3 psi for square tanks and 5 psi for round tanks
When testing a fuel tank, it is crucial to understand the maximum safe air pressure to avoid damaging the tank. The maximum air pressure recommended for testing fuel tanks varies depending on the shape of the tank. The standard guidelines state that the maximum air pressure is 3 psi for square tanks and 5 psi for round tanks.
It is important to note that exceeding these pressure limits can result in significant damage to the fuel tank. Too much air pressure can cause the welds to split and destroy the tank, which can be costly to repair or replace. Therefore, it is crucial to stay within the recommended pressure range during the testing process.
To test a fuel tank, it is recommended to use a low-pressure air gauge, typically ranging from 1 to 3 psi. This gauge can be connected to the fuel tank's Schrader valve, allowing you to monitor the pressure during the test. By slowly increasing the pressure in quick blasts, you can observe the pressure gauge to ensure it remains within the safe range.
Additionally, it is important to prepare the fuel tank before conducting the test. This includes ensuring the vehicle is parked on a level surface, the engine is turned off, and the fuel tank is not overfilled. It is also recommended to inform the mechanic of any recent issues with fuel efficiency or engine performance for accurate testing results.
While it is possible to perform a fuel tank pressure test independently, it is generally advised to seek a qualified mechanic due to the specialised tools and safety considerations involved. They will have the necessary equipment and expertise to safely test the fuel tank and identify any potential issues.
Get Your Fuel Oil Tank Approved: A Step-by-Step Guide
You may want to see also
Explore related products
Too much air can destroy the tank
When testing the pressure of a fuel tank, it is important to be aware that too much air pressure can cause damage to the tank. The maximum amount of air pressure that should be put into a fuel tank is three psi. Going above this limit can cause the welds to split and destroy the tank. This can occur even at pressures only slightly above the recommended level.
The amount of air pressure required to test a fuel tank will depend on the amount of fuel in the tank. It is recommended to slowly increase the air pressure in the tank in short bursts, monitoring the pressure gauge as you go. Once the pressure reaches two psi, it is advised to hold off and check whether the tank loses pressure. If the tank can withstand two psi without losing pressure, you can continue to slowly increase the pressure until you reach three psi.
It is important to be aware of the potential dangers of over-pressurising a fuel tank. As well as the risk of splitting welds and destroying the tank, there is also the possibility of fuel leakage, which can be dangerous and cause damage to the surrounding area. Therefore, it is crucial to take the necessary precautions when testing fuel tank pressure and to never exceed the recommended maximum pressure of three psi.
To test a fuel tank, it is recommended to use a low-pressure air pressure gauge that can be attached to a fuel hose with a Schrader valve. This will allow you to monitor the pressure in the tank as you slowly increase it. Additionally, it is important to close off all locations where air could escape, such as the fuel fill hose and the vent hose, to ensure an accurate reading.
By following these steps and being cautious of the maximum pressure limit, you can safely test the pressure of a fuel tank without risking damage or causing a dangerous fuel leak. It is always better to stay below the maximum pressure to avoid any potential issues and ensure the safety of yourself and those around you.
Auxiliary Fuel Tank Installation Guide for Toyota Pickups
You may want to see also
Explore related products
Use a low-pressure air gauge to monitor pressure
When testing the pressure in a fuel tank, it is important to understand how much air is safe to pump into the tank. If too much air is pumped in, the pressure can split the welds and destroy the tank. Therefore, it is crucial to monitor the pressure carefully. The maximum amount of air that should be put into a fuel tank is three psi, and it is recommended to stay around 2-2.5 psi.
To test the pressure in a boat fuel tank, you will need a few tools: a pair of hose pinch pliers, an inflatable pipe plug, and a low-pressure air gauge. First, locate the fuel fill hose, the vent hose access ports, and the fuel pick-up access. Install the inflatable pipe plug into the fuel fill port and pump it up to shut off the fuel fill hose. Then, pinch off the fuel tank vent hose.
Now, we need to set up the low-pressure air gauge to monitor the pressure. Remove the fuel hose from the pickup tube fitting and install the low-pressure air gauge and hose. Ensure that the gauge can be tee-ed into a 3/8" fuel hose with a Schrader valve. With everything set up, you can start filling the tank with air. It is important to work slowly and carefully, applying air in quick blasts and watching the low-pressure air gauge to monitor the pressure.
Do not exceed three psi, as this can damage the tank. Work your way up to two psi and hold it there to see if the tank begins to lose pressure. If there is a hole in the tank, 2-2.5 psi is enough to push fuel out and indicate the presence of a hole. Once the test is complete, remember to spray the sender, fittings, and ports with soapy water to check for air bubbles, which indicate leaks. This process allows you to safely test the pressure in a boat fuel tank using a low-pressure air gauge to monitor the pressure and ensure it does not exceed safe levels.
Filling Fuel Tanks: Slow and Steady Wins the Race
You may want to see also
Explore related products
Close off all openings where air could escape
When pressure testing a boat fuel tank, it is important to close off all openings where air could escape. This is a crucial step in the testing process, as it ensures the accuracy and effectiveness of the test. Here are the steps to achieve this:
Firstly, locate the fuel fill hose and the vent hose access ports, as well as the fuel pick-up access. These are the areas where air could potentially escape, so they need to be closed off. Get a pair of hose pinch pliers and an inflatable pipe plug. The pipe plug is a plumbing tool that can be purchased from a local hardware store. It fits into a pipe, and when pressure is applied, the plug expands and closes off the pipe, creating an airtight seal. Insert the inflatable pipe plug into the fuel fill port and pump it up to shut off the fuel fill hose. This will prevent air from escaping through this opening.
Next, use the hose pinch pliers to pinch off the fuel tank vent hose. By doing this, you are physically closing off the vent hose, ensuring that air cannot escape through this route. With these steps, you have now closed off two potential air escape routes.
Now, remove the fuel hose from the pickup tube fitting. This is done to prepare for the next step of installing the pressure gauge and hose. It is important to note that closing off all air escape routes does not mean completely sealing the tank. The next steps will involve introducing air into the tank, so it is crucial to have a controlled entry and exit point for the air, which is why the fuel hose is removed.
Finally, install the low-pressure air pressure gauge and hose. This gauge will allow you to monitor the air pressure inside the tank during the test. By following these steps, you have effectively closed off all openings where air could escape, ensuring that the pressure test of the boat fuel tank is accurate and safe. Remember, it is crucial to understand how much air is safe to introduce into the tank and to never exceed the maximum recommended pressure of 3 psi for boat fuel tanks.
Creating a Custom Fiberglass Fuel Tank for Your Motorcycle
You may want to see also
Explore related products
Spray the tank with soapy water to check for leaks
To test a fuel tank for leaks, it's important to understand how much air pressure is safe to use. The maximum amount of air that should be put into a fuel tank is three psi, with some sources recommending staying around 2-2.5 psi. If there is a hole in the tank, 2.5 psi is enough pressure to push fuel out and indicate a problem.
Once you have set up your equipment, it's time to start testing. Before pumping air into the tank, ensure you understand how much air is safe to use. Now, spray the tank with soapy water to check for leaks. This is a simple and safe method to identify any leaks and their severity. The soapy water solution can be placed in a spray bottle or other container. Liquid dishwashing soap will produce the most bubbles when mixed with water. Adjust the spray bottle tip to produce a sharp stream when the trigger is squeezed. This sharp stream will reach recessed connections and indicate any leaks with bubbles. Small bubbles indicate a small leak, while larger bubbles suggest a bigger issue.
The ratio of soap to water can vary, but a common recommendation is two parts water to one part soap. However, some people use less soap, and hot water can also be effective. The key is to create bubbles to show any leaks. You can also use dish detergent, which will produce bubbles when mixed with water. A small amount of detergent in a cup with water, shaken to create bubbles, can be an effective method.
Spraying the tank and its fittings with soapy water is a straightforward way to identify any leaks. It's important to take your time and thoroughly spray the entire tank, fittings, and ports. This method is a good starting point for checking the integrity of your fuel tank without the need for expensive tools or specialized equipment.
Draining the Holden Colorado Fuel Tank: A Step-by-Step Guide
You may want to see also
Frequently asked questions
If there is too much air pumped into a fuel tank, it can split the welds and destroy the tank. The maximum amount of air that should be put into a fuel tank is 3 psi.
The best way to test a fuel tank is to use a pressure gauge to monitor the pressure level over a period of time. This can help identify any leaks in the tank.
A cheap way to test for leaks in a fuel tank is to use a bicycle pump to pump air into the tank and then submerging the tank in water to check for leaks.
The safest way to test a fuel tank is to have a qualified mechanic perform the test using specialised equipment.
One of the most common issues with fuel tanks is leaks, which can pose a serious fire hazard and cause increased fuel consumption and engine performance issues.
