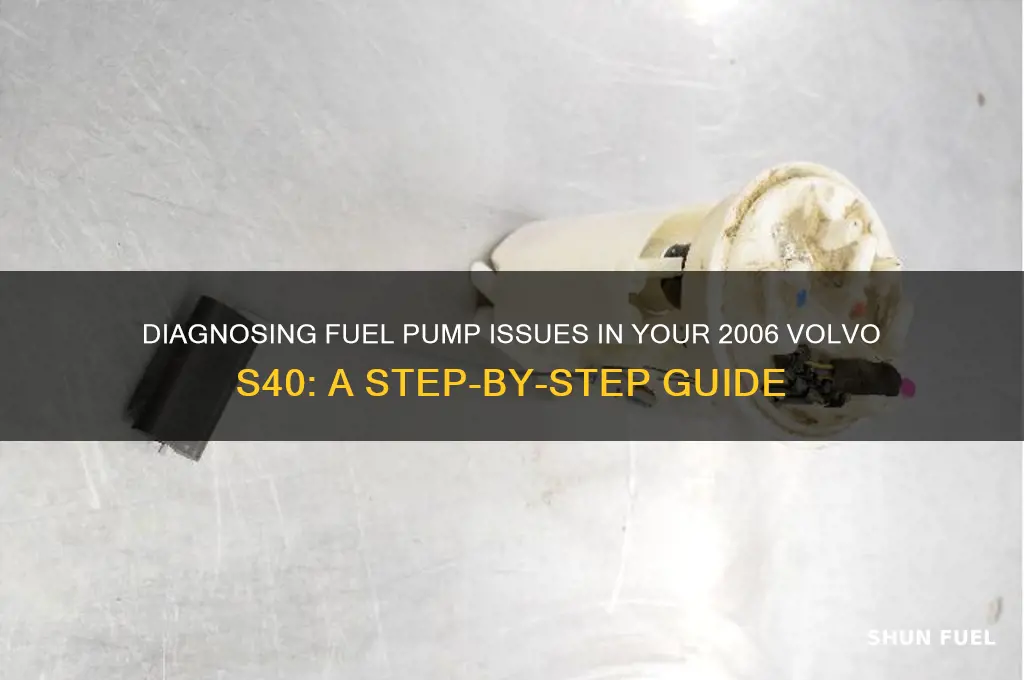

Checking the fuel pump on a 2006 Volvo S40 is essential for diagnosing potential fuel delivery issues that may cause poor engine performance or starting difficulties. To begin, ensure the vehicle is parked on a level surface and the ignition is turned off. Start by listening for the fuel pump’s priming cycle when you turn the key to the on position (without starting the engine); a faint humming sound near the fuel tank indicates the pump is functioning. If no sound is heard, use a fuel pressure gauge to test the pump’s output by connecting it to the fuel rail’s Schrader valve and cranking the engine. A reading within the manufacturer’s specifications confirms proper operation, while low or no pressure suggests a faulty pump. Additionally, inspect the fuel pump relay and fuse for damage or corrosion, as these components can also cause pump failure. If issues persist, consult a professional mechanic for further diagnosis and replacement.
| Characteristics | Values |
|---|---|
| Vehicle Model | 2006 Volvo S40 |
| Fuel Pump Location | Inside the fuel tank (access via rear seat or trunk panel) |
| Tools Required | Screwdriver, multimeter, fuel pressure gauge, safety gloves |
| Safety Precautions | Disconnect battery, relieve fuel system pressure, work in well-ventilated area |
| Fuel Pump Relay Location | Under the hood, in the fuse/relay box (check manual for exact location) |
| Fuel Pump Fuse | Typically located in the fuse box (refer to manual for fuse number) |
| Fuel Pressure Specification | 45-50 PSI (pounds per square inch) for Volvo S40 |
| Listening Test | Turn ignition to "ON" (do not start), listen for fuel pump hum (1-2 sec) |
| Multimeter Test | Check for power and ground at fuel pump connector with multimeter |
| Fuel Pressure Test | Connect gauge to fuel rail, check pressure with ignition on |
| Common Symptoms of Failure | Engine cranks but won’t start, stalling, loss of power, whining noise |
| Replacement Access | Remove rear seat or trunk panel to access fuel tank |
| Estimated Repair Time | 1-3 hours (depending on access and experience) |
| Professional Diagnosis Recommended | Yes, if unsure about testing or results |
Explore related products
$12.34 $12.99
What You'll Learn
- Fuel Pump Relay Test: Locate relay, swap with similar relay, check for power and ground
- Fuel Pressure Check: Use gauge to test pressure at rail, compare to specs
- Listen for Pump Hum: Turn key to position II, listen for pump noise in tank
- Inspect Fuel Pump Fuse: Check fuse box for blown fuse, replace if necessary
- Voltage Supply Test: Use multimeter to verify power supply to pump connector
Fuel Pump Relay Test: Locate relay, swap with similar relay, check for power and ground
A faulty fuel pump relay can mimic symptoms of a failing fuel pump, leading to misdiagnosis and unnecessary repairs. Before condemning the pump itself, testing the relay is a critical step in diagnosing fuel delivery issues on a 2006 Volvo S40. This process involves locating the relay, swapping it with a similar one, and verifying power and ground connections to isolate the problem.
Locating the Relay: The fuel pump relay in a 2006 Volvo S40 is typically found in the fuse box under the hood. Consult the owner’s manual or a repair guide for the exact location, as it may vary slightly depending on the model. The relay is often labeled and housed in a module with other relays and fuses. Its position is strategic, allowing for easy access during troubleshooting.
Swapping with a Similar Relay: Once located, identify a relay with the same part number or one that controls a non-critical function, such as the horn or interior lights. Swap the fuel pump relay with this similar relay to determine if the issue is relay-specific. If the fuel pump operates after the swap, the original relay is likely faulty. If not, the problem may lie elsewhere in the fuel system.
Checking for Power and Ground: With the relay removed, use a multimeter to test for power and ground at the relay socket. The fuel pump relay typically has four terminals: two for power (battery and switched ignition) and two for ground. Ensure the battery has at least 12 volts and that the ignition switch provides power when turned on. A lack of power or ground indicates a wiring issue rather than a relay problem.
Practical Tips and Cautions: Always disconnect the battery before working on electrical components to prevent short circuits. Label relay positions to avoid confusion during reassembly. If swapping relays doesn’t resolve the issue, inspect the fuel pump fuse and wiring harness for damage. A systematic approach ensures accurate diagnosis and prevents unnecessary part replacements. By testing the relay, you can save time and money while addressing fuel delivery problems effectively.
Step-by-Step Guide: Removing Fuel Pump in 2000 Ford Focus ZTS
You may want to see also
Explore related products
Fuel Pressure Check: Use gauge to test pressure at rail, compare to specs
A fuel pressure check is a critical diagnostic step when troubleshooting a 2006 Volvo S40’s fuel pump issues. The fuel rail, a central component in the fuel delivery system, provides a direct point to measure pressure, ensuring the pump is functioning within specifications. This test isolates whether the pump is delivering adequate fuel to the engine, ruling out other potential causes like clogged injectors or faulty sensors.
To perform this check, you’ll need a fuel pressure gauge compatible with the Volvo S40’s Schrader valve on the fuel rail. Start by relieving fuel system pressure via the relief valve, typically located near the engine bay. Connect the gauge to the fuel rail and cycle the ignition to the "on" position (without starting the engine) to activate the pump. Observe the gauge reading, which should stabilize within 10–15 seconds. Compare this value to the manufacturer’s specifications for the 2006 S40, typically around 45–55 psi for the 2.4L engine. A reading outside this range indicates a potential pump issue or other system fault.
While the process seems straightforward, accuracy is key. Ensure the gauge is calibrated and the fuel system is depressurized before connecting. Fluctuating or low pressure readings may suggest a weak pump, while excessively high pressure could point to a faulty regulator. Always consult a repair manual for exact specs and safety precautions, as fuel systems operate under high pressure and pose fire risks if mishandled.
This method not only diagnoses pump performance but also highlights related issues, such as a clogged fuel filter or failing pressure regulator. For instance, if pressure drops significantly when the engine is running, the pump may be struggling under load, a common issue in aging S40 models. Pairing this test with a fuel volume check (measuring flow at the pump outlet) provides a comprehensive assessment, ensuring you address the root cause rather than symptoms.
In summary, a fuel pressure check is a precise, actionable diagnostic tool for the 2006 Volvo S40. By comparing gauge readings to specs, you can pinpoint fuel pump issues with confidence, saving time and avoiding unnecessary part replacements. Always prioritize safety and accuracy, and consider professional assistance if unsure, as fuel systems demand careful handling.
Bad Fuel Pump Relay: The Hidden Cause of No Spark?
You may want to see also
Explore related products
Listen for Pump Hum: Turn key to position II, listen for pump noise in tank
One of the simplest yet most effective ways to diagnose a fuel pump issue in a 2006 Volvo S40 is by listening for the pump’s hum. This method leverages your senses to quickly assess whether the pump is functioning. When you turn the key to position II (the point just before starting the engine), the fuel pump should activate momentarily, creating a faint humming or whirring sound from the fuel tank. This noise indicates that the pump is priming the fuel system, a critical step for proper engine operation. If you hear this hum, it’s a strong sign the pump is operational; if not, it could signal a failure or electrical issue.
The process is straightforward but requires attention to detail. Position II activates the vehicle’s electrical systems without cranking the engine, allowing you to isolate the fuel pump’s sound. The hum typically lasts 2-3 seconds as the pump pressurizes the fuel lines. To ensure accuracy, perform this test in a quiet environment with the radio and air conditioning off. Place your ear near the rear passenger side of the vehicle, where the fuel tank is located, or use a mechanic’s stethoscope for better clarity. If the pump is failing, you may hear nothing or a faint clicking noise, which often indicates a seized or malfunctioning component.
Comparing this method to others, such as pressure testing or voltage checks, listening for the pump hum is non-invasive and requires no specialized tools. However, it’s not foolproof. A silent pump doesn’t always mean it’s defective; the issue could lie in the relay, fuse, or wiring. Conversely, a humming pump doesn’t guarantee it’s delivering adequate pressure. For this reason, it’s best used as an initial diagnostic step rather than a definitive test. If the hum is absent, proceed to check the fuel pump fuse (located in the engine bay fuse box) and relay before assuming the pump itself is at fault.
Practical tips can enhance the effectiveness of this method. If you’re unsure what the hum should sound like, have a working vehicle of similar age and model nearby for comparison. Additionally, if the fuel tank is nearly empty, the pump may struggle to produce a noticeable sound, so ensure the tank is at least a quarter full. For those with limited hearing, a helper can listen while you turn the key, or you can use a smartphone app that visualizes sound frequencies to detect the pump’s activation. This approach combines simplicity with practicality, making it a go-to technique for DIY diagnostics.
In conclusion, listening for the fuel pump hum is a quick, cost-effective way to assess its functionality in a 2006 Volvo S40. While it’s not a comprehensive test, it provides valuable initial insight into the pump’s condition. Pairing this method with other checks, such as inspecting fuses and relays, ensures a more thorough diagnosis. By mastering this technique, you’ll be better equipped to identify and address fuel system issues before they escalate into costlier repairs.
Diagnosing a Failing Fuel Pump in Your Ford F150: Key Signs
You may want to see also
Explore related products
Inspect Fuel Pump Fuse: Check fuse box for blown fuse, replace if necessary
A blown fuse is often the culprit behind fuel pump issues in a 2006 Volvo S40. Before diving into complex diagnostics, start with the simplest solution: inspect the fuel pump fuse. This small component plays a critical role in powering the fuel pump, and its failure can mimic symptoms of a faulty pump, such as engine stalling or failure to start. Located in the fuse box, this fuse is your first line of defense against unnecessary repairs.
To begin, locate the fuse box in your Volvo S40, typically found in the engine compartment or under the dashboard. Consult your owner’s manual for the exact location and fuse diagram. Identify the fuse corresponding to the fuel pump—often labeled as "FUEL PUMP" or "FP"—and carefully remove it using fuse pullers or a pair of needle-nose pliers. Inspect the fuse for visible signs of damage, such as a broken filament or discoloration. A blown fuse will usually be obvious, but if you’re unsure, use a multimeter to test continuity. A reading of "OL" (open loop) indicates a blown fuse.
Replacing a blown fuse is straightforward but requires attention to detail. Ensure the ignition is off before proceeding. Replace the faulty fuse with one of the same amperage rating, typically 15 or 20 amps for fuel pump fuses. Avoid using a higher-rated fuse, as this can lead to electrical damage or fire hazards. Once replaced, retest the vehicle to confirm the issue is resolved. If the new fuse blows immediately, this may indicate a short circuit or deeper electrical problem, warranting further investigation.
While inspecting the fuse is a quick fix, it’s also a diagnostic tool. If the fuse is intact, the issue likely lies elsewhere, such as the fuel pump relay, wiring, or the pump itself. However, a blown fuse is a common and easily remedied problem that can save you time and money. Regularly checking the fuse box as part of routine maintenance can prevent unexpected breakdowns and keep your Volvo S40 running smoothly.
In summary, inspecting the fuel pump fuse is a simple yet essential step in diagnosing fuel pump issues in a 2006 Volvo S40. By understanding its location, testing method, and replacement process, you can address a common problem efficiently. This small task can make a significant difference in maintaining your vehicle’s reliability and performance.
Understanding Fuel Pump Wiring: How Many Hot Wires Are Required?
You may want to see also
Explore related products
Voltage Supply Test: Use multimeter to verify power supply to pump connector
A faulty fuel pump can leave you stranded, but before replacing it, verify the pump is actually receiving power. This is where the voltage supply test comes in. Using a multimeter, you can directly measure the voltage reaching the fuel pump connector, pinpointing whether the issue lies with the pump itself or the electrical supply.
This test is crucial because a lack of power to the pump is a common culprit for fuel delivery problems, often mistaken for pump failure.
Gathering Your Tools:
For this test, you'll need a digital multimeter capable of measuring DC voltage, typically in the 0-20 volt range. Ensure your multimeter has fresh batteries for accurate readings. You'll also need the repair manual for your 2006 Volvo S40 to locate the fuel pump connector, usually found in the fuel tank area. Safety goggles and gloves are essential when working around fuel systems.
Performing the Test:
- Locate the Connector: Consult your repair manual to identify the fuel pump connector. It's typically a multi-pin connector near the fuel tank.
- Access the Connector: You may need to remove access panels or components to reach the connector. Refer to your manual for specific instructions.
- Set Multimeter: Turn on your multimeter and set it to measure DC voltage within the expected range (typically 12-14 volts for a car battery).
- Connect Multimeter: Carefully connect the multimeter's positive (red) lead to the wire supplying power to the fuel pump (usually the largest wire in the connector) and the negative (black) lead to a good ground point, such as the engine block.
- Start the Engine: With the multimeter connected, attempt to start the engine. Observe the voltage reading on the multimeter.
Interpreting Results:
- Voltage Present: If the multimeter reads within the expected range (12-14 volts), the fuel pump is receiving power. The issue likely lies with the pump itself or another component in the fuel delivery system.
- No Voltage: If the multimeter reads 0 volts, there's a break in the power supply to the pump. This could be due to a blown fuse, a faulty relay, a broken wire, or a problem with the fuel pump control module. Further diagnosis is required to pinpoint the exact cause.
Remember: This test only confirms the presence of voltage at the connector. It doesn't guarantee the pump is functioning correctly. If voltage is present but the pump isn't operating, further testing of the pump itself is necessary.
Understanding Fuel Pump Polarity: Positive and Negative Connections Explained
You may want to see also
Frequently asked questions
The fuel pump is located inside the fuel tank. To access it, you’ll need to remove the rear seat bottom cushion, locate the fuel pump access panel, and disconnect the electrical connectors and fuel lines before lowering the pump.
Common symptoms include difficulty starting the engine, sputtering or stalling, loss of power during acceleration, and unusual noises (whining or humming) from the fuel tank area.
Yes, you can test it by listening for the fuel pump’s priming sound when turning the ignition to the "ON" position (but not starting the engine). You can also use a fuel pressure gauge to check for proper pressure at the fuel rail.
Locate the fuel pump relay in the fuse box (usually under the hood or in the cabin). Swap it with a relay of the same type (e.g., A/C or horn relay) and check if the fuel pump operates. If it does, the original relay is likely faulty.
You’ll need basic tools like a socket set, screwdrivers, a fuel line disconnect tool, and possibly a specialized fuel pump locking ring tool. A fuel pressure gauge is also useful for diagnostics.
