Sylvie Willis

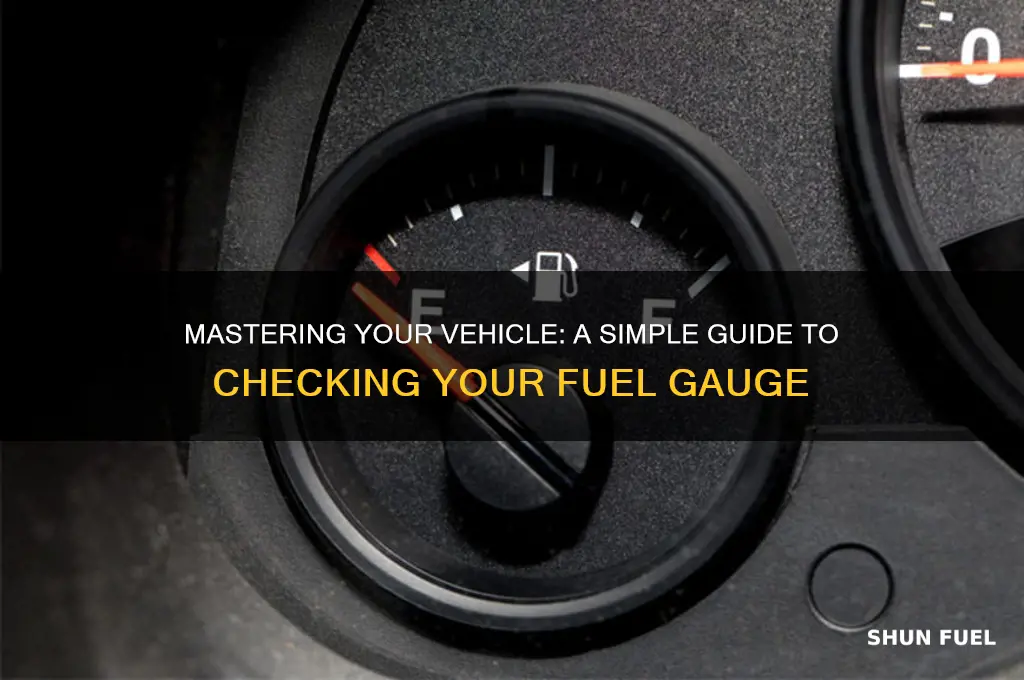

Checking your fuel gauge is a simple yet essential skill for any vehicle owner to ensure you don’t run out of fuel unexpectedly. The fuel gauge, typically located on the dashboard, provides a visual indicator of your vehicle’s fuel level, often displayed as a needle or digital readout. To check it, start by turning on the ignition (you don’t need to start the engine), as this activates the gauge. Observe the needle’s position or the digital display, which usually ranges from F (full) to E (empty). If the needle is near E or the digital display shows a low level, it’s time to refuel. Additionally, some vehicles have a low fuel warning light that illuminates when the tank is nearly empty. Regularly monitoring your fuel gauge helps you plan trips efficiently and avoid the inconvenience of running out of fuel on the road.
| Characteristics | Values |
|---|---|
| Method | Visual inspection, fuel gauge indicator, or digital display |
| Location | Dashboard near the speedometer or center console |
| Indicator Type | Analog (needle), digital (numerical or bar), or hybrid |
| Range | Typically 0 (Empty) to F (Full) or numerical values (e.g., 0-100%) |
| Accuracy | Varies; can be affected by vehicle position, fuel sloshing, or sensor wear |
| Warning Light | Low fuel warning light (often amber) illuminates when fuel is low |
| Reset Mechanism | Automatically resets when refueling (no manual reset required) |
| Calibration | May require professional calibration if inaccurate |
| Common Issues | Faulty sensor, loose wiring, or gauge malfunction |
| Maintenance | Regularly check for accuracy and address issues promptly |
| Alternative Method | Use the trip meter or manually calculate fuel consumption |
| Safety Tip | Avoid driving on low fuel to prevent running out of gas |
Explore related products
What You'll Learn
- Understanding Fuel Gauge Types: Analog vs. digital gauges and their basic functionality differences
- Checking Fuel Level Accuracy: Methods to verify if the gauge reads correctly
- Troubleshooting Common Issues: Diagnosing faulty sensors, wiring, or gauge malfunctions
- Using Manual Fuel Checks: How to estimate fuel level without relying on the gauge
- Preventive Maintenance Tips: Steps to ensure the fuel gauge remains reliable over time
Understanding Fuel Gauge Types: Analog vs. digital gauges and their basic functionality differences
Fuel gauges are essential instruments in vehicles, providing drivers with critical information about their fuel levels. Understanding the differences between analog and digital fuel gauges can help you interpret their readings more accurately and troubleshoot potential issues. Analog gauges, typically found in older vehicles, use a mechanical needle that moves along a curved scale to indicate fuel levels. The needle’s position is controlled by a float inside the fuel tank, which rises or falls with the fuel level. In contrast, digital gauges, common in modern vehicles, display fuel levels numerically or via a bar graph on an electronic screen. These rely on sensors and a vehicle’s computer system to provide precise, real-time data.
Analog gauges offer a straightforward visual representation of fuel levels, making them easy to read at a glance. However, their accuracy can diminish over time due to wear and tear on the mechanical components. For instance, a sticking float or a misaligned needle can lead to incorrect readings. To check an analog gauge, observe the needle’s position relative to the "F" (full) and "E" (empty) markers. If the needle hovers near "E" after refueling, it may indicate a faulty gauge or a malfunctioning sending unit. A quick diagnostic tip: tap the gauge gently while the vehicle is off; if the needle moves, it suggests a mechanical issue rather than an electrical one.
Digital gauges, on the other hand, provide more precise readings and often include additional features like range estimates or low-fuel warnings. Their accuracy stems from electronic sensors that measure fuel levels directly. However, digital gauges are not immune to problems. A common issue is a malfunctioning sensor or a software glitch, which can cause the display to freeze or show inconsistent readings. To check a digital gauge, compare its reading with the distance traveled since your last fill-up. If the displayed range decreases unusually fast or fails to update after refueling, it may signal a sensor or wiring problem.
When comparing the two, analog gauges excel in simplicity and ease of use, while digital gauges offer advanced functionality and precision. For drivers of older vehicles, understanding the mechanics of an analog gauge can help in diagnosing issues without specialized tools. Modern vehicle owners, however, may need diagnostic equipment to address digital gauge problems. Regardless of type, regular monitoring of fuel levels and awareness of typical gauge behavior can prevent unexpected breakdowns.
In practice, both gauge types require periodic calibration or maintenance to ensure reliability. For analog gauges, this might involve cleaning the sending unit or adjusting the needle. Digital gauges may need software updates or sensor replacements. Always consult your vehicle’s manual for specific instructions. By familiarizing yourself with the unique characteristics of analog and digital fuel gauges, you can better interpret their readings and take proactive steps to maintain your vehicle’s fuel system.
Understanding Fuel Hedging: Strategies to Mitigate Price Volatility Risks
You may want to see also
Explore related products
Checking Fuel Level Accuracy: Methods to verify if the gauge reads correctly
A fuel gauge is a critical instrument in any vehicle, providing real-time information about the fuel level. However, its accuracy can diminish over time due to wear, electrical issues, or sensor malfunctions. To ensure reliability, periodic verification is essential. One straightforward method involves resetting the trip meter at a full tank and monitoring mileage until the gauge indicates empty. Most vehicles average 250-400 miles per tank, depending on fuel efficiency. If the gauge reads empty significantly before or after this range, it may be inaccurate. This approach combines practical observation with basic arithmetic, offering a quick diagnostic without specialized tools.
For a more precise assessment, the manual fuel measurement method can be employed. After driving until the gauge shows near-empty, park the vehicle on level ground and allow the fuel to settle for 10 minutes. Using a clean container, carefully siphon a small amount of fuel from the tank via the filler neck. If the tank feels empty despite the gauge indicating otherwise, the sender unit or gauge may be faulty. This hands-on technique requires caution to avoid spills or fumes but provides tangible evidence of discrepancies. It’s particularly useful for older vehicles where electrical diagnostics are less accessible.
Modern vehicles often include onboard diagnostics (OBD-II) systems that can indirectly assess fuel gauge accuracy. By connecting a scan tool, users can monitor live data from the fuel level sensor. Compare the sensor’s percentage reading to the gauge’s display; a variance of more than 10% suggests calibration issues. For instance, if the sensor reads 5% but the gauge shows 20%, the gauge is overestimating. This method is efficient for tech-savvy individuals but requires an OBD-II scanner, typically costing $30-$100. It’s a balance of convenience and investment, ideal for those seeking data-driven insights.
Lastly, a comparative analysis using multiple fill-ups can reveal patterns of inaccuracy. Record the odometer reading and fuel gauge position at each fill-up, noting the gallons added. Over time, plot the data to identify inconsistencies, such as the gauge dropping faster than fuel consumption warrants. For example, if the gauge falls from full to half after only 75 miles in a 300-mile-range vehicle, it’s likely faulty. This longitudinal approach demands patience but offers a comprehensive view of the gauge’s behavior. It’s particularly effective for gradual failures that might otherwise go unnoticed.
DIY Fuel Cell Construction: A Step-by-Step Guide to Building Your Own
You may want to see also
Explore related products
Troubleshooting Common Issues: Diagnosing faulty sensors, wiring, or gauge malfunctions
A malfunctioning fuel gauge can lead to unexpected breakdowns and safety hazards. Diagnosing the root cause—whether it’s a faulty sensor, damaged wiring, or a gauge malfunction—requires a systematic approach. Start by checking the fuel gauge’s behavior: does it read empty when the tank is full, fluctuate erratically, or remain stuck at a certain level? These symptoms often point to specific issues within the fuel gauge system.
Step 1: Inspect the Fuel Sender Unit
The fuel sender unit, located inside the fuel tank, measures fuel levels and sends signals to the gauge. Over time, it can corrode or fail due to debris or age. To test it, disconnect the sender unit’s wiring harness and use a multimeter to measure resistance across its terminals. With an empty tank, resistance should be high (e.g., 90 ohms), and with a full tank, it should drop to a low value (e.g., 10 ohms). If readings are inconsistent, replace the sender unit. Avoid testing while the engine is running to prevent sparks near fuel vapors.
Step 2: Examine Wiring and Connections
Faulty wiring is a common culprit for gauge malfunctions. Inspect the wiring harness for frayed wires, corrosion, or loose connections between the sender unit, gauge, and ground. Use a wiring diagram specific to your vehicle to trace the circuit. A continuity test with a multimeter can confirm if wires are intact. If you find damaged wiring, repair or replace it, ensuring connections are secure and insulated. Poor grounding, often overlooked, can mimic sensor failure, so verify the ground connection at the sender unit and gauge.
Step 3: Test the Fuel Gauge Itself
If the sender unit and wiring are functional, the gauge itself may be defective. Disconnect the sender unit’s wire from the gauge and connect a variable resistor (potentiometer) in its place. Adjust the resistor to simulate different fuel levels (e.g., 0–90 ohms) and observe the gauge’s response. If it fails to move or reads inaccurately, the gauge is faulty and needs replacement. This test isolates the gauge from other components, ensuring the issue isn’t external.
Cautions and Practical Tips
Always disconnect the battery before working on electrical systems to prevent short circuits. When dealing with the fuel tank, ensure the vehicle is on a level surface and the engine is off to avoid accidents. If you’re unsure about any step, consult a professional, as misdiagnosis can lead to unnecessary repairs. Keep a log of symptoms and test results to track progress and identify patterns.
By methodically testing the sender unit, wiring, and gauge, you can pinpoint the cause of fuel gauge issues and restore accurate readings. This approach not only saves time and money but also ensures your vehicle remains reliable and safe on the road.
Understanding Wideband Sensors: How They Accurately Read Fuel Mixtures
You may want to see also
Explore related products
$12.99
Using Manual Fuel Checks: How to estimate fuel level without relying on the gauge
Fuel gauges, while convenient, can be unreliable due to sensor malfunctions, electrical issues, or age-related wear. When your gauge reads inaccurately, manual fuel checks become essential for avoiding unexpected breakdowns. One straightforward method involves using a wooden dowel or dipstick. Insert the dowel into the fuel tank through the filler neck until it touches the bottom, then withdraw it to observe the fuel level marked on the dowel. This technique, common in older vehicles or machinery without electronic gauges, provides a direct measurement of fuel depth.
For vehicles without accessible fuel tanks, estimating fuel level requires a blend of observation and calculation. Start by noting the distance traveled since your last fill-up and your vehicle’s average fuel efficiency (e.g., 25 miles per gallon). Subtract the miles driven from your tank’s capacity to estimate remaining fuel. For instance, if your tank holds 15 gallons and you’ve driven 100 miles, approximately 4 gallons remain. This method, while not precise, offers a reasonable approximation when combined with visual cues like the tank’s shape and sloshing sounds.
A more hands-on approach involves tilting the vehicle to expose the fuel tank’s underside. On uneven ground or using a jack, tilt the vehicle slightly to allow fuel to pool near the tank’s inspection plug or drain valve. By loosening the plug, you can observe fuel dripping or flowing, indicating the level. This method is particularly useful for larger vehicles or equipment but requires caution to avoid spills or injuries. Always ensure the vehicle is stable and secure before attempting this technique.
Finally, consider the role of fuel density and temperature in manual checks. Fuel expands in heat and contracts in cold, affecting volume and weight-based estimates. For example, a half-full tank in winter may hold less fuel than in summer due to contraction. To account for this, adjust your estimates based on seasonal temperature variations. Combining these manual methods with an understanding of fuel behavior ensures a more accurate assessment, reducing reliance on potentially faulty gauges.
Bioethanol Fuel Production: A Step-by-Step Guide to Sustainable Energy
You may want to see also
Explore related products
Preventive Maintenance Tips: Steps to ensure the fuel gauge remains reliable over time
A malfunctioning fuel gauge can lead to unexpected breakdowns and costly repairs. Regular preventive maintenance ensures this critical instrument remains accurate and reliable. Start by inspecting the gauge’s behavior during refueling—it should rise smoothly and proportionally as the tank fills. If the needle jumps erratically or fails to register, this could indicate a faulty sending unit or wiring issue. Addressing these early signs prevents long-term damage and ensures you’re never caught off guard by an empty tank.
One often-overlooked step is cleaning the fuel tank and sender unit contacts. Over time, debris and corrosion accumulate, disrupting the electrical connection that powers the gauge. Every 30,000 miles or annually, drain a small amount of fuel and inspect the tank for sediment. Use a specialized fuel system cleaner to remove buildup, and ensure the sender unit’s contacts are free of rust. This simple procedure can extend the gauge’s lifespan and maintain its accuracy, especially in older vehicles prone to corrosion.
Electrical issues are another common culprit behind fuel gauge failures. Test the gauge’s wiring harness for loose connections or frayed wires, particularly where it connects to the fuel tank and dashboard. A multimeter can help diagnose voltage inconsistencies, which may indicate a failing resistor or grounding problem. Tighten connections and replace damaged wires promptly. For vehicles over 10 years old, consider installing a ground strap between the tank and chassis to improve electrical stability, reducing the risk of gauge malfunction.
Finally, calibrate the fuel gauge periodically to ensure it reads correctly. Some modern vehicles allow for software recalibration via diagnostic tools, while older models may require manual adjustments. If the gauge consistently reads inaccurately, consult a mechanic to recalibrate the sender unit or replace it if necessary. Pair this with a habit of resetting the trip meter after each fill-up to track mileage and fuel consumption, providing a secondary reference for gauge reliability. These proactive measures keep the fuel gauge functioning optimally, saving time and money in the long run.
Understanding Fuel Tax Calculations: A Comprehensive Guide for Consumers
You may want to see also
Frequently asked questions
Simply turn on the ignition (without starting the engine) and look at the fuel gauge on your dashboard. It will display the current fuel level, typically ranging from "E" (empty) to "F" (full).
A malfunctioning fuel gauge could be due to a faulty sending unit in the fuel tank, a bad gauge cluster, or wiring issues. Consult a mechanic for diagnosis and repair.
Yes, you can estimate the fuel level by using the trip meter or noting how many miles you’ve driven since your last fill-up. However, this method is less accurate than a functioning gauge.
It’s a good habit to check your fuel gauge every time you start your car. Regularly monitoring it helps prevent running out of fuel and ensures you’re aware of your vehicle’s range.
If the gauge is stuck on empty, it may indicate a problem with the sending unit or wiring. If stuck on full, it could mean the float in the fuel tank is malfunctioning. Both issues require professional inspection.
