The Cummins 5.9-liter, 12-valve engine is a large diesel engine that was used in the Dodge Ram pickup during the 1990s and 2000s. To check the fuel pressure, you will need to drill and tap the top of the injection pump banjo bolt to 1/8'' pipe thread and install a male x female 1/8'' needle valve with a 1/8'' tubing compression fitting. You will also need a fuel pressure gauge, which can be screwed onto the test port, also known as the Schrader valve, located on the left-hand front side of the engine compartment.
Explore related products
What You'll Learn
Locate the test port on the left-hand front side of the engine compartment
To check the fuel pressure on a 12-valve engine, you'll need to locate the test port, which is also referred to as the Schrader valve. This is located on the left-hand front side of the engine compartment.
The first step is to pop the hood of your Dodge Ram. The engine compartment is located at the front of the vehicle, and you can access it by lifting the hood. Once you have located the engine compartment, you need to find the test port on the left-hand front side. It may be helpful to refer to the vehicle's manual or seek assistance from a mechanic if you are unsure about the location of the test port.
The test port is usually easily accessible and is designed for fuel-pressure testing. Once you have located the test port, the next step is to unscrew the valve cap and pull it back out of the way. This will expose the test port, allowing you to connect the fuel pressure gauge. Make sure you have prepared the necessary tools, including a fuel pressure gauge, and that you are wearing appropriate safety gear, such as gloves and eye protection.
The test port should be clearly labelled and will have a valve cap that needs to be removed before you can attach the fuel pressure gauge. It is important to handle the valve cap carefully and place it in a safe location to avoid losing or damaging it. Once the valve cap is removed, you can proceed to the next step of attaching the fuel pressure gauge. Ensure that you follow any specific instructions provided by the manufacturer of your fuel pressure gauge for a secure and proper connection.
By following these steps and locating the test port on the left-hand front side of the engine compartment, you will be able to initiate the fuel pressure testing process for your 12-valve engine. Remember to refer to a professional mechanic or a detailed guide if you require further assistance or more comprehensive instructions.
Fuel Pressure Regulator Installation: Aeromotive 13129 Step-by-Step Guide
You may want to see also
Explore related products

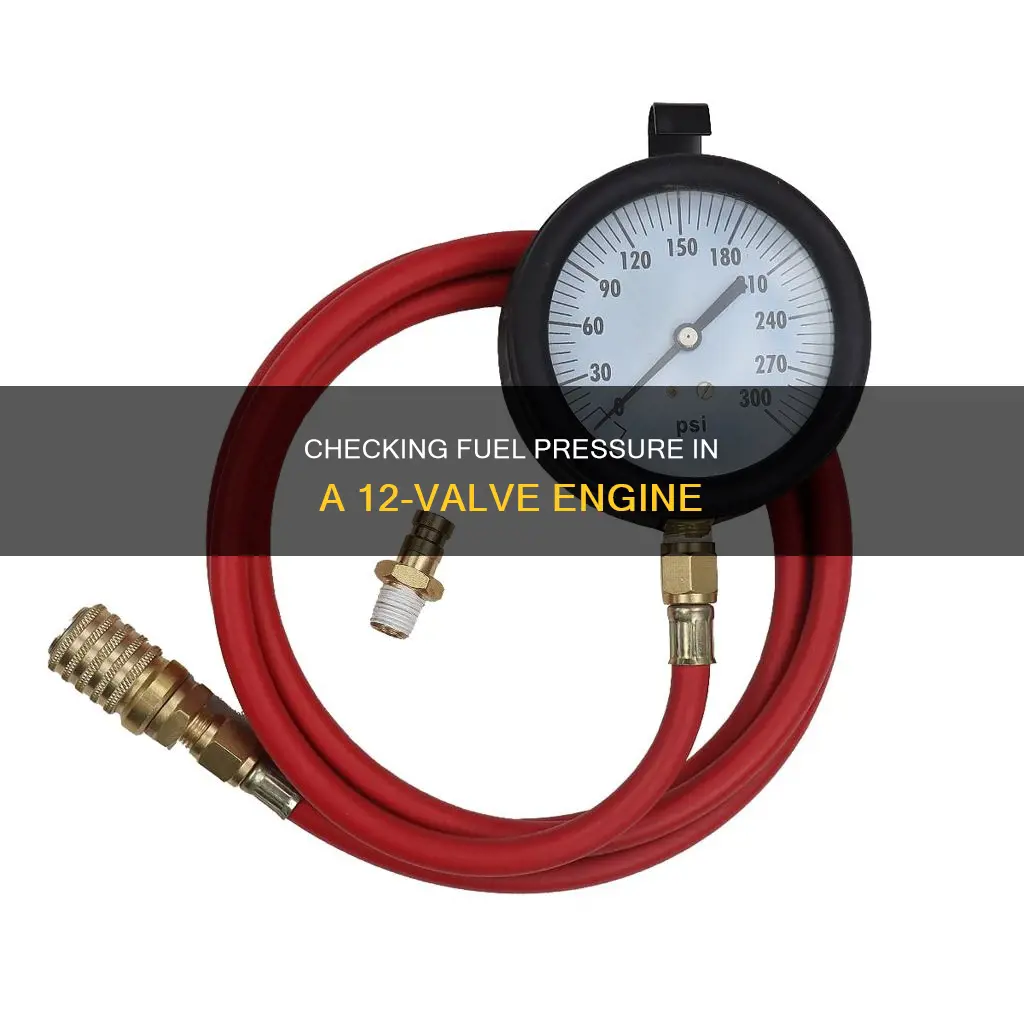

Screw the fuel-pressure gauge onto the test port
To check the fuel pressure on a 12-valve engine, you'll need to access the engine's test port, also known as the Schrader valve. This process will involve screwing the fuel-pressure gauge onto the test port. Here's a detailed guide on how to do this:
Firstly, locate the test port on the engine. For a Cummins 5.9-liter, 12-valve engine in a Dodge Ram, the test port is located on the left-hand front side of the engine compartment. Once you've found the test port, you're ready for the next step.
Before screwing on the fuel-pressure gauge, ensure you have the correct adapter or fitting for your vehicle. In some cases, you may need to drill and tap the injection pump banjo bolt and install a male-to-female needle valve with a compression fitting. This will depend on the specific vehicle and the gauge you are using. It is also important to keep the work area clean and free of debris, as you are working on the clean side of the filter.
Now, take your fuel-pressure gauge and carefully screw it onto the test port. Ensure that it is securely tightened to prevent leaks. If you are using an adapter, make sure it is the correct one for your vehicle and that it is securely attached to both the test port and the gauge. Once the gauge is in place, you are almost ready to start the test.
Before starting the engine, ensure that all connections are secure and that the gauge is functioning properly. If you are using an adapter, double-check that it is correctly attached. If you have a helper, they can signal to you when the gauge starts reading the pressure. Now, you can proceed to start the engine and perform the fuel-pressure test.
Remember, when working with fuel systems, it is essential to prioritize safety. Ensure the area is well-ventilated, and take the necessary precautions to avoid any fuel spills or leaks. Always refer to your vehicle's manual or seek professional advice if you are unsure about any steps in the process.
Testing Fuel Pressure in Your MK4: A Step-by-Step Guide
You may want to see also
Explore related products
Start the engine and let it run for five minutes
Once the engine is started, let it run for five minutes. During this time, you should be able to observe the fuel pressure gauge to check for any issues.
A stable fuel pressure reading, within a few psi of the recommended pressure, indicates that your engine is functioning optimally. The recommended fuel pressure range for a 12-valve engine is between 40 and 60 psi, with a minimum of 40 psi required.
If the fuel pressure holds steady, rises with engine speed, and remains within the recommended range, your engine is likely not experiencing fuel-related problems.
However, if the pressure drops, it could indicate a potential issue. For example, a drop in fuel pressure over ten minutes could suggest a leak in the fuel system, which may be internal, such as a faulty injector.
Additionally, pay attention to other engine indicators during this five-minute period. Signs such as slow startup, low performance, misfires, and stalling often accompany low fuel pressure. On the other hand, high fuel pressure may result in excessive fuel consumption, black smoke from unburned gas, an overheating catalytic converter, and rough idling.
If you notice any abnormalities or persistent issues, further investigation and diagnostics may be required to identify and resolve the problem.
Fuel Pressure Regulator: When and Why to Replace It?
You may want to see also
Explore related products
$22.99 $25.99
Observe the fuel-pressure reading
To observe the fuel pressure reading, you will need to connect a fuel pressure gauge to the engine. The exact location of connection depends on the type of engine you have.
For a 4.7L V8 engine, you can connect the fuel pressure gauge to the Schrader valve on the fuel injector rail. Place a shop towel around the Schrader valve to absorb any fuel that may leak during the process.
For a 12-valve Cummins engine, you will need to drill and tap the top of the injection pump banjo bolt to 1/8" pipe thread. Then, install a male-to-female 1/8" needle valve with 1/8" tubing compression fitting. You can also connect to the bleed screw on top of your fuel filter with an appropriate adapter.
Once the fuel pressure gauge is connected, start the engine with the needle valve closed. Then, slowly open the needle valve until the gauge starts reading the pressure. Ensure that the gauge reading is within the normal range for your specific engine.
For a 12-valve Cummins engine, the fuel pressure should be at least 40 psi, with 60 psi being ideal. At idle, the pressure should be between 17-22 psi, and at 2500 rpm no load, it should be between 25-35 psi. The pressure should never drop below 15 psi under load for extended periods.
For a 4.7L V8 engine, the fuel pressure should be between 44-54 PSI with the engine running if the fuel pump is functioning correctly.
If you are unable to get a reading, there may be an issue with the fuel pump or a lack of fuel. It is important to ensure that the fuel pump is getting the correct voltage while the engine is cranking to determine if the issue lies with the fuel pump or the power supply.
The Origin of Fossil Fuels: Pressurized Microorganisms
You may want to see also
Explore related products
Turn off the engine and remove the pressure gauge
Once you have completed the fuel-pressure test and gathered the necessary readings, it is important to carefully turn off the engine. This step is crucial for safety reasons and to ensure that you can work on the next steps without any active combustion or moving parts.
After turning off the engine, you can proceed to remove the pressure gauge from the test port. This process will involve unscrewing the gauge in a counter-clockwise direction. Be cautious and gentle during this step to avoid any damage to the test port or the gauge itself. Make sure to have a firm grip on the gauge to prevent slippage or any accidental drops.
As you remove the pressure gauge, be prepared for the possibility of minor fuel spills or leaks. Always have an old towel or a rag handy to wipe up any spilled fuel immediately. It is important to clean up any spilled fuel to avoid creating a fire hazard or causing damage to nearby components. Remember to dispose of the towel or rag responsibly, ensuring that it is placed in a safe location away from any potential sources of ignition.
Once the pressure gauge is removed, locate the valve cap that you had set aside earlier. This cap needs to be securely replaced onto the test port. Make sure it is tightened adequately to prevent any fuel leaks or vapour escapes. The valve cap plays a crucial role in maintaining the integrity of the fuel system and ensuring the proper functioning of the engine.
By following these steps, you will have successfully turned off the engine and removed the pressure gauge, completing a significant portion of the fuel-pressure testing process for your 12-valve engine. Remember to refer to the previous steps if you need to review the entire testing procedure.
Fuel Pump Pressure Test: Diagnosis and Performance
You may want to see also
Frequently asked questions
The Cummins 5.9-liter, 12-valve engine is usually found in the Dodge Ram pickup. These engines have an easy-access test port, or Schrader valve, on the left-hand front side of the engine compartment. Unscrew the valve cap, screw on the fuel pressure gauge, and start the engine. Allow it to run for around five minutes and check the reading.
The pressure reading should be between 15 and 18 psi. If it is below 17 psi at idle or 25 psi at 2500 rpm with no load, you may need to replace the overflow valve or the lift pump.
Ensure you are using the correct gauge. A dial-type gauge from an auto store should work. You may need to hold it tightly onto the valve while someone cranks the engine.
A fuel pressure gauge can be screwed onto the test port. A boost gauge or oil pressure tubing can also be used, but you will need to first drill and tap the top of the injection pump banjo bolt to 1/8" pipe thread and install a male x female 1/8" needle valve.
