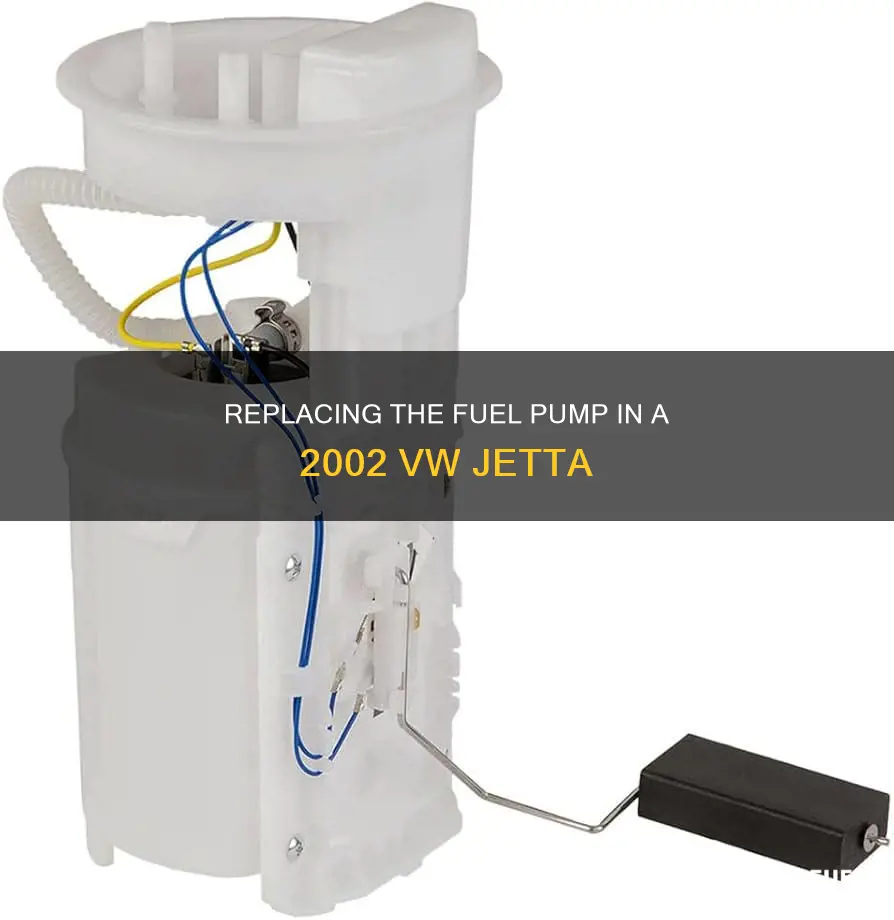

Replacing the fuel pump on a 2002 VW Jetta is a project that can be completed in around two hours. The fuel pump is located under the right rear passenger seat, and the replacement process involves lifting and folding the seat forward, removing the access plate, disconnecting the harness plug, removing fuel lines, and carefully pulling out the pump. It is important to take safety precautions when working with fuel, such as having a fire extinguisher nearby and ensuring proper ventilation. Additionally, it is recommended to relieve the pressure in the fuel system before removing the fuel lines to avoid any accidental spills.
| Characteristics | Values |
|---|---|
| Location of fuel pump | Under the right rear passenger seat |
| Tools required | Phillips head screwdriver, hammer and drift, small screwdriver |
| Safety precautions | Disconnect battery, keep fire extinguisher nearby, ensure good ventilation, wear fuel-resistant gloves and a carbon filter mask |
| Steps | 1. Lift rear seat and fold forward. 2. Remove 3 Phillips screws from access plate and remove plate. 3. Remove harness plug from pump/sender cover. 4. Remove fuel lines. 5. Remove large collar ring. 6. Note alignment marks. 7. Lift up on sender cover and pull out pump. |
Explore related products
What You'll Learn
The fuel pump is located under the right rear passenger seat
The fuel pump in a 2002 VW Jetta is located under the right rear passenger seat. To access the fuel pump, you will need to lift the rear seat and fold it forward. Once you have done that, you will see three Philips screws that need to be removed from the access plate. After removing the screws, take off the plate.
Next, you will need to remove the harness plug from the pump/sender cover by pressing the clip and pulling it out. Be cautious when handling the fuel lines, as they can be delicate. Press the clips inward and gently pull the fuel lines to detach them.
Now, you will need to remove the large collar ring. Pay attention to the alignment marks, which will be two arrows pointing at each other. After that, carefully lift the sender cover and pull out the fuel pump, being mindful of the float arm.
When installing the new fuel pump, simply follow these steps in reverse. If the fuel tank is full, use a siphon to remove the fuel through the return line.
Changing Fuel Filter in a 2002 Mitsubishi Montero
You may want to see also
Explore related products
Disconnect the battery and have a fire extinguisher nearby
Disconnecting the battery and having a fire extinguisher nearby are crucial safety precautions when replacing the fuel pump on a 2002 VW Jetta. Working with raw fuel and electrical systems can be hazardous, so these steps should not be skipped or taken lightly.
Disconnecting the battery will eliminate the risk of sparks or electrical shorts that could potentially ignite fuel vapors. Fuel vapors are highly flammable and can cause explosions or fires. By disconnecting the battery, you remove a potential source of ignition, making the work environment safer.
Additionally, having a fire extinguisher nearby is essential when working with flammable substances like fuel. In the unfortunate event of a fire, having a fire extinguisher within reach can help you respond quickly and effectively. Choose a fire extinguisher suitable for fuel fires, such as a BC or ABC type extinguisher. Ensure that the extinguisher is easily accessible and in good working condition. Check the pressure gauge and inspect the nozzle for any blockages. Make sure you know how to operate it properly.
Before starting the fuel pump replacement process, open all the doors and the rear hatch of the vehicle to improve ventilation. Fuel vapors can accumulate and create a dangerous environment, so adequate ventilation is crucial. It is also highly recommended to wear fuel-resistant gloves and a carbon filter mask for added protection. These safety measures are essential to minimize the risk of fire or explosion when working with raw fuel.
When working on a 2002 VW Jetta, it is important to be mindful of the specific hazards associated with the fuel system. By taking these precautions, you can help ensure your safety and protect your vehicle from potential damage. Remember, safety should always come first when performing any maintenance or repair work on your vehicle.
Replacing Fuel Filter in 2010 Dodge Avenger: Step-by-Step Guide
You may want to see also
Explore related products
Remove the harness plug from the pump/sender cover
To remove the harness plug from the pump/sender cover, you will need to press the clip and pull. This will disconnect the electrical connection to the fuel pump. It is important to be cautious when working with electrical components and fuel. Ensure you are wearing the appropriate protective gear and that the work area is well-ventilated.
Before removing the harness plug, you will need to access the fuel pump by lifting the rear seat and folding it forward. You will then need to remove the three Phillips screws from the access plate and remove the plate. This will expose the fuel pump and sender cover.
Once the harness plug is removed, you can proceed to remove the fuel lines by pressing the clips and pulling. Again, caution should be exercised when handling fuel lines to avoid spills and leaks. It is recommended to relieve the pressure in the fuel system prior to removing the fuel lines to prevent pressurized fuel from shooting out.
Remember to work in a safe and controlled manner, and always refer to a qualified mechanic or a detailed guide if you are unsure about any steps in the process.
Les Schwab: Fuel and Oil Pump Experts
You may want to see also
Explore related products
Remove the fuel lines
To remove the fuel lines from a 2002 VW Jetta, you must first relieve the pressure in the fuel system. Failing to do so can result in pressurised fuel shooting out of the lines when they are disconnected. To relieve the pressure, remove the fuses for the fuel pump and run the car until it dies.
Now, to remove the fuel lines:
First, locate the fuel pump. It is situated under the right rear passenger seat. Lift the rear seat and fold it forward. You will see three Phillips screws on the access plate. Remove these screws and take off the plate.
Next, locate the harness plug from the pump/sender cover. Press the clip and pull to remove it.
Now, you can remove the fuel lines. Press the clips in and pull the lines out. Be cautious and careful throughout this process, especially when dealing with the float arm.
Finally, install in reverse. If the tank is full, siphon the fuel through the return line (fitting with the arrow).
Replacing Fuel Pump Alignment Dowel in Dodge Cummins Engines
You may want to see also
Explore related products
Relieve the pressure in the fuel system before removing the fuel lines
To relieve the pressure in the fuel system before removing the fuel lines of a 2002 VW Jetta, you must first remove the fuses for the fuel pump. Then, run the car until it dies. This action will relieve the fuel pressure.
It is also recommended to disconnect the battery and refer to the article on Battery Replacement for more information.
Before starting this process, ensure that you have a fire extinguisher nearby and that any flames or sources of ignition are kept well away from the car. Additionally, open all the doors and the rear hatch, and make sure the area in which you work is well-ventilated. Fuel vapours can be extremely dangerous. It is also recommended to wear fuel-resistant gloves and a carbon filter mask for protection.
Upgrading Your Ford F250: New Computer, New Fuel Tank
You may want to see also
Frequently asked questions
The fuel pump is located under the right rear passenger seat.
First, lift the rear seat and fold it forward. Then, remove the three Phillips screws from the access plate and remove the plate.
It is important to ensure safety before starting this job. Keep a fire extinguisher nearby and ensure any flames or sources of ignition are kept well away from the car. Open all the doors and the rear hatch, and make sure the area is well-ventilated. It is also recommended to wear fuel-resistant gloves and a carbon filter mask.
Remove the harness plug from the pump/sender cover by pressing the clip and pulling. Then, remove the fuel lines by pressing the clips and pulling. Remove the large collar ring and note the alignment marks (two arrows pointing at each other). Finally, lift the sender cover and pull out the pump.
