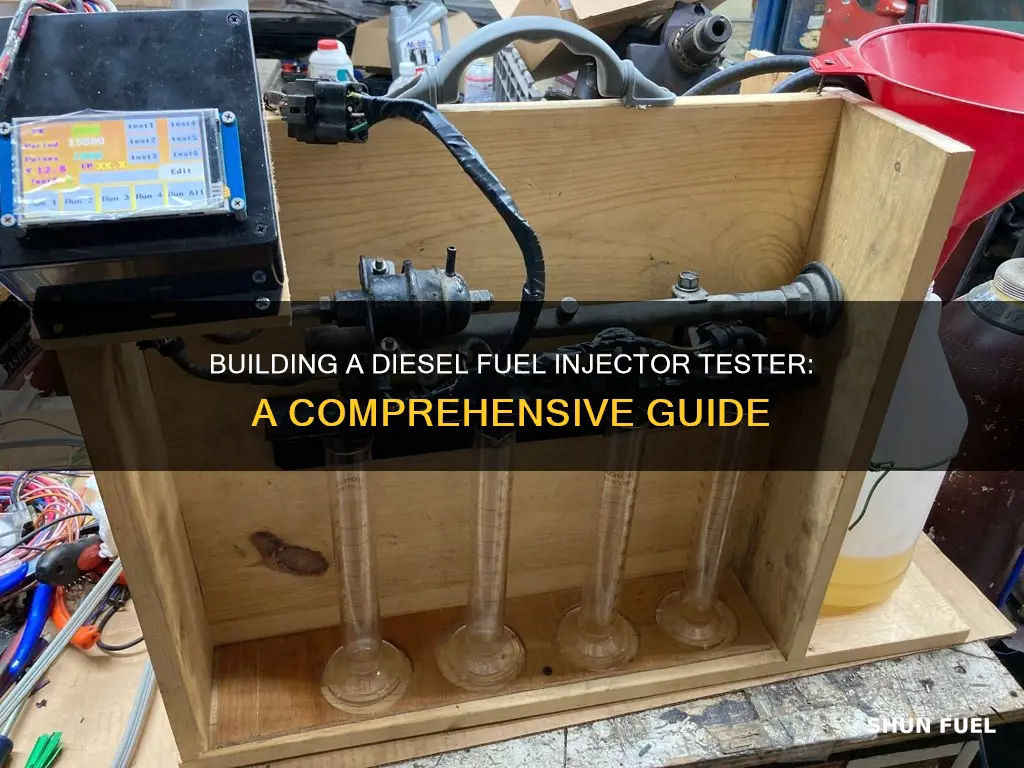

Building a diesel fuel injector tester is a complex but rewarding task, offering mechanics and enthusiasts an invaluable tool for diagnosing and resolving issues with diesel engines. This device is essential for testing the performance and integrity of fuel injectors, which play a critical role in the efficient operation of diesel engines. With the right tools and knowledge, building a diesel fuel injector tester is an achievable project that can provide significant benefits for those working with diesel vehicles. In the following sections, we will outline the key steps, tools, and materials required to construct this valuable piece of equipment, offering a comprehensive guide for both beginners and experienced builders alike.
| Characteristics | Values |
|---|---|
| Tools Required | - Common rail injector socket - Wrenches and screwdrivers - Multimeter - Hydraulic hand pump - Fuel injector tester machine |
| Process | - Disconnect the fuel injectors from the fuel rail - Secure the injectors in a vice or specialized holder - Connect the tester machine to the injector and pump pressurized fluid through it to check for leaks - Measure the electrical resistance of the injector with a multimeter to ensure it is within the specified range |
| Tester Machine | A specialized machine is required to test the fuel injectors. It pressurizes the injector and simulates the engine conditions to check for proper functioning. |
| Cost | Building a diesel fuel injector tester can be costly, with the specialized machine costing several thousand dollars. However, it can save money in the long run by allowing for in-house testing and repair. |
| Safety | It is important to wear protective gear when handling diesel fuel injectors and testing equipment, including eye protection and gloves. |
| Maintenance | Regular calibration and maintenance of the tester machine is necessary to ensure accurate results. |
| Benefits | Building your own diesel fuel injector tester allows for greater control over the testing process and can result in significant cost savings for diesel repair shops or enthusiasts. |
| Limitations | Specialized knowledge and training are required to properly test and interpret the results. |
| Alternative | Renting or outsourcing injector testing is an option if building your own tester is not feasible. |
Explore related products
What You'll Learn
Parts Required
To build a diesel fuel injector tester, you will need to gather the following parts:
- A transparent plastic tube, preferably made of acrylic or polycarbonate, with a diameter of approximately 2 inches and a length of 18-24 inches. This will serve as the main testing chamber, allowing you to observe the fuel injection process clearly.
- Two brass or stainless steel end caps that fit securely over the ends of the plastic tube. These end caps should have a threaded hole in the center to accommodate a fuel injector nozzle. You may need to source these from a specialist engineering supplier or fabricate them yourself if you have the necessary metalworking skills and equipment.
- High-pressure fuel hose, preferably made of rubber or synthetic material that can withstand diesel fuel and high pressures. The length will depend on your setup, but ensure it's long enough to comfortably reach from your fuel pump to the tester.
- Two high-pressure hose fittings that match the size and thread type of your fuel hose. These will be used to connect the hose to the tester and your fuel pump. Again, ensure compatibility with diesel fuel.
- A fuel injector nozzle, or preferably several nozzles, that match the thread type and size of the injectors you plan to test. It is important to have the correct nozzle to ensure a proper seal and an accurate test.
- A fuel pump capable of delivering sufficient pressure for diesel injection, typically in the range of 200 to 300 bar (2900 to 4350 psi). This pump should be compatible with diesel fuel and be able to maintain a consistent pressure during testing.
- A pressure gauge with a suitable range to measure the fuel injection pressure. Look for a gauge with a range that covers the expected operating pressure of the injectors you plan to test.
- Various fittings, adapters, and couplers to connect the components together. These will depend on the specific parts you source and may include items like tube connectors, thread adapters, and hose clamps.
It is important to ensure that all parts are compatible with diesel fuel and can withstand high pressures. Sourcing parts from a reputable supplier or manufacturer is essential to guarantee quality and safety. When assembling your tester, follow good engineering practices and take appropriate safety precautions when working with high-pressure systems.
Redline Fuel Injector Cleaner: Frequency for Optimal Engine Performance
You may want to see also
Explore related products
Assembly Process
The assembly process for building a diesel fuel injector tester involves several steps and requires some basic tools and components. Here is a detailed, step-by-step guide on how to assemble your own diesel fuel injector tester:
Firstly, gather the necessary tools and components. You will need an injector tester, a multimeter, a fuel pressure gauge, safety gear such as gloves and safety glasses, and some basic hand tools. You will also need to refer to specific websites and resources for electronic components, such as the 555 timer circuit by Rob Paisley, which provides valuable information on timing calculators and component selection. Additionally, you may need to source a Motorola MOSFET with a higher amp rating (e.g., 75 amps) to handle the load of diesel injectors.
Next, follow the manufacturer's instructions to set up the injector tester. This step may involve assembling the tester according to a schematic or circuit diagram. Ensure you are using the correct components and following safety guidelines during the assembly process.
After assembling the injector tester, you will need to connect it to the fuel injector. This involves attaching the tester to the injector securely, ensuring no fuel leaks. Then, simulate fuel delivery by activating the tester for a set period. This step will vary depending on the tester design, but it typically involves sending electrical pulses to the injector.
The following step is to measure the fuel output. Collect and measure the amount of fuel delivered during the simulated fuel delivery. Repeat this process for each injector, ensuring you compare the outputs to identify any discrepancies. Finally, analyze the results. Identical outputs indicate properly functioning injectors, while significant differences suggest one or more injectors may be faulty and require further diagnosis or replacement.
Building your own diesel fuel injector tester can be a rewarding project, providing you with the ability to diagnose and maintain the health of your diesel engine. Remember always to follow safety protocols and consult expert resources and mechanics if you are unsure about any steps during the assembly process.
The Perfect Fuel Injector Spray: Angle, Pattern, and Droplet Size
You may want to see also
Explore related products
Calibration Techniques
Calibration of diesel fuel injectors is critical to ensure optimal performance. Calibration involves testing and adjusting the injectors to meet specific performance specifications. This process can be done using a test bench, which offers a precise and efficient way to calibrate and test fuel injectors. Test benches can be customised to suit specific needs and can cater to small workshops or large service providers.
One key aspect of calibration is measuring the flow rate of each injector. The flow rate is the amount of fuel passing through the injector per unit of time at a given fuel pressure. Due to manufacturing variations, the flow rate of injectors can vary by up to 20% from the nominal flow rate specified in the design. This variation necessitates calibration to ensure that each injector delivers the precise amount of fuel required.
To address this issue, control and checking procedures have been introduced to produce injectors with lower flow-rate tolerances. For example, the production of injectors with a flow-rate tolerance of plus or minus 4% has been achieved, but it comes at a higher cost. Calibration techniques aim to fine-tune the performance of each injector to ensure they all deliver the same amount of fuel, resulting in balanced combustion in the vehicle's engine.
The calibration process can be automated through an electronic control unit dedicated to managing the engine. This unit controls the open time of each injector, ensuring that they all admit the same amount of fuel to their associated cylinders. By calibrating the injection system based on the flow-rate characteristics of each injector, the engine's performance can be optimised, and emissions reduced.
Backhoe Maintenance: Replacing Fuel Injectors for Optimal Performance
You may want to see also
Explore related products
$72.1 $75.9
Testing Procedures
Before you begin testing, ensure that your engine is switched off and cooled down. This is a critical safety precaution and will also ensure the most accurate results.
The first test you can perform is a simple check for any issues with your fuel injectors. With your vehicle running, identify the location of your fuel injectors. There is one per cylinder, typically a black plastic housing installed directly above the cylinder. Place the tip of a long screwdriver on the top of the fuel injector and place your ear on the handle of the screwdriver. You should hear a regular clicking sound as the injector cycles on and off. Compare all of your injectors and note any differences. If you have a problem with one dirty injector, you will notice a difference in how it sounds.
The next test involves using a fuel injector tester. Follow the manufacturer's instructions to set up the tester. Attach the tester to the first injector and activate it to simulate fuel delivery for a set period. Collect and measure the amount of fuel delivered. Repeat this process for each injector and compare the outputs. Identical outputs indicate good injectors, while significant differences suggest one or more injectors are faulty.
Finally, you can use a multimeter to measure the resistance of the injectors. First, remove the injector's electrical connector. Set the multimeter to the ohms setting and place the probes on the injector terminals. Read the resistance and compare the values for each injector.
By regularly performing these tests and maintaining your fuel injection system, you can ensure optimal engine performance and longevity.
Adjusting Fuel Injector Pulse Width: A Comprehensive Guide
You may want to see also
Explore related products
Maintenance and Care
Maintaining and caring for a diesel fuel injector tester is essential to ensure accurate and reliable results when testing fuel injectors. Here are some detailed instructions for the maintenance and care of your diesel fuel injector tester:
Safety Precautions:
Before performing any maintenance or care procedures, ensure the engine is turned off and cooled down. Working on a warm or hot engine can lead to injuries. Put on safety gear, including gloves and safety glasses, to protect yourself from any debris or fuel spray during the process. Additionally, always ensure you are working in a well-ventilated area when the engine is running to prevent the inhalation of diesel fumes.
Cleaning:
Keep the injector tester and its components clean and free of debris. Use a soft, dry cloth to wipe down the tester and remove any dirt, dust, or grease that may have accumulated during storage or use. Ensure that the tester is unplugged and no fuel is present in the system before cleaning.
Inspection:
Regularly inspect the injector tester for any signs of wear, corrosion, or physical damage. Pay close attention to the electrical connectors, hoses, and seals for any cracks, leaks, or deterioration. If any issues are identified, address them promptly to prevent further damage or inaccurate test results.
Calibration:
Periodically calibrate your injector tester to ensure it provides accurate measurements. Refer to the manufacturer's guidelines for the recommended calibration procedures and intervals. Calibration may involve adjusting the tester's settings, such as the fuel pressure or electrical resistance measurements, to match the specifications provided by the manufacturer.
Storage:
Store your injector tester in a safe and secure location when not in use. Keep it away from extreme temperatures, direct sunlight, or moisture to prevent damage to the tester's components. Ideally, store the tester in a carrying case or box designed for this purpose, ensuring it is protected from dust and other contaminants.
Maintenance of the Injector Tester Itself:
To maintain the injector tester itself, ensure that you use high-quality diesel fuel and additives. Using low-quality fuel or incompatible substances can damage the tester and the injectors. Additionally, regularly check the tester's hoses, connectors, and seals for any signs of wear or leaks, replacing them as necessary. Finally, refer to the manufacturer's guidelines for specific maintenance procedures and recommendations tailored to your particular injector tester model.
By following these maintenance and care instructions, you can help ensure the accuracy, reliability, and longevity of your diesel fuel injector tester.
Understanding Petrol Fuel Injectors: How Do They Work?
You may want to see also
Frequently asked questions
A diesel fuel injector tester is a device used to test the performance and condition of fuel injectors in diesel engines. It helps diagnose issues with fuel injection systems, ensuring optimal engine performance and fuel efficiency. By testing fuel injectors, you can identify problems such as clogged or faulty injectors, ensuring timely maintenance or replacement.
The key components include a test bench or stand, a fuel supply system, pressure gauges, a flow meter, electrical connectors, and a control panel. The test bench provides a stable platform to mount the injector, while the fuel supply system provides pressurized fuel for testing. Pressure gauges measure fuel pressure, and a flow meter measures fuel flow rate. Electrical connectors link the injector to a power source, and a control panel allows for test parameter adjustment.
First, securely mount the test bench on a stable surface. Connect the fuel supply system to the tester, ensuring all hoses and fittings are secure and tight. Attach the pressure gauges and flow meter to the appropriate ports on the tester. Connect the electrical connectors to the injector and a power source. Finally, calibrate the tester by adjusting the control panel settings to match the specifications of the injector you are testing.
The key testing parameters include fuel pressure, flow rate, injection timing, and spray pattern. You should adjust the fuel pressure and flow rate to match the specifications of the injector being tested. Monitor these values during testing to ensure they remain within the acceptable range. Injection timing can be adjusted to synchronize the injector's operation with the engine's crankshaft. Spray pattern evaluation ensures the injector is delivering fuel in the correct pattern for efficient combustion.
Compare the test results against the specifications provided by the injector manufacturer. If the fuel pressure or flow rate deviates significantly from the specified values, it could indicate a clogged or faulty injector. Irregular injection timing or an abnormal spray pattern may also suggest injector issues. If the injector fails to meet the specified performance standards, it likely requires maintenance or replacement. Regular testing and comparison of results can help identify trends and potential problems early on.
