Changing the fuel filter on a Ford E-150 is a straightforward process that can be done at home. The fuel filter is located underneath the van, along the driver's side frame rail. Before starting, it is important to relieve the pressure in the fuel lines and disconnect the negative battery cable. The fuel lines can then be disconnected from the fuel filter, and the filter removed from the bracket. It is important to note the direction of the fuel flow arrow when removing the old filter, as the new filter will need to be installed in the correct direction. When installing the new filter, it is recommended to use a small amount of oil on the O-rings to ease re-installation. Finally, the fuel lines can be reconnected to the new filter, and the safety clips installed. It is important to exercise caution when working with gasoline, as it is toxic and flammable.
| Characteristics | Values |
|---|---|
| Fuel filter location | Underneath the van, on the driver's side frame rail |
| Tools required | 5/16" Fuel Filter Remover, screwdriver, socket wrench, quick-disconnect tool, safety clips |
| Steps | 1. Disconnect the negative battery cable and relieve fuel system pressure. 2. Disconnect the fuel lines from the fuel filter. 3. Remove the fuel filter from the bracket. 4. Install the new filter, ensuring the arrow points toward the front of the van. 5. Reconnect the fuel lines and safety clips. 6. Check for leaks. |
| Safety precautions | Do not work on a hot engine. Wear eye protection. Do not smoke. Cover fuel lines and filters with a rag to prevent gas leaks. |
Explore related products
What You'll Learn
Locating the fuel filter

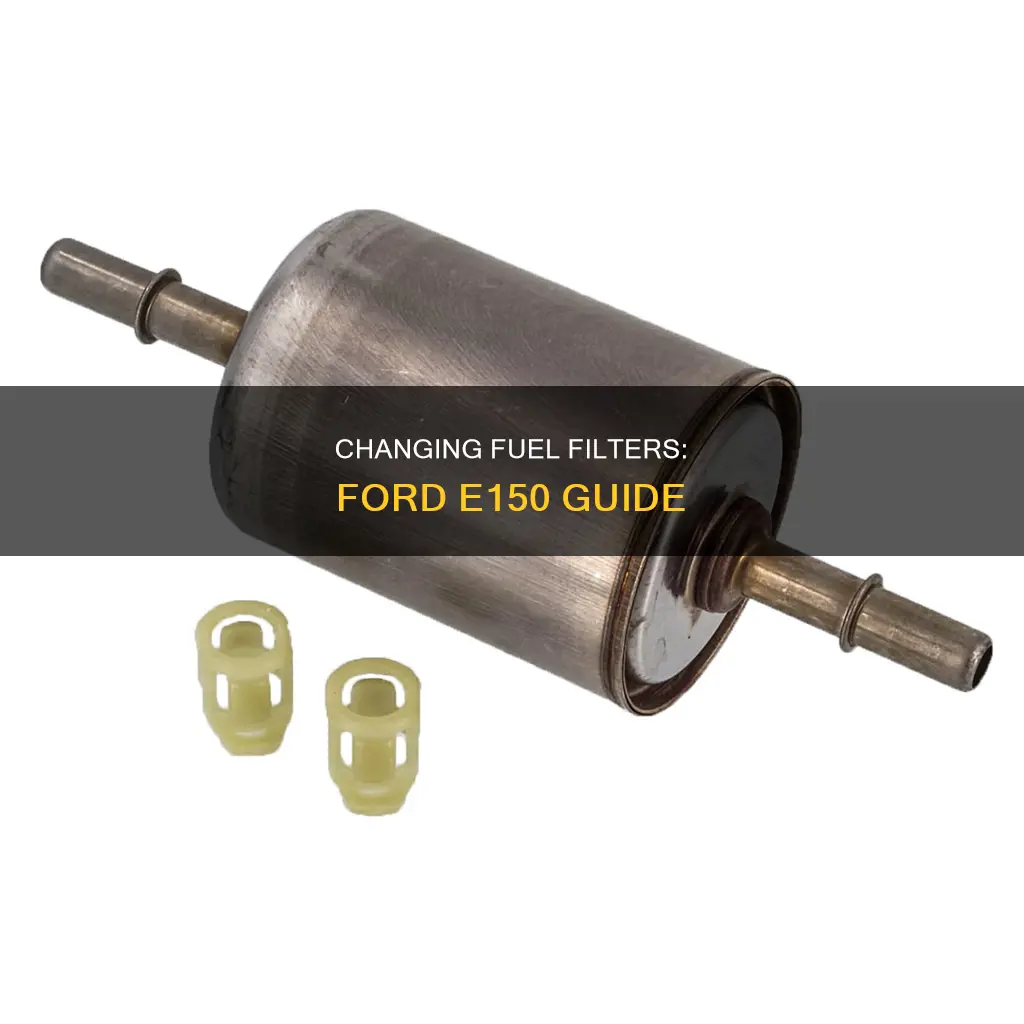

The fuel filter is a cylindrical-shaped housing, resembling a tiny soda can, and is plumbed into the high-pressure fuel supply line. It is important to note that some newer cars do not have serviceable fuel filters as the filter is built into the fuel pump located within the fuel tank.
Before attempting to locate and change the fuel filter, it is crucial to relieve the pressure in the lines. This can be done by disconnecting the Inertia Switch, which is typically located behind the right front kick panel, near the passenger's feet. Refer to your owner's manual to confirm the location of the Inertia Switch, as it may be labelled as a fuel shutoff switch.
Easy Guide: Freelander 2 Fuel Filter Replacement
You may want to see also
Explore related products
Disconnecting the fuel lines
To begin disconnecting the fuel lines, you must first relieve the pressure in the lines. This can be done by disconnecting the Inertia Switch, which is typically located behind the right front kick panel near the passenger's feet. Start the engine and let it run until it runs out of gas. Refer to your owner's manual to identify the exact location of the Inertia Switch, as it may be labelled as a fuel shutoff switch.
Once the pressure is relieved, locate the fuel filter underneath the van, along the driver's side frame rail. Trace the fuel lines to the driver's door, and place a quick-disconnect tool over the inlet fitting. Pull the tool towards the filter to release the line from the filter. You may need to pry off any safety clips with a screwdriver before disconnecting the lines.
Cover the fuel line and filter with a rag to catch any residual fuel and to minimize leakage. Now, pull the outlet line off the filter using the quick-disconnect tool. You may need to push the fuel line into the filter while simultaneously pushing the tool into the line to disengage the locking device.
After disconnecting the fuel lines, you can proceed to remove the old fuel filter and install a new one. Ensure you follow the correct installation procedure, including marking the inlet line and tightening the bracket with a socket wrench. Finally, check for leaks while the engine is running.
Locating and Checking the Fuel Filter on Kubota G5200
You may want to see also
Explore related products
Removing the old fuel filter
To remove the old fuel filter from your Ford E-150, follow these steps:
First, locate the fuel filter. It is usually found underneath the van, along the driver's side frame rail. Before starting, ensure the engine is cold and always wear eye protection. It is also recommended to have a drain pan nearby to catch any residual fuel.
Next, relieve the pressure in the lines. Disconnect the Inertia Switch, which is typically located behind the right front kick panel near the passenger's feet. Start the engine and let it run until it stalls. You may need to prime the fuel pump by turning the ignition key to the "start" position and letting the pump run for a few seconds.
Now, disconnect the fuel lines from the fuel filter. There may be a safety clip that needs to be removed first by squeezing it together and unhooking the small latch. Use a quick-disconnect tool or a fuel filter tool to release the lines from the filter. Cover the end of the fuel line with a rag to minimize fuel leakage.
Once the lines are disconnected, carefully pull the fuel filter out of the mounting bracket. Loosen any retaining bolts with a socket wrench. Mark the inlet line with masking tape so you know how to properly install the new filter.
Finally, inspect the fuel lines for any damage and ensure there are no leaks. If there is any damage or leakage, address these issues before installing the new fuel filter.
Cleaning Your AEM Fuel Filter: A Step-by-Step Guide
You may want to see also
Explore related products
Installing the new fuel filter
Before installing the new fuel filter, ensure you have disconnected the negative battery cable and relieved the fuel system pressure. You should also relieve the pressure in the lines by disconnecting the Inertia Switch, which is typically behind the right front kick panel, and then start the engine and let it run until it runs out of gas.
Now, you can begin installing the new fuel filter. First, hook the fuel lines to the new filter, ensuring that the arrow on the filter is pointing towards the front of the van, as this designates the direction of fuel flow. Then, install the safety clips.
Once the new fuel filter is installed, you can put everything back together in reverse order. Start the van and let it idle for a few minutes. Observe for leaks around the fuel filter and the rest of the fuel system. If there are no leaks, you're done!
It is important to approach this process with safety in mind. Always wear eye protection and do not smoke while performing maintenance on a fuel system. Be cautious when working with gasoline as it is very toxic and flammable.
Draining the LB7 Fuel Filter: Step-by-Step Guide
You may want to see also
Explore related products
Checking for leaks
After you've replaced the fuel filter in your Ford E150, it's important to check for leaks. Leaks in the fuel system can be dangerous and damaging to the vehicle.
First, locate the fuel filter. It is usually found underneath the van, along the driver's side frame rail. Once you've found it, inspect the area around the filter for any signs of liquid or vapour leaks.
Before starting the engine, ensure you have reconnected the fuel lines to the new filter and installed the safety clips. Then, start the engine and let it run. Observe the fuel filter and the surrounding area for any signs of leaks.
If you notice any leaks, turn off the engine immediately and do not drive the vehicle. Leaks at the fuel filter connections may require a new fuel filter and new O-rings in the push-on connections.
It is important to exercise caution when working with gasoline as it is toxic and flammable. Always wear eye protection and avoid smoking while performing maintenance on the fuel system.
Changing Fuel Filter: 2002 Pontiac Grand Prix Guide
You may want to see also
Frequently asked questions
You will need a 5/16" Fuel Filter Remover tool, which can be purchased or rented from a local parts store. You will also need a screwdriver and a socket wrench.
The fuel filter is located underneath the vehicle, on the driver's side frame rail.
Gasoline is highly toxic and flammable, so caution must be taken when working around it. Make sure the engine is off and cover the fuel line and filter with a rag to avoid spills.
