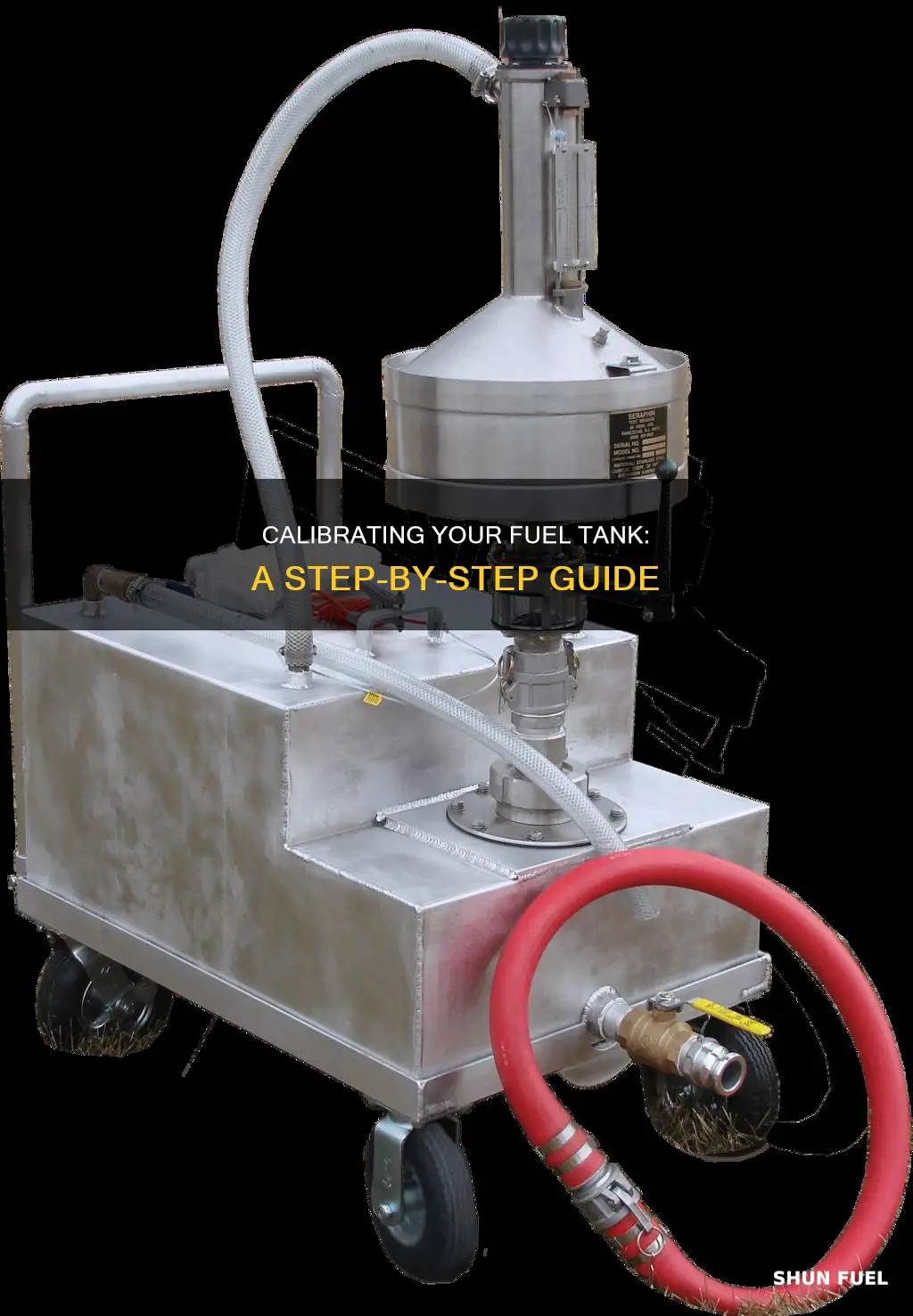

Calibration of a fuel tank is a procedure that adjusts the accuracy of the fuel level display system in the tank. This procedure converts fuel level sensor (FLS) readings to litres or volume of fuel in the tank. The method of calibration depends on the dimensions and shape of the tank. To perform a fuel tank calibration, the fuel level is measured and compared to the actual amount of fuel filled. This is done by filling the tank with small portions of fuel and recording the sensor output. The system used to calibrate the tanks is known as a flow meter calibration apparatus, which measures the flow rate in litres per minute.
| Characteristics | Values |
|---|---|
| Purpose | To determine the exact true volume of a fuel tank and obtain accurate measurements of quantity |
| Tools | Flow meter calibration apparatus, fuel level sensors, fuel flow computer, fixed resistors |
| Procedure | Measure the flow rate in litres per minute, fill the tank with small portions of fuel and record sensor output, correlate the level of fuel in the tank with its volume |
| Results | Accurate display of fuel level in the tank, improved fuel efficiency, compliance with regulations |
Explore related products
What You'll Learn
- Calibration is key to obtaining accurate measurements of quantity
- Calibration procedures depend on the dimensions and shape of the tank
- Calibration tables are necessary to correlate fuel level with volume
- Calibration of fuel flow senders can be very accurate
- Calibration of the gauge and sender is often needed when installing new tanks
Calibration is key to obtaining accurate measurements of quantity
Calibration is essential to get accurate measurements of quantity. It is the process of determining the exact true volume of a containment system corresponding to a certain measurement value. For example, fuel level sensors measure the level of fuel, not volume. Therefore, to calculate the volume of fuel, the shape of the tank must be known. This is done by filling the tank in small portions and recording the sensor output. This procedure is known as tank calibration and is time-consuming. However, it is necessary to ensure accurate measurements of the volume of fuel in the tank.
The method of calibration depends on the dimensions and shape of the tank. For tanks with a constant cross-sectional width, two points are sufficient – full and empty. On the other hand, real tanks with roundings and dents require more complex calibration procedures. To create a calibration table, the level of fuel in the tank is correlated with its volume. For example, for a 600-liter tank, one dosed fill will be 30 liters, and it is necessary to perform at least 20 dosed fuel fillings. Each filling takes about 3 minutes, and the entire calibration process for a 600-liter tank can take up to 60 minutes.
It is important to note that sensor calibration is different from tank calibration. Sensor calibration refers to the procedure of adjusting the sensor to its new length after cutting or extending. Most fuel level sensors come pre-calibrated from the factory, but if the sensor is cut, its output range shifts, resulting in a blind zone proportional to the length of the cut. Therefore, after cutting, the sensor must be immersed in fuel at 0% and 100% ("empty" and "full" calibration) to teach it its new length.
Proper calibration of fuel tanks and sensors is crucial for accurate fuel level monitoring. It helps save fuel, increase vehicle efficiency, and ensure compliance with local regulations around leak detection and safe fuel storage. Without accurate calibration, even the most advanced gauging systems and manual measurements may be inaccurate. Therefore, calibration plays a vital role in obtaining precise measurements of fuel quantity.
Dodge Ram 3500 Fuel Tank Removal Guide
You may want to see also
Explore related products
$200
Calibration procedures depend on the dimensions and shape of the tank
Calibration is the process of determining the precise volume of a containment system for a given measurement value. It is critical for obtaining precise quantity measurements. The calibration procedure for a fuel tank depends on its dimensions and shape.
For tanks with a constant cross-sectional width and height, two points are sufficient to calibrate the tank: full and empty. Such tanks include those with a perfectly rectangular shape (without roundings) or a vertical cylinder (not horizontal). In this case, the tank calibration results can be plotted on a graph, which will represent a straight line.
However, real-world tanks have roundings, dents, and other irregularities that require more complex calibration procedures. One method is to fill the tank with small portions of fuel while recording the sensor output. This procedure is time-consuming and may not be practical for large storage tanks. Another approach is to calculate the calibration table based on the tank's dimensions. This can be done using an online calculator for horizontal cylinder tanks.
Additionally, a three-dimensional model of the tank can be created based on its dimensions to achieve higher accuracy. This method is useful when the tank cannot be calibrated with fuel. It is important to note that fuel level sensors measure level, not volume. Therefore, the tank shape must be considered to calculate the fuel volume accurately.
Overall, the calibration procedures for fuel tanks vary depending on their dimensions and shape. The goal is to obtain precise volume measurements, which are crucial for safe fuel storage and accurate fuel level reporting.
Understanding Your Boat: Fuel Tank Relief Valve
You may want to see also
Explore related products
Calibration tables are necessary to correlate fuel level with volume
Calibration tables are an essential tool for precise fuel level measurements, especially in fleet management. They are necessary because all existing fuel level sensors measure fuel levels, but not volume. The calibration procedure involves filling the tank in measured portions from empty to full, which is time-consuming and can be costly. However, it is crucial to ensure the accuracy of fuel data, which supports effective decision-making and fraud prevention in fleet management.
The calibration table acts as a translator, converting raw data from fuel level sensors into meaningful information about the actual fuel volume. It comprises a set of reference points that correlate specific sensor readings to actual fuel volumes. For example, a certain sensor reading might correspond to a half-full tank, while another might indicate a nearly empty tank. By mapping these readings against real-world fuel levels, the calibration table enables the telematics system to interpret sensor data accurately.
The accuracy of fuel measurements is vital for efficiency and cost control in fleet management. Improper calibration tables can lead to discrepancies in fuel measurements, with potential financial losses and operational inefficiencies. A poorly calibrated sensor might report a full tank when it is only three-quarters full, leading to billing and fuel usage report errors. Therefore, it is essential to have a proper calibration table to ensure the integrity and reliability of fuel monitoring systems.
The calibration table is more than just a technical requirement; it is a critical element in fuel management. It provides a visual interpretation of fuel measurements through a chart, with fuel measurements on the X-axis and fuel volume on the Y-axis. This chart helps identify inconsistencies or illogical data points, ensuring the calibration curve accurately reflects the relationship between sensor readings and fuel volume. Proper calibration is key to maintaining the accuracy of fuel data and supporting effective fleet management decisions.
Dispose of Fuel Tanks: The Right Way
You may want to see also
Explore related products
Calibration of fuel flow senders can be very accurate
Fuel flow senders can be very accurate, but only when they are properly calibrated. Calibration is the science of determining the exact true volume of a containment system corresponding to a certain measurement value. It is key to obtaining accurate measurements of quantity. Calibration of fuel flow senders involves comparing measurements taken by a standardised measurement device to those recorded by the flow meter, and adjusting the required settings on the flow meter.
Fuel flow senders assume that the tanks start with a known amount of fuel (usually reset after filling up) and that all the fuel leaving the tank goes to the engine. However, if there is a leaking sump valve or another fuel leak, the fuel flow sender will not account for this.
The SkyView EMS is one system that can be used to calibrate fuel flow senders. Properly installed RV float senders will never read more than 3/4 full due to the wing dihedral. However, as fuel is burned, the senders become more accurate. Therefore, the value of the float senders becomes evident as a cross-check for fuel against the fuel flow measurement once they come into the indication range.
Another important consideration when calibrating a fuel tank is the shape of the tank. If the cross-sectional width is constant in height, two points are sufficient for calibration – full and empty. Examples of such shapes include a perfectly rectangular tank or a vertical cylinder. If the tank has roundings or dents, more than two points will be needed for calibration.
Fuel Whistle Installation: Underground Tank Guide
You may want to see also
Explore related products
Calibration of the gauge and sender is often needed when installing new tanks
Calibration is the process of determining the exact true volume of a containment system corresponding to a certain measurement value. It is key to obtaining accurate measurements of quantity. The calibration of the gauge and sender is often needed when installing new tanks.
The first step in calibrating a fuel tank is to understand the shape of the tank, as this will affect the calibration process. Tanks with a constant cross-sectional width in height, such as perfectly rectangular tanks or vertical cylinders, only require two points for calibration - full and empty. However, real-world tanks have roundings and dents, which require more complex calibration procedures.
One method of calibrating a fuel tank is to fill the tank with small portions of fuel while recording the sensor output. This procedure is time-consuming and may not be necessary if the sensor configuration software can calibrate the sensor based on tank calibration data. Another approach is to use a flow meter calibration apparatus, which measures the flow rate in litres per minute and ensures that the flow rate is correct for the pump.
In some cases, the calibration of the gauge and sender may be required. This can happen when installing new tanks or when using mix-and-match gauges and sending units from different manufacturers. The MeterMatch module from Tanks Inc. is a solution for this problem, allowing users to interface between the fuel sender and the gauge to correct ohm mismatch and erratic movement due to fuel sloshing. The module treats input and output separately and can correct for scaling differences or reversed sender signals. Calibrating the MeterMatch module involves setting the sender to a known value, typically by filling the gas tank, and then programming the module to match the desired gauge value.
Fuel Gauge Faults: How to Verify Accuracy
You may want to see also
Frequently asked questions
Calibration of a fuel tank is the process of determining the exact true volume of the tank. This is done by measuring the fuel level and converting it into the volume of fuel in the tank.
Fuel tank calibration is important to ensure accurate measurements of the quantity of fuel. This helps save fuel and increase the efficiency of vehicle utilisation.
The method of calibration depends on the dimensions and shape of the tank. For tanks with a constant cross-sectional width, two points are sufficient - full and empty. For other tanks, at least 20 dosed fuel fillings are required, with each filling taking about 3 minutes.
Sensor calibration refers to the process of a sensor learning its new length after cutting or extending. Tank calibration, on the other hand, is the calculation of the shape and formula to convert fuel level into fuel volume.
To calibrate a fuel gauge sender, you are calibrating the variable resistor or the sending unit to hit the right values for full and empty. If you are less than 20 Ohms on the full side, you need to bend the tab flatter. If you are greater than 20 Ohms, bend the tab up.
