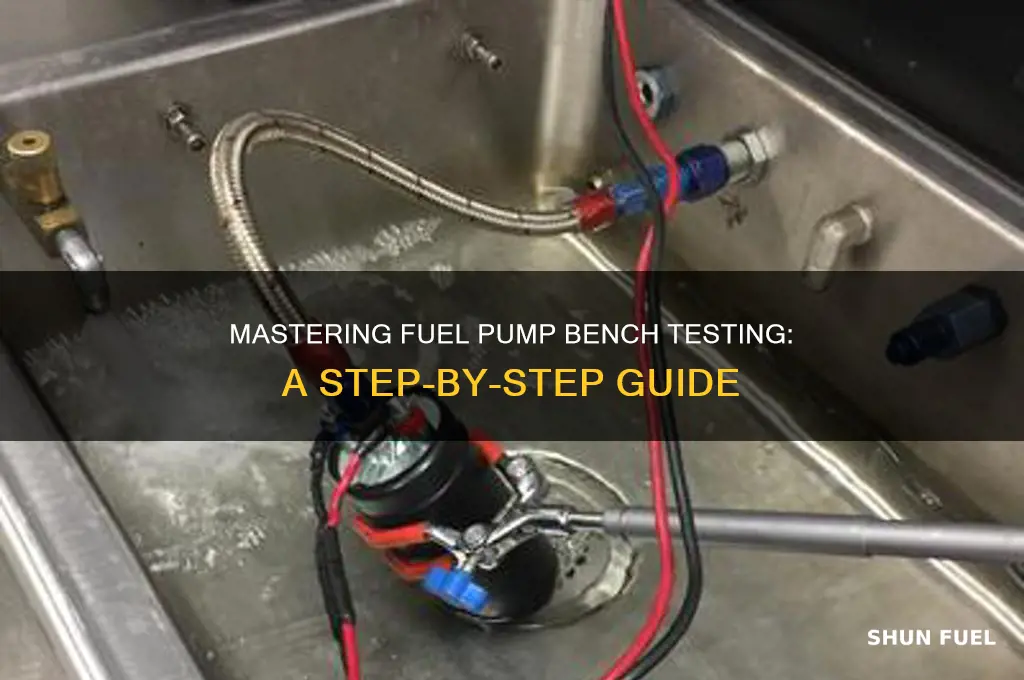

Bench testing a fuel pump is a critical process used to verify its functionality and performance before installation in a vehicle. This procedure involves removing the fuel pump from the fuel tank and connecting it to a controlled test setup, typically using a power source, pressure gauge, and fuel container. By simulating operating conditions, such as applying voltage and measuring fuel pressure and flow rate, technicians can assess whether the pump meets manufacturer specifications. Bench testing helps identify issues like weak pressure, leaks, or electrical faults, ensuring the pump operates reliably and preventing potential vehicle breakdowns. Proper tools, safety precautions, and adherence to testing protocols are essential for accurate results.
| Characteristics | Values |
|---|---|
| Power Supply | 12V DC (matches vehicle's electrical system) |
| Amperage Draw | Typically 3-8 amps (varies by pump, check specifications) |
| Pressure Gauge | Required to measure fuel pressure output |
| Fuel Line | Use a clear hose to visualize fuel flow |
| Container | Clean, dry container to hold fuel |
| Test Leads | Alligator clips or suitable connectors for power supply |
| Safety Gear | Safety goggles, gloves, and fire extinguisher |
| Test Duration | 5-10 minutes to ensure consistent operation |
| Expected Pressure | Check vehicle manual or pump specifications (typically 30-60 PSI) |
| Flow Rate | Check vehicle manual or pump specifications (typically 0.5-1.5 gallons per minute) |
| Noise Level | Should be consistent and not unusually loud |
| Leak Check | Inspect all connections for leaks during operation |
| Temperature | Test at room temperature (avoid extreme conditions) |
| Polarity | Ensure correct polarity (positive to positive, negative to negative) |
| Post-Test Inspection | Check for fuel leaks, unusual wear, or damage |
| Disposal | Properly dispose of fuel used in testing |
Explore related products
What You'll Learn
- Pre-Test Preparation: Gather tools, disconnect battery, relieve fuel pressure, locate pump, and prepare workspace safely
- Electrical Testing: Check power and ground connections, measure voltage, and verify pump’s electrical functionality
- Flow Rate Measurement: Connect gauge, run pump, and measure fuel output to ensure proper flow
- Pressure Testing: Attach pressure gauge, operate pump, and confirm it meets OEM specifications
- Noise and Operation: Listen for unusual sounds, ensure smooth operation, and check for leaks
Pre-Test Preparation: Gather tools, disconnect battery, relieve fuel pressure, locate pump, and prepare workspace safely
Before attempting to bench test a fuel pump, it's crucial to ensure your safety and the integrity of the test by properly preparing your workspace and vehicle. This begins with gathering the necessary tools, which typically include a fuel pressure gauge, a multimeter, a pair of safety gloves, safety goggles, and a container to catch any fuel that may spill. Having these tools at hand streamlines the process and minimizes the risk of accidents or damage to components.
Once your tools are ready, the next critical step is to disconnect the battery. This is a safety measure to prevent any accidental sparks that could ignite fuel vapors. Locate the negative terminal of your car battery and use a wrench to loosen the nut, then carefully remove the cable. Ensure the cable is secured away from the battery terminal to prevent accidental reconnection. This simple step significantly reduces the risk of fire or electrical shock during the testing process.
Relieving fuel pressure is another essential safety precaution. Modern vehicles often have a fuel pump relay or fuse that can be removed to disable the pump, but for a thorough release of pressure, locate the fuel pressure relief valve or Schrader valve on the fuel rail. Attach a fuel pressure gauge to this valve and slowly depress the pin to release any residual pressure. This step is vital to avoid fuel spraying or leaking when you disconnect fuel lines, which could lead to hazardous situations or contamination of the workspace.
Locating the fuel pump itself requires familiarity with your vehicle’s layout. In most cars, the fuel pump is situated inside the fuel tank, necessitating the removal of the tank for access. However, some vehicles have an access panel or service port that allows you to reach the pump without removing the entire tank. Consult your vehicle’s manual or a reliable repair guide to identify the exact location and any specific procedures for accessing the pump. Misidentification or improper access can lead to unnecessary damage or complications.
Finally, preparing your workspace safely is paramount. Ensure the area is well-ventilated to disperse fuel vapors, and avoid using open flames or smoking nearby. Place a drip pan or absorbent material under the work area to catch any spilled fuel, and keep a fire extinguisher within reach as a precautionary measure. Organize your tools and equipment to maintain a clutter-free environment, reducing the risk of tripping or knocking over hazardous materials. By meticulously preparing your workspace, you create a safer and more efficient environment for conducting the bench test.
