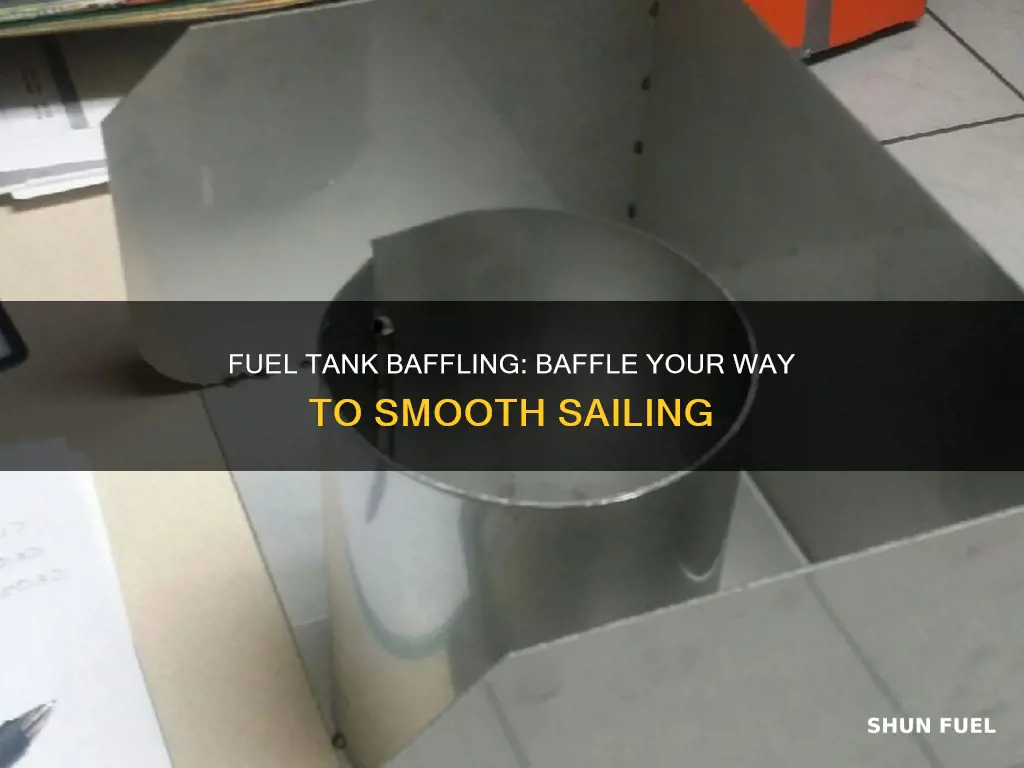

Baffling a fuel tank involves installing a baffle—a small piece of equipment that helps to control fuel delivery by preventing fuel from sloshing away from the pickup. This is particularly important for vehicles with EFI systems, which require consistent fuel pressure. Baffles are also used to prevent fuel starvation during acceleration or hard cornering, ensuring that the fuel pump is constantly pumping fuel to the engine. The placement of the baffle within the tank is crucial, as improper placement can lead to fuel starvation issues. There are various methods for securing baffles in a fuel tank, including the use of magnets, bolts, and flange bolts.
| Characteristics | Values |
|---|---|
| Purpose of Baffling | To prevent fuel starvation during acceleration or hard cornering by keeping the pickup point for the fuel pump submerged in fuel |
| Baffle Location | In the lowest part of the tank, close to the fuel pump |
| Baffle Design | Vertical, running from edge to edge horizontally |
| Baffle Material | Plastic, aluminium, or fuel/oil jugs made from high-density polyethylene |
| Baffle Securing Methods | Welding, magnets, bolts, flange bolts, neodymium magnets |
| Alternative Solutions | Fuel cells, foam bricks, polyethylene wiffle balls, sump with a baffle, fuel pump modules |
Explore related products
What You'll Learn
Using foam to prevent fuel starvation
Foam can be used to prevent fuel starvation in a fuel tank. Foam blocks or cubes are placed inside the tank to act as baffles, preventing the fuel from sloshing and ensuring a constant supply to the pump. This method is often used in racing applications and can be an affordable solution compared to purchasing a new fuel tank.
There are a few important considerations when using foam to baffle a fuel tank. Firstly, the foam must be compatible with the fuel type to prevent breakdown over time. It is recommended to replace the foam periodically, as it can break down and clog the fuel filter and pump. Additionally, the foam should be secured properly to avoid any issues during vehicle operation. Some methods of securing the foam include using magnets or bolts, but it is important to ensure that these do not interfere with the pump or damage the tank.
When installing foam in a fuel tank, it is important to ensure that it covers the base of the tank to be effective. Cutting the foam to fit the tank may be necessary. Some fuel tanks come with a proper fuel collector and a dip tube sensor, which allows for foam filling via a cover plate at the top. This design ensures that the foam is contained and does not restrict the fuel flow.
It is also important to note that while foam can help prevent fuel starvation, it may not be a suitable solution for all vehicles or applications. In some cases, a custom baffle may be required to ensure optimal fuel delivery. Additionally, the use of foam may not be compatible with all fuel tank sensors, so it is important to research and plan the installation carefully.
Overall, using foam to baffle a fuel tank can be an effective and affordable solution to prevent fuel starvation, especially in racing applications. However, it requires careful planning and consideration of the fuel type, tank design, and sensor compatibility to ensure optimal performance and avoid potential issues.
Building a Stainless Steel Fuel Tank: The Comprehensive Guide
You may want to see also
Explore related products
Baffle placement to avoid fuel slosh
Baffles are plates installed inside fuel tanks to prevent fuel sloshing. They help keep the pickup point for the fuel pump submerged in fuel, ensuring a consistent fuel supply to the engine. Baffles are particularly important for vehicles with EFI systems, which require constant fuel pressure.
When designing baffle placement, the key consideration is to keep the fuel around the pickup point to avoid fuel starvation. This can be achieved by installing the baffle around the pickup point or dividing the tank into sections to direct fuel towards the pickup. For example, installing a baffle in the centre of the tank creates two sections, left and right, ensuring fuel is directed towards the pump.
The placement and design of baffles depend on the shape and size of the fuel tank and the intended use of the vehicle. For instance, the driving style, whether it is drag racing or road racing, will influence the location and configuration of the baffles. Additionally, the fuel pump's position is crucial, as placing it in the front corner of the tank can cause fuel starvation during right turns.
To secure baffles in plastic fuel tanks, some people use magnets, while others prefer bolting the baffles using flange bolts to avoid potential damage to the tank. Another method is to use fuel cell foam, which can effectively dampen fuel oscillations without introducing foreign objects into the tank.
While baffles are essential for controlling fuel slosh, they can also pose challenges when measuring fuel levels, especially with sensors that may be obstructed by the baffle plate. In such cases, alternative methods, such as measuring the weight of the fuel tank or using fuel usage data, may be more practical.
Inspecting Ford Fuel Tanks: A Non-Invasive Guide
You may want to see also
Explore related products
Securing baffles with magnets
Fuel tank baffling is a method used to prevent fuel from sloshing away from the pickup. This can be achieved by installing a baffle in the centre of the tank, splitting it into two sections. While some people choose to use bolts to secure their baffles, others prefer to use magnets.
One user suggests that the magnets could be placed at the bottom of the tank with a plastic tub held in place by the magnets, allowing for fuel return and circulation through small holes in the tub. An electrical engineer confirmed that they did not have any concerns about the magnets being placed near the fuel pump.
Another user recommends bolting the baffle in place using flange bolts instead of magnets, as they believe it would minimise the potential for deflection and be more secure than magnets. They also mention that some OEMs use fuel pump modules instead of baffles, with the fuel pump sitting in a self-contained unit surrounded by fuel.
It is important to carefully consider the placement and strength of the magnets to ensure they are secure enough to hold the baffle in place without causing damage to the fuel tank or interfering with the pump.
The Cost of Fuel Tank Replacement: What You Need to Know
You may want to see also
Explore related products
Using a sump with a baffle
Baffles are used to control fuel slosh, which is particularly important for vehicles converted to EFI. Baffling a fuel tank is necessary for road racing applications. The purpose of a baffle is to keep the fuel in a certain area of the tank, usually the lowest part, to ensure the pickup point for the fuel pump is always submerged in fuel. This prevents the pump from pulling in air, which can cause a loss of power or a complete shutdown in an EFI system.
A sump can be used in conjunction with a baffle to achieve this. The sump is a small, self-contained unit that holds the fuel pump and sits inside the fuel tank. The fuel pump sits in a small amount of fuel, ensuring a constant supply. The sump can be made from a plastic oil container, with fuel cell foam to secure the pump. The return port should go straight to the sump, and a small, low-pressure pump can be used to feed the sump from the main tank.
When designing the sump, it is important to consider how fuel will enter it. Hinged flaps or holes can be used to allow fuel to flow into the sump. The sump should be sized correctly so that it sits on the bottom of the tank.
Neodymium magnets can be used to secure the sump and baffle assembly in place, but care must be taken to ensure they are strong enough and do not damage the tank walls or interfere with the pump. Alternatively, the assembly can be bolted in place using flange bolts at the top.
Fixing Fuel Tank Leaks in 1993 Ford F150s
You may want to see also
Explore related products
Baffles for stock gas tanks
Baffles are an important addition to a fuel tank, especially for vehicles that have been converted to EFI. They help to control fuel slosh, which can cause fuel starvation and loss of power.
When adding baffles to a stock gas tank, there are a few methods that can be used. One method is to separate the stock gas tank, throw away the top half, and bolt in a new bottom half with a fuel cell on top. This can be done by a professional welder and will solve any pickup and appearance issues. However, this method can be difficult as stock gas tanks are usually seam welded at the factory.
Another method is to install a sump with a baffle. This involves capping off the fuel supply line and running the fuel supply off the sump, possibly with an electric pump. This method can be effective for drag racing, as it prevents the flood of fuel that gets pushed to the back of the tank.
A third option is to use foam or other materials to fill the tank and create a barrier around the sensor. This can be done with polyethylene wiffle balls, cut-up polyethylene pipe chunks, or blocks of tank foam. However, this method may require speaking to manufacturers to understand the longevity of the materials used.
Additionally, when designing the baffles, it is important to consider the location of the fuel pump. The baffles should be designed to keep the fuel in the lowest part of the tank, near the fuel pump, to prevent fuel starvation during acceleration or hard cornering.
Overall, adding baffles to a stock gas tank can be a reasonable solution to improve the performance of a vehicle, especially in racing applications. It is important to consider the design and location of the baffles to ensure they serve their intended purpose effectively.
Hooking Up Dual Fuel Tanks: A Step-by-Step Guide
You may want to see also
Frequently asked questions
A fuel tank baffle is a device that is installed inside a fuel tank to prevent the fuel from sloshing and to keep the fuel pump submerged in fuel. This helps to ensure a constant supply of fuel to the engine and prevents fuel starvation during acceleration or hard cornering.
Baffling a fuel tank is important because it helps to control fuel delivery and prevent fuel starvation, especially during competitive events or racing. Without proper baffling, the fuel can be pulled away from the pump during hard turns or acceleration, causing the pump to pull in air instead of fuel.
There are several ways to baffle a fuel tank. One method is to install a sump with a baffle, which involves capping off the fuel supply line and running the fuel supply off the sump, sometimes using an electric pump. Another method is to separate the tank halves, throw away the top, bolt in the bottom, and install a fuel cell on top. Additionally, you can use interlocking baffle plates that are assembled "ship in a bottle style" inside the tank.
There are various materials that can be used to baffle a fuel tank. Some people use foam, such as fuel cell foam or polyethylene wiffle balls, to prevent fuel starvation. Others use metal plates, such as aluminum honeycomb or baffle plates with limber holes, and weld them into place inside the tank. Plastic baffles are also an option, as they can help avoid piercing the tank in a crash.
Yes, there are alternatives to baffling a fuel tank. One option is to use a fuel pump module, which sits the fuel pump in a small amount of fuel as part of a self-contained unit. Another alternative is to use a scavenge pump feeding a fuel/air separator, which is commonly used in race cars and stunt airplanes.
