If you own a 1993 Ford F-150 with a dual tank and are experiencing a fuel leak, there are several potential causes and fixes to consider. Firstly, it's important to identify whether the leak is due to a faulty fuel pump, a damaged fuel line, or a corroded tank. If the issue is with the fuel pump or fuel lines, replacing or repairing them might be necessary. If the tank itself is corroded and leaking, options include replacing the tank, bypassing the tank by rerouting fuel lines, or using a temporary fix like JB Weld or Flex Tape. Let's explore these options in more detail.
How to fix a 1993 Ford F150 fuel tank leak
| Characteristics | Values |
|---|---|
| Possible causes | Corrosion, faulty check valve, faulty shuttle valve, ruptured tank |
| Temporary fixes | Flex Tape, JB Weld, soap, fuel tank patch putty, fuel tank repair kit |
| Permanent fixes | Replacing the fuel tank, replacing the switching valve, bypassing the valve assembly, replacing the fuel pump |
Explore related products
What You'll Learn
Temporary fixes include using soap, JB Weld, or gas tank patch putty
While the best solution for a leaking fuel tank is to have it replaced, temporary fixes include using soap, JB Weld, or gas tank patch putty.
Using Soap
If there are no visible holes in your tank, you can try using a bar of soap, such as Ivory soap, to stop the leak. Simply rub the soap across the seepage. If there is a hole, cut a wedge of soap and stuff it into the hole. This fix has been reported to last for years, but it is not a long-term solution and will only work until it rains.
JB Weld
JB Weld can be used to fix fuel tank leaks, but it is only a temporary solution. First, sand down the area around the leak and clean it thoroughly. Then, apply the JB Weld to the leak. You can also cover the JB Weld with some fiberglass repair material for added strength. While this fix has been reported to last for up to a year, it may eventually crack and leak, especially if applied to a mounting bracket.
Gas Tank Patch Putty
Gas tank patch putties, such as Fix-Stix epoxy putty, can be used to temporarily repair leaks in fuel tanks. This type of putty adheres to a variety of materials, including metals, plastics, glass, and concrete. It is also suitable for use in a wide temperature range and has excellent chemical resistance. To use, simply rough up the area around the leak with sandpaper and apply the putty to the leak.
Draining a Tiller Fuel Tank: Step-by-Step Guide
You may want to see also
Explore related products

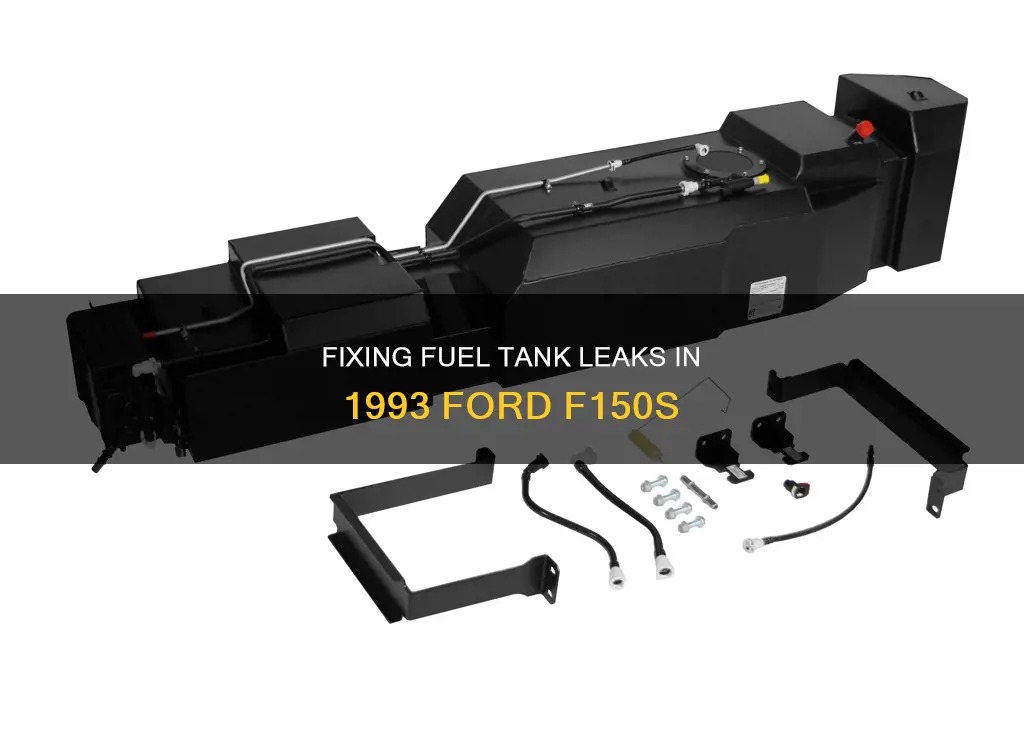

For a permanent solution, replace the tank
If you are looking for a permanent solution to your 1993 Ford F150 fuel tank leak, replacing the tank is a good option. While there are temporary fixes you can try, such as using a fuel tank repair kit or radiator repair kit, a new tank will provide a long-lasting solution.
Before replacing the tank, it is important to identify the source of the leak. In some cases, the leak may be caused by a faulty fuel pump, a clogged fuel filter, or a damaged fuel line. It is also worth checking if there is a recall on your vehicle, as there have been issues with certain models of the Ford F150 where the rear fuel pump cross-feeds into the side tank, causing overfilling.
If you decide to replace the tank, you can purchase a direct-fit fuel tank from various suppliers. When installing the new tank, ensure that the wiring is connected correctly. There are 12 possible wiring colour combinations, but through process of elimination and by referring to instructions or videos online, you should be able to wire the new tank properly.
Additionally, make sure that the side-mounted tank is level with the ground. If the tank is tilted, the fuel level displayed on the sending unit may be inaccurate.
By following these steps and referring to manufacturer instructions, you can replace the fuel tank on your 1993 Ford F150, providing a permanent solution to the leak issue.
Dispose of Old Diesel Fuel Tanks: Safe and Eco-Friendly Methods
You may want to see also
Explore related products
Ensure the fuel pump has a high-pressure check valve
The high-pressure fuel pump compresses the fuel provided by the pre-feed pump to the fuel pressure required for the injection valves. The fuel pressure is monitored by the engine control unit via a pressure sensor and regulated via a flow control valve installed in the pump. This fuel pressure regulator is attached directly to the high-pressure pump.
To ensure the fuel pump has a high-pressure check valve, you must first understand the function of a check valve. A check valve can hold rail pressure, shorten the pump priming time, and help with hot starts. It is important to note that the placement of the check valve is crucial. While placing the check valve before the pump achieves the goal of holding rail pressure, it puts unnecessary stress on the fuel pump, leading to potential pump damage. Therefore, it is recommended to have the check valve on the pressure side, specifically on the outlet side of the filter, to reduce inlet restriction.
When checking the system pressures, it is standard practice to examine the parameters of the high and low-pressure sensors from the control unit first. The high-pressure circuit is then tested after the low-pressure circuit, ensuring no errors are detected. The fuel pressure in the high-pressure circuit can be monitored and adjusted according to the system configuration.
The high-pressure fuel pump is subject to severe mechanical strain, high fuel pressures, lack of lubricant, and temperature differences, which can lead to defects over time. To maintain the fuel pump's performance, it is essential to refer to the vehicle manufacturer's target values and incorporate a check valve into the fuel system layout.
Draining ATV Fuel Tank: A Step-by-Step Guide
You may want to see also
Explore related products
Bypass the tank by sourcing large and small fittings
If you have a 1993 Ford F-150 with a dual tank, and the front tank is leaking, you may want to source large and small fittings to bypass the tank completely. This is because the front tank is likely corroded and leaking gas.
Your 1993 Ford F-150 may have a black canister inside the left frame rail, which is a mechanical device that sends fuel back to the same tank the pump is running on. You can bypass this tank by sourcing large and small fittings.
The large pressure fittings are the same as a Ford fuel filter. The small return line fittings may require some creativity to source.
To bypass the tank, you will connect the rear tank to the lines going forward. Leave the canister in place, covering the nipples with fuel hose and bolts at the end.
Draining the Honda 3000iS Fuel Tank: Step-by-Step Guide
You may want to see also
Explore related products
If the leak is from the cap, try replacing it
If your 1993 Ford F-150 is leaking fuel from the cap, you can try replacing it. Fuel filler caps are generally sealed by turning them until you hear a clicking sound.
Before you replace the cap, you should check that it is screwed on properly. If it is not, simply screwing it on tighter may solve the problem. If the cap is screwed on properly, but it is still leaking, you should replace it.
When replacing a fuel filler cap, it is recommended that you purchase an original manufactured equipment (OEM) cap. OEM caps are fitted and made for the vehicle. You can find the best fitting fuel caps for your vehicle and enjoy free next-day delivery or same-day pickup at a store near you.
To replace the cap, first park your vehicle on a flat, hard surface, and make sure that the transmission is in park mode (for automatics) or in 1st gear (for manuals). Then, secure the vehicle. Next, simply remove the old cap and twist the new one into place.
Draining the 1989 P30's Fuel Tank: Step-by-Step Guide
You may want to see also
Frequently asked questions
If your fuel tank is leaking from a hole, you should get a replacement tank. As a temporary fix, you can use gas tank patch putty, or JB Weld for a crack.
Try replacing the gas cap.
You will know this as soon as you start the car. Get a fuel tank repair kit from an auto parts store.
Verify that the pumps you are installing have a high-pressure check valve installed. Without it, fuel will transfer from the running tank to the non-running tank.
Yes, as long as you leave the selector switch on the rear, it should not draw or return gas to the front tank.
