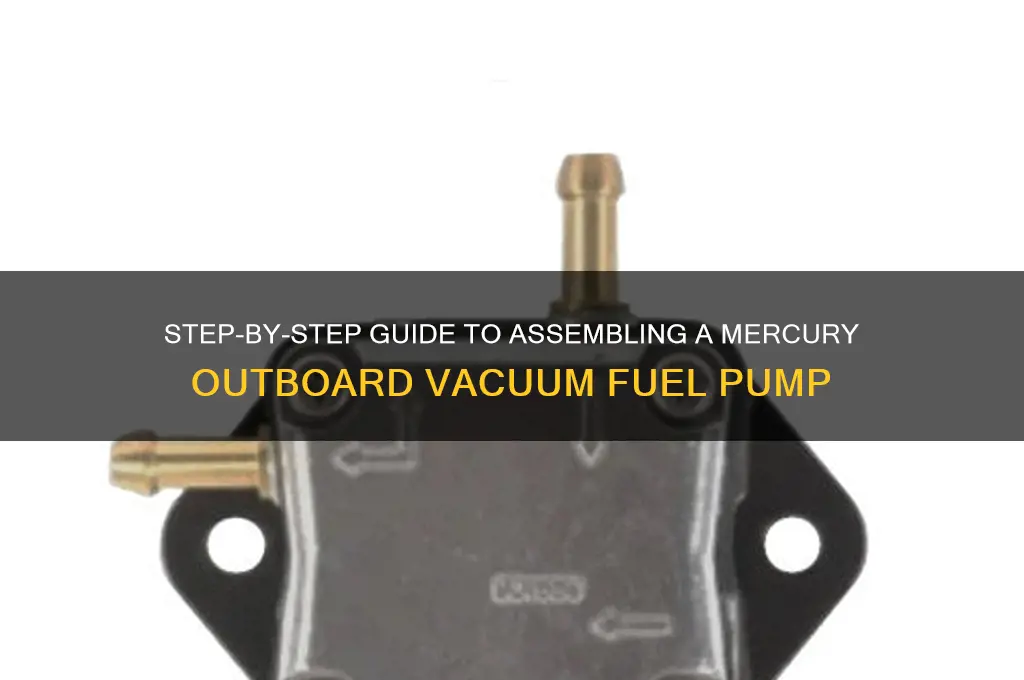

Assembling a vacuum fuel pump for a Mercury outboard motor requires careful attention to detail and a systematic approach to ensure optimal performance and reliability. Begin by gathering all necessary components, including the pump housing, diaphragm, valves, gaskets, and mounting hardware, ensuring they are clean and free from debris. Follow the manufacturer’s instructions to align and secure the diaphragm and valves within the housing, using the provided gaskets to create an airtight seal. Carefully attach the pump to the motor, ensuring proper orientation and tightening all fasteners to the specified torque. Test the pump for leaks and functionality before final installation, and verify that it operates smoothly under vacuum conditions. Proper assembly not only ensures efficient fuel delivery but also extends the lifespan of the outboard motor.
| Characteristics | Values |
|---|---|
| Pump Type | Vacuum Fuel Pump (Diaphragm Type) |
| Application | Mercury Outboard Motors (Specific models vary) |
| Assembly Tools Required | Screwdrivers (Flathead and Phillips), Pliers, Wrenches, Gasket Scraper, New Gaskets/Seals, Lubricant (Silicone Grease), Clean Rags |
| Disassembly Steps | 1. Relieve fuel pressure, 2. Disconnect fuel lines, 3. Remove pump mounting bolts, 4. Separate pump housing, 5. Remove diaphragm and valves |
| Inspection Points | Diaphragm for tears/wear, Valves for damage/debris, Housing for cracks, Gaskets for deterioration |
| Replacement Parts | Diaphragm kit (includes diaphragm, valves, gaskets), Fuel lines (if damaged) |
| Reassembly Steps | 1. Clean all components, 2. Install new diaphragm and valves, 3. Apply lubricant to gaskets, 4. Reassemble housing, 5. Secure with bolts, 6. Reconnect fuel lines |
| Testing | Check for leaks, Verify proper fuel flow, Ensure engine starts and runs smoothly |
| Safety Precautions | Work in well-ventilated area, Avoid open flames/sparks, Use safety goggles, Relieve fuel pressure before disassembly |
| Common Issues | Leaks, Weak fuel flow, Engine stalling, Hard starting |
| Maintenance Tips | Regularly inspect fuel lines, Replace gaskets/seals as needed, Keep pump clean and free of debris |
| Reference Sources | Mercury Marine Service Manuals, Online repair forums, Manufacturer websites |
Explore related products
What You'll Learn
Gather Tools and Parts
Before diving into the assembly of a vacuum fuel pump for a Mercury outboard motor, it's crucial to ensure you have all the necessary tools and parts at hand. This not only streamlines the process but also minimizes the risk of errors or delays. Start by verifying the specific model of your Mercury outboard motor, as different models may require slightly different components or tools. Refer to the manufacturer’s manual or a reliable online resource to confirm the exact parts list for your unit.
The essential tools for this task typically include a set of metric wrenches or sockets, needle-nose pliers, a flathead and Phillips screwdriver, and a clean workbench or surface. Additionally, you’ll need a torque wrench to ensure bolts and screws are tightened to the manufacturer’s specifications, preventing damage or leaks. For parts, gather the vacuum fuel pump kit, which should include the pump body, diaphragm, gaskets, and mounting hardware. Inspect each component for defects or wear; replacing old or damaged parts now will save you from potential issues later.
One often overlooked aspect is the importance of having a clean, lint-free cloth and a mild solvent for cleaning surfaces before assembly. Residue or debris can compromise the pump’s performance, so take the time to wipe down all mating surfaces and components. If your kit doesn’t include new gaskets, consider purchasing them separately to ensure a tight seal. Lubrication is another critical factor—use a small amount of silicone grease on the diaphragm and other moving parts to reduce friction and prolong the pump’s lifespan.
For those new to this task, it’s helpful to lay out all tools and parts in an organized manner before beginning. Group similar items together and keep the manual or instructions nearby for quick reference. If you’re missing any tools or parts, address this immediately to avoid halting the assembly mid-process. Remember, patience and attention to detail in this preparatory stage can significantly impact the success of your fuel pump assembly.
Finally, consider the environment in which you’re working. A well-lit, spacious area with good ventilation is ideal. Avoid assembling the pump near open flames or in areas with high humidity, as these conditions can affect the integrity of the components. By meticulously gathering and preparing your tools and parts, you set the foundation for a smooth and efficient assembly process, ensuring your Mercury outboard motor operates reliably once the pump is installed.
Optimal Fuel Pump Voltage: How Many Volts Should You Expect?
You may want to see also
Explore related products
Disassemble Old Fuel Pump
Before embarking on the assembly of a vacuum fuel pump for a Mercury outboard motor, it's crucial to understand the reverse process: disassembling the old fuel pump. This step is often overlooked, yet it provides invaluable insights into the pump's inner workings, potential wear points, and necessary replacements. By carefully disassembling the old unit, you can identify damaged components, such as cracked diaphragms, worn valves, or clogged fuel lines, ensuring that the new assembly is both efficient and long-lasting.
Step-by-Step Disassembly Process
Begin by relieving fuel system pressure to prevent accidental spills or injuries. Disconnect the fuel lines from the pump, taking note of their orientation for reassembly. Next, remove the pump cover, typically secured by screws or clips, and inspect the diaphragm for tears or deformities. Carefully lift out the diaphragm and valve assembly, paying attention to the spring tension and valve seating. Clean each component with a solvent suitable for rubber and plastic parts, avoiding harsh chemicals that could degrade materials. Document the order of disassembly with photos or notes to aid in reassembly or troubleshooting.
Cautions and Considerations
Disassembling an old fuel pump requires precision and patience. Avoid forcing components apart, as this can damage delicate parts like the diaphragm or valve seats. Inspect O-rings and gaskets for brittleness or warping, as these are common failure points. If the pump housing shows signs of corrosion or significant wear, consider replacing it rather than reusing it. Always work in a well-ventilated area and use safety gear, such as gloves and safety goggles, to protect against fuel exposure and debris.
Analyzing Wear Patterns
As you disassemble the pump, analyze wear patterns to diagnose underlying issues. For example, excessive diaphragm wear may indicate over-pressurization or poor fuel quality. Clogged fuel lines or filters suggest inadequate maintenance, while valve seat erosion could point to contaminated fuel. Understanding these patterns not only aids in the current repair but also helps prevent future failures by addressing root causes.
Practical Takeaway
Disassembling an old fuel pump is more than a teardown—it’s a diagnostic tool. By meticulously examining each component, you gain insights into the pump’s condition and the outboard motor’s overall fuel system health. This process ensures that your new assembly is built on a foundation of knowledge, reducing the likelihood of recurring issues and extending the life of your Mercury outboard motor. Treat disassembly as a learning opportunity, and you’ll approach the assembly phase with confidence and clarity.
BMW 325i Fuel Pump Count: 2006 Model Explained
You may want to see also
Explore related products
Clean and Inspect Components
Before reassembling your Mercury outboard's vacuum fuel pump, a meticulous cleaning and inspection of each component is non-negotiable. Residue, debris, or wear can compromise performance, leading to fuel delivery issues and potential engine damage. Think of it as a preventative health check for your motor's fuel system.
Dirt, varnish, and old fuel deposits act like microscopic roadblocks, hindering the pump's ability to create the necessary vacuum for fuel flow. Even a small obstruction can lead to sputtering, hard starting, or complete engine failure.
Begin by disassembling the pump according to your Mercury outboard's service manual. Lay out components in a clean, well-lit area, grouping similar parts together for easy reference during reassembly. Use a mild solvent specifically designed for carburetor cleaning, such as carburetor cleaner or brake cleaner, to dissolve stubborn deposits. Avoid harsh chemicals that could damage rubber seals or gaskets. For delicate components like diaphragms and valves, a soft brush and compressed air are your best tools. Gently remove any debris, ensuring no fibers or residue remain.
Inspect each component for wear, cracks, or damage. Pay close attention to diaphragms for tears or brittleness, valves for warping or pitting, and springs for fatigue or corrosion. Any compromised parts must be replaced with genuine Mercury Marine replacements to ensure optimal performance and longevity.
Remember, a clean and thoroughly inspected fuel pump is the foundation for a reliable and efficient Mercury outboard. Skipping this crucial step could lead to costly repairs down the line. Take your time, be meticulous, and your efforts will be rewarded with smooth starts, consistent power, and peace of mind on the water.
1987 Ford F150 Fuel Pump Count: A Comprehensive Guide
You may want to see also
Explore related products
Reassemble Fuel Pump Properly
Reassembling a vacuum fuel pump for a Mercury outboard motor demands precision and attention to detail. Begin by ensuring all components are clean and free of debris, as even a small particle can disrupt the pump’s operation. Lay out the parts in the order they were disassembled to avoid confusion. Start by placing the diaphragm back into the pump housing, ensuring it seats evenly without folds or creases. Misalignment here can lead to leaks or reduced efficiency. Next, position the diaphragm plate over the diaphragm, aligning the holes with the housing’s mounting points. Secure these components with the appropriate screws, tightening them evenly to maintain uniform pressure.
A critical step often overlooked is the proper installation of the gasket. Use a gasket specifically designed for your Mercury outboard model, as generic replacements may not fit correctly. Apply a thin, even coat of marine-grade adhesive to the gasket’s surface to enhance its seal. Press the gasket firmly into place, ensuring it adheres to both the housing and cover without gaps. This step is vital for preventing air leaks, which can compromise the pump’s vacuum capabilities. If the gasket appears damaged or brittle, replace it immediately—reusing a worn gasket is a common mistake that leads to premature failure.
Once the gasket is in place, reattach the pump cover, aligning it with the housing’s mounting holes. Secure the cover with screws, tightening them in a diagonal pattern to distribute pressure evenly. Overtightening can warp the housing, while undertightening risks leaks. After securing the cover, reconnect the fuel lines, ensuring the fittings are tight and oriented correctly. Use a wrench to snug the fittings, but avoid excessive force, as this can damage the threads. A practical tip: apply a small amount of thread sealant to the fittings for added security, especially in saltwater environments where corrosion is a concern.
Finally, test the reassembled pump before reinstalling it on the motor. Connect the pump to a vacuum source and check for leaks by spraying soapy water around the seams. Bubbles indicate air leaks, requiring disassembly and reevaluation of the gasket or diaphragm alignment. If the pump holds vacuum, reinstall it on the motor, ensuring all connections are secure. Regularly inspect the pump for signs of wear or damage, as proactive maintenance extends its lifespan. Proper reassembly not only restores functionality but also ensures reliable fuel delivery, critical for the outboard motor’s performance.
Understanding Fuel Pump Relays in the 1985 Ford F150
You may want to see also
Explore related products
Test for Leaks and Functionality
Once assembled, the vacuum fuel pump for your Mercury outboard motor must undergo rigorous testing to ensure it operates flawlessly and remains leak-free. Begin by pressurizing the pump to its specified operating range, typically 3-5 PSI, using a hand pump or compressed air source. Attach a pressure gauge to the pump’s outlet to monitor stability. Hold this pressure for 5 minutes, inspecting all joints, seals, and connections for bubbles or moisture, which indicate leaks. Even a pinhole leak can compromise performance, so address any issues immediately by tightening fittings or replacing faulty components.
Next, test functionality by simulating real-world conditions. Connect the pump to the fuel system, ensuring all lines are securely attached. Prime the pump by manually operating the diaphragm or using the engine’s vacuum source. With the engine off, observe the fuel flow at the carburetor or fuel injector. A steady, consistent stream indicates proper operation. If flow is intermittent or weak, inspect the diaphragm for tears, check valve seating, or debris blocking the inlet/outlet ports. Compare the pump’s performance against factory specifications, such as flow rate (e.g., 3-4 gallons per hour for small outboards) and vacuum draw (e.g., 12-15 inHg).
A comparative analysis of the pump’s performance under load provides further insight. Run the engine at idle and observe fuel delivery. Gradually increase throttle, noting whether the pump maintains pressure and flow. If the engine stalls or hesitates under load, the pump may lack capacity or suffer from internal restrictions. Compare these results to a known-good pump or consult Mercury’s troubleshooting guide for diagnostic codes related to fuel delivery issues. This step isolates whether the problem lies with the pump, fuel lines, or another component.
Finally, adopt a persuasive approach to emphasize the importance of thorough testing. A leaking or malfunctioning fuel pump poses safety risks, from fuel spills to engine failure mid-operation. Investing 30-45 minutes in testing now prevents costly repairs or dangerous situations later. Use a dye-based leak detector for hard-to-spot leaks, and always test in a well-ventilated area away from ignition sources. Treat this step as non-negotiable—a properly functioning fuel pump is critical to your outboard’s reliability and your peace of mind on the water.
How to Test a Fuel Pump: A Step-by-Step Guide
You may want to see also
Frequently asked questions
You will need basic hand tools such as a screwdriver, pliers, wrenches, and possibly a socket set. Additionally, ensure you have a clean workspace, the fuel pump kit, and any gaskets or seals specified in the instructions.
Refer to the Mercury outboard motor service manual for specific alignment instructions. Typically, align the pump housing, diaphragm, and cover plate according to the markings or notches provided. Double-check that all components are seated correctly before tightening bolts or screws.
After assembly, inspect all connections and seals for proper seating. Apply a thin coat of fuel-resistant sealant to gaskets if recommended. Test the pump for leaks by pressurizing the system with air or fuel before reinstalling it on the motor. Always follow safety guidelines when working with fuel systems.
