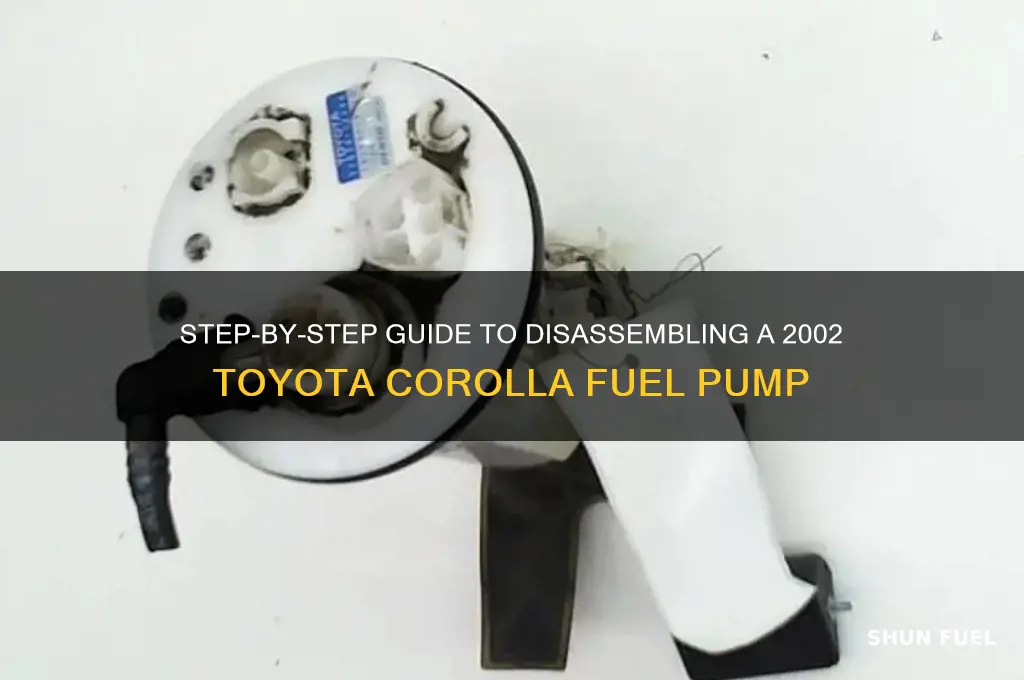

Taking apart the fuel pump on a 2002 Toyota Corolla requires careful preparation and attention to detail to ensure safety and avoid damage. Begin by relieving the fuel system pressure and disconnecting the battery to prevent accidental ignition. Locate the fuel pump assembly, which is situated inside the fuel tank, and remove the rear seat or access panel to gain entry. Safely lower the fuel tank or use a specialized tool to extract the pump unit. Disconnect the electrical connectors and fuel lines, taking note of their positions for reassembly. Finally, carefully detach the fuel pump from the sending unit, ensuring all components are handled gently to avoid contamination or breakage. Always refer to the vehicle’s service manual for specific instructions and safety precautions.
| Characteristics | Values |
|---|---|
| Vehicle Model | 2002 Toyota Corolla |
| Fuel Pump Location | Inside the fuel tank |
| Tools Required | Jack, Jack Stands, Wrenches (various sizes), Screwdrivers, Pliers, New Fuel Pump (optional), Safety Gloves, Safety Goggles |
| Safety Precautions | Relieve fuel system pressure, disconnect battery, work in well-ventilated area, avoid open flames or sparks |
| Steps to Access Fuel Pump | 1. Raise vehicle and secure on jack stands 2. Remove fuel tank skid plate 3. Disconnect fuel lines and electrical connectors 4. Lower fuel tank to access pump |
| Fuel Pump Removal | 1. Remove fuel pump lock ring using specialized tool 2. Carefully lift out fuel pump assembly 3. Inspect pump and sender unit for damage |
| Reassembly Tips | Ensure new pump (if replacing) is compatible, reinstall lock ring securely, reconnect fuel lines and electrical connectors, test for leaks |
| Difficulty Level | Moderate to Advanced (requires mechanical skill and safety awareness) |
| Estimated Time | 2-4 hours (depending on experience and tools) |
| Common Issues | Fuel pump lock ring stuck, damaged fuel lines, electrical connector corrosion |
| Maintenance Tip | Regularly inspect fuel system for leaks and replace pump if showing signs of failure (e.g., whining noise, engine stalling) |
Explore related products
What You'll Learn
Disconnect Battery and Relieve Fuel Pressure
Before diving into the disassembly of a 2002 Toyota Corolla fuel pump, prioritizing safety is paramount. Fuel systems operate under pressure, and mishandling them can lead to dangerous situations. The first critical step in this process is disconnecting the battery and relieving fuel pressure. This not only prevents accidental ignition but also minimizes the risk of fuel spray or leaks during the procedure.
Steps to Disconnect the Battery:
Begin by locating the battery, typically found in the engine bay. Use a wrench or socket to loosen the nut on the negative terminal (marked with a "-" symbol). Once loosened, carefully lift the cable away from the terminal. Ensure the cable does not come into contact with any metal surfaces that could create a short circuit. Wrap the cable in electrical tape or secure it away from the battery to prevent accidental reconnection. This step effectively cuts power to the fuel pump and other electrical components, ensuring a safer working environment.
Relieving Fuel Pressure: A Critical Safety Measure
With the battery disconnected, the next step is to relieve the fuel system pressure. Failure to do so can result in fuel spraying when the fuel lines are disconnected, posing a fire hazard. Start by locating the fuel pump fuse or relay in the fuse box, often found under the hood or near the driver’s side dashboard. Remove the fuse or relay to disable the fuel pump. Then, start the engine and let it run until it stalls. This action depletes the residual pressure in the fuel lines. If the engine does not start, manually crank it for a few seconds using the ignition key (without starting the engine) to achieve the same effect.
Practical Tips and Cautions
Always wear safety goggles and gloves when working with fuel systems to protect against spills or splashes. Work in a well-ventilated area to avoid inhaling fuel vapors. After relieving pressure, double-check that the fuel lines are cool to the touch before proceeding. If you’re unsure about any step, consult the vehicle’s service manual or seek professional assistance. Remember, fuel systems are inherently dangerous, and rushing through these preliminary steps can lead to serious consequences.
Disconnecting the battery and relieving fuel pressure are non-negotiable steps in the process of taking apart a 2002 Toyota Corolla fuel pump. These actions not only safeguard you from potential hazards but also ensure a smoother and more controlled disassembly process. By following these steps meticulously, you lay a solid foundation for the subsequent stages of fuel pump removal and maintenance.
