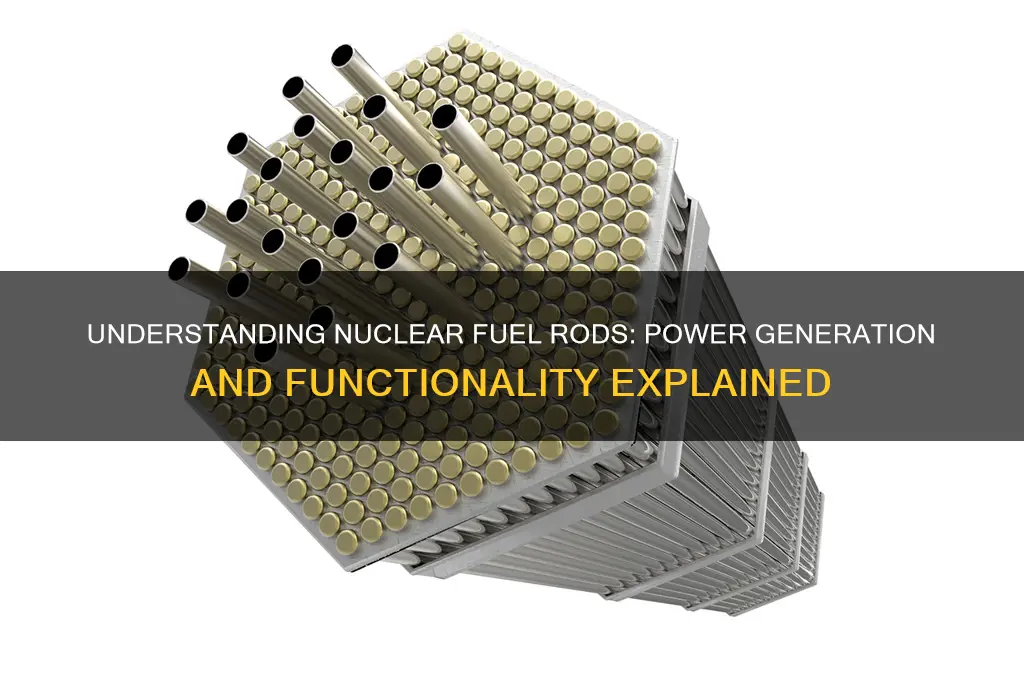

Nuclear fuel rods are the core components of nuclear reactors, serving as the primary source of fuel for sustaining the nuclear chain reaction that generates electricity. Typically made of a zirconium alloy cladding filled with ceramic uranium dioxide (UO₂) pellets, these rods are designed to withstand extreme temperatures and pressures while containing radioactive materials. Inside the reactor core, neutrons split the uranium atoms in a process called fission, releasing a tremendous amount of heat and additional neutrons. This heat is transferred to a coolant, such as water, which then produces steam to drive turbines and generate electricity. The zirconium cladding acts as a barrier, preventing radioactive fission products from escaping into the reactor coolant, while the pellets are stacked and sealed to ensure efficient and safe operation. Over time, the fuel rods become less effective as the fissile material is consumed, requiring periodic replacement to maintain reactor performance. Understanding how nuclear fuel rods work is essential for appreciating the efficiency, safety, and environmental impact of nuclear power generation.
Explore related products
What You'll Learn
- Uranium Enrichment Process: Natural uranium is enriched to increase U-235 for fission reactions
- Fuel Pellet Manufacturing: Ceramic uranium oxide pellets are sintered for durability and efficiency
- Rod Assembly Structure: Pellets are stacked into zirconium alloy tubes, forming fuel rods
- Nuclear Fission Reaction: Neutrons split U-235 atoms, releasing energy and sustaining the chain reaction
- Cooling and Moderation: Water or other coolants remove heat and slow neutrons for control
Uranium Enrichment Process: Natural uranium is enriched to increase U-235 for fission reactions
Natural uranium, as mined from the earth, contains only about 0.7% of the fissile isotope U-235, with the remainder primarily consisting of U-238. This low concentration is insufficient to sustain a nuclear chain reaction in most reactor designs. To make it viable for nuclear fuel rods, uranium must undergo an enrichment process to increase the U-235 concentration to between 3% and 5%. This process is both scientifically intricate and highly regulated due to its potential dual-use in nuclear weapons proliferation.
The most common enrichment method is gaseous diffusion, though it is gradually being replaced by more energy-efficient techniques like gas centrifugation. In gas centrifugation, uranium hexafluoride (UF₆) gas is spun at extremely high speeds in cylindrical centrifuges. The heavier U-238 molecules migrate toward the outer edge, while the lighter U-235 molecules concentrate near the center. This separation, though minute in a single centrifuge, is amplified through a cascade of thousands of interconnected units. For example, enriching uranium to 5% U-235 requires approximately 1,500 stages of centrifugation, consuming significant energy—up to 50 kWh per separative work unit (SWU).
An alternative method, laser enrichment, uses lasers to selectively excite and separate U-235 atoms from UF₆. This process, still in development, promises higher efficiency and lower environmental impact but faces technical challenges in scaling up. Regardless of the method, the enriched uranium is then converted back into a solid form, typically uranium dioxide (UO₂), which is pressed into pellets and sintered at temperatures exceeding 1,700°C. These pellets, each about the size of a fingertip, are stacked into zirconium alloy tubes to form fuel rods, which are then bundled into assemblies for use in reactors.
The enrichment process is not without risks. UF₆ is highly corrosive and toxic, requiring specialized handling and containment. Moreover, the proliferation risk associated with enriched uranium necessitates stringent international safeguards, such as those overseen by the International Atomic Energy Agency (IAEA). Facilities must adhere to strict protocols, including continuous monitoring and material accounting, to ensure enriched uranium is used solely for peaceful purposes.
In summary, uranium enrichment is a critical step in preparing nuclear fuel rods, transforming naturally occurring uranium into a material capable of sustaining fission reactions. While the process is energy-intensive and technically demanding, advancements in centrifuge and laser technologies are making it more efficient and secure. Understanding this process underscores the balance between harnessing nuclear energy and mitigating its risks, ensuring that fuel rods power reactors safely and sustainably.
Understanding Fuel Transducers: Functionality and Operation Explained
You may want to see also
Explore related products
Fuel Pellet Manufacturing: Ceramic uranium oxide pellets are sintered for durability and efficiency
The heart of a nuclear fuel rod lies in its ceramic uranium oxide pellets, meticulously engineered to withstand extreme conditions while maximizing energy output. These pellets are not simply molded; they undergo a process called sintering, a high-temperature treatment that transforms powdered uranium oxide into a dense, durable ceramic. Imagine compressing a pile of sand into a solid brick – sintering achieves a similar effect, but at a microscopic level, fusing individual uranium oxide particles into a cohesive structure.
This process is crucial for several reasons. Firstly, it increases the pellet's density, allowing more fissile material to be packed into a smaller volume, thereby enhancing the fuel rod's energy density. Secondly, sintering improves the pellet's mechanical strength, enabling it to withstand the immense pressures and temperatures within a nuclear reactor core.
The sintering process itself is a delicate dance of temperature and time. Uranium oxide powder, often enriched to increase its fissile uranium-235 content, is first pressed into cylindrical pellets under high pressure. These "green" pellets are then heated in a controlled atmosphere furnace to temperatures exceeding 1,700°C (3,092°F). This heat causes the uranium oxide particles to partially melt and bond together, forming a strong, porous-free structure. The duration of sintering varies depending on the desired density and microstructure, typically ranging from several hours to a day.
Precision is paramount during sintering. Too low a temperature or too short a time results in weak, porous pellets prone to cracking. Conversely, excessive heat or prolonged sintering can lead to grain growth, reducing the pellet's strength and performance.
The resulting sintered pellets are remarkably robust, capable of withstanding the intense neutron bombardment and high temperatures within a reactor core for years. Their ceramic nature provides excellent resistance to corrosion and radiation damage, ensuring the fuel remains contained and stable throughout its operational life. This durability is essential for nuclear safety, preventing the release of radioactive material into the environment.
The efficiency of sintered uranium oxide pellets is equally impressive. Their high density allows for a greater concentration of fissile material, maximizing the number of fission reactions and, consequently, the energy output of the reactor. This efficiency translates to a more compact and cost-effective fuel assembly, reducing the overall footprint of nuclear power plants.
In essence, the sintering of ceramic uranium oxide pellets is a critical step in nuclear fuel rod manufacturing, transforming raw material into a highly efficient and durable energy source. This process exemplifies the meticulous engineering and scientific precision required to harness the power of the atom safely and sustainably.
ECU's Role in Optimizing Fuel Injection and Engine Performance
You may want to see also
Explore related products
Rod Assembly Structure: Pellets are stacked into zirconium alloy tubes, forming fuel rods
The heart of a nuclear fuel rod lies in its precise assembly. Ceramic pellets of uranium dioxide, each about the size of a fingertip, are meticulously stacked into slender zirconium alloy tubes. This seemingly simple structure is a marvel of engineering, designed to withstand extreme temperatures, pressures, and radiation while efficiently containing and facilitating the nuclear reactions that power our world.
Imagine a high-rise building where each floor is a uranium pellet, and the entire structure is encased in a protective, heat-resistant shell. This analogy captures the essence of a fuel rod's assembly, highlighting the importance of both the individual components and their harmonious arrangement.
The choice of zirconium alloy for the tubes is no accident. This material boasts exceptional corrosion resistance, even in the harsh environment of a nuclear reactor core. Its low neutron absorption cross-section ensures minimal interference with the fission process, allowing the uranium pellets to perform their energy-generating role unimpeded. Furthermore, zirconium's high melting point and excellent thermal conductivity facilitate efficient heat transfer from the pellets to the surrounding coolant, preventing overheating and potential meltdown.
Each pellet, before being stacked, undergoes a rigorous manufacturing process. Uranium dioxide powder is compacted and sintered at high temperatures, resulting in a dense, ceramic pellet with a precise diameter and length. This uniformity is crucial for ensuring consistent performance and structural integrity within the fuel rod.
The stacking process itself is a delicate operation. Pellets are carefully loaded into the zirconium tube, leaving a small gap between each pellet to allow for thermal expansion during reactor operation. This gap, filled with helium gas, also aids in heat transfer and provides a buffer against pellet-to-pellet contact, which could lead to cracking or fragmentation. Once filled, the tube is sealed at both ends, creating a self-contained unit ready to be bundled with other fuel rods into a fuel assembly.
The resulting fuel rod is a testament to human ingenuity, a tiny yet powerful component that harnesses the immense energy locked within the atom. Its structure, a symphony of materials science and engineering precision, plays a vital role in the safe and efficient generation of nuclear power. Understanding this intricate assembly is key to appreciating the complexities and potential of nuclear energy.
Florida's Fuel Supply: Sources, Logistics, and Distribution Explained
You may want to see also
Explore related products
Nuclear Fission Reaction: Neutrons split U-235 atoms, releasing energy and sustaining the chain reaction
At the heart of every nuclear fuel rod lies a process both elegant and powerful: nuclear fission. When a neutron collides with a U-235 atom, it destabilizes the nucleus, causing it to split into smaller elements, typically barium and krypton, along with two or three free neutrons. This division releases a staggering amount of energy—approximately 200 million electron volts per fission event. To put this in perspective, burning a single gram of coal produces about 24,000 joules, while one gram of U-235 undergoing fission releases over 80,000,000 joules. This energy is harnessed as heat, which is then converted into electricity, making nuclear fuel rods a cornerstone of modern power generation.
The chain reaction begins with a single neutron, but its sustainability depends on precise control. In a typical nuclear reactor, only one of the released neutrons is allowed to continue the reaction, while the others are absorbed by control rods made of materials like cadmium or boron. This delicate balance ensures the reaction remains critical—neither dying out nor spiraling into a runaway meltdown. For example, a 1-gigawatt reactor requires about 50 tons of U-235 fuel annually, with each atom’s fission contributing to a steady, controlled release of energy. Without this regulation, the reactor would either fizzle or overheat, underscoring the importance of engineering precision in nuclear power.
Consider the practical implications of this process within a fuel rod. Each rod contains hundreds of ceramic pellets, enriched with U-235 to about 3–5%, encased in zirconium alloy tubing. These pellets are designed to withstand temperatures up to 2,000°C and pressures exceeding 150 atmospheres. Over time, however, the fission process degrades the fuel, producing radioactive byproducts like cesium-137 and strontium-90. A fuel rod typically operates for 3–5 years before it must be replaced, highlighting the dual challenge of maximizing energy extraction while managing nuclear waste.
From a comparative standpoint, nuclear fission in fuel rods offers a stark contrast to fossil fuel combustion. While coal and natural gas release energy through chemical reactions, nuclear fission taps into the atom’s core, yielding millions of times more energy per unit mass. However, this efficiency comes with unique risks, such as the potential for radioactive contamination. For instance, a single spent fuel rod remains hazardous for thousands of years, necessitating long-term storage solutions like deep geological repositories. Despite these challenges, the energy density of U-235 makes nuclear power a compelling option for low-carbon electricity generation.
To illustrate the scale of this process, imagine a standard fuel assembly containing 264 rods. In one year of operation, this assembly can generate enough electricity to power 10,000 homes. This efficiency is why nuclear energy accounts for about 10% of global electricity production, despite fueling only a fraction of the world’s power plants. For those considering the future of energy, understanding the fission reaction within fuel rods is essential. It’s a testament to human ingenuity—a process that transforms a single atomic event into a sustainable power source, provided we manage its complexities with care.
Understanding Fuel Injection Systems: A Comprehensive Guide to Their Functionality
You may want to see also
Explore related products
Cooling and Moderation: Water or other coolants remove heat and slow neutrons for control
In nuclear reactors, the intense heat generated by fission reactions within fuel rods must be managed to prevent meltdowns and ensure efficient energy production. Water, the most common coolant, serves a dual purpose: it absorbs heat from the fuel rods and transfers it to a secondary system to generate steam, which drives turbines. However, water’s role extends beyond cooling. As a moderator, it slows down fast-moving neutrons released during fission, increasing the likelihood of further fission events and sustaining the chain reaction. This dual functionality makes water indispensable in light-water reactors, which dominate the nuclear energy landscape.
Consider the process in a pressurized water reactor (PWR), where water is maintained at high pressure to prevent boiling. The coolant flows through the reactor core, absorbing heat at temperatures around 325°C (617°F). This heated water then transfers its thermal energy to a secondary water loop, which converts to steam and powers the turbine. In contrast, boiling water reactors (BWRs) allow the coolant to boil directly in the core, producing steam that drives the turbine without a secondary loop. Both designs highlight water’s versatility as both a coolant and moderator, though they differ in their approach to heat transfer and steam generation.
While water is the most prevalent coolant, other substances like liquid sodium, helium, or molten salts are used in advanced reactors. For instance, fast breeder reactors employ liquid sodium as a coolant because it operates at lower pressures and higher temperatures than water, enabling greater thermal efficiency. However, sodium reacts violently with air and water, requiring stringent safety measures. Similarly, helium, used in high-temperature gas-cooled reactors, offers excellent heat transfer properties but lacks moderating capabilities, necessitating the use of graphite as a moderator. These alternatives demonstrate the trade-offs between cooling efficiency, neutron moderation, and safety in reactor design.
Effective moderation is critical for controlling the nuclear reaction. In light-water reactors, water slows neutrons from their initial speed of 10 million miles per hour to thermal energies in microseconds, optimizing their ability to induce fission in uranium-235. This moderation ensures a self-sustaining chain reaction without overheating. However, too much moderation can lead to excess neutron absorption, reducing reactor efficiency. Operators must carefully balance coolant flow and composition to maintain optimal neutron kinetics. For example, in PWRs, boric acid is added to the coolant to absorb excess neutrons, providing an additional layer of control.
Practical considerations for coolant selection extend beyond thermal properties. Water’s availability and low cost make it the preferred choice, but its susceptibility to corrosion and radiation damage requires regular monitoring and treatment. Advanced coolants like molten salts offer advantages such as higher operating temperatures and inherent safety features but are more expensive and chemically complex. When designing or operating a reactor, engineers must weigh these factors against the reactor’s intended purpose, whether it’s electricity generation, isotope production, or research. Ultimately, the choice of coolant and moderator shapes the reactor’s performance, safety, and economic viability.
The Process of Creating Unleaded Fuel: A Comprehensive Guide
You may want to see also
Frequently asked questions
A nuclear fuel rod is a cylindrical tube containing pellets of fissile material, typically uranium dioxide (UO₂). Its purpose is to facilitate controlled nuclear fission reactions in a reactor core, generating heat that is converted into electricity.
Inside the fuel rod, uranium atoms undergo fission when struck by neutrons, releasing energy in the form of heat. This heat is transferred to a coolant (like water), which produces steam to drive turbines and generate electricity.
A typical nuclear fuel rod can operate for 3 to 6 years before it becomes spent, meaning the fissile material is largely depleted and no longer efficient for sustaining the reaction. Spent rods are then removed and replaced with fresh ones.
Spent fuel rods are highly radioactive and must be stored safely. They are initially placed in water-filled spent fuel pools to cool and reduce radioactivity. Later, they may be transferred to dry casks or long-term storage facilities pending reprocessing or permanent disposal.
