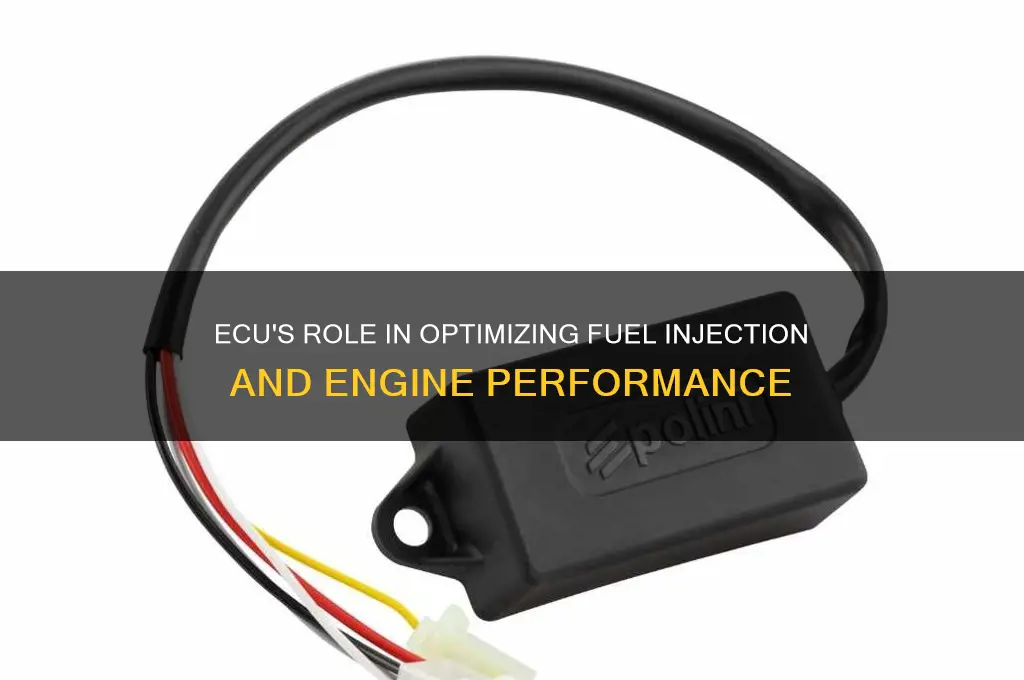

The Engine Control Unit (ECU), a critical component in modern vehicles, plays a pivotal role in managing the fuel injection system to optimize engine performance, efficiency, and emissions. By continuously monitoring inputs from various sensors—such as the mass airflow sensor, throttle position sensor, and oxygen sensor—the ECU calculates the precise amount of fuel required for combustion. It then adjusts the fuel injectors' timing and duration to deliver the correct fuel-air mixture to the engine cylinders, ensuring efficient combustion under varying driving conditions. This real-time control not only enhances fuel economy but also reduces harmful emissions, making the ECU a cornerstone of modern automotive technology.
| Characteristics | Values |
|---|---|
| Fuel Injection Timing | ECU adjusts injection timing based on engine load, RPM, and temperature. |
| Fuel Pressure Regulation | Controls fuel pressure via the fuel pump to ensure optimal delivery. |
| Injector Pulse Width | Determines the duration fuel injectors remain open for precise fuel metering. |
| Air-Fuel Ratio (AFR) Control | Maintains stoichiometric or lean/rich AFR using oxygen sensor feedback. |
| Cold Start Enrichment | Increases fuel delivery during cold starts for easier ignition. |
| Idle Speed Control | Adjusts fuel and air mixture to maintain stable idle RPM. |
| Knock Sensor Integration | Reduces fuel if engine knock is detected to prevent damage. |
| Emission Control | Optimizes fuel delivery to reduce harmful emissions (e.g., NOx, CO). |
| Load and Throttle Position Sensing | Adjusts fuel based on throttle position and engine load. |
| Feedback Control System | Uses sensors (e.g., MAP, MAF, O2) for real-time fuel adjustments. |
| Fuel Cut-Off | Stops fuel delivery during deceleration or key-off to save fuel. |
| Adaptive Learning | Learns and adjusts fuel maps based on driving conditions and aging parts. |
| Multi-Point Injection Control | Manages fuel delivery to individual cylinders for balanced performance. |
| Direct Injection Control | Precisely controls high-pressure fuel injection for efficiency and power. |
| Turbocharged/Supercharged Engines | Adjusts fuel for boosted engines to prevent detonation and optimize power. |
Explore related products
What You'll Learn
- Fuel Injector Pulse Width: ECU adjusts injection duration based on engine load and RPM
- Fuel Pressure Regulation: ECU controls fuel pump to maintain optimal pressure for combustion
- Air-Fuel Ratio Management: ECU ensures precise mixture using oxygen sensor feedback
- Cold Start Enrichment: ECU increases fuel during cold starts for smoother ignition
- Throttle Position Input: ECU uses throttle data to modulate fuel delivery for acceleration
Fuel Injector Pulse Width: ECU adjusts injection duration based on engine load and RPM
The ECU's role in managing fuel injection is a delicate dance, where precision is key. One of its critical tasks is adjusting the fuel injector pulse width, a process that directly impacts engine performance. This adjustment is not arbitrary; it's a calculated response to the engine's load and RPM, ensuring optimal fuel delivery.
Understanding Pulse Width Modulation
Imagine a faucet controlling water flow. The longer it stays open, the more water flows. Fuel injectors operate similarly, with the ECU dictating the duration of each injection cycle, or 'pulse width'. This duration is measured in milliseconds (ms) and varies based on engine demands. For instance, a high-performance engine under heavy load might require a pulse width of 15-20 ms, while idle conditions could necessitate a mere 2-4 ms. The ECU's ability to modulate this pulse width is fundamental to achieving the right air-fuel mixture, crucial for combustion efficiency.
The Science Behind the Adjustment
When you press the accelerator, the ECU receives signals indicating increased engine load and RPM. It responds by lengthening the injector pulse width, allowing more fuel to enter the combustion chamber. This process is not linear; the ECU uses complex algorithms to calculate the precise duration required. For example, a sudden increase in RPM might trigger a rapid pulse width extension, while a gradual load increase could result in a more measured adjustment. This dynamic control ensures the engine receives the right amount of fuel, preventing issues like knocking or inefficient fuel consumption.
Practical Implications and Tips
For car enthusiasts and mechanics, understanding this process is invaluable. When tuning an engine, adjusting the ECU's pulse width settings can significantly impact performance. However, it's a delicate balance. Over-fueling can lead to rich mixtures, causing carbon buildup and reduced efficiency. Under-fueling results in lean mixtures, potentially damaging the engine. Modern ECUs often have self-learning capabilities, adapting pulse widths over time. Yet, for custom setups, manual calibration might be necessary. Tools like wideband oxygen sensors provide real-time air-fuel ratio data, aiding in precise adjustments.
A Comparative Perspective
In contrast to older carbureted systems, where fuel delivery was less precise, modern ECU-controlled injectors offer unparalleled control. Carburetors relied on mechanical linkages and vacuum signals, often resulting in less efficient fuel usage. The ECU's digital precision allows for micro-adjustments, optimizing performance across various driving conditions. This evolution in fuel management highlights the importance of pulse width control, showcasing how technology has revolutionized engine efficiency and responsiveness.
In summary, the ECU's management of fuel injector pulse width is a sophisticated process, tailored to the engine's needs. This dynamic adjustment ensures the engine operates efficiently, delivering power when required while maintaining fuel economy. Whether for performance tuning or understanding your vehicle's inner workings, grasping this concept is essential for anyone delving into the intricacies of modern engine management.
Ammonia Fuel Explained: How It Powers Engines and Reduces Emissions
You may want to see also
Explore related products
Fuel Pressure Regulation: ECU controls fuel pump to maintain optimal pressure for combustion
The Engine Control Unit (ECU) plays a pivotal role in modern fuel systems by precisely regulating fuel pressure to ensure optimal combustion. This process begins with the ECU monitoring various sensors, such as the fuel pressure sensor, mass airflow sensor, and throttle position sensor, to gather real-time data on engine conditions. Based on this information, the ECU adjusts the fuel pump’s operation to maintain the ideal pressure required for efficient fuel delivery. For instance, during high-load conditions like acceleration, the ECU increases fuel pump output to supply more fuel, while during idle, it reduces pressure to conserve fuel and minimize emissions.
One of the key mechanisms the ECU employs is pulse-width modulation (PWM) to control the fuel pump’s duty cycle. By varying the duration of electrical pulses sent to the pump, the ECU can fine-tune fuel pressure with millisecond precision. For example, a duty cycle of 50% means the pump is active for half the time, allowing for a balanced fuel supply. This method ensures that the fuel rail pressure remains within a narrow range, typically between 30 and 60 psi, depending on the engine’s design and operating conditions. Deviations from this range can lead to poor combustion, reduced power, or increased emissions, underscoring the ECU’s critical role.
Practical considerations for maintaining this system include regular inspection of the fuel pressure regulator and pump for leaks or wear. A malfunctioning regulator can cause erratic pressure, leading to engine stalling or rough idling. Mechanics often use a fuel pressure gauge to diagnose issues, comparing readings to manufacturer specifications. For DIY enthusiasts, ensuring the fuel filter is clean and the pump’s electrical connections are secure can prevent common problems. Advanced users might even reprogram the ECU to adjust fuel pressure thresholds for performance tuning, though this requires specialized tools and knowledge.
Comparatively, older carbureted systems lacked the precision of ECU-controlled fuel injection, relying on mechanical components that were less adaptable to varying driving conditions. The ECU’s ability to dynamically adjust fuel pressure not only enhances performance but also improves fuel efficiency and reduces environmental impact. For example, in hybrid vehicles, the ECU coordinates fuel pressure with electric motor operation to optimize energy use. This integration highlights the ECU’s role as the brain of the fuel system, ensuring every drop of fuel contributes to efficient combustion.
In conclusion, fuel pressure regulation by the ECU is a sophisticated process that balances performance, efficiency, and environmental considerations. By leveraging sensor data and advanced control algorithms, the ECU ensures the fuel pump delivers the right amount of fuel at the right pressure, under all driving conditions. Whether for routine maintenance or performance tuning, understanding this system empowers vehicle owners and mechanics to keep engines running smoothly. As automotive technology evolves, the ECU’s role in fuel management will only become more central, driving innovations in combustion efficiency and sustainability.
Understanding Fuel Subsidies: How Governments Influence Energy Costs
You may want to see also
Explore related products
Air-Fuel Ratio Management: ECU ensures precise mixture using oxygen sensor feedback
The optimal air-fuel ratio for efficient combustion in a gasoline engine hovers around 14.7:1, meaning 14.7 parts air to 1 part fuel. Deviating from this ratio, even slightly, can lead to incomplete combustion, reduced power, and increased emissions. This is where the Engine Control Unit (ECU) steps in, acting as the maestro of the fuel injection symphony.
At the heart of the ECU's air-fuel ratio management lies the oxygen sensor, strategically positioned in the exhaust stream. This sensor continuously monitors the oxygen content in the exhaust gases, providing real-time feedback to the ECU. If the mixture is too rich (excess fuel), the sensor detects high oxygen levels, prompting the ECU to reduce fuel injection. Conversely, a lean mixture (insufficient fuel) results in low oxygen levels, signaling the ECU to increase fuel delivery. This constant feedback loop allows the ECU to make micro-adjustments, ensuring the air-fuel ratio remains within the optimal range for peak performance and efficiency.
Imagine a scenario where you're driving uphill, demanding more power from your engine. The increased load causes a temporary rich mixture, as more fuel is needed for combustion. The oxygen sensor detects this richness and relays the information to the ECU. The ECU, in response, adjusts the fuel injectors to deliver a slightly leaner mixture, preventing wastage and maintaining efficiency. This dynamic adjustment happens seamlessly, thousands of times per minute, showcasing the ECU's ability to adapt to changing driving conditions.
For optimal performance, it's crucial to ensure your oxygen sensor is functioning correctly. A faulty sensor can lead to inaccurate readings, causing the ECU to deliver incorrect fuel ratios. Regular maintenance and timely sensor replacement are essential to keep your engine running smoothly and efficiently.
In essence, the ECU's air-fuel ratio management, guided by oxygen sensor feedback, is a testament to the sophistication of modern engine technology. This intricate dance between sensor and computer ensures your vehicle delivers optimal power, fuel efficiency, and environmental friendliness, all while adapting to the ever-changing demands of the road.
Understanding Fuel Stabilizers: How They Work to Preserve Your Fuel
You may want to see also
Explore related products
Cold Start Enrichment: ECU increases fuel during cold starts for smoother ignition
Cold engines demand more fuel to ignite efficiently, a challenge compounded by fuel’s reduced volatility at lower temperatures. The ECU addresses this through Cold Start Enrichment (CSE), a process that temporarily increases fuel injection duration during startup. This adjustment ensures a combustible air-fuel mixture despite the engine’s thermal inefficiency, reducing hesitation and misfires. For instance, a typical CSE strategy might increase fuel delivery by 50–100% for the first few seconds of operation, tapering off as the engine warms.
The ECU relies on inputs from sensors like the coolant temperature sensor to determine when CSE is necessary. When the engine is below a threshold temperature—often around 60°F (15°C)—the ECU activates the enrichment. This process is particularly critical in modern fuel-injected engines, where precision in fuel delivery is essential for both performance and emissions compliance. Without CSE, cold starts could result in rough idling, increased hydrocarbon emissions, and even engine stall.
Implementing CSE requires careful calibration to avoid over-fueling, which can lead to fouled spark plugs or catalytic converter damage. Technicians often use diagnostic tools to monitor fuel trim values during cold starts, ensuring the ECU’s enrichment strategy aligns with manufacturer specifications. For DIY enthusiasts, observing symptoms like prolonged cranking or black smoke during startup can indicate a malfunctioning CSE system, warranting a sensor or ECU check.
Comparatively, carbureted engines relied on mechanical chokes to achieve similar enrichment, a system prone to imprecision and user error. The ECU’s electronic approach offers greater accuracy, adapting fuel delivery in real-time based on sensor data. This evolution underscores the importance of CSE in bridging the gap between cold engine conditions and optimal combustion, ensuring reliability across diverse climates and driving conditions.
In practice, drivers can optimize CSE performance by avoiding excessive idling during warm-up, as modern engines reach operating temperature more efficiently under load. Additionally, using high-quality fuel can improve volatility at low temperatures, reducing the ECU’s enrichment burden. Understanding CSE not only highlights the ECU’s role in fuel management but also empowers vehicle owners to maintain smoother, more efficient cold starts.
Understanding Biofuel: How Organic Matter Powers Engines Sustainably
You may want to see also
Explore related products
Throttle Position Input: ECU uses throttle data to modulate fuel delivery for acceleration
The throttle position sensor (TPS) is the ECU's window into driver intent. Mounted on the throttle body, it constantly monitors the throttle plate's angle, translating physical pedal input into a precise electrical signal. This signal, typically a voltage ranging from 0.5V (closed throttle) to 4.5V (wide-open throttle), becomes the ECU's primary cue for fuel demand.
Imagine a symphony conductor interpreting a score. The TPS signal is the sheet music, guiding the ECU's orchestration of fuel delivery. At idle, a low voltage signal prompts the ECU to inject a lean fuel mixture, conserving fuel and maintaining stability. As the throttle opens, voltage rises, signaling the need for richer mixtures to meet the engine's growing appetite for power. This dynamic adjustment happens in milliseconds, ensuring seamless acceleration and responsiveness.
Think of it as a finely tuned dance: the driver's foot presses the pedal, the TPS translates that pressure into a voltage signal, and the ECU, like a skilled partner, adjusts fuel injection accordingly, ensuring the engine delivers the desired power output.
This real-time feedback loop is crucial for optimal performance. Without accurate TPS data, the ECU would be blind to driver demands, leading to sluggish acceleration, poor fuel economy, or even engine stalling. Modern ECUs employ sophisticated algorithms to interpret TPS signals, factoring in other sensor data like engine speed, coolant temperature, and oxygen levels to deliver the perfect fuel-air mixture for every driving condition.
Calibration is key. Mechanics use specialized tools to adjust TPS voltage ranges, ensuring the sensor accurately reflects throttle position across its entire travel. This precision is vital for achieving the delicate balance between power, efficiency, and emissions control.
In essence, the TPS is the vital link between driver and engine, enabling the ECU to modulate fuel delivery with pinpoint accuracy. Its role in translating driver intent into engine action underscores the complexity and elegance of modern fuel management systems. Understanding this relationship empowers drivers and mechanics alike to appreciate the intricate dance of technology that powers every journey.
Unleashing Thrust: Understanding the Science Behind Rocket Fuel Propulsion
You may want to see also
Frequently asked questions
An ECU (Engine Control Unit) is the brain of a vehicle's engine management system. It controls fuel injection by monitoring sensors (like oxygen, throttle position, and crankshaft sensors) and adjusting the fuel injectors' timing and duration to deliver the optimal amount of fuel for combustion.
The ECU determines the correct fuel-to-air ratio by analyzing data from sensors such as the mass airflow (MAF) sensor, oxygen (O2) sensor, and engine temperature sensor. It calculates the ideal ratio (typically 14.7:1 for gasoline engines) and adjusts fuel injection accordingly.
Yes, modern ECUs use adaptive learning algorithms to adjust fuel delivery based on real-time driving conditions, such as altitude, temperature, and fuel quality. This ensures optimal performance and efficiency regardless of external factors.
If the ECU fails to control fuel injection properly, it can lead to issues like poor fuel efficiency, rough idling, misfires, or even engine stalling. Common causes include faulty sensors, wiring issues, or a malfunctioning ECU itself, requiring diagnosis and repair.
