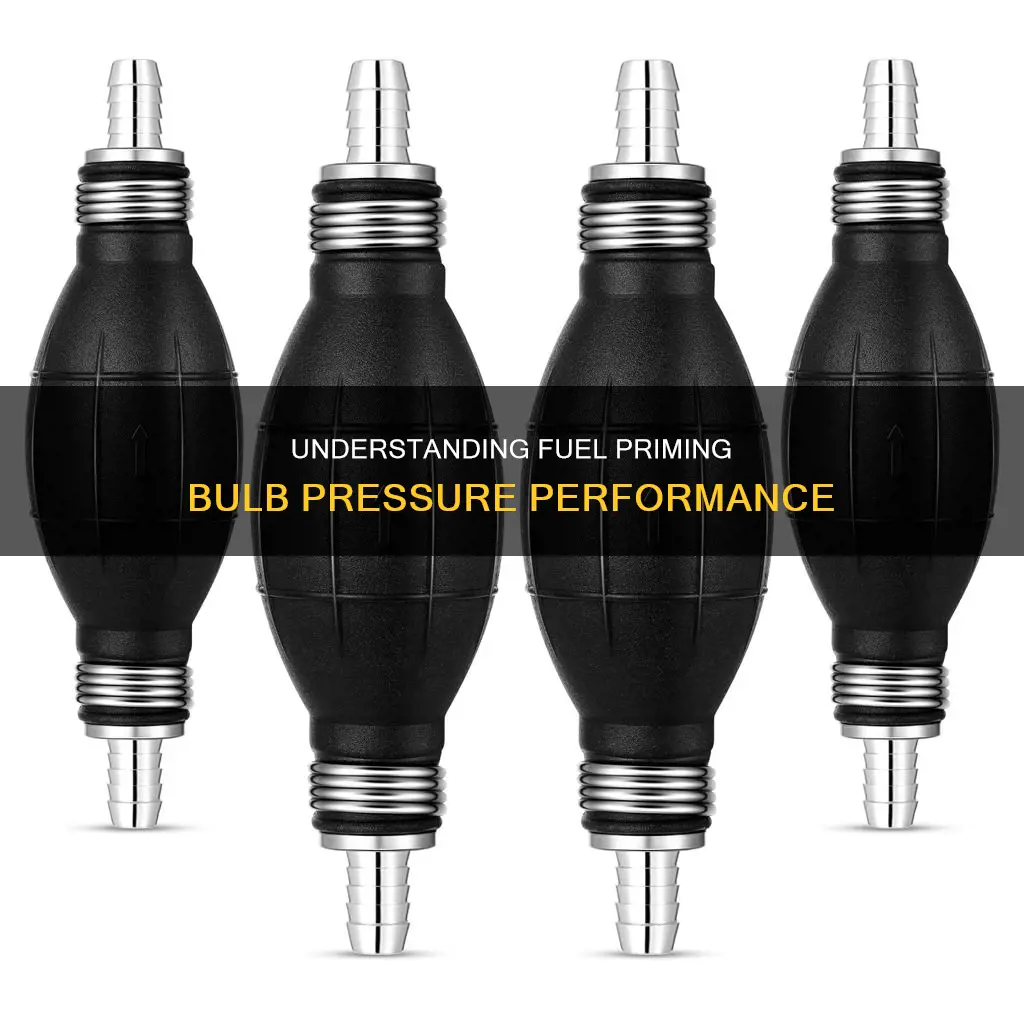

The priming bulb, also known as a priming pump, is an essential accessory in powerboating. It is used to manually pump fuel from the tank to the engine. Unlike car engines, which have an electric fuel pump, most outboard engines do not, and therefore require a priming bulb to start the engine. The priming bulb consists of a flexible rubber bladder with an inlet and outlet connector on either side, with hoses placed on these connectors. When the bulb is squeezed, the pressure closes the inlet valve and opens the outlet valve, sending the fuel to the engine. This process must be repeated several times until the bulb becomes harder and the pressure more difficult, indicating that the fuel system is full. So, how much pressure does a fuel priming bulb create?
| Characteristics | Values |
|---|---|
| Function | To 'prime' the fuel supply |
| Operation | The pressure created when the bulb is squeezed closes the inlet valve and opens the outlet valve, allowing fuel in the bulb to flow toward the engine. |
| Number of squeezes required | 3-4 times |
| Installation | Placed directly at the tank outlet or located about 30 cm from the engine |
| Direction of fuel flow | Indicated by an arrow on the bulb |
| Fuel flow direction | The arrow should point upwards to take advantage of gravity to facilitate priming |
Explore related products
What You'll Learn
- The primer bulb is a crucial part of the fuel system for outboard engines
- The bulb is a flexible rubber bladder with inlet and outlet connectors
- Squeezing the bulb closes the inlet valve and opens the outlet valve, sending fuel to the engine
- The bulb must be oriented vertically, with the arrow pointing upwards, to facilitate priming
- Primer bulbs are used to diagnose fuel supply issues
The primer bulb is a crucial part of the fuel system for outboard engines
Unlike car engines, which have an electric fuel pump, most outboard engines do not. This means that empty fuel lines need to be fed manually. The primer bulb consists of a flexible rubber bladder or bulb with an inlet and outlet connector on either side. On these connectors, 8 or 10 mm hoses will be placed. One hose leads fuel from the tank to the primer bulb, and the other leads from the bulb to the engine. On most primer bulbs, an arrow indicates the direction of fuel flow and this should be pointing upwards to take advantage of gravity.
The operation of the primer bulb is simple. When the filled bulb is squeezed, the pressure closes the inlet valve and opens the outlet valve, sending the fuel supply to the engine. When you release the bulb and it returns to its original shape, the outlet valve closes and the inlet valve opens to allow fuel to flow from the tank back to the bulb. This process must be repeated several times until the bulb becomes harder and the pressure more difficult. This indicates that the fuel system is full.
The primer bulb is crucial to the fuel system as it creates a vacuum within the fuel system, drawing fuel from the tank into the carburetor. The excess air inside the bulb is then pushed out through a return line back to the fuel tank. This ensures a consistent flow of fuel to the engine, making it easier to start and run smoothly.
Measuring Fuel Pressure: 97 Honda Accord Guide
You may want to see also
Explore related products
The bulb is a flexible rubber bladder with inlet and outlet connectors
The priming bulb is an essential accessory for powerboating. It is a simple yet crucial component of the fuel system for outboard engines. The bulb itself is a flexible rubber bladder with inlet and outlet connectors on either side. These connectors facilitate the flow of fuel, with one hose leading from the tank to the bulb, and the other from the bulb to the engine.
The operation of the primer bulb is quite straightforward. When the bulb is squeezed, the pressure closes the inlet valve and opens the outlet valve, allowing fuel to flow towards the engine. Releasing the bulb creates suction, which closes the outlet valve and opens the inlet valve, drawing fuel from the tank into the bulb. This process is repeated until the bulb becomes harder and the pressure increases, indicating that the fuel system is full.
The primer bulb ensures that the engine has enough fuel to start and prevents damage to the starter or battery. It is important to install and orient the bulb correctly, with the arrow pointing towards the engine, and ideally, vertically to take advantage of gravity.
In recent years, gasoline has often been blended with ethanol, which can attack and harden rubber components. Therefore, it is crucial to regularly check and replace any rubber parts in the fuel system, including the primer bulb, to ensure the engine's longevity.
Testing Fuel Pressure: 2007 BMW 335i Guide
You may want to see also
Explore related products
Squeezing the bulb closes the inlet valve and opens the outlet valve, sending fuel to the engine
When you squeeze a fuel priming bulb, it compresses the bulb's internal volume, creating pressure that closes the inlet valve and opens the outlet valve. This design ensures that the fuel is directed in a specific way to achieve a particular purpose.
The inlet valve is responsible for allowing fuel to enter the bulb from the tank. When the bulb is in its relaxed, uncompressed state, this valve is open, enabling fuel to flow freely into the bulb as required. However, when you squeeze the bulb, the increased pressure triggers the mechanism to close this valve, halting the inflow of fuel.
Simultaneously, the outlet valve, which controls the release of fuel from the bulb to the engine, opens in response to the elevated pressure. This action allows the pressurised fuel in the bulb to be pushed towards the engine, achieving the desired goal of sending a burst of fuel to prime the engine.
The specific mechanics of these valves depend on the design of the fuel priming bulb. Some bulbs may have simple mechanical flaps or ball valves that respond to pressure changes, while others may incorporate more complex mechanisms. Regardless, the fundamental principle remains the same: squeezing the bulb generates pressure that manipulates these valves to direct fuel flow.
This process of manually priming the engine is particularly important in certain engine types, such as those found in outboard motors or lawn care equipment. It helps ensure that the engine has the fuel supply it needs to start and run smoothly, especially after periods of inactivity.
Testing Your Electra Glide's Fuel Pressure: A Step-by-Step Guide
You may want to see also
Explore related products
The bulb must be oriented vertically, with the arrow pointing upwards, to facilitate priming
For a fuel priming bulb to function effectively and facilitate the priming process, it is essential that the bulb be oriented vertically, with the arrow on the bulb pointing upwards. This specific orientation is crucial for several reasons and offers various benefits for the overall priming procedure.
Firstly, the vertical orientation with the arrow pointing up ensures that the fuel flows in the right direction. The arrow serves as a visual indicator, guiding the user to position the bulb correctly. This positioning allows the bulb to create a suction effect, drawing fuel from the tank into the bulb and then pushing it towards the engine. This process is crucial for priming the fuel system, especially in engines that rely on gravity or manual feed systems.
Another advantage of this vertical arrangement is that it minimizes the risk of air locks or vapor traps forming in the fuel system. By pointing the arrow upwards, you create a continuous and uninterrupted flow of fuel, preventing the formation of air pockets that could hinder the priming process and cause engine performance issues.
Additionally, the vertical orientation helps to maximize the pressure generated by the bulb. Fuel priming bulbs are designed to create a specific amount of pressure to push fuel towards the engine. By positioning the bulb vertically, you optimize pressure build-up, ensuring that the fuel overcomes any resistance or obstacles in the fuel lines. This pressure is vital for priming, as it ensures that fuel reaches the engine consistently and efficiently.
It is worth noting that the arrow on the bulb also serves as a safety indicator. When the arrow is pointing up, it indicates that the bulb is in the correct operating position. This simple visual cue helps users avoid incorrect positioning, which could lead to fuel leaks, inadequate pressure, or engine performance problems. Therefore, always ensure that the arrow is clearly visible and aligned correctly during the priming process.
In conclusion, the fuel priming bulb must be oriented vertically, with the arrow pointing upwards, to facilitate priming effectively. This orientation ensures proper fuel flow, prevents air locks, maximizes pressure, and serves as a safety indicator. By following this simple yet crucial instruction, users can ensure the efficient and reliable operation of their engine's fuel system, contributing to overall engine performance and longevity.
Locating the Low-Pressure Fuel Pump: Where Is It?
You may want to see also
Explore related products
Primer bulbs are used to diagnose fuel supply issues
The primer bulb is a flexible rubber bladder with an inlet and outlet connector on either side. When the bulb is squeezed, the pressure closes the inlet valve and opens the outlet valve, sending the fuel supply to the engine. When the bulb is released, it returns to its original shape, closing the outlet valve and opening the inlet valve, allowing fuel to flow from the tank back into the bulb. This process must be repeated several times until the bulb becomes harder and the pressure is more difficult. This indicates that the fuel system is full.
If the engine begins to stall or run roughly at higher speeds, the primer bulb can be used to force fuel to the engine. If this restores the engine to smooth running, there is a fuel supply problem. This could be due to a restriction in the fuel line or a defective engine fuel pump.
If the primer bulb is difficult to prime, there is likely an air leak in the system. This could be due to a defective primer bulb or incorrect orientation during priming. It is important to ensure the primer bulb is oriented vertically, with the arrow pointing upwards, to take advantage of gravity.
Troubleshooting Erratic Fuel Pressure Gauge on Sniper EFI
You may want to see also
Frequently asked questions
A fuel priming bulb creates enough pressure to close the inlet valve and open the outlet valve, allowing fuel to flow towards the engine. The specific amount of pressure depends on the engine and fuel line setup.
A fuel priming bulb is a flexible rubber bladder or bulb with an inlet and outlet connector on either side. When the bulb is squeezed, the pressure closes the inlet valve and opens the outlet valve, sending fuel towards the engine. Releasing the bulb creates suction, closing the outlet valve and opening the inlet valve to draw fuel from the tank into the bulb. This process is repeated until the bulb becomes harder and the pressure is more difficult, indicating that the fuel system is full.
The number of pumps required depends on the engine and fuel line setup, but typically, it takes around three to four pumps to prime the fuel line.
