Nuclear fuel rods are a key component of nuclear power plants, housing the fuel that generates significant amounts of energy through nuclear fission. These rods are typically made of zirconium alloy or zircaloy, a zirconium-based material, and are filled with uranium dioxide (UO2) pellets. Each rod is approximately 1 centimetre in diameter, and they are bundled together to form fuel assemblies, with each assembly containing 179 to 264 rods on average. These fuel assemblies are then used to build the core of a power reactor, where the nuclear reaction takes place. The energy output of these fuel rods is substantial, with one estimate suggesting that 50.4 Uranium Fuel Rods burning at full power for five minutes can sustain 252 Nuclear Power Plants, producing a total of 630,000 MW or 630 GW of power.
| Characteristics | Values |
|---|---|
| Composition | Uranium oxide (UO2) |
| Fuel Type | Uranium-235 (U-235) |
| Fuel Form | Ceramic fuel pellets |
| Fuel Rod Composition | Fuel pellets stacked and sealed in metal tubes |
| Metal Tube Material | Zirconium alloy (Zircaloy) |
| Fuel Rod Diameter | Approximately 1 centimeter |
| Fuel Assembly Composition | Grouping of fuel rods |
| Number of Fuel Rods per Fuel Assembly | 179-264 |
| Number of Fuel Assemblies per Reactor Core | 121-193 |
| Fuel Rod Burn Time | 5 minutes at full power consumption |
| Power Generated | 630,000 MW or 630 GW |
| Net Power Generated | 585.5 GW |
Explore related products
What You'll Learn
Uranium fuel rods produce 630 GW of power
Nuclear power plants use a specific type of uranium, U-235, for nuclear fission because its atoms are easily split apart. U-235 is relatively rare, at just over 0.7% of natural uranium. Uranium is mined from the earth and then enriched to increase the level of U-235 to 3-5%. After this, it is converted into nuclear fuel. Uranium dioxide powder is formed into small ceramic fuel pellets, which are then stacked and sealed into long metal tubes to form fuel rods. These tubes are typically made of a zirconium alloy, which is highly corrosion-resistant and has low neutron absorption.
Uranium fuel rods are used in nuclear power plants, where they are burned to produce energy. Each uranium fuel rod burns for five minutes at full power consumption. Using alternative recipes, it is possible to produce 50.4 uranium fuel rods per minute. These rods can sustain 252 nuclear power plants, which combined produce 630,000 MW or 630 GW of power. After subtracting the power used to run the system itself (44.5 GW), the net power generated is about 585.5 GW.
Uranium fuel rods are a late-game fuel, and they produce radioactive uranium waste when burned. They can also be used as vehicle fuel without producing any waste. The crafting process for uranium fuel rods is not available via a craft bench, likely due to the radiation, but they can be crafted in a manufacturer. Uranium fuel rods are a powerful source of energy, but they must be handled with care due to their radioactive nature.
In addition to uranium fuel rods, there are other types of nuclear fuel, such as CerMet fuel, which consists of ceramic fuel particles (usually uranium oxide) embedded in a metal matrix. This type of fuel is hypothesized to be used in United States Navy reactors as it can withstand high temperatures and has excellent heat transport characteristics. Plate-type fuel, composed of enriched uranium sandwiched between metal cladding, is used in some research reactors where a high neutron flux is desired.
Fossil Fuels' Grip on Global Electricity Supply
You may want to see also
Explore related products
Fuel rods are made from uranium oxide ceramic pellets
Nuclear fuel is any substance, typically fissile material, used by nuclear power plants to generate energy. Uranium is the main fuel for nuclear reactors. It is mined, refined, enriched, and loaded into a nuclear reactor. Uranium is found in small amounts in most rocks and even in seawater.
Uranium oxide is converted into a different compound, uranium hexafluoride, which is a gas at low temperatures. The uranium hexafluoride is fed into centrifuges, which separate the uranium into two streams: one enriched in uranium-235, and the other consisting of 'tails' containing a lower concentration of uranium-235, known as depleted uranium. The enriched uranium is then transported to a fuel fabrication plant where it is converted to uranium dioxide powder. This powder is then pressed to form small, cylindrical fuel pellets and heated to make a hard ceramic material.
The uranium oxide ceramic pellets are then stacked and filled into metallic tubes. The metal used for the tubes depends on the design of the reactor. In the past, stainless steel was used, but most reactors now use a zirconium alloy, which is highly corrosion-resistant and has low neutron absorption. The tubes containing the fuel pellets are sealed, and these tubes are called fuel rods.
The finished fuel rods are then grouped into fuel assemblies that are used to build up the core of a power reactor. Cladding is the outer layer of the fuel rods, standing between the coolant and the nuclear fuel. It is made of a corrosion-resistant material with low absorption cross-section for thermal neutrons, usually Zircaloy or steel in modern constructions. The cladding prevents radioactive fission fragments from escaping the fuel into the coolant and contaminating it.
Jeep Grand Cherokee Fuel Tank Capacity Explained
You may want to see also
Explore related products

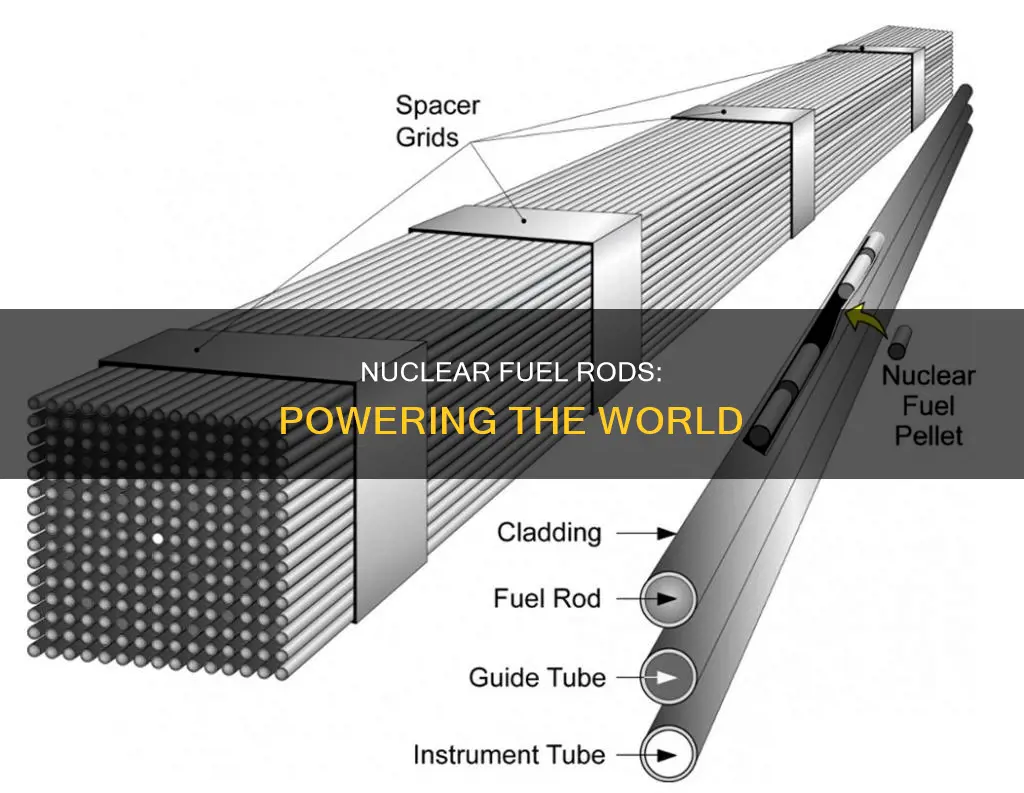

Fuel rods are bundled together to form fuel assemblies
Nuclear fuel rods are an essential component of nuclear reactors, housing the fuel that generates power through nuclear fission. Uranium, a naturally occurring element, is the primary fuel used in these rods, specifically the isotope U-235, which has atoms that are easily split apart. This U-235 is enriched to increase its concentration of U-235, enhancing its ability to undergo fission and produce energy.
The process of creating nuclear fuel rods begins with uranium concentrate, which is produced by separating U-235 from uranium ore. This concentrate undergoes further processing in conversion and enrichment facilities to achieve the desired level of U-235. The enriched uranium is then converted into uranium dioxide (UO2) powder through chemical processes. This powder is compacted into cylindrical pellets, sintered at high temperatures, and shaped into uniform ceramic fuel pellets with well-defined physical and chemical properties.
These fuel pellets are then stacked and sealed inside metal tubes to create fuel rods. The metal used for these tubes depends on the reactor design, with zirconium alloy being the most common choice due to its corrosion resistance and low neutron absorption. Each fuel rod contains numerous fuel pellets, and the tubes are typically about 1 centimetre in diameter.
Now, to address the core of your query, these fuel rods are indeed bundled together to form fuel assemblies. The number of rods in each assembly varies depending on the type of reactor. For instance, a BWR fuel assembly typically has 90-100 fuel rods, while a PWR fuel assembly can have 200-300 rods. Each assembly is an open lattice structure that can be easily lifted in and out of the reactor core.
The bundling of fuel rods into assemblies is a crucial step in the nuclear fuel cycle, as it allows for the efficient generation of power within the reactor core. These fuel assemblies are then transported to reactor sites and stored in fresh fuel storage bins until they are needed. Once they are inserted into the reactor core, the nuclear reaction begins, producing the energy necessary for power generation.
The Energy Consumption of Container Ships
You may want to see also
Explore related products
Fuel assemblies are stored in fresh fuel storage bins
Nuclear power plants primarily use a specific type of uranium (U-235) for nuclear fission because its atoms are easily split apart. Uranium concentrate is processed in conversion and enrichment facilities to increase the level of U-235 in the uranium to 3–5%. It is then sent to reactor fuel fabrication plants, where it is made into reactor fuel pellets and fuel rods.
The fuel rods are then bundled together to make up a fuel assembly. Depending on the reactor type, each fuel assembly has 179 to 264 fuel rods. A typical reactor core holds 121 to 193 fuel assemblies. Once the fuel assemblies are fabricated, they are transported to the reactor sites and stored onsite in fresh fuel storage bins until the reactor operators need them. At this stage, the uranium is only mildly radioactive, and the radiation is contained within the metal tubes.
The fuel assemblies are then placed in the reactor core, initiating the nuclear reaction. After use in the reactor, fuel assemblies become highly radioactive and must be removed and submerged in a pool of water for several years at the reactor site. The water in the spent fuel pool serves to cool the fuel and block the release of radiation.
Within a few years, the spent fuel cools in the pool and may be moved to a dry cask storage container at the power plant site. Many reactor operators store their older, spent fuel in these special air-conditioned concrete or steel containers.
Narrowboat Fuel Efficiency: How Much Does It Use?
You may want to see also
Explore related products
Used fuel rods are stored in water to cool and block radiation
Nuclear power plants primarily use a specific type of uranium (U-235) for nuclear fission because its atoms are easily split apart. Uranium dioxide (UO2) powder is compacted to form ceramic fuel pellets with a high density and well-defined physical and chemical composition. These fuel pellets are then stacked and sealed into long metal tubes called fuel rods. The fuel rods are then bundled together to make up a fuel assembly.
After use in the reactor, fuel assemblies become highly radioactive and must be removed and submerged in a pool of water for several years at the reactor site. This water is known as a spent fuel pool (SFP). The water in the spent fuel pool serves to cool the fuel and block the release of radiation. The water temperature in normal operating conditions is held below 50 °C (120 °F).
The spent fuel continues to give off heat from the decay of radioactive elements that were created when the uranium atoms were split apart. This heat needs to be removed from the fuel rods, and this is achieved by submerging the rods in water. About 20 feet (6 m) of water is needed to keep radiation levels below acceptable limits, but the extra depth provides a safety margin and allows fuel assemblies to be manipulated without special shielding to protect operators.
After a couple of years, the spent fuel rods become less radioactive and less hot, and they can be shipped to a disposal site or a reprocessing plant. The final step in the nuclear fuel cycle is to collect the spent fuel assemblies from the interim storage sites for final disposition in a permanent underground repository.
Ephedra in Ripped Fuel: A Potent Blend
You may want to see also
Frequently asked questions
The power in a nuclear fuel rod varies depending on the type of reactor and the fuel burn-up. For example, in CANDU reactors using natural uranium, the burn-up is about 7.5 GWd/t, while for enriched fuel, it is equivalent to almost 50 GWd/t.
The power generated by a nuclear fuel rod depends on the type of fuel used, the enrichment level, the number of fuel rods in a fuel assembly, and the reactor design.
Nuclear fuel rods have a finite life and need to be replaced periodically. The fuel rods become highly radioactive and must be removed and stored in a spent fuel pool to cool and block the release of radiation.
