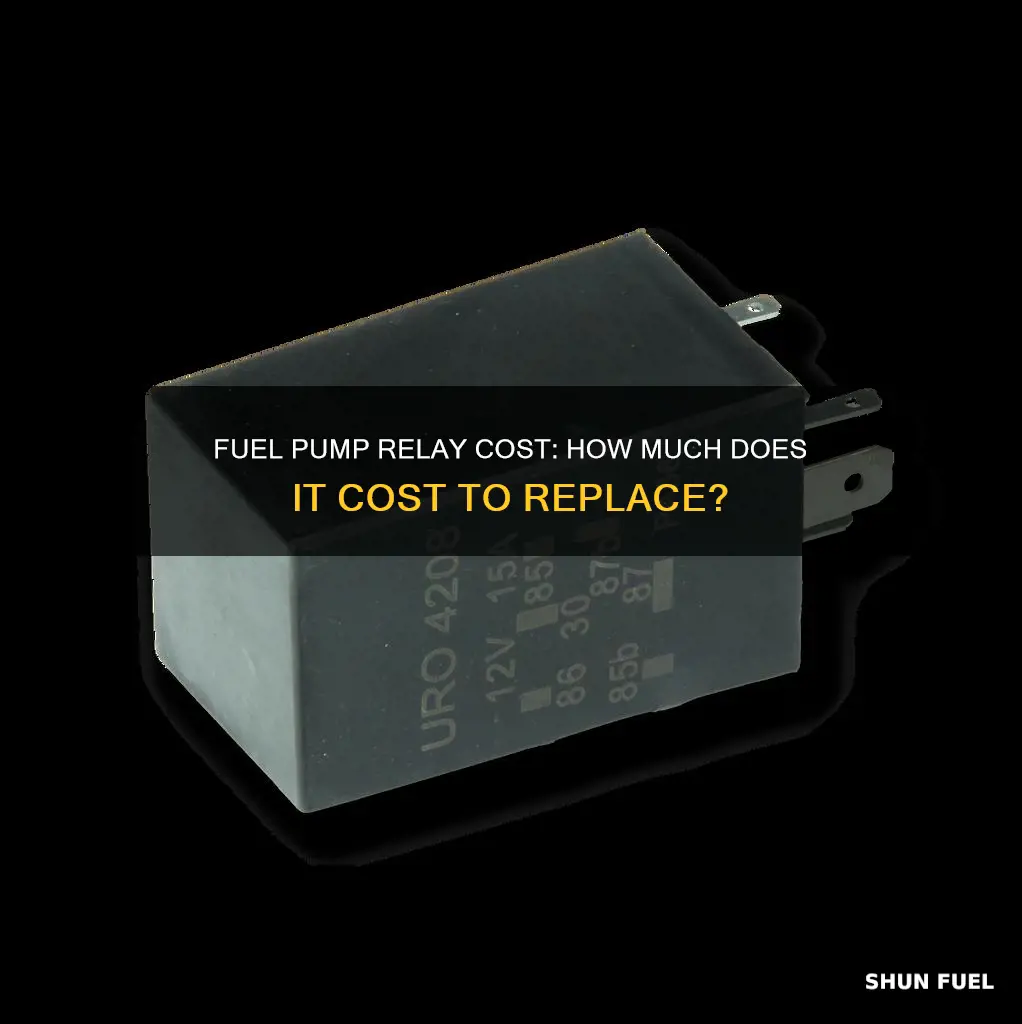

The fuel pump relay is an essential component of a vehicle's fuel system, powering the fuel pump when fuel pressure needs to be built up. When the ignition is turned on, the fuel pump relay is activated, sending an electric current to the fuel pump, which then sends gasoline to the engine. The cost of replacing a fuel pump relay ranges from $84 to $150, depending on the car model and labour costs. Testing and replacement are straightforward and can even be done at home with a family member.
| Characteristics | Values |
|---|---|
| Replacement cost | Between $84 and $150, depending on the car model and labour costs |
| Parts cost | Between $20 and $50 |
| Labour cost | Between $34 and $100 |
| Testing methods | Applying power and ground to a small circuit with proper polarity; measuring resistance across the relay and comparing to data on the relay or service manual; testing terminals in the junction block with a test light or multimeter |
| Location | In most car models, the fuel pump relay is located in a fuse box somewhere under the dashboard, but it can also be in the fuse box in the engine bay |
| Function | Sends an electric current to the fuel pump, which then sends gasoline to the engine |
| Common signs of failure | Stalling engine, performance issues, check engine light on the dashboard, car won't start, can't hear the fuel pump when the ignition is turned on |
Explore related products
What You'll Learn
Testing for faults
Testing a fuel pump relay for faults can be done through a few methods. Firstly, you should locate the fuel pump relay in your vehicle's fuse box. The main fuse box is usually located underneath the hood near the front of your vehicle, but there may also be a smaller fuse box under the steering column. The fuel pump relay is typically coloured green or grey. You can refer to the diagram on the fuse box or consult your vehicle's manual if you are unsure. Once located, turn off your vehicle, remove the key from the ignition, and pull out the relay.
You can then test the relay by using a multimeter to check for resistance in the relay's circuit. Before doing so, clean the relay prongs with a wire brush to remove any rust or corrosion, ensuring a solid connection. You can also clean the terminal ports on the fuse box. Refer to the circuit diagram on the relay to identify which prongs to connect the power and multimeter to.
If the multimeter reads 0, it indicates no resistance between the points, and the relay is functioning correctly. If the reading is greater than 0, the circuit inside the relay is faulty and needs replacement. Alternatively, you can swap the suspected faulty relay with a known working one from another system. If the problem follows the relay, it confirms a fault.
Another method to test for faults is to use a fuel pressure tester gauge. This can help diagnose whether the issue lies with the relay or the fuel pump itself. If the fuel pump is not priming, it may indicate an intermittent failure of the relay. However, if the fuel pump primes but the engine still does not start, the issue may lie elsewhere, such as with the fuel pump driver module.
Excavator Fuel Efficiency: Hourly Consumption Rates
You may want to see also
Explore related products
Replacement costs
The fuel pump relay is an important component of your vehicle's fuel system. Whenever you turn on the ignition, the fuel pump relay is activated, sending an electric current to the fuel pump, which in turn sends gasoline to the engine. A faulty fuel pump relay can cause the engine not to start, or to stall, and can cause performance issues.
The average cost of replacing a fuel pump relay is between $84 and $150, depending on the car model and labour costs. The parts may cost between $20 and $50, with the remaining cost being labour. The fuel pump relay is a small electronic device that can be purchased online or at a spare parts shop.
Testing a fuel pump relay is a simple process. On the exterior of most relays, there is a diagram of the switches inside. There will be a maximum of two switches, but normally only one. Applying power and ground to the small circuit with the proper polarity should make the relay click. The secondary test is to measure the resistance across the relay and compare that to the data on the relay or from the service manual. If the resistance is too high, the relay must be replaced.
Replacing a relay is a matter of identifying the relay according to diagrams in the owner's manual, under the lid of the power distribution or fuse block, or in the service manual for the vehicle. Once testing is complete, the failed relay should be discarded only after ensuring the new relay is identical in function and size. The new relay should be firmly pressed in, pulled out, and pressed in again to ensure complete contact is made between the relay and the terminals on the vehicle.
Fuel Consumption of V8 Supercars at Bathurst
You may want to see also
Explore related products
Location of the fuel pump relay
The fuel pump relay is a crucial component of your car's electrical system, supplying voltage to the fuel pump and allowing it to deliver fuel to the engine through the fuel lines. Without a functioning relay, your vehicle may crank but fail to start. Corrosion and faulty relays are common issues that can disrupt this process.
The location of the fuel pump relay can vary depending on the year, make, and model of your vehicle. In most vehicles, it is located inside the fuse box in the engine bay. This usually looks like a long black box that contains various fuses and relays essential for different parts of your car to function. The fuse box might be located under the hood, near the steering column, in the trunk, or on the firewall, which is the area between the engine and passenger compartments.
To find the fuel pump relay, you can follow these general steps:
- Consult your vehicle's owner's manual, which often includes a diagram showing the relay's location.
- Look under the hood, as most relays are found in the fuse box in this area.
- Inspect the fuse box cover for a diagram indicating each relay's position.
- With the key in the "on" position, listen for a click from the relay.
- Consult online resources, such as car forums and websites, for specific relay locations based on your vehicle's model.
- If you're still unsure, visit a mechanic, who can quickly locate and inspect the relay.
In vehicles with a Totally Integrated Power Module (TIPM), the fuel pump relay is an internal component located on the circuit board. It can be accessed through the back cover of the TIPM, but replacing it usually requires a professional with proper equipment and training.
Fuel Prices Across Europe: A Comparison
You may want to see also
Explore related products
Why relays fail
The cost of a fuel pump relay replacement is between $84 and $103 on average. However, the price may vary depending on your vehicle and location.
Now, let's delve into the reasons why relays fail:
Excessive Voltage or Current: One of the most common causes of relay failure is exposure to excessive voltage or current. This can lead to burnt-out contacts or damage to the coil. A spike in voltage can cause the coil to overheat and melt the resistive wire coating, resulting in fused turns inside the coil. In solid-state relays, excessive voltage can cause instant and irreparable failure.
Mechanical Wear and Tear: Relays that are frequently used may experience mechanical wear, causing the contacts to deteriorate or the actuator to malfunction.
Environmental Factors: Temperature, humidity, vibration, and dust can contribute to relay failure. For instance, high temperatures can lead to overheating and eventual failure.
Poor Quality or Manufacturing Defects: Relays made with inferior materials or manufacturing defects may be more susceptible to failure.
Ageing and Limited Lifespan: All relays have a finite lifespan and will eventually fail due to ageing. Over time, the relay's performance may deteriorate, leading to failure.
Misapplication: Using a relay for applications it is not designed for, such as high-frequency switching or high-temperature environments, can lead to failure.
Lack of Maintenance: Certain relays require routine maintenance, including cleaning, adjustment, and lubrication, to function correctly. Neglecting this maintenance can result in relay failure.
Corrosion: Exposure to moisture or chemicals can cause corrosion on the relay, leading to malfunction.
Electrical Failure: An excessive number of switching actions can lead to electrical failure. The repetitive switching causes small arcs on the contacts, resulting in corrosion and higher resistance.
Improper Power Supply: A faulty or improper power supply to the terminals can damage the relay.
It is important to note that relays are generally not meant to be repaired. If a relay fails, it should be replaced with an identical one, ensuring proper size and function.
Fuel Efficiency of 45-Seater Buses: How Much Do They Consume?
You may want to see also
Explore related products
How to replace a fuel pump relay
The cost of a fuel pump relay replacement varies, but it typically ranges from $84 to $103. If you're looking to replace the fuel pump relay in your car, it's important to follow a few key steps to ensure the process is safe and effective. Here's a detailed guide on how to do it:
Firstly, park your vehicle on a flat, hard surface and ensure that the transmission is in park for automatic cars or first gear for manual cars. Then, open the hood and locate the battery. Disconnect the ground line from the negative post of the battery to cut off power to the fuel pump and sending unit.
The next step is to find the fuel pump relay. This can be done by referring to the diagram on the fuse box cover or the owner's handbook. Once located, remove the fuel pump relay from the fuse box, paying attention to how it comes out so that you can insert the new one in the same way. You may need to use needle-nose pliers to carefully pull out the relay.
Before inserting the new relay, ensure that it is identical in function and size to the old one. Firmly press the new relay into the power distribution or fuse block, then pull it out and press it in again to ensure complete contact with the terminals. Finally, reconnect the ground line to the battery and start the car to test if the new relay is functioning properly.
It is important to note that relays are generally inexpensive sealed units that should be replaced and not repaired. Testing a relay is simple and can be done by applying power and ground to the small circuit with proper polarity, which should make the relay click. The secondary test measures resistance across the relay and compares it to the data in the service manual. If the resistance is too high, the relay will need to be replaced.
The Weight of 36 Gallons of Fuel: How Much?
You may want to see also
Frequently asked questions
The average cost of replacing a fuel pump relay is between $84 and $150, depending on the car model and labour costs. The parts may cost between $20 and $50, while the remaining cost is labour.
A failing fuel pump relay will usually be indicated by a "'check engine' light on your dashboard". Other signs include a stalling engine, performance issues, and an engine that won't start.
Testing a fuel pump relay is simple. First, apply power and ground to the small circuit with the proper polarity, which should make the relay click. The secondary test is to measure the resistance across the relay and compare it to the data in the service manual.
