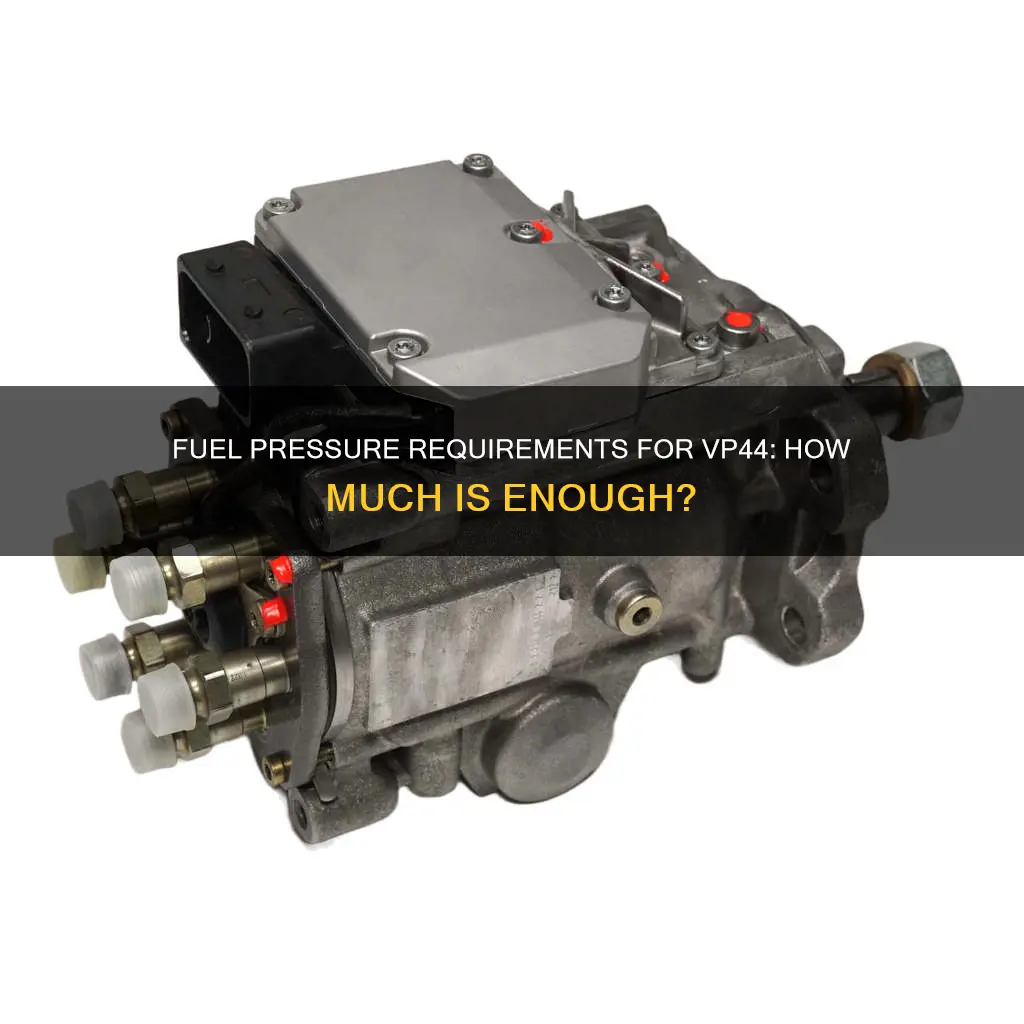

The VP44 is an injection pump that was fitted to the 24-valve ISB 5.9L Cummins engine, which was used in Dodge Ram 2500 and 3500 models between 1998 and 2002. The VP44 is notorious for failing unexpectedly, but there are some steps that can be taken to prolong its life.
The VP44 requires a minimum fuel pressure of 10 psi to function, and ideally, this should be maintained at 12-15 psi. Fuel pressure should not exceed 20 psi, as this can cause damage to the VP44's seals.
| Characteristics | Values |
|---|---|
| Normal fuel pressure | 14-15 PSI |
| Minimum fuel pressure | 10 PSI |
| Maximum fuel pressure | 14-20 PSI |
| Fuel pressure drop between idle and wide-open throttle | 2-3 PSI |
| Fuel pressure drop indicating a failed lift pump, plugged filter, and/or plumbing restrictions | 5 PSI or more |
| Fuel pressure causing hard-restart issues | 20-22 PSI |
Explore related products
What You'll Learn
- Normal fuel pressure should be around 14-15 PSI
- It should never fall below 10 PSI
- The undocumented maximum pressure is 20 PSI
- A drop of 2-3 PSI from idle to wide-open throttle is normal
- A drop of 5 PSI or more from idle to wide-open throttle indicates a failed lift pump, plugged filter, and/or plumbing restrictions
Normal fuel pressure should be around 14-15 PSI
Maintaining the Right Fuel Pressure for Your VP44
Normal Operating Range
Normal fuel pressure for a VP44 should be around 14-15 PSI when driving. It should never fall below 10 PSI—if it does, this is an instant fail. A good way to visualise this is by using a fuel pressure gauge with a green zone, indicating the desired fuel pressure range, and a yellow zone, indicating a warning to check the fuel filter, lift pump performance and overflow valve.
The VP44 relies on adequate fuel supply pressure and volume to operate, lubricate and cool the pump. A lack of fuel supply leads to hotter fuel being sent through the VP44, and the pump does not respond well to excessive heat. As the VP44 is lubricated by the fuel itself, insufficient fuel pressure will cause damage to the pump, in the same way that low engine oil pressure damages an engine.
The Effects of Low Fuel Pressure
The majority of VP44 failures can be traced back to the PSG, the computer that's married to the top of the pump. Excessive heat and thousands of heat cycles take their toll on the lead-free soldering that was used in the PSG's internal circuit board, interrupting the electrical signal. During PSG failure, several different symptoms surface, with the most frequent being long cranking when attempting to restart a hot engine.
Rotor seizure in the distributor portion of the VP44 is another issue that was especially common on early pumps due to an inferior de-burring process from the manufacturer. In essence, the sharp edge of the rotor makes contact with the distributor, digging into both mating surfaces. After enough contact and damage, the rotor seizes up, breaking the drive plate and causing the truck to stop running.
The diaphragm, which is located at the pump's distributor head inlet and supplies fuel to the bores of the distributor shaft, is also notorious for failure in early VP44s. Thanks to being made from a material that wasn't up to the task of dealing with high-pressure fuel spill pulses, it was prone to cracking over time. The diaphragm's life is further shortened when it's exposed to lengthy periods with little or no fuel supply pressure from the lift pump. A hard cold start is the biggest indicator of diaphragm failure.
The Effects of High Fuel Pressure
Fuel pressure that is too high can also cause issues. While the VP44 is capable of supporting 1600 bar (23,200 psi), Bosch has stated that injection pump should return 70% of the fuel back to the fuel tank for cooling and lubrication purposes. Excessive fuel pressure will heat the fuel and reduce its cooling ability. It will also not improve the return flow, and increasing pressure above 20 PSI puts you at risk of shaft seal failure.
Finding Fuel Pressure Checkpoints on a Mack Truck
You may want to see also
Explore related products
It should never fall below 10 PSI
Why Your VP44 Fuel Pressure Should Never Fall Below 10 PSI
The VP44 injection pump is an integral part of the 24-valve ISB engine in the 1998.5-2002 5.9L Cummins. The VP44 is an electronic rotary pump that has a notorious reputation for failing unexpectedly. The pump is manufactured by Bosch and is known to be unreliable, with many prospective Cummins owners avoiding it.
Despite the VP44's bad reputation, it does have a loyal following. Diesel mechanics, injection system experts, and enthusiasts have well-documented the pump's weaknesses and provided solutions to prevent failures. One of the key causes of VP44 failure is the PSG, the computer that's married to the top of the pump. Excessive heat and thousands of heat cycles can interrupt the electrical signal, leading to long cranking when attempting to restart a hot engine.
Another common issue is rotor seizure in the distributor portion of the VP44, often due to an inferior de-burring process during manufacturing. The sharp edge of the rotor makes contact with the distributor, causing damage and eventually leading to rotor seizure and a broken drive plate. This will stop your truck immediately.
A failing lift pump can also spell disaster for the VP44. The standard self-priming, electric Carter lift pump on the 5.9L ISB Cummins is constantly exposed to vibration, which shortens its lifespan. A failing lift pump can lead to low fuel supply pressure and volume, resulting in hotter fuel being sent through the VP44, which does not tolerate excessive heat well.
To prevent these issues and ensure the longevity of your VP44, it is crucial to maintain adequate fuel supply pressure and volume. A minimum fuel pressure of 10 PSI is essential, as anything lower can lead to costly damage. While the ideal fuel pressure range is between 12 and 15 PSI, keeping the pressure above 10 PSI will help prevent pump failure.
Remember, the VP44 relies on fuel pressure and volume for proper functioning, lubrication, and cooling. By maintaining the recommended fuel pressure, you can extend the life of your VP44 and avoid the high cost of replacement.
Understanding the Role of Fuel Pump Pressure Sensors
You may want to see also
Explore related products
The undocumented maximum pressure is 20 PSI
The VP44 injection pump is an electronic rotary pump that is known for failing unexpectedly. The pump is lubricated by the fuel, so weak lift pumps can cause damage to the pump. The Dodge Factory Service Manual states that the overflow valve is set for 14 PSI, and excessive pumping of fuel will not improve performance. Instead, it will heat the fuel, reducing its cooling ability and adding stress to the lift pump.
Some common issues with the VP44 pump include:
- Excessive heat and thousands of heat cycles taking their toll on the PSG (the computer married to the top of the pump)
- Rotor seizure in the distributor portion of the pump due to an inferior de-burring process from the manufacturer
- Diaphragm failure, especially in early VP44s due to the use of a material that couldn't handle high-pressure fuel spill pulses
- Worn-out distributor, with hot restart issues and rotor and distributor failure often going hand-in-hand
- Failing lift pump, which can spell disaster for the VP44 as it relies on adequate fuel supply pressure and volume to operate, lubricate and cool the pump
- Heat, as the VP44 gets hottest 15-20 minutes after the engine has been turned off due to heat soak
Fuel Pump Pressure Test: Diagnosis and Performance
You may want to see also
Explore related products
A drop of 2-3 PSI from idle to wide-open throttle is normal
The Bosch VP44 injection pump is an electronic rotary pump that gained notoriety for its unpredictable failures. The VP44 is fitted to the 24-valve ISB, a variant of the Cummins 359 ci inline-six engine. This engine was fitted to Dodge Ram 2500 and 3500 models from 1998.5-2002.
The VP44 injection pump is cooled and lubricated by the fuel itself. Therefore, it is important that the pump receives enough fuel pressure to function properly. A drop of 2-3 PSI (pounds per square inch) from idle to wide-open throttle is considered normal. However, a drop of 5 PSI or more indicates a failed lift pump, plugged filter and/or plumbing restrictions.
The VP44 requires a minimum fuel pressure of 10 PSI to function. If the fuel pressure falls below this threshold, damage to the pump may occur. Ideally, the VP44 should receive a constant fuel pressure of 14-15 PSI to ensure optimal performance and longevity.
It is worth noting that excessive fuel pressure can also be detrimental to the VP44. Fuel pressure above 14 PSI will not improve the return flow and can lead to shaft seal failure. Therefore, it is recommended to maintain fuel pressure within the range of 14-20 PSI.
To ensure the VP44 receives adequate fuel pressure, it is important to have a properly functioning lift pump and a fuel system that can supply sufficient volume. Aftermarket electric lift pumps and comprehensive tank-to-engine fuel systems can help maintain the required fuel pressure and volume. Additionally, installing a fuel pressure gauge can help monitor the health of the lift pump and fuel system, allowing for timely interventions.
Ford Low Fuel Pressure: Troubleshooting the Issue
You may want to see also
Explore related products
A drop of 5 PSI or more from idle to wide-open throttle indicates a failed lift pump, plugged filter, and/or plumbing restrictions
A Drop in Fuel Pressure: What It Means and How to Fix It
A drop in fuel pressure of 5 PSI or more from idle to wide-open throttle is a tell-tale sign of a failing lift pump, plugged filter, and/or plumbing restrictions. This issue is particularly common in the '98.5-02 5.9L Cummins engines, which are known for their unpredictable nature and frequent failures. While this problem can be frustrating, there are ways to diagnose and address it.
Diagnosing the Issue
To determine if your lift pump is failing, you can perform a simple test. Turn the ignition key to the "start" function quickly, without cranking the engine, and then release it, leaving the key in the "run" position. If the lift pump is functioning properly, you should hear it running for about 25 seconds. If you don't hear it, check fuse #9 in the fuse box on the left side of the dashboard. If the fuse is intact, test for 12 volts going into the lift pump, and replace it if necessary.
Another way to diagnose a failing lift pump is to install a fuel pressure gauge. This will allow you to monitor the fuel pressure during idle, driving, and wide-open throttle. A drop of 5 PSI or more during these conditions is indicative of a problem.
Addressing the Issue
If you suspect that your lift pump is failing, the first step is to replace the fuel filter. A clogged fuel filter is a common cause of low fuel pressure. If replacing the filter does not resolve the issue, you may need to replace the lift pump itself.
In addition to replacing the lift pump, it is recommended to upgrade to a more robust aftermarket lift pump, such as those offered by Fuelab, FASS, or AirDog. These pumps are designed to deliver adequate fuel pressure (12-15 PSI) to the VP44 injection pump consistently.
Furthermore, it is essential to ensure that your fuel system is not restricting fuel flow. The stock fuel system in the '98.5-02 Dodge Cummins trucks has been known to be restrictive, with 6mm ID plumbing. Upgrading to a 1/2" ID plumbing system can help improve fuel flow and prevent future issues.
Preventative Measures
To prevent future issues with your VP44 injection pump, it is crucial to maintain adequate fuel pressure and volume. The VP44 pump relies on fuel for lubrication and cooling, so a lack of fuel supply can lead to overheating and damage. Aim to maintain a fuel pressure of at least 5 PSI during idle, driving, and wide-open throttle. Ideally, you should strive for a fuel pressure of 12-15 PSI.
Additionally, consider installing a mechanical aftermarket lift pump, such as the Power Driven Diesel's Predator lift pump. This pump is belt-driven and fully mechanical, ensuring adequate fuel supply even at high engine speeds. It also features an internal pressure regulator valve that works in conjunction with the factory overflow valve to prevent overpressure.
In conclusion, a drop in fuel pressure of 5 PSI or more is a clear indication of a failing lift pump, clogged fuel filter, or plumbing restrictions. By performing regular maintenance, upgrading to more robust aftermarket parts, and ensuring adequate fuel pressure and volume, you can help extend the life of your VP44 injection pump and avoid costly repairs.
Understanding Audi A4 B7 Fuel Pressure Readings
You may want to see also
Frequently asked questions
The ideal fuel pressure for a VP44 is between 14-15 PSI. It should never fall below 10 PSI and should not exceed 20 PSI.
If the fuel pressure falls below 10 PSI, it can cause damage to the VP44 injection pump. This is because the VP44 relies on fuel pressure for lubrication, and low pressure can lead to overheating.
Excessive fuel pressure can also be detrimental. It can create more heat in the fuel, reducing its cooling ability and adding stress to the lift pump. Additionally, it can lead to difficult starting problems.
To maintain the correct fuel pressure, ensure your lift pump is functioning properly and providing adequate pressure and volume. Aftermarket electric pumps from reputable brands can help deliver the required pressure. Installing a fuel pressure gauge is also recommended to monitor the health of your lift pump.
