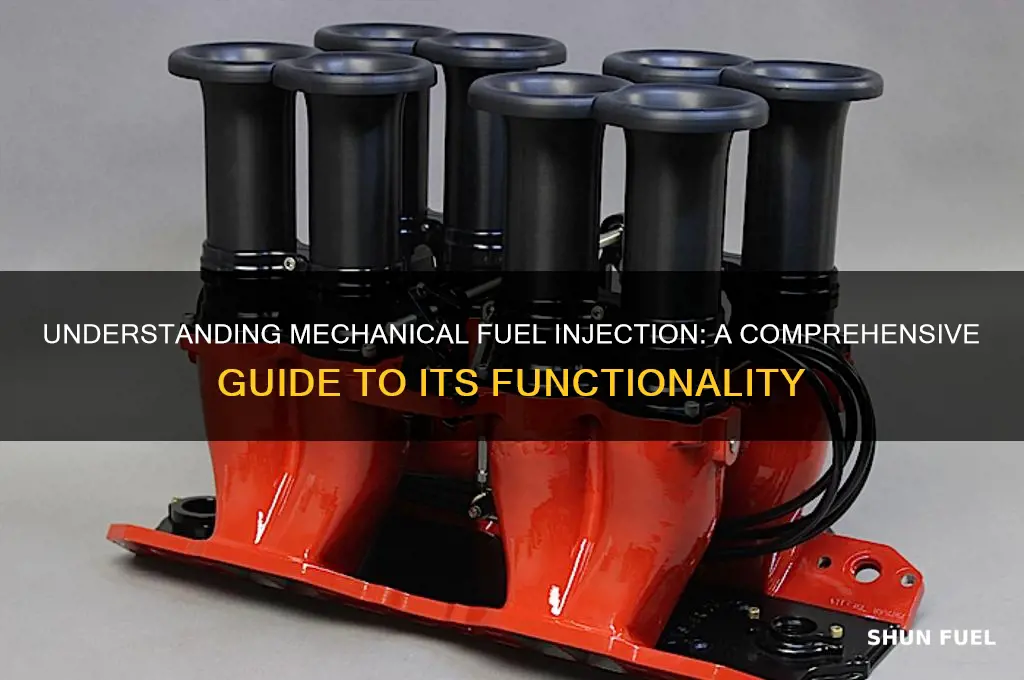

Mechanical fuel injection is a sophisticated system that delivers precise amounts of fuel to an engine’s cylinders under high pressure, optimizing combustion efficiency. Unlike carbureted systems, which mix air and fuel at atmospheric pressure, mechanical fuel injection uses a pump driven by the engine’s camshaft or a separate electric motor to pressurize fuel and inject it directly into the intake manifold or combustion chamber. This process is controlled by mechanical components such as plungers, barrels, and injectors, which are calibrated to match the engine’s speed and load. The system ensures a consistent air-fuel mixture, improving power output, throttle response, and fuel economy, particularly under high-performance or demanding conditions. Its reliability and simplicity, compared to electronic systems, make it a preferred choice in certain applications, such as racing and heavy-duty engines.
Explore related products
What You'll Learn
- Fuel Pump Operation: Delivers high-pressure fuel to injectors, ensuring consistent flow for combustion
- Injector Mechanism: Precisely sprays fuel into cylinders based on engine demand
- Pressure Regulation: Maintains optimal fuel pressure for efficient injection and performance
- Timing Control: Synchronizes fuel delivery with engine cycles for smooth operation
- Air-Fuel Mixture: Balances air and fuel ratios for optimal combustion efficiency
Fuel Pump Operation: Delivers high-pressure fuel to injectors, ensuring consistent flow for combustion
The fuel pump is the unsung hero of mechanical fuel injection systems, tasked with delivering fuel at high pressure to the injectors. Unlike electric pumps, mechanical pumps are driven directly by the engine, often via a camshaft lobe or a dedicated shaft. This direct linkage ensures that fuel delivery scales with engine speed, maintaining a consistent flow even under varying load conditions. For instance, in a high-performance racing engine, the pump might deliver fuel at pressures exceeding 1,000 psi, ensuring that the injectors can atomize the fuel finely for optimal combustion.
Consider the operation of a mechanical fuel pump in a classic carbureted-to-injection conversion. The pump’s diaphragm or plunger mechanism is actuated by the engine’s motion, drawing fuel from the tank and pressurizing it for delivery. A critical component here is the check valve, which prevents fuel from backflowing and ensures a steady supply to the injectors. For DIY enthusiasts, it’s essential to verify the pump’s compatibility with the engine’s RPM range and fuel demands. A pump rated for 600–800 psi, for example, is suitable for most street-driven applications, while higher pressures are reserved for racing setups.
One of the key advantages of mechanical fuel pumps is their reliability in high-stress environments. Unlike electric pumps, they are less susceptible to heat soak or electrical failures, making them ideal for off-road or endurance racing. However, this reliability comes with a trade-off: mechanical pumps require precise tuning to match the engine’s fuel requirements. Over-pressurization can lead to injector failure, while under-pressurization results in poor atomization and incomplete combustion. A pressure regulator is often used in tandem to maintain the optimal range, typically between 40–80 psi for most mechanical injection systems.
For those troubleshooting a mechanical fuel pump, start by checking for leaks or binding in the pump’s linkage. A common issue is a worn diaphragm, which can cause erratic fuel delivery. Replacing the diaphragm or upgrading to a higher-capacity pump may be necessary for engines with increased fuel demands, such as those running turbochargers or superchargers. Additionally, ensure the pump’s inlet is free of debris, as even small particles can disrupt flow and lead to inconsistent performance.
In conclusion, the mechanical fuel pump’s role in delivering high-pressure fuel is pivotal for the efficiency and reliability of fuel injection systems. By understanding its operation, compatibility, and maintenance requirements, enthusiasts can optimize their setups for both performance and longevity. Whether for a daily driver or a race car, a well-tuned mechanical fuel pump ensures that every drop of fuel contributes to powerful, consistent combustion.
