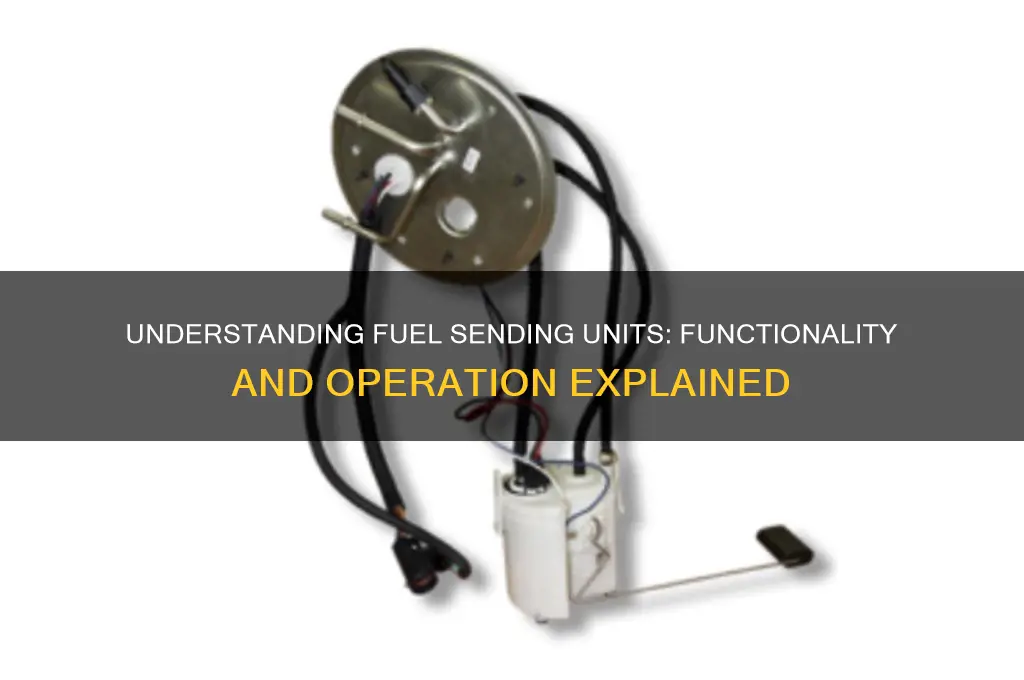

A fuel sending unit is a critical component in a vehicle's fuel system, responsible for measuring the amount of fuel in the tank and relaying this information to the fuel gauge on the dashboard. It typically consists of a float connected to a variable resistor, which moves up and down with the fuel level. As the fuel level changes, the float's position alters the resistance in the circuit, sending an electrical signal to the gauge. This signal is then interpreted to display the fuel level accurately. Understanding how a fuel sending unit works is essential for diagnosing issues like inaccurate fuel readings or a malfunctioning gauge, ensuring the vehicle's fuel system operates efficiently and reliably.
| Characteristics | Values |
|---|---|
| Function | Measures the amount of fuel in the tank and sends the data to the fuel gauge. |
| Components | Float, arm, resistor, electrical contacts, and wiring. |
| Operating Principle | The float moves up/down with fuel level, altering the resistance in the circuit. |
| Resistance Range | Typically 0-90 ohms (empty to full), varies by vehicle. |
| Power Source | 12V DC from the vehicle's electrical system. |
| Signal Type | Analog voltage or resistance signal. |
| Location | Inside the fuel tank, attached to the fuel pump module. |
| Accuracy | ±5% (varies based on design and wear). |
| Common Failures | Worn resistor, broken float arm, or faulty electrical contacts. |
| Maintenance | Requires tank removal for replacement; no routine maintenance. |
| Compatibility | Vehicle-specific; not universal across models. |
| Technology | Traditional resistive type; newer vehicles may use digital sensors. |
| Lifespan | 100,000-150,000 miles (varies by usage and conditions). |
| Diagnosis | Tested using a multimeter to check resistance at different fuel levels. |
Explore related products
What You'll Learn
- Float Mechanism: Float rises/falls with fuel level, adjusting the unit's output signal accordingly
- Resistive Sensor: Variable resistor changes resistance as float moves, altering current flow
- Electrical Circuit: Sends voltage signal to gauge, indicating fuel level via resistance change
- Fuel Tank Integration: Unit mounts inside tank, connected to gauge via wiring harness
- Gauge Calibration: Translates resistance values into accurate fuel level display on dashboard
Float Mechanism: Float rises/falls with fuel level, adjusting the unit's output signal accordingly
The float mechanism is the heart of many fuel sending units, translating the physical fuel level into an electrical signal the gauge can understand. Imagine a small, buoyant object—often made of foam or hollow metal—suspended on an arm within the fuel tank. As the fuel level rises, the float rises with it, pulling the arm up. Conversely, as fuel is consumed and the level drops, the float descends. This simple yet ingenious design directly links the fuel's height to the mechanical movement of the arm, forming the basis for the entire fuel level measurement system.
Analytical Perspective:
This mechanical linkage between the float and the arm is crucial for accuracy. The arm's movement is precisely calibrated to correspond to specific fuel levels. For instance, when the float is at the bottom of the tank (empty), the arm might be fully extended, while at the top (full), it's retracted. This linear relationship ensures the sending unit's output signal accurately reflects the actual fuel volume, allowing the gauge to display the correct reading.
Instructive Approach:
To understand the float mechanism's function, visualize a seesaw. The float acts as one end of the seesaw, while the arm connected to the sending unit is the other. As the fuel level changes, the float's position shifts, causing the arm to move up or down. This movement is then converted into an electrical signal by a variable resistor or potentiometer within the sending unit. The resistance changes based on the arm's position, providing a measurable signal that corresponds to the fuel level.
Comparative Analysis:
Compared to more complex fuel level sensors using ultrasonic or capacitive technology, the float mechanism stands out for its simplicity and reliability. While newer systems offer advantages like reduced wear and tear, the float-based design remains prevalent due to its proven track record, cost-effectiveness, and ease of maintenance. Its mechanical nature also makes it less susceptible to interference from electromagnetic fields, a potential issue with electronic sensors.
Practical Tip:
If your fuel gauge readings seem erratic, the float mechanism might be the culprit. Over time, the float can become damaged, contaminated, or misaligned, leading to inaccurate readings. Inspecting the float for debris, ensuring proper arm movement, and checking for leaks in the fuel tank can help diagnose and resolve issues related to the float mechanism.
How Kroger Fuel Points Work: Maximize Savings at the Pump
You may want to see also
Explore related products
Resistive Sensor: Variable resistor changes resistance as float moves, altering current flow
The resistive sensor in a fuel sending unit operates on a simple yet ingenious principle: a variable resistor changes its resistance as the float moves, directly altering the current flow. This mechanism is the backbone of how your vehicle’s fuel gauge accurately reflects the fuel level in the tank. Here’s how it works: as the fuel level rises or falls, the float, connected to a lever arm, moves up or down. This motion changes the position of a wiper on the variable resistor, known as a potentiometer. The resistor’s material is designed to vary in resistance along its length, so the wiper’s position determines the resistance in the circuit. This variable resistance modulates the current flowing through the sensor, which is then interpreted by the fuel gauge to display the correct fuel level.
To understand the practical implications, consider this: a typical resistive sensor in a fuel sending unit might have a resistance range of 0 to 90 ohms. When the tank is empty, the wiper is at one end of the resistor, creating maximum resistance (e.g., 90 ohms). As the tank fills, the wiper moves, reducing resistance (e.g., to 10 ohms when full). The vehicle’s gauge is calibrated to this range, ensuring the needle or digital display accurately reflects the fuel level. For DIY enthusiasts, testing this system involves measuring the resistance across the sensor terminals with a multimeter while manually moving the float. If the resistance doesn’t change as expected, the sensor may need replacement.
One of the key advantages of resistive sensors is their reliability and simplicity. Unlike more complex systems, they have fewer components that can fail, making them a staple in automotive design for decades. However, they are not without limitations. Over time, the resistor track can wear out or become contaminated, leading to inaccurate readings. Additionally, the mechanical linkage between the float and the resistor can loosen or corrode, affecting performance. Regular maintenance, such as cleaning the sensor and ensuring the float moves freely, can extend its lifespan.
For those looking to troubleshoot a faulty fuel gauge, understanding the resistive sensor’s role is crucial. If the gauge reads incorrectly, start by checking the sensor’s resistance at different fuel levels. Compare these readings to the manufacturer’s specifications. If they don’t match, the sensor is likely the culprit. Replacement kits are widely available and typically include a new resistor and float assembly. Installation requires draining the fuel tank and accessing the sending unit, so it’s a task best suited for those comfortable with automotive repairs or a professional mechanic.
In conclusion, the resistive sensor in a fuel sending unit is a testament to the elegance of analog technology. Its ability to translate mechanical motion into electrical signals ensures drivers have a reliable indicator of their fuel level. While newer vehicles may use more advanced systems, the resistive sensor remains a durable and effective solution for many cars on the road today. By understanding its operation and limitations, vehicle owners can diagnose issues and maintain this critical component with confidence.
Rising Fuel Costs: Impact on Business Operations and Strategies
You may want to see also
Explore related products
Electrical Circuit: Sends voltage signal to gauge, indicating fuel level via resistance change
The fuel sending unit is a critical component in your vehicle's fuel system, and its electrical circuit plays a pivotal role in accurately conveying the fuel level to the driver. At the heart of this process is a variable resistor, often a rheostat, which changes its resistance based on the fuel level in the tank. When the tank is full, the resistor offers minimal resistance, allowing a higher voltage to reach the fuel gauge. Conversely, as the fuel level drops, the resistance increases, reducing the voltage signal. This dynamic relationship between resistance and voltage is the key to the system's functionality.
To understand this mechanism better, consider the electrical circuit as a messenger relaying information from the fuel tank to the dashboard gauge. The circuit typically consists of a power source (usually the vehicle’s battery), the variable resistor in the sending unit, and the fuel gauge. As the float in the sending unit moves up or down with the fuel level, it adjusts the resistor’s position, altering the current flow. This change in current is translated into a voltage signal, which the gauge interprets to display the fuel level. For instance, a full tank might send a voltage of around 90% of the supply voltage, while an empty tank could send as low as 10%.
One practical aspect to note is the importance of calibration. The sending unit and gauge must be precisely matched to ensure accurate readings. Mismatched components can lead to incorrect fuel level indications, such as a gauge showing a quarter tank when it’s actually half full. Modern vehicles often use digital systems with more sophisticated sensors, but the principle remains the same: resistance changes drive voltage signals. For DIY enthusiasts, testing the sending unit involves measuring the resistance at different fuel levels using a multimeter, ensuring it aligns with the manufacturer’s specifications.
A comparative analysis reveals that older vehicles with analog gauges rely heavily on this resistance-voltage relationship, while newer models may incorporate additional sensors for greater precision. For example, some systems use a linear voltage differential transformer (LVDT) to measure fuel levels more accurately. However, the traditional variable resistor method remains widely used due to its simplicity and reliability. Understanding this circuit not only helps in diagnosing fuel gauge issues but also highlights the elegance of analog systems in automotive engineering.
In conclusion, the electrical circuit in a fuel sending unit is a masterclass in simplicity and functionality. By leveraging the relationship between resistance and voltage, it provides real-time fuel level data to the driver. Whether you’re troubleshooting a faulty gauge or simply curious about how your car works, grasping this mechanism empowers you to better maintain your vehicle. Always refer to your vehicle’s manual for specific details, as designs can vary significantly across makes and models.
Understanding the Functionality of a Fuel Cap: A Comprehensive Guide
You may want to see also
Explore related products
Fuel Tank Integration: Unit mounts inside tank, connected to gauge via wiring harness
Mounting the fuel sending unit inside the tank is a design choice that prioritizes accuracy and longevity. This internal placement ensures the unit is fully submerged in fuel, allowing it to directly measure the fuel level with minimal interference from sloshing or temperature fluctuations. The wiring harness, typically sealed to prevent fuel infiltration, connects the unit to the fuel gauge on the dashboard. This setup eliminates the need for external components that could be prone to damage or corrosion, making it a reliable solution for modern vehicles.
Consider the installation process: the sending unit is secured to the top of the fuel tank, often during tank assembly, with a gasket or seal to prevent leaks. The wiring harness is routed through a dedicated port, ensuring a tight seal. For DIY enthusiasts, replacing an in-tank sending unit requires draining the fuel, lowering the tank, and carefully disconnecting the harness—a task that demands precision and safety precautions. Always consult the vehicle’s manual for specific torque values and safety guidelines, as improper installation can lead to fuel leaks or gauge malfunctions.
From a comparative standpoint, in-tank sending units outperform external designs in harsh conditions. External units, often found in older vehicles, are susceptible to corrosion and mechanical wear due to exposure to the elements. In contrast, the internal design shields the unit from debris, moisture, and temperature extremes, extending its lifespan. For instance, a study on fuel system reliability found that vehicles with in-tank sending units experienced 30% fewer gauge-related failures over a 10-year period compared to external systems.
Persuasively, this integration is not just about functionality—it’s about efficiency and safety. By housing the sending unit inside the tank, manufacturers reduce the risk of fuel leaks caused by external connections. Additionally, the direct measurement of fuel levels improves the accuracy of the gauge, ensuring drivers receive reliable information. For fleet managers or long-distance drivers, this precision translates to better fuel management and fewer unexpected stops.
Finally, a practical tip: if your fuel gauge begins to act erratically, the in-tank sending unit may be the culprit. Before assuming the gauge itself is faulty, inspect the wiring harness for damage or corrosion. In some cases, cleaning the harness connections or replacing a damaged wire can resolve the issue without the need for a full unit replacement. However, if the problem persists, professional diagnosis is recommended, as accessing the in-tank unit requires specialized tools and expertise.
Understanding Fuel Trucks: Mechanics, Operations, and Safety Explained
You may want to see also
Explore related products
Gauge Calibration: Translates resistance values into accurate fuel level display on dashboard
The fuel gauge on your dashboard is more than just a needle pointing to "F" or "E"—it's a precise translation of electrical resistance into a visual representation of your fuel level. At the heart of this process is the fuel sending unit, a variable resistor submerged in your fuel tank. As the fuel level changes, a float attached to the sending unit moves, altering the resistance in the circuit. This resistance value is then interpreted by the fuel gauge, which calibrates the display to show an accurate reading. Without proper calibration, even a full tank might register as half-empty or vice versa, leading to confusion and potential fuel shortages.
Calibration ensures the gauge accurately reflects the sending unit’s resistance values. For instance, a typical fuel sending unit might output a resistance of 0 ohms when the tank is full and 90 ohms when empty. The gauge is calibrated to interpret these values as "Full" and "Empty," respectively. However, factors like wear, temperature fluctuations, or manufacturing tolerances can skew these readings. Mechanics often use multimeters to measure the sending unit’s resistance at specific fuel levels, then adjust the gauge’s calibration to match. This process is critical for older vehicles, where components may drift from their original specifications over time.
Consider a scenario where a driver notices their fuel gauge reads "1/4 tank" immediately after filling up. This discrepancy could stem from a miscalibrated gauge or a faulty sending unit. To diagnose, a technician might disconnect the sending unit and manually apply known resistance values (e.g., 0 ohms for full, 90 ohms for empty) to test the gauge’s response. If the gauge reads correctly, the issue lies with the sending unit. If not, the gauge itself requires recalibration. Modern vehicles often include self-calibration features, but older models demand manual intervention, making understanding this process invaluable for DIY enthusiasts.
Practical tips for maintaining accurate gauge calibration include regularly checking for loose connections between the sending unit and gauge, as these can introduce erratic readings. Additionally, avoid letting your fuel tank drop below 1/4 full, as running on fumes increases wear on the sending unit’s components. For those tackling calibration themselves, invest in a quality multimeter and consult the vehicle’s service manual for specific resistance values. Remember, precision is key—even a small miscalibration can lead to significant inaccuracies over time. By mastering gauge calibration, you ensure your fuel level display remains a reliable tool, not a source of guesswork.
How Starfield's Fuel Systems Power Space Exploration and Travel
You may want to see also
Frequently asked questions
A fuel sending unit is a component in a vehicle's fuel tank that measures the amount of fuel present and sends this information to the fuel gauge on the dashboard, allowing the driver to monitor fuel levels.
The fuel sending unit typically consists of a float connected to a variable resistor. As the fuel level changes, the float moves, altering the resistance in the circuit. This change in resistance is interpreted by the fuel gauge to display the current fuel level.
Common signs include an inaccurate or inconsistent fuel gauge reading, the gauge staying on empty or full regardless of fuel level, or the fuel gauge fluctuating erratically while driving.
