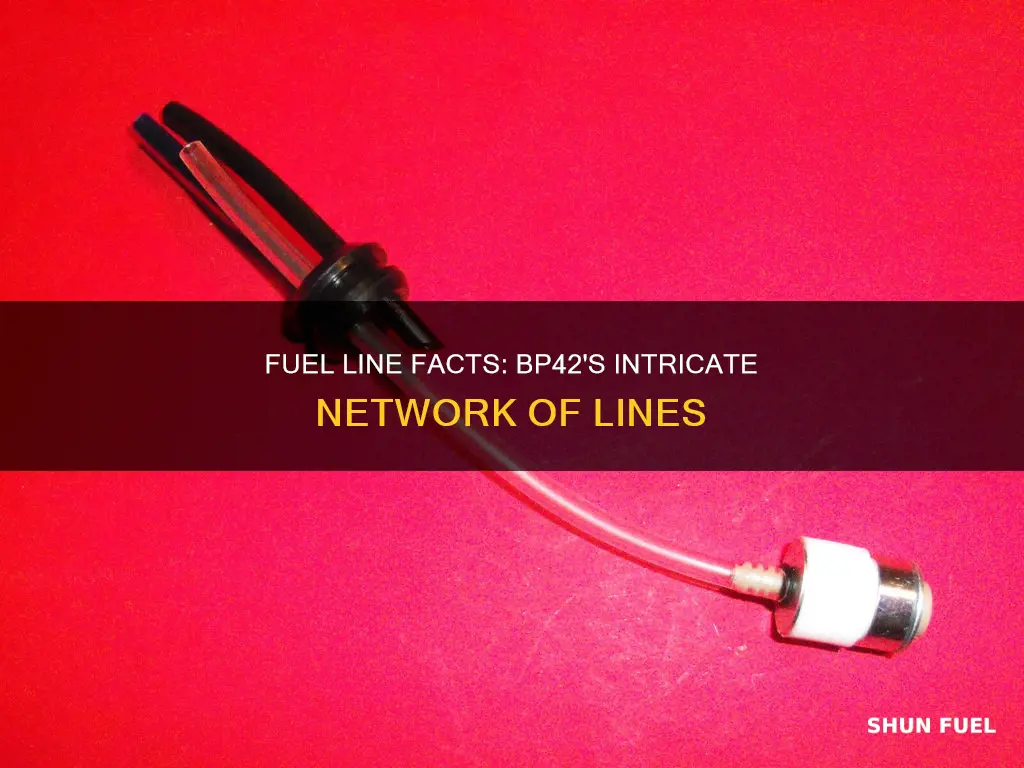

The Ryobi BP42 Backpack Blower is a leaf blower that has been known to experience issues with its fuel lines. This is a common problem with 2-cycle engines, as the fuel lines are easy to mix up during repairs and maintenance. The BP42 has two fuel lines, one small and one large, that can be identified by their connection to the fuel filter inside the tank. The small line is used to pull fuel through the filter, while the large line is used to return the unfiltered fuel.
Characteristics and Values of the Ryobi BP42 Backpack Blower
| Characteristics | Values |
|---|---|
| Engine Type | 2-cycle |
| Number of Fuel Lines | 2 |
| Carburetor Design | Local Primer |
| Primer Bulb Location | Built on Top of Carburetor |
| Fuel Line Routing | Fuel Pulled into Carburetor, Pushed Out Through Unfiltered Return Line |
| Fuel Filter | Yes |
| Fuel Tank | Removable |
| Maintenance | Clogged, Crimped, or Cracked Fuel Lines |
Explore related products
What You'll Learn
- The Ryobi BP42 Backpack Blower has two fuel lines connected to the primer
- Fuel lines can become clogged, crimped, or cracked, restricting gas flow and preventing the engine from starting
- Fuel lines need to be removed from the carburetor for repairs and maintenance, which can cause confusion when reconnecting
- There are two types of 2-cycle engine carburetors: local primer and remote primer, each with a different fuel routing orientation
- The primer bulb pulls fuel through the filtered fuel line and into the carburetor, then pushes it out of the unfiltered return line
The Ryobi BP42 Backpack Blower has two fuel lines connected to the primer
The Ryobi BP42 Backpack Blower is a powerful leaf blower that can make short work of clearing leaves and debris from your yard or workspace. However, like any small engine, it requires regular maintenance and care to keep it running smoothly. One important aspect of this maintenance involves the fuel lines, which can become clogged, cracked, or damaged over time.
The primer bulb on the Ryobi BP42 is designed to pull fuel through the carburetor, ensuring the engine receives the necessary fuel for combustion. This process involves two fuel lines: one that draws fuel through the fuel filter and into the carburetor, and another that returns the unfiltered fuel back out. This "local primer" carburetor design, with the primer bulb built on top, is a common feature of 2-cycle engines.
Maintaining and troubleshooting these fuel lines is an important aspect of owning the Ryobi BP42. Over time, fuel lines can become clogged, cracked, or damaged, leading to starting issues and poor engine performance. To address this, it is important to regularly inspect and replace the fuel lines as needed. Additionally, ensuring correct fuel line installation is crucial, as mixing up the orientation can impact the blower's performance.
By following maintenance guidelines and staying vigilant about fuel line health, owners of the Ryobi BP42 Backpack Blower can ensure their equipment remains in good working condition. With proper care, this blower can provide reliable service for clearing leaves and debris during those messy autumn months.
Fuel Line Fittings: Choosing the Right 1/4-Inch Option
You may want to see also
Explore related products
Fuel lines can become clogged, crimped, or cracked, restricting gas flow and preventing the engine from starting
Fuel lines are an essential component of a vehicle's fuel system, delivering fuel from the tank to the engine. However, they are susceptible to damage and can become clogged, crimped, or cracked over time, leading to restricted fuel flow and engine problems.
One of the most common issues with fuel lines is clogging, which can occur due to various factors. The fuel filter, designed to trap impurities, can become clogged with debris over time, leading to a buildup of sludge that clogs the fuel lines. Water condensation in the fuel tank, especially in humid climates, can mix with the fuel and contribute to this sludge. Additionally, dirt, sediment, and carbon buildup can clog the fuel lines if not regularly cleaned or replaced.
The fuel lines themselves can also deteriorate due to age, exposure to extreme temperatures, or chemical reactions with the fuel. This deterioration can result in cracks, corrosion, and other damage, leading to blockages in the fuel lines. Steel fuel lines, for example, are particularly susceptible to corrosion, which can create significant blockages.
Crimped or kinked fuel lines can also restrict fuel flow. While reinforced rubber fuel lines are designed to prevent kinking, they can still be vulnerable to damage or wear and tear over time. A broken or leaky fuel line can cause a fuel pressure drop, leading to engine misfires and stalling. In severe cases, a broken fuel line can result in a fuel leak, with puddles of fuel forming underneath the vehicle, creating a safety hazard.
To prevent these issues, regular maintenance and replacement of fuel lines are crucial. By understanding the signs of fuel line problems, such as engine hesitation, stuttering, or loss of power, vehicle owners can take prompt action to resolve the issue and ensure the smooth operation of their engine.
Welding or Soldering Fuel Lines: Which is Better?
You may want to see also
Explore related products
Fuel lines need to be removed from the carburetor for repairs and maintenance, which can cause confusion when reconnecting
The Ryobi BP42 backpack blower is a leaf blower that can be challenging to start. It has two fuel lines connected to the primer, and issues with the carburetor are often the cause of its starting problems.
Before disconnecting the fuel lines, it is recommended to take reference photos or make markings to remember the correct routing and connections. This will serve as a guide during the reassembly process. Additionally, having a fuel line diagram specific to the Ryobi BP42 can be extremely helpful in ensuring the correct fuel line configuration.
When reconnecting the fuel lines, pay close attention to the routing of each line and make sure they are not crossed or kinked. Carefully inspect the connections and ensure that the lines are securely attached to the correct ports on the carburetor. After reassembly, it is a good practice to test the leaf blower and observe its performance. If issues persist or unusual behaviors are noticed, re-inspect the fuel lines and carburetor for any signs of incorrect installation or leaks.
By following these guidelines, you can minimize confusion when reconnecting fuel lines to the carburetor of the Ryobi BP42 leaf blower. Proper fuel line installation is crucial for the safe and efficient operation of the equipment, so taking the time to do it right is always recommended.
Removing Rust from Fuel Lines: Effective Techniques to Try
You may want to see also
Explore related products
There are two types of 2-cycle engine carburetors: local primer and remote primer, each with a different fuel routing orientation
The Ryobi BP42 is a 2-cycle engine leaf blower. There are two types of 2-cycle engine carburetors: local primer and remote primer, each with a different fuel routing orientation.
The local primer carburetor design features a primer bulb built on top of the assembly. This bulb pulls fuel through the filtered fuel line and into the carburetor, and then pushes it out of the carburetor through the unfiltered return line. To ensure correct fuel line installation, fuel must be pulled in through the line with the fuel filter and pushed out through the unfiltered return line.
To test the orientation of the fuel lines, place the ends of both lines in 2-cycle fuel and prime the bulb. If fuel is pushed out of the unfiltered line, the orientation is correct. If bubbles emerge from the line with the fuel filter, the lines must be switched and the test performed again.
The remote primer carburetor design features a primer assembly separate from the body of the carburetor. This design is slightly more complex due to the addition of a third line. It is important to remember that the primer assembly pulls fuel through the carburetor, rather than pushing it in.
To determine the correct fuel line routing for remote primer carburetors, the first step is to test the primer assembly. Fuel only flows one way through primer assemblies, so it is crucial to identify the input and output sides. Attach the fuel lines to the primer assembly, submerge them in 2-cycle fuel, and prime the bulb. Bubbles will appear in the return line, indicating the direction of fuel flow. The line without bubbles is the one that should be attached to the carburetor, as fuel must be pulled through it and into the primer bulb.
Best Return Fuel Line Clamping Point for '94 Astro
You may want to see also
Explore related products
The primer bulb pulls fuel through the filtered fuel line and into the carburetor, then pushes it out of the unfiltered return line
The primer bulb is an integral part of a small engine's fuel system. In the context of the BP42, the primer bulb pulls fuel through the filtered fuel line and into the carburetor, then pushes it out of the unfiltered return line. This process ensures the efficient operation of the engine by providing a consistent fuel supply.
The primer bulb's role in fuel delivery is crucial. When the bulb is located directly on top of the carburetor, it pulls fuel through the filtered fuel line into the carburetor. Subsequently, the fuel is pushed out of the carburetor through the unfiltered return line, which leads back to the fuel tank. This direct interaction between the primer bulb and carburetor is known as a local primer carburetor.
However, in some cases, the primer bulb may have a separate assembly, positioned remotely from the carburetor. This arrangement is called a remote primer carburetor. In this configuration, the filtered fuel line from the tank connects to the carburetor, and an unfiltered line leads from the carburetor to the primer bulb. Finally, a third line returns the fuel to the tank.
To ensure proper functionality, it is essential to establish the correct fuel line routing. The lines must be free of any obstructions, and the filtered and unfiltered lines must not be mixed up. Incorrect installation of the fuel lines can lead to issues with the primer bulb and the overall performance of the equipment. Therefore, it is recommended to refer to diagrams and perform tests to confirm the correct routing.
Additionally, it is worth noting that the primer bulb itself and the fuel lines should be regularly inspected for any signs of damage, such as cracks or holes. Proper maintenance of these components is crucial to prevent fuel leaks and ensure the smooth operation of the engine.
Fuel Line Wrench: Selecting the Right Size for Your GM Vehicle
You may want to see also
Frequently asked questions
The Ryobi BP42 is a backpack blower.
The Ryobi BP42 has two fuel lines.
The fuel lines can get clogged, crimped, or cracked. They can also be installed incorrectly, with the lines being backwards.
Place the ends of both lines in 2-cycle fuel and prime the bulb. If fuel is pushed out of the unfiltered line, the orientation is correct. If bubbles emerge from the line with the fuel filter, the lines are installed incorrectly and must be switched.
To replace the fuel lines, first, remove the fuel tank from the housing. Then, remove the fuel filter and pull out the small fuel line. Push the large fuel line into the tank and pull it out of the mouth of the tank. Finally, connect the new fuel lines, ensuring they are routed correctly.
