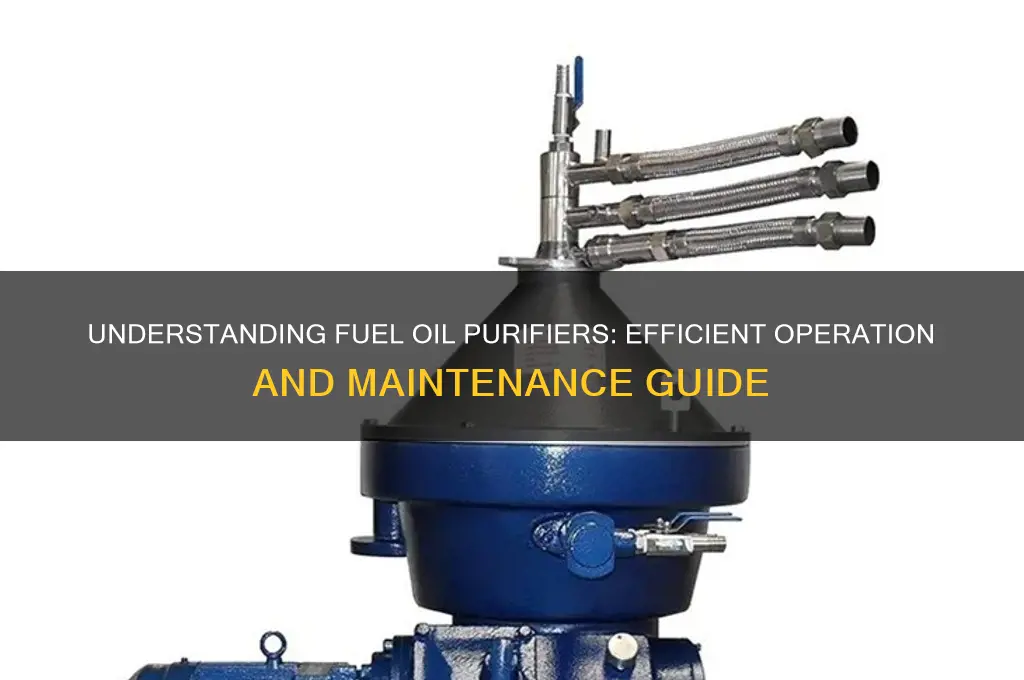

A fuel oil purifier is a critical component in marine and industrial applications, designed to remove impurities such as water, dirt, and sludge from fuel oil to ensure optimal engine performance and longevity. The process typically involves several stages, including heating the fuel to reduce viscosity, allowing for easier separation of contaminants. The fuel then passes through a series of filters, often incorporating centrifugal force to separate heavier particles and water, which are discharged through a separate outlet. Advanced systems may also include coalescing elements to further refine the fuel by removing smaller water droplets and particulate matter. The purified fuel is then ready for combustion, ensuring cleaner and more efficient operation of engines and machinery. Understanding how a fuel oil purifier works is essential for maintaining the reliability and efficiency of systems that depend on high-quality fuel.
| Characteristics | Values |
|---|---|
| Purpose | Removes impurities (water, sludge, solids) from fuel oil to improve combustion efficiency and protect engines. |
| Working Principle | Utilizes gravity separation, centrifugal force, and filtration to separate contaminants from fuel oil. |
| Main Components | Bowl (separator), rotor, inlet/outlet ports, water discharge port, heating system, control panel. |
| Process Steps | 1. Fuel oil is heated to reduce viscosity. 2. Oil enters the purifier and is accelerated by the rotor. 3. Centrifugal force separates heavier impurities (solids, water) from the oil. 4. Clean oil is discharged, while impurities settle in the bowl for removal. |
| Efficiency | Typically removes 95-99% of contaminants depending on purifier type and condition. |
| Types | Centrifugal purifiers (most common), gravity disc purifiers, vacuum purifiers. |
| Applications | Marine engines, power plants, industrial boilers, diesel generators. |
| Maintenance | Regular cleaning of the bowl, inspection of seals, and replacement of worn parts. |
| Environmental Impact | Reduces emissions by ensuring cleaner fuel combustion. |
| Energy Consumption | Varies by model; heating systems and motor efficiency are key factors. |
| Capacity | Ranges from small units (few liters/min) to large industrial systems (several m³/h). |
| Cost | Varies widely based on size, capacity, and technology; typically $1,000 to $50,000+. |
| Latest Advancements | Automated control systems, IoT integration for remote monitoring, and energy-efficient designs. |
Explore related products
What You'll Learn
Centrifugal Separation Process
The centrifugal separation process is a cornerstone of fuel oil purification, leveraging the power of rotational force to efficiently remove contaminants. At its core, this method exploits the density differences between water, impurities, and the fuel oil itself. When the oil-water mixture enters the centrifugal purifier, it’s subjected to high speeds, often reaching 4,000 to 7,000 revolutions per minute (RPM). This rapid rotation generates centrifugal force, which separates the heavier water and solid particles from the lighter fuel oil. The process is governed by the principle that the separation factor—a measure of the force exerted—increases with the square of the rotational speed, making it highly effective even for fine impurities.
Consider the practical application: a typical marine fuel oil purifier operates with a bowl diameter of 500 to 900 millimeters, designed to handle flow rates of 10 to 50 cubic meters per hour. The purifier’s efficiency hinges on precise control of the discharge ring, which determines the interface between the separated water and oil phases. For optimal performance, operators must monitor the water discharge rate, ensuring it doesn’t exceed 3-5% of the total throughput. Overloading the purifier or allowing the water phase to accumulate can lead to carryover, where contaminants re-enter the purified oil. Regular cleaning of the bowl and inspection of the paring disc—the component that accelerates the mixture—are critical maintenance steps to prevent inefficiencies.
A comparative analysis highlights the advantages of centrifugal separation over gravity settling. While gravity-based methods rely on time-consuming sedimentation, centrifugal purifiers achieve separation in seconds, making them ideal for high-volume applications like ship engines or industrial power plants. For instance, a centrifugal purifier can remove 98% of water and 95% of solid particles down to 5 microns in a single pass, far surpassing the capabilities of conventional filters. However, this efficiency comes with a trade-off: the process requires significant energy input, and the purifier’s bowl must be constructed from durable materials like cast iron or stainless steel to withstand the mechanical stress.
To maximize the effectiveness of centrifugal separation, operators should adhere to specific guidelines. First, ensure the fuel oil temperature is maintained between 80°C and 100°C to reduce viscosity, allowing for easier separation. Second, pre-treat the fuel by passing it through a coarse filter to remove large particles that could damage the purifier’s internals. Finally, monitor the purifier’s performance using a water content analyzer, aiming to keep residual water levels below 0.5% by volume. By combining these practices, the centrifugal separation process becomes a reliable, high-performance solution for fuel oil purification, ensuring clean fuel for critical applications.
Understanding Fuel Cells: How They Generate Clean Electricity Efficiently
You may want to see also
Explore related products
Water and Impurities Removal
Water and impurities in fuel oil can wreak havoc on engines, leading to corrosion, reduced efficiency, and even catastrophic failures. Fuel oil purifiers are designed to combat this by employing a multi-stage process that targets both water and solid contaminants. The first line of defense is typically a settling tank, where the fuel is allowed to rest, enabling heavier impurities and water to separate from the oil due to density differences. This simple yet effective method can remove up to 90% of free water and large particulate matter, making it a crucial initial step in the purification process.
Once the fuel has settled, the next stage often involves a centrifugal separator, which operates on the principle of centrifugal force. As the fuel oil is spun at high speeds, water and finer impurities are forced outward, away from the lighter oil. This separation is highly efficient, capable of removing water droplets as small as 10 microns and solid particles down to 5 microns. For optimal performance, the centrifuge should be operated at a rotational speed of 4000-7000 RPM, depending on the fuel type and contamination level. Regular monitoring of the water discharge rate is essential to ensure the system is functioning correctly.
Chemical treatment is another critical aspect of water and impurity removal. Coagulants and demulsifiers are often added to the fuel to break down water-in-oil emulsions and aggregate fine particles into larger, more easily separable masses. A typical dosage of demulsifier ranges from 10 to 50 ppm (parts per million), depending on the severity of the emulsion. It’s important to select a chemical compatible with the fuel type and to follow manufacturer guidelines to avoid adverse reactions. After treatment, the fuel should be allowed to settle for 12-24 hours to ensure complete separation before proceeding to the next purification stage.
Advanced filtration systems, such as vacuum distillation units, are employed for fuels requiring ultra-low water and impurity levels. These systems heat the fuel under vacuum conditions, causing water and volatile contaminants to evaporate and separate from the oil. The distilled fuel is then cooled and collected, leaving behind nearly all water and impurities. While highly effective, this method is energy-intensive and typically reserved for critical applications like marine or aviation fuels. Proper maintenance of the vacuum system, including regular checks for leaks and blockages, is vital to ensure consistent performance.
In practice, combining these methods—settling, centrifugation, chemical treatment, and advanced filtration—yields the best results. For instance, a marine vessel might use a settling tank for initial separation, followed by a centrifugal purifier and chemical dosing to address emulsified water. Periodic testing of the fuel’s water content, using devices like crackle testers or digital water sensors, ensures the purification system is operating effectively. By understanding and implementing these techniques, operators can maintain fuel quality, extend equipment lifespan, and reduce operational risks associated with contaminated fuel.
Understanding the Complex Process of How Fuel Forms Naturally
You may want to see also
Explore related products
Purifier Bowl Components
The purifier bowl is the heart of a fuel oil purifier, where the magic of separation happens. It’s a cylindrical vessel designed to leverage centrifugal force, gravity, and density differences to remove water, impurities, and sludge from fuel oil. Understanding its components is key to appreciating how this critical equipment operates efficiently.
Components and Their Roles
At the core of the purifier bowl are the rotating parts: the bowl itself, the disc stack (or centrifugal separator), and the rotor. The bowl, typically made of stainless steel for corrosion resistance, spins at high speeds, often between 4,000 to 7,000 RPM. Inside, the disc stack—a series of conical plates—creates a labyrinthine path that forces the fuel oil to flow outward. This design maximizes the interface area, enhancing separation efficiency. The rotor, driven by an electric motor, ensures consistent rotation, while the paring disc regulates the oil discharge rate, preventing overflow.
Material and Design Considerations
Material selection is critical for durability and performance. Stainless steel is preferred for its strength and resistance to fuel oil’s corrosive properties. The bowl’s thickness and shape are engineered to withstand the immense centrifugal forces generated during operation. For instance, a 10-inch bowl might have a wall thickness of 5 mm to balance weight and strength. Additionally, the bowl’s surface finish is crucial; a smooth interior minimizes friction and prevents impurity buildup, ensuring consistent separation.
Practical Maintenance Tips
Regular maintenance of the purifier bowl is essential to avoid downtime and ensure optimal performance. Inspect the bowl and disc stack monthly for signs of wear, such as pitting or erosion, especially if the fuel oil contains abrasive particles. Clean the bowl thoroughly after every 500 hours of operation, using a solvent approved for fuel oil residues. When reassembling, ensure the disc stack is aligned correctly to avoid imbalance, which can reduce separation efficiency by up to 30%. Always refer to the manufacturer’s guidelines for torque values when tightening bolts, typically ranging from 20 to 35 Nm for standard models.
Comparative Analysis: Bowl vs. Filter Systems
Unlike traditional filter systems, which rely on porous media to trap impurities, the purifier bowl uses mechanical separation, making it more effective for heavy contaminants like water and sludge. Filters often clog and require frequent replacement, whereas a well-maintained purifier bowl can operate continuously for months. However, the bowl’s complexity and higher initial cost make it more suited for industrial applications, such as marine engines or power plants, where fuel quality is critical. For smaller operations, a combination of both systems might be ideal, leveraging the bowl’s efficiency and the filter’s simplicity.
By understanding these components and their interplay, operators can maximize the lifespan and efficiency of their fuel oil purifiers, ensuring cleaner fuel and smoother operations.
Understanding Fuel Testers: How They Work and Ensure Engine Efficiency
You may want to see also
Explore related products
Gravity Disk Functionality
The gravity disk in a fuel oil purifier is a critical component that leverages the principle of gravity separation to remove impurities from the fuel. As fuel oil enters the purifier, it encounters the gravity disk, a rotating component designed to create a centrifugal force. This force drives heavier contaminants—such as water, sludge, and solid particles—outward, while cleaner fuel remains closer to the center. The disk’s precise angle and rotational speed are calibrated to maximize separation efficiency, ensuring that only purified fuel progresses further in the system.
To understand its functionality, consider the process step-by-step. First, the fuel oil is fed into the purifier’s bowl, where the gravity disk begins to rotate. As it spins, centrifugal force acts on the fuel, causing denser impurities to migrate outward. These contaminants accumulate in the bowl’s outer perimeter, forming a distinct layer. Meanwhile, the lighter, purified fuel is drawn upward through the disk’s central passage, exiting the purifier for use in the engine. Regular monitoring of the bowl’s discharge port is essential to ensure timely removal of accumulated sludge, preventing recontamination.
A key advantage of the gravity disk is its ability to handle varying fuel densities and contamination levels. For instance, in marine applications, where fuel quality can fluctuate significantly, the disk’s adjustable rotational speed allows operators to fine-tune separation efficiency. A typical operating range is 6,000 to 7,000 RPM, but this can be modified based on fuel viscosity and impurity concentration. For heavy fuel oils with high water content, slower speeds may be more effective, while lighter fuels benefit from higher RPMs.
Despite its effectiveness, the gravity disk requires careful maintenance to ensure optimal performance. Over time, wear and tear can reduce its efficiency, leading to incomplete separation. Inspect the disk for signs of erosion or imbalance every 500 operating hours, and replace it if necessary. Additionally, ensure the purifier’s seals and bearings are lubricated to minimize friction and heat buildup. Proper maintenance not only extends the disk’s lifespan but also safeguards the engine from harmful contaminants.
In conclusion, the gravity disk is a cornerstone of fuel oil purification, combining simplicity with precision to deliver reliable results. By understanding its mechanics and adhering to maintenance best practices, operators can maximize its effectiveness, ensuring clean fuel and prolonged engine life. Whether in maritime, industrial, or power generation settings, the gravity disk remains an indispensable tool for maintaining fuel quality in demanding environments.
Helicopter Fuel Costs: Understanding the Expense of High-Altitude Travel
You may want to see also
Explore related products
Oil Discharge and Cleaning
Fuel oil purifiers are designed to separate contaminants from fuel oil, ensuring optimal engine performance and longevity. A critical aspect of their operation is the efficient discharge and cleaning of accumulated impurities. This process involves several stages, each tailored to remove specific types of contaminants, such as water, sludge, and solid particles. Understanding these stages is essential for maintaining the purifier’s effectiveness and preventing system failures.
Step-by-Step Discharge Process: The discharge cycle begins with the detection of accumulated impurities in the purifier’s settling tank. Once the contaminant level reaches a preset threshold (typically 5-10% of the tank’s volume), the discharge mechanism activates. This involves opening a valve to release the contaminated oil into a separate holding tank or disposal system. The flow rate during discharge is carefully controlled to avoid losing clean fuel oil, usually maintained at 1-2 liters per minute. After discharge, the system undergoes a brief cleaning cycle to flush residual impurities from the separator bowl and pipelines.
Cleaning Techniques and Considerations: Effective cleaning of the purifier components is vital to prevent clogging and ensure consistent performance. One common method is backflushing, where clean oil is forced in reverse through the separator to dislodge trapped particles. Chemical cleaning agents, such as detergents or solvents, may also be used to dissolve stubborn residues, though their concentration must be carefully monitored (typically 1-2% of the cleaning solution) to avoid corrosion. Manual cleaning, involving disassembly and physical scrubbing, is reserved for periodic maintenance or severe contamination cases.
Environmental and Safety Precautions: Proper handling of discharged oil is crucial to comply with environmental regulations and prevent hazards. Contaminated oil should be stored in sealed containers and disposed of through authorized waste management services. During cleaning, ensure adequate ventilation to avoid inhaling fumes from chemical agents. Operators should wear protective gear, including gloves and goggles, and follow manufacturer guidelines for handling cleaning chemicals. Regularly inspect discharge lines for leaks to prevent spills and contamination of surrounding areas.
Optimizing Discharge and Cleaning Cycles: To maximize efficiency, discharge and cleaning cycles should be scheduled based on fuel oil quality and usage patterns. For vessels operating in high-contamination environments, daily inspections and more frequent cycles may be necessary. Automated systems with sensors can monitor impurity levels in real-time, triggering discharge and cleaning as needed. Keeping detailed logs of these cycles helps identify trends and adjust maintenance schedules accordingly. By integrating these practices, operators can ensure the fuel oil purifier operates at peak efficiency, safeguarding both equipment and the environment.
Doubt's Power: How Skepticism Drives Scientific Discovery and Innovation
You may want to see also
Frequently asked questions
A fuel oil purifier, also known as a fuel oil separator or centrifugal purifier, is a device used to remove impurities, water, and contaminants from fuel oil. Its primary function is to ensure the fuel oil is clean and meets the required standards for efficient combustion in marine engines or industrial applications.
A fuel oil purifier works by using centrifugal force to separate impurities and water from the fuel oil. The oil is pumped into the purifier at high speed, causing it to rotate rapidly. Heavier contaminants, such as water and solid particles, are forced outward and collected in the purifier’s bowl, while the clean oil is discharged for use.
The key components of a fuel oil purifier include the bowl (where separation occurs), the rotor (which generates centrifugal force), the gravity disc (to control the oil level), and the discharge ports for clean oil and separated impurities. Some purifiers also have heating systems to reduce the viscosity of the oil for better separation.
