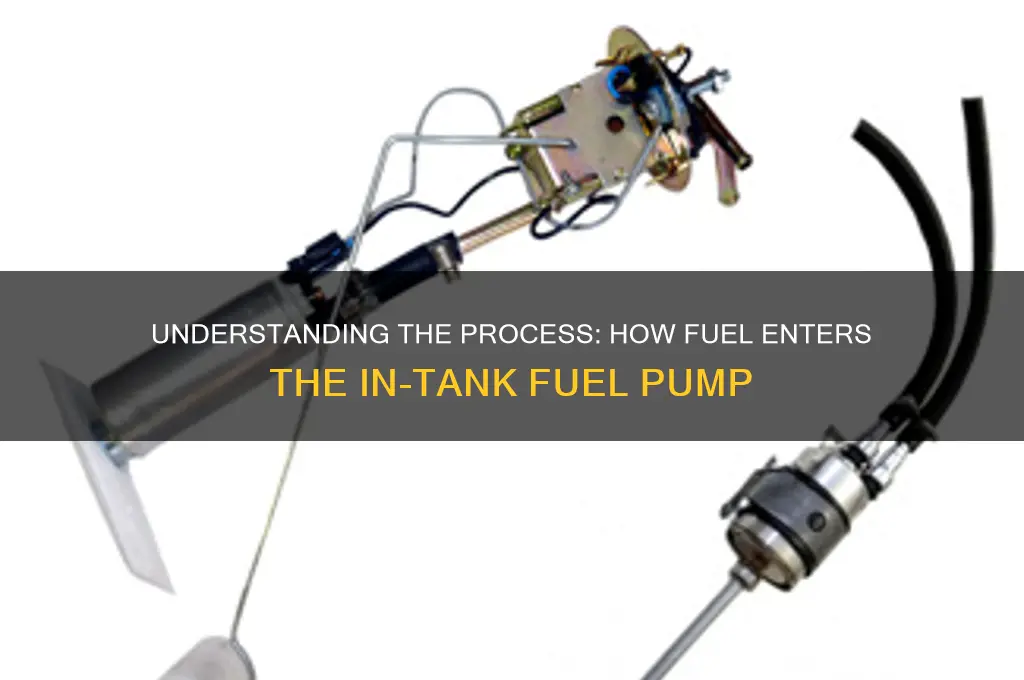

The in-tank fuel pump is a critical component of a vehicle's fuel system, responsible for delivering fuel from the tank to the engine. The process begins when the ignition is turned on, activating the fuel pump, which creates a low-pressure zone within the pump. This pressure differential draws fuel from the tank through a strainer, which filters out debris and contaminants. The fuel then enters the pump's inlet, where it is pressurized and pushed through the outlet, traveling along the fuel lines to the engine. This efficient mechanism ensures a consistent and clean fuel supply, optimizing engine performance and reliability. Understanding how fuel enters the in-tank pump highlights its role in maintaining the vehicle's overall functionality.
| Characteristics | Values |
|---|---|
| Fuel Entry Mechanism | Fuel enters the in-tank fuel pump through a suction inlet located at the bottom of the pump assembly. |
| Fuel Tank Design | The fuel tank is designed with a sump area where fuel collects, ensuring the pump always has access to fuel. |
| Pump Type | Typically a turbine or gerotor pump, which creates suction to draw fuel into the pump. |
| Fuel Filter | An integrated or external fuel filter prevents debris from entering the pump and clogging it. |
| Check Valve | A check valve prevents fuel from flowing back into the tank when the pump is off, maintaining pressure. |
| Fuel Level Sensor | A fuel level sensor monitors the fuel level and ensures the pump operates only when fuel is available. |
| Pump Operation | The pump is activated by the ignition system or engine control unit (ECU) when the vehicle is started. |
| Fuel Pressure Regulation | A pressure regulator ensures the fuel is delivered at the correct pressure to the engine. |
| Material Compatibility | Pump components are made of materials resistant to ethanol and other fuel additives. |
| Noise Reduction | Modern in-tank pumps are designed to operate quietly, reducing noise in the fuel system. |
| Safety Features | Includes thermal protection to prevent overheating and potential fuel system fires. |
Explore related products
What You'll Learn
- Fuel Tank Design: How the tank's structure facilitates fuel flow to the pump inlet
- Fuel Pump Inlet Strainer: Role in filtering debris before fuel enters the pump
- Fuel Level Sensor: Ensures consistent fuel supply to the pump under all levels
- Fuel Pickup Tube: Delivers fuel from the tank to the pump efficiently
- Anti-Vortex Devices: Prevents air from entering the pump during fuel pickup
Fuel Tank Design: How the tank's structure facilitates fuel flow to the pump inlet
Fuel tank design plays a pivotal role in ensuring a consistent and efficient flow of fuel to the in-tank pump inlet. One critical feature is the anti-slosh baffle system, strategically placed within the tank to minimize fuel movement during vehicle acceleration, braking, and cornering. These baffles prevent fuel from sloshing away from the pump inlet, ensuring a steady supply even when the tank is less than half full. For instance, in modern sedans, baffles are often positioned near the pump inlet, creating a reservoir effect that keeps fuel within reach regardless of vehicle orientation.
Another essential design element is the fuel pump module placement. In most vehicles, the pump is mounted at the lowest point of the tank to maximize gravity-assisted fuel flow. This positioning ensures that even when fuel levels are low, the pump remains submerged, reducing the risk of air ingestion. Additionally, the module often includes a suction filter located near the inlet to prevent debris from entering the pump, which could otherwise cause mechanical failure or clog fuel lines.
The tank’s slope and contour are equally important in facilitating fuel flow. Tanks are designed with a gradual incline toward the pump inlet, encouraging fuel to naturally migrate to the pickup point. This design is particularly crucial in rear-mounted fuel tanks, where fuel must travel a greater distance to reach the pump. For example, in SUVs and trucks, the tank’s rear section is often sloped at a 5-10 degree angle to ensure fuel flows efficiently to the front-mounted pump.
Material selection and surface treatments also contribute to optimal fuel flow. Modern fuel tanks are typically made from high-density polyethylene (HDPE) or steel, both of which are treated to resist corrosion and fuel permeation. Smooth interior surfaces reduce friction, allowing fuel to flow more freely toward the pump inlet. In some cases, manufacturers apply a non-stick coating to the tank’s interior to prevent fuel residue buildup, which could otherwise obstruct flow.
Finally, the venting system is integral to maintaining consistent fuel flow. A properly designed vent allows air to enter the tank as fuel is drawn out, preventing vacuum formation that could restrict flow. The vent is often integrated into the fuel filler neck or connected to the pump module, ensuring a balanced pressure differential. Without effective venting, even the most well-designed tank structure would fail to deliver fuel efficiently to the pump inlet.
By combining these design elements—anti-slosh baffles, strategic pump placement, tank contouring, material selection, and venting systems—fuel tank engineers ensure a reliable and uninterrupted fuel supply to the in-tank pump, optimizing vehicle performance and efficiency.
Understanding Fuel Pump Cooling: Essential Methods to Prevent Overheating
You may want to see also
Explore related products
Fuel Pump Inlet Strainer: Role in filtering debris before fuel enters the pump
The fuel pump inlet strainer is a critical yet often overlooked component in the fuel delivery system of modern vehicles. Positioned at the entry point of the in-tank fuel pump, its primary function is to prevent debris, contaminants, and particulate matter from entering the pump mechanism. This small but vital filter acts as the first line of defense, ensuring that only clean fuel reaches the pump, thereby safeguarding its longevity and performance. Without it, abrasive particles could cause premature wear, clogging, or even complete failure of the fuel pump, leading to costly repairs and potential vehicle breakdowns.
Consider the strainer’s design and placement as a strategic engineering choice. Typically made of fine-mesh stainless steel or nylon, it is engineered to capture particles as small as 10 to 40 microns—a size range that includes common contaminants like rust, dirt, and degraded fuel tank residue. Its location at the pump inlet ensures that fuel is filtered immediately before it enters the high-pressure environment of the pump, where even microscopic debris can cause significant damage. This proactive filtration not only protects the pump but also ensures consistent fuel flow to the engine, maintaining optimal combustion efficiency.
From a maintenance perspective, understanding the strainer’s role underscores the importance of regular fuel system care. Over time, the strainer can become clogged with accumulated debris, reducing fuel flow and pump efficiency. Vehicle owners should be aware that symptoms like engine sputtering, reduced power, or difficulty starting can signal a clogged strainer. While some in-tank strainers are accessible for cleaning or replacement, others may require professional intervention due to their integration with the fuel pump assembly. Periodic fuel tank inspections and the use of high-quality fuel can mitigate strainer clogging, extending the life of both the filter and the pump.
Comparatively, the fuel pump inlet strainer’s function is akin to that of a kidney in the human body—both filter out harmful substances before they cause systemic damage. However, unlike the body’s self-cleaning mechanisms, the strainer relies on proactive maintenance to remain effective. For instance, using fuel additives designed to dissolve tank residue can reduce the strainer’s workload, while avoiding low-quality fuel minimizes the introduction of contaminants. This analogy highlights the strainer’s passive yet indispensable role in the fuel system’s health.
In conclusion, the fuel pump inlet strainer is a silent guardian of the fuel delivery system, ensuring that the pump operates in a clean, debris-free environment. Its design, placement, and maintenance requirements reflect a balance between protection and practicality, making it a cornerstone of modern fuel system engineering. By recognizing its role and taking preventive measures, vehicle owners can avoid the pitfalls of strainer-related issues, ensuring reliable performance and longevity for their fuel pumps.
Does the Motorcycle Killswitch Prime the Fuel Pump? Explained
You may want to see also
Explore related products
Fuel Level Sensor: Ensures consistent fuel supply to the pump under all levels
The fuel level sensor is a critical component in modern vehicles, ensuring a consistent fuel supply to the in-tank fuel pump regardless of the tank's fuel level. This sensor, typically a float-based mechanism, is designed to monitor the fuel height and relay this information to the vehicle's engine control unit (ECU). By doing so, it prevents the pump from running dry, which could lead to overheating and potential damage. For instance, in vehicles with a 15-gallon fuel tank, the sensor might trigger a low-fuel warning when the level drops below 2 gallons, ensuring the pump always has sufficient fuel to operate efficiently.
One of the key challenges in fuel delivery systems is maintaining a steady flow, especially during dynamic driving conditions such as hard acceleration, braking, or cornering. The fuel level sensor addresses this by continuously adjusting the pump's operation based on real-time data. For example, during aggressive driving, fuel may slosh to one side of the tank, but the sensor ensures the pump remains submerged, preventing air from entering the fuel lines. This is particularly important in high-performance vehicles, where even a momentary interruption in fuel supply can cause engine hesitation or stalling.
From a maintenance perspective, understanding the role of the fuel level sensor is essential for diagnosing fuel system issues. A malfunctioning sensor can lead to inaccurate fuel gauge readings or erratic pump behavior. For DIY enthusiasts, testing the sensor involves checking its resistance values, which should correspond to the fuel level chart provided by the manufacturer. For instance, a sensor with a resistance of 10 ohms at empty and 90 ohms at full should show a linear increase in resistance as the tank fills. If the readings deviate significantly, the sensor may need replacement.
Comparatively, older vehicles without in-tank fuel pumps relied on external pumps and gravity-fed systems, which were less efficient and more prone to airlock issues. The integration of the fuel level sensor with the in-tank pump represents a significant advancement, offering improved reliability and performance. Modern systems, such as those found in hybrid vehicles, further optimize fuel delivery by coordinating with the battery and electric motor to reduce pump load during low-demand periods. This not only enhances fuel efficiency but also extends the life of the pump and sensor.
In conclusion, the fuel level sensor plays a pivotal role in ensuring the in-tank fuel pump operates seamlessly across all fuel levels and driving conditions. Its ability to provide accurate, real-time data to the ECU is indispensable for maintaining engine performance and longevity. Whether you're a vehicle owner, mechanic, or enthusiast, understanding this component's function and maintenance requirements can help prevent costly repairs and ensure a consistent driving experience. Regularly monitoring the fuel gauge and addressing any anomalies promptly will keep your fuel system in optimal condition.
Bypassing the 1989 C1500 Fuel Pump: A Step-by-Step Guide
You may want to see also
Explore related products
Fuel Pickup Tube: Delivers fuel from the tank to the pump efficiently
The fuel pickup tube is a critical component in modern in-tank fuel pump systems, serving as the conduit that ensures a consistent and efficient flow of fuel from the tank to the pump. Positioned at the bottom of the fuel tank, this tube is strategically designed to draw fuel even when levels are low, preventing air from entering the system and causing pump starvation. Its construction typically includes a filter sock or strainer at the inlet to trap debris, ensuring only clean fuel reaches the pump. This design is essential for maintaining optimal engine performance and prolonging the life of the fuel system.
Consider the mechanics of fuel delivery: as the vehicle operates, the fuel pump creates a vacuum that pulls fuel through the pickup tube. The tube’s diameter and length are engineered to minimize flow restriction while maximizing efficiency, even in sloshing or low-fuel conditions. For instance, in vehicles with saddle-style tanks (split tanks), multiple pickup tubes may be used to ensure fuel is drawn from all sections of the tank. This redundancy is particularly important in high-performance or off-road vehicles, where fuel movement is unpredictable. Proper maintenance of the pickup tube, including regular inspection for cracks or clogs, is crucial to avoid fuel delivery issues.
A comparative analysis highlights the evolution of pickup tube designs. Older systems often relied on external fuel pumps and gravity-fed lines, which were less efficient and prone to vapor lock. Modern in-tank systems, however, integrate the pickup tube directly into the pump assembly, reducing the risk of air ingress and improving reliability. For example, in diesel vehicles, the pickup tube is often paired with a larger-capacity strainer to handle the higher viscosity of diesel fuel. This contrasts with gasoline systems, where finer filtration is prioritized to protect sensitive fuel injectors. Understanding these differences underscores the importance of using the correct pickup tube for your vehicle’s fuel type.
To ensure the pickup tube functions optimally, follow these practical steps: first, during fuel filter or pump replacement, inspect the tube for signs of wear or contamination. Second, if the filter sock is removable, clean or replace it according to the manufacturer’s guidelines—typically every 30,000 to 50,000 miles. Third, when refueling, avoid running the tank below a quarter full, as this reduces the risk of sediment entering the pickup tube. Lastly, in extreme climates, consider using a fuel additive to prevent waxing (in diesel) or phase separation (in ethanol-blended gasoline), both of which can clog the tube.
In conclusion, the fuel pickup tube is a small but indispensable part of the fuel delivery system, bridging the gap between the tank and the pump with precision and reliability. Its design and maintenance directly impact engine performance, fuel efficiency, and system longevity. By understanding its function and adhering to best practices, vehicle owners can avoid common issues and ensure their fuel system operates seamlessly. Whether you’re a DIY enthusiast or a professional mechanic, prioritizing the health of the pickup tube is a proactive step toward maintaining a robust and efficient vehicle.
Understanding the Mikuni Fuel Pump: Functionality and Operation Explained
You may want to see also
Explore related products
Anti-Vortex Devices: Prevents air from entering the pump during fuel pickup
Fuel sloshes inside the tank, especially during hard cornering, braking, or acceleration. This agitation creates vortices—mini whirlpools that pull air into the fuel pickup line. Air bubbles in the fuel stream starve the engine, causing hesitation, stalling, or even damage to the fuel pump. Anti-vortex devices are engineered solutions to this problem, strategically placed near the fuel pickup to calm the fuel surface and ensure a consistent, air-free supply.
These devices come in various forms, from simple baffles to complex spiral designs. A common type is the J-tube, a curved pipe that dips into the fuel tank. As fuel enters the tube, its shape forces the liquid to flow in a spiral, effectively separating any entrained air bubbles. The heavier fuel continues down the tube, while the lighter air rises and is trapped in a reservoir, preventing it from reaching the pump.
The effectiveness of anti-vortex devices depends on their design and placement. Factors like tank shape, fuel level, and driving conditions influence their performance. For instance, a device optimized for a tall, narrow tank might be less effective in a wide, shallow one. Manufacturers conduct extensive testing to ensure the device works across various driving scenarios, from everyday commuting to aggressive track use.
Regular maintenance is crucial for anti-vortex devices to function properly. Over time, debris or sediment can accumulate, hindering their ability to separate air from fuel. Periodic cleaning or replacement, as recommended by the vehicle manufacturer, ensures the device continues to protect the fuel pump and maintain engine performance.
While anti-vortex devices are a standard feature in modern fuel tanks, their importance is often overlooked. They play a silent but vital role in ensuring a reliable fuel supply, preventing engine issues, and extending the lifespan of the fuel pump. Understanding their function highlights the intricate engineering behind even the seemingly simple components of a vehicle's fuel system.
Mastering Fuel Pump RPM Calculation: A Step-by-Step Guide
You may want to see also
Frequently asked questions
Fuel enters the in-tank fuel pump through a suction inlet located at the bottom of the pump assembly. This inlet is designed to draw fuel from the tank, even when the fuel level is low.
A fuel pickup tube, often equipped with a filter sock, ensures consistent fuel flow into the pump. This tube extends to the bottom of the tank to prevent air from entering the system.
While gravity assists in directing fuel toward the pump, the in-tank fuel pump primarily relies on its internal electric motor to create suction and draw fuel into the pump.
A strainer or filter sock attached to the fuel pickup tube prevents debris and contaminants from entering the pump, ensuring clean fuel delivery to the engine.
