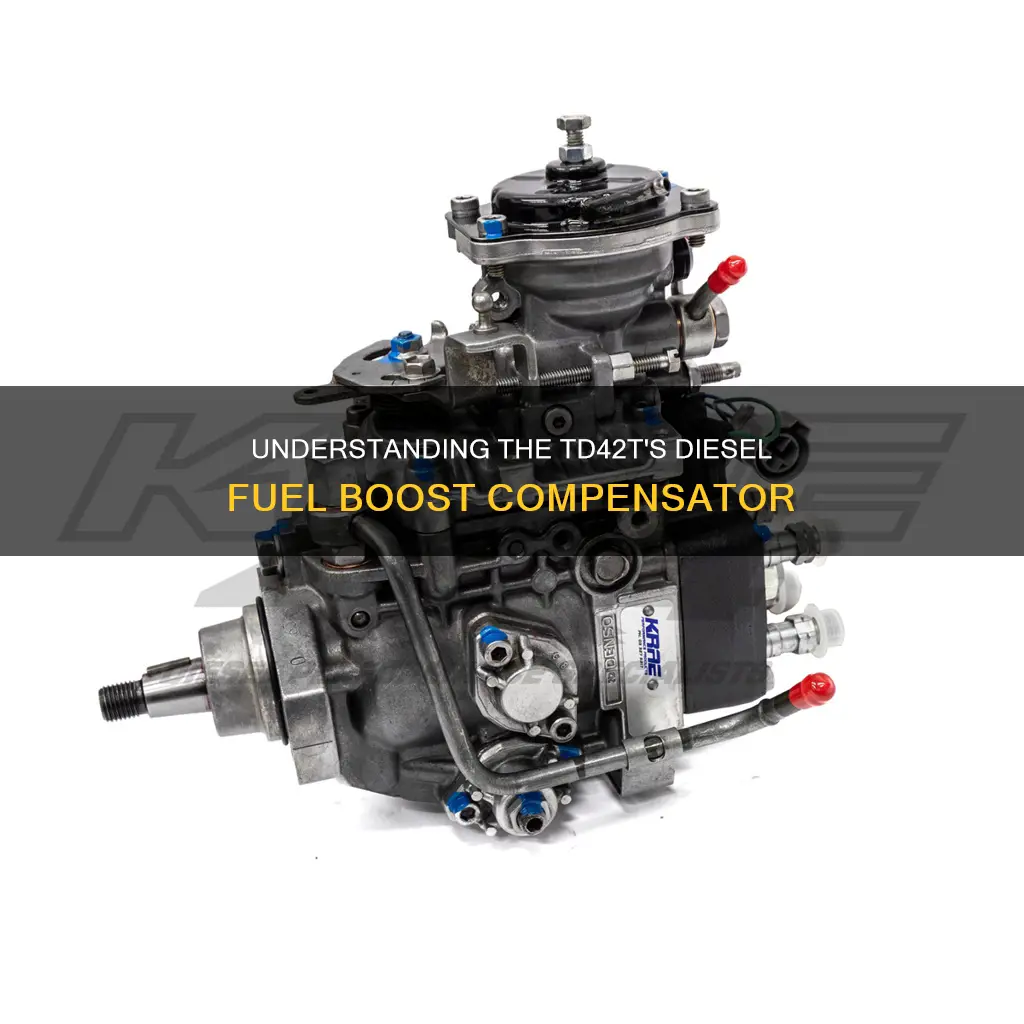

A boost compensator, also known as a fuel enrichment device, is a crucial component in turbocharged engines, such as the TD42 turbo diesel engine. It plays a vital role in enhancing the drivability and performance of these engines by modifying the fuel pump to match the extra flow and pressure generated by the turbo. The compensator is controlled by boost pressure and is positioned on top of the injection pump, where it influences the amount and timing of fuel delivery as the engine transitions from idle to boost. This mechanism helps to reduce black smoke emissions and improves engine responsiveness, particularly at low and partial revs. While the boost compensator itself doesn't directly alter the boost amount, it allows for fine-tuning of the fuel delivery system, ensuring optimal performance and efficiency in turbocharged diesel engines.
Explore related products
What You'll Learn
The boost compensator reduces black smoke emissions
The boost compensator, also known as a fuel enrichment device, is a crucial component in diesel engines that enhances the tuneability of the engine. It is controlled by boost pressure and is situated atop the injection pump. By adjusting the amount of fuel delivered based on the boost pressure, the compensator ensures that the engine receives the optimal fuel quantity, reducing excessive fuel intake and minimizing black smoke emissions.
The boost compensator's ability to regulate fuel delivery is particularly advantageous for turbocharged engines, which experience significant variations in airflow between on-boost and off-boost states. By modifying the pump's output in a 3D manner, the compensator ensures that the engine receives the appropriate amount of fuel, irrespective of the boost pressure. This not only improves engine performance but also contributes to a reduction in black smoke emissions.
Additionally, the boost compensator provides a level of control over the low-rev portion of the fuel delivery map. This control is achieved through adjustments to the low-rev fuel map of the pump, which is influenced by pressure from a turbo or vacuum from a naturally aspirated engine. By fine-tuning the fuel delivery, the compensator helps maintain a cleaner combustion process, reducing the occurrence of black smoke emissions.
The presence of the boost compensator also encourages more efficient fuel usage. By reducing the amount of fuel entering the engine when not on full boost, the compensator minimizes fuel wastage and promotes a more economical fuel-to-air ratio. This not only improves fuel efficiency but also contributes to a reduction in black smoke emissions by ensuring that the fuel is more thoroughly burned.
Improving Fuel Mileage on Your Dodge Cummins Diesel Engine
You may want to see also
Explore related products
It controls fuel delivery and timing
The boost compensator, or fuel enrichment device, is a crucial component in diesel engines, specifically those with turbocharged engines. Its primary function is to modify the pump's behaviour in response to the extra flow or pressure generated by the turbocharger. This mechanism is controlled by boost pressure and is situated atop the injection pump.
The compensator includes a pressure intake port on its top, which pushes an internal diaphragm containing the fuel pin down into the pump. This action increases fuel delivery in proportion to the boost pressure exerted on it. Without this component, tuning a turbocharged engine would be significantly more challenging.
The boost compensator provides a means to fine-tune fuel delivery, allowing for adjustments to both the amount and timing of fuel delivery as the engine transitions from idle to boost. This adjustment is achieved through the rotation of the fuel pin, resulting in minimum fuelling at 0 degrees, maximum fuelling at 180 degrees, and a return to minimum fuelling at 360 degrees.
The spring tension on the pin is another critical factor influencing fuel delivery. Lower spring tension results in increased fuel delivery for a given boost pressure, while higher tension reduces the amount of fuel delivered for the same pressure. This adjustment mechanism allows for precise control over the engine's fuel delivery and timing, ensuring optimal performance and efficiency.
Furthermore, the boost compensator helps to address issues with excessive smoke generation. By reducing the amount of fuel entering the engine when not on full boost, the compensator minimises heat creation, thereby mitigating the production of black smoke. This feature not only improves the engine's responsiveness but also enhances its overall eco-friendliness by reducing unnecessary fuel consumption.
Dealing with Gelled Diesel: Effective Solutions and Quick Fixes
You may want to see also
Explore related products
![Turbo [DVD]](https://m.media-amazon.com/images/I/71IgXQgMPJL._AC_UY218_.jpg)
It is a simple device with a diaphragm, needle and lever
A boost compensator, also known as a fuel enrichment device, is a simple mechanism that makes it easier to tune a turbocharged diesel engine. It is a simple device with a diaphragm, needle and lever. The diaphragm is activated by a boost line, which, when at 4 psi, can cause fuel and air to come from the 4-bolt cap clearance. The needle is a stroke-adjusting needle, and the lever sits on the IP centrifugal plate.
The compensator adds driveability to the turbo engine package, allowing the engine to respond better at low and part revs. It does this by reducing the amount of fuel going in when not on full boost, thereby creating less heat. It also helps to reduce black smoke, which can be a problem for engines without a compensator.
The compensator can be adjusted to suit the extra flow from engine improvements, which will require more fuel when off-boost. Spring tension on the pin can be adjusted to change how far down the compensator pin is pushed at a given boost pressure. The pin can also be rotated to adjust the amount of fuel delivered.
Understanding Air-Fuel Ratios in Diesel Engines
You may want to see also
Explore related products
It sits on top of the injection pump
The boost compensator, also known as a fuel enrichment device, sits on top of the injection pump. It is controlled by boost pressure and is designed to modify the pump in a 3D fashion depending on the extra flow or pressure provided by the turbocharger. This is achieved through a pressure intake port in the top of the compensator, which pushes an internal diaphragm containing the fuel pin down into the pump, increasing the amount of fuel delivered depending on the boost pressure acting on it.
The compensator allows for more precise control over fuel delivery, enabling adjustments to the amount and timing of fuel delivery as the engine transitions from idle to boost. It is important to note that adjusting the compensator will not directly change the amount of boost, but it can help reduce excessive smoke and improve engine responsiveness during light and partial throttle conditions.
The boost compensator is particularly useful when a larger plunger is installed in the injection pump, as it prevents the engine from pumping out significant amounts of black smoke until it is on boost. Without the compensator, tuning a turbocharged engine would be limited, and the engine may not respond optimally at low and partial revolutions.
The compensator typically has several adjustments, including the fuel screw, compensator pin spring tension, and compensator pin shims, which fine-tune fuel delivery to match the specific requirements of the engine.
Cleaning Aluminum Diesel Tanks: A Step-by-Step Guide
You may want to see also
Explore related products
It is adjustable to suit engine airflow improvements
The boost compensator is designed to be adjustable to suit engine airflow improvements. This adjustability means that the compensator can be fine-tuned to match any enhancements made to the engine's airflow characteristics, ensuring optimal performance and efficiency.
When modifying an engine for improved airflow, such as with a larger turbocharger or upgraded intake and exhaust systems, the diesel fuel boost compensator must be calibrated accordingly. This calibration ensures that the correct amount of fuel is delivered to the engine, relative to the increased airflow, maintaining the proper air-to-fuel ratio for efficient combustion.
The adjustability of the boost compensator typically involves altering the fuel pump's control rod length or adjusting the fuel pump's internal components. By changing the control rod length, the maximum fuel delivery rate of the pump can be adjusted to match the increased airflow of the engine. This adjustment ensures that the engine receives the appropriate amount of fuel to maintain the desired air-fuel mixture and power output.
In some cases, the boost compensator may also offer adjustments for fuel delivery timing. This allows for fine-tuning of the fuel injection to optimize performance, fuel economy, and emissions. These adjustments are usually made in conjunction with control rod length modifications to ensure that the correct fuel delivery rate and timing are achieved for the specific airflow improvements made to the engine.
It is important to note that adjusting the diesel fuel boost compensator should be done carefully and in small increments to avoid over-fueling or under-fueling the engine. Proper tuning ensures that the engine runs smoothly, efficiently, and without excessive smoke or emissions.
Repairing Diesel Fuel Pumps: A Step-by-Step Guide
You may want to see also
Frequently asked questions
A boost compensator, also known as a fuel enrichment device, is a device that sits on top of the injection pump and is controlled by boost pressure. It makes it easier to tune a turbo diesel engine.
A boost compensator modifies the pump in a 3D fashion depending on the extra flow or pressure provided by the turbo. It does this through a pressure intake port in the top, which pushes an internal diaphragm containing the fuel pin down into the pump, increasing the amount of fuel delivered depending on the boost pressure pushing down on it.
A boost compensator allows you to adjust the amount and timing of fuel delivery as the turbo goes from idle to being on boost. It adds driveability to the turbo engine package.
Without a boost compensator, tuning on a turbocharged engine would be very limited. It also helps to reduce black smoke, as the engine will burn less fuel pre-full boost.
If you are experiencing a smokey exhaust, a boost compensator may help. Adding more fuel will increase power if there is enough air available to burn the fuel completely.
