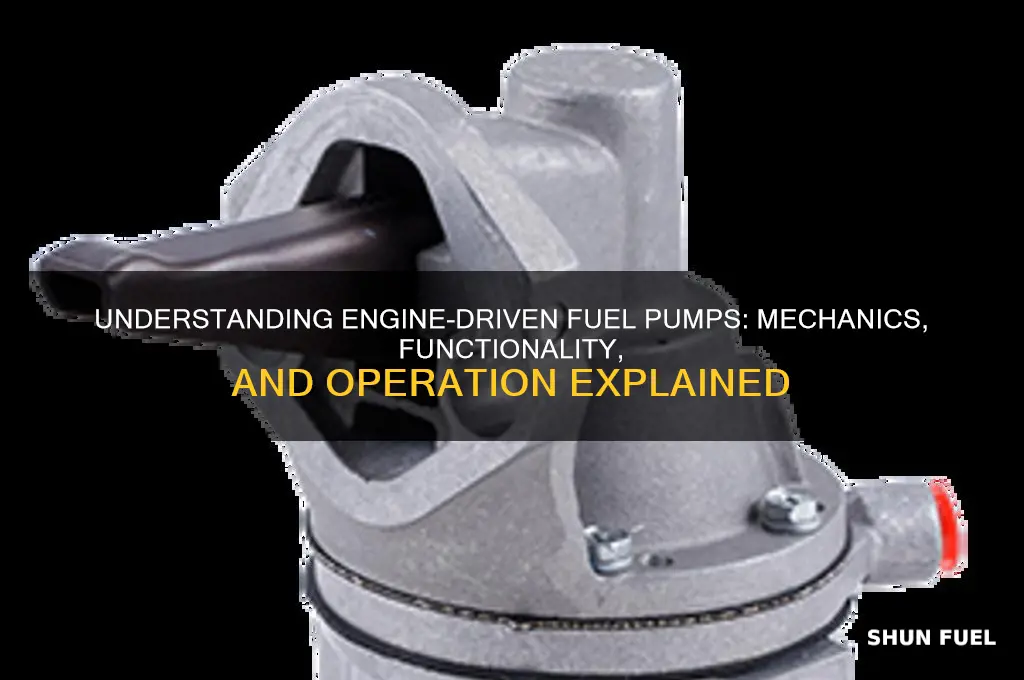

An engine-driven fuel pump is a critical component in many internal combustion engines, responsible for delivering fuel from the tank to the engine at the required pressure and flow rate. Typically mounted directly on the engine, this mechanical pump is driven by the engine's camshaft or crankshaft, ensuring its operation is synchronized with the engine's speed. As the engine runs, the pump's internal components—such as a diaphragm, plunger, or gear mechanism—create a vacuum or positive pressure to draw fuel through the system. This fuel is then pressurized and delivered to the carburetor or fuel injectors, where it is mixed with air and combusted to power the engine. The pump's design ensures a consistent fuel supply, even under varying engine loads and speeds, making it essential for efficient and reliable engine performance.
| Characteristics | Values |
|---|---|
| Power Source | Driven by the engine (mechanical connection via crankshaft or camshaft). |
| Operation Principle | Uses a diaphragm, plunger, or gear mechanism to create suction and pressure. |
| Fuel Delivery | Delivers fuel from the tank to the carburetor or fuel injection system. |
| Pressure Regulation | Maintains consistent fuel pressure based on engine demand. |
| Location | Typically mounted on the engine block or nearby for direct mechanical linkage. |
| Dependence on Engine Speed | Output varies with engine RPM (higher RPM = higher fuel delivery). |
| Maintenance | Requires periodic inspection for leaks, diaphragm wear, or mechanical failure. |
| Advantages | Reliable, simple design, no electrical dependency. |
| Disadvantages | Less precise fuel delivery compared to electric pumps, engine speed-dependent. |
| Common Applications | Older carbureted engines, diesel engines, and some modern mechanical systems. |
| Pressure Range | Typically 3-10 psi (carbureted) or higher for fuel injection systems. |
| Fuel Compatibility | Works with gasoline, diesel, and biofuels. |
| Noise Level | Produces mechanical noise due to moving parts. |
| Efficiency | Efficient at delivering fuel but less precise than electric pumps. |
| Failure Modes | Diaphragm rupture, mechanical linkage failure, or fuel line leaks. |
Explore related products
What You'll Learn
- Pump Activation: Engine-driven fuel pumps operate via mechanical connection to the engine's camshaft or crankshaft
- Fuel Intake: The pump draws fuel from the tank using a suction mechanism or pressure differential
- Pressure Generation: Rotating components (gears, vanes) compress fuel, increasing pressure for injection or carburetor delivery
- Regulation Mechanism: A pressure regulator ensures consistent fuel pressure, preventing system overload or fuel wastage
- Fuel Delivery: Pressurized fuel is routed to injectors or carburetor, supplying the engine for combustion
Pump Activation: Engine-driven fuel pumps operate via mechanical connection to the engine's camshaft or crankshaft
Engine-driven fuel pumps rely on a direct mechanical link to the engine’s camshaft or crankshaft for activation, ensuring fuel delivery is synchronized with engine speed. This connection is typically established through a drive gear on the pump, meshed with a corresponding gear on the camshaft or a sprocket and chain system tied to the crankshaft. As the engine rotates, this mechanical linkage forces the pump to operate at a proportional speed, maintaining consistent fuel pressure and flow. For example, in many carbureted engines, the fuel pump’s diaphragm is actuated by an eccentric lobe on the camshaft, creating a rhythmic suction and discharge cycle with each revolution.
The choice between camshaft and crankshaft connection depends on the engine’s design and fuel system demands. Camshaft-driven pumps are common in overhead cam (OHC) engines, where the camshaft’s proximity simplifies installation and reduces mechanical complexity. Crankshaft-driven systems, often found in pushrod engines, leverage the crankshaft’s higher rotational speed for increased pump output, though they require additional components like chains or gears to transmit power. This distinction highlights the importance of matching the pump’s activation mechanism to the engine’s architecture for optimal performance.
One critical advantage of this mechanical activation is its reliability under varying engine loads. Unlike electric fuel pumps, which rely on a separate power source, engine-driven pumps inherently adjust their output based on engine RPM. For instance, during acceleration, the pump’s speed increases proportionally, delivering more fuel to meet the engine’s heightened demand. This direct correlation eliminates the need for complex electronic controls, making these pumps ideal for applications where simplicity and durability are prioritized, such as in classic vehicles or small aircraft engines.
However, this mechanical dependency introduces limitations. The pump’s output is directly tied to engine speed, which can lead to insufficient fuel delivery at idle or excessive flow at high RPMs if not properly calibrated. To mitigate this, engineers often incorporate pressure regulators and check valves within the fuel system. For practical maintenance, inspect the drive gears or chain for wear periodically, as slippage or breakage can cause fuel starvation. Additionally, ensure the pump’s mounting bracket is secure, as misalignment can lead to premature failure of the mechanical linkage.
In summary, the mechanical connection to the camshaft or crankshaft is the linchpin of engine-driven fuel pump operation, offering a straightforward yet effective solution for fuel delivery. While this design excels in reliability and load responsiveness, it requires careful integration and maintenance to avoid performance issues. For enthusiasts working on carbureted engines, understanding this activation mechanism is key to diagnosing fuel system problems and ensuring smooth engine operation across all driving conditions.
Walbro Fuel Pump Amperage Guide: Optimal Power for Performance
You may want to see also
Explore related products
Fuel Intake: The pump draws fuel from the tank using a suction mechanism or pressure differential
The fuel intake process is a critical first step in the operation of an engine-driven fuel pump, ensuring a steady supply of fuel for combustion. This mechanism relies on the principle of creating a pressure differential between the fuel tank and the engine, allowing the pump to draw fuel efficiently. Imagine a vacuum effect: as the pump generates low pressure, it pulls fuel from the tank, where the pressure is relatively higher, through a network of fuel lines. This simple yet effective concept forms the basis of fuel delivery in many internal combustion engines.
The Suction Principle in Action:
In a typical setup, the fuel pump is mechanically driven by the engine, often via a camshaft or a dedicated drive shaft. As the engine runs, it activates the pump, creating a low-pressure zone within the pump's chamber. This low pressure acts as a powerful suction force, drawing fuel from the tank. The fuel, being a liquid, is highly responsive to pressure differentials, and even a small pressure imbalance can initiate flow. For instance, in a carbureted engine, the pump might generate a vacuum of around 2-3 psi, which is sufficient to lift fuel from the tank, overcoming gravity and any minor restrictions in the fuel lines.
Design Considerations:
Engineers must carefully design the fuel intake system to ensure optimal performance. The pump's capacity and the diameter of the fuel lines are critical factors. A pump with a higher flow rate can create a more substantial pressure differential, enabling it to draw fuel from deeper tanks or over longer distances. However, this must be balanced with the engine's fuel requirements to avoid unnecessary power consumption. Additionally, the fuel lines should be sized appropriately to minimize flow resistance, ensuring that the pressure differential is effectively utilized.
Practical Implementation:
In practice, this process is often facilitated by a combination of components. A fuel pump, typically located near the fuel tank, is connected to the engine via a drive mechanism. The pump's inlet is submerged in the fuel, ensuring a constant supply. As the engine operates, the pump creates a partial vacuum, drawing fuel through a filter (to prevent contaminants) and into the pump. From here, the fuel is pressurized and delivered to the engine's combustion chambers. This system is particularly common in older carbureted engines and some modern diesel engines, where mechanical pumps are preferred for their reliability and simplicity.
Troubleshooting and Maintenance:
Understanding this suction mechanism is crucial for troubleshooting fuel system issues. If the pump fails to draw fuel, it could indicate a blockage in the fuel lines, a faulty pump, or an issue with the pressure differential. Regular maintenance, such as cleaning fuel filters and checking for leaks, ensures the system operates efficiently. In some cases, upgrading to a higher-capacity pump or optimizing fuel line routing can improve fuel intake, especially in high-performance engines with increased fuel demands. This highlights the importance of a well-designed fuel intake system, where the pump's ability to create and utilize pressure differentials is key to engine performance.
Fuel Pumps and Gasoline: Preventing Explosions in Your Vehicle
You may want to see also
Explore related products
Pressure Generation: Rotating components (gears, vanes) compress fuel, increasing pressure for injection or carburetor delivery
Rotating components like gears and vanes are the unsung heroes of pressure generation in engine-driven fuel pumps. These mechanical marvels operate within a confined space, creating a low-pressure zone that draws fuel into the pump. As the engine drives the pump’s shaft, these components begin to rotate, trapping pockets of fuel between their surfaces and the pump housing. This trapped fuel is then forced through a narrowing passage, compressing it and increasing its pressure exponentially—often from 3 to 10 psi in carbureted systems, or up to 60 psi in fuel-injected setups. This process ensures a consistent and reliable fuel supply, critical for combustion efficiency.
Consider the gear-type fuel pump, a common design in older carbureted engines. Two meshing gears rotate within a tight-fitting housing, creating a vacuum that draws fuel from the tank. As the gears turn, fuel is trapped between the gear teeth and the housing, then pushed toward the outlet port. The narrowing outlet forces the fuel to compress, raising its pressure to the required level. For optimal performance, ensure the pump’s gears are properly lubricated and free of debris, as contamination can reduce efficiency and lead to premature wear.
Vane-type pumps operate on a similar principle but with a different mechanism. A rotor with sliding vanes rotates within a cam-shaped housing, creating chambers that expand and contract. As the rotor turns, the vanes move outward due to centrifugal force, drawing fuel into the expanding chambers. When the chambers contract, the fuel is compressed and forced out at high pressure. This design is often used in high-pressure applications, such as fuel injection systems, where precision and reliability are paramount. Regular inspection of the vanes for wear and proper adjustment of the rotor’s eccentricity can extend the pump’s lifespan.
The efficiency of these rotating components is directly tied to engine speed. In a gear pump, for instance, fuel flow increases linearly with RPM, making it ideal for systems where fuel demand scales with engine load. However, this also means that at idle or low RPM, fuel delivery may be insufficient, requiring a bypass valve to regulate pressure. Vane pumps, on the other hand, can maintain higher pressure at lower speeds due to their design, but they are more sensitive to fuel viscosity and temperature. For both types, maintaining proper fuel filter cleanliness is essential to prevent clogging and ensure smooth operation.
In practice, understanding the mechanics of these rotating components allows for better troubleshooting and maintenance. For example, a whining noise from the pump often indicates worn gears or vanes, while inconsistent fuel pressure may signal a clogged inlet or outlet. When replacing a fuel pump, always match the type and specifications to the engine’s requirements, as using the wrong pump can lead to poor performance or damage. By appreciating the role of these components in pressure generation, you can ensure your engine receives the right amount of fuel at the right time, maximizing efficiency and power.
Bleeding a Lucas Fuel Pump: Step-by-Step Guide for Smooth Operation
You may want to see also
Explore related products
Regulation Mechanism: A pressure regulator ensures consistent fuel pressure, preventing system overload or fuel wastage
An engine-driven fuel pump relies on a pressure regulator to maintain optimal fuel delivery, balancing performance and efficiency. Without this mechanism, fluctuations in engine demand could lead to either fuel starvation or excessive pressure, both detrimental to combustion and component longevity. The regulator acts as a gatekeeper, ensuring the fuel system operates within a precise pressure range—typically 30 to 60 psi for gasoline engines—regardless of throttle position or engine speed.
Consider the regulator as a dynamic valve, responsive to real-time system conditions. When fuel pressure exceeds the preset threshold, the regulator opens a bypass, diverting excess fuel back to the tank. Conversely, during high-demand scenarios like acceleration, it restricts bypass flow to maintain adequate pressure. This feedback loop prevents overloading the injectors or carburetor while avoiding wastage, ensuring every drop of fuel contributes to power generation rather than being recirculated unnecessarily.
Practical implementation of this mechanism varies by design. Mechanical regulators often use a spring-loaded diaphragm, calibrated to the desired pressure. Electronic variants, common in modern fuel-injected systems, employ sensors and solenoids for precision control, allowing adjustments based on engine load, temperature, and altitude. For instance, a vehicle operating at high altitudes may require a lower pressure setting to compensate for reduced atmospheric pressure, a task easily managed by an electronic regulator.
To troubleshoot regulator issues, monitor for symptoms like erratic engine performance, hard starting, or fuel leaks. A faulty regulator may fail to maintain pressure, leading to lean or rich fuel mixtures. Testing involves checking fuel pressure with a gauge at idle and under load; deviations from specifications indicate a need for replacement. Regular maintenance, such as cleaning the regulator and ensuring proper calibration, can extend its lifespan and maintain system efficiency.
In summary, the pressure regulator is a critical yet often overlooked component in engine-driven fuel pumps. Its role in stabilizing fuel pressure not only safeguards the engine but also optimizes fuel consumption. Whether mechanical or electronic, understanding its function and maintenance requirements empowers users to diagnose issues early and ensure reliable operation, making it a cornerstone of efficient fuel system management.
Does the Stock Fuel Pump in a 1992 Acura Integra Suffice?
You may want to see also
Explore related products
Fuel Delivery: Pressurized fuel is routed to injectors or carburetor, supplying the engine for combustion
Fuel delivery is a critical process in internal combustion engines, ensuring that the right amount of fuel reaches the combustion chamber at the precise moment. Pressurized fuel is routed to either injectors or a carburetor, depending on the engine type, to mix with air and ignite, powering the vehicle. In fuel-injected systems, the fuel pump delivers gasoline at high pressure—typically 30 to 85 psi—through a fuel rail to the injectors, which spray a fine mist into the intake manifold or directly into the cylinders. This precision ensures optimal combustion efficiency, reducing emissions and improving performance. Carbureted engines, on the other hand, rely on a simpler mechanism where the fuel pump maintains a steady flow of fuel, usually at 3 to 7 psi, to the carburetor, which mixes it with air through venturi action. Understanding this distinction is key to diagnosing and maintaining fuel delivery systems effectively.
Consider the role of pressure regulation in fuel delivery. In fuel-injected systems, a fuel pressure regulator ensures the fuel rail maintains the correct pressure, returning excess fuel to the tank to prevent over-pressurization. This regulator is often diaphragm-driven, responding to changes in manifold pressure to keep the fuel-air mixture consistent under varying engine loads. For carbureted systems, the fuel pump’s output pressure must match the carburetor’s requirements, as excessive pressure can flood the engine, while insufficient pressure results in a lean mixture and poor performance. Practical tip: When troubleshooting a fuel delivery issue, always check the fuel pressure first using a gauge; discrepancies from the manufacturer’s specifications often point to a faulty pump, regulator, or clogged fuel filter.
The design of fuel injectors and carburetors highlights their unique approaches to fuel delivery. Fuel injectors, driven by an electronic control unit (ECU), open for milliseconds to deliver a precise fuel volume based on sensor inputs like throttle position, engine speed, and oxygen levels. This digital precision allows for better fuel economy and power output, especially under varying driving conditions. Carburetors, while less common in modern vehicles, rely on mechanical principles like air velocity and vacuum to draw fuel into the airstream. For enthusiasts restoring classic cars, ensuring the carburetor’s float bowl maintains the correct fuel level (typically 1 to 1.5 inches from the top) is crucial for smooth operation. Comparative analysis shows that while carburetors are simpler and more repairable, fuel injection systems offer superior control and adaptability, making them the standard in contemporary engines.
Maintenance of the fuel delivery system is essential for longevity and performance. Regularly replacing the fuel filter—every 30,000 miles or as recommended by the manufacturer—prevents contaminants from clogging injectors or carburetor jets. In fuel-injected systems, using a fuel additive every 5,000 miles can clean injector nozzles and improve atomization, enhancing combustion efficiency. For carbureted engines, periodic adjustment of the carburetor’s idle mixture screw and float level ensures optimal fuel-air ratio. Caution: When working on pressurized fuel systems, always relieve the pressure by disconnecting the fuel pump fuse or loosening the fuel line at the rail to avoid accidents. Proper maintenance not only extends the life of the components but also ensures the engine runs smoothly and efficiently.
Finally, advancements in fuel delivery technology continue to shape the automotive industry. Direct fuel injection (GDI) systems, for instance, inject fuel directly into the combustion chamber at pressures up to 2,000 psi, enabling higher compression ratios and improved power output. Hybrid vehicles often use high-pressure fuel pumps to optimize fuel efficiency during electric-only operation. These innovations underscore the importance of understanding fuel delivery systems, as they evolve to meet stricter emissions standards and performance demands. Whether you’re working on a classic carbureted engine or a modern GDI system, mastering the principles of pressurized fuel delivery is essential for effective diagnostics and maintenance. Practical takeaway: Invest in a quality fuel pressure tester and familiarize yourself with your vehicle’s specific fuel delivery system to tackle issues confidently and efficiently.
Diagnosing Windstar Fuel Pump Issues: Signs of a Failing Pump
You may want to see also
Frequently asked questions
An engine-driven fuel pump is a mechanical fuel pump powered directly by the engine, typically via a camshaft or crankshaft connection. Unlike electric fuel pumps, it relies on the engine's motion to operate and is commonly found in carbureted or older fuel-injected vehicles.
The pump operates by using a diaphragm or plunger mechanism that is actuated by the engine's rotating components. As the engine runs, the pump draws fuel from the tank, pressurizes it, and delivers it to the carburetor or fuel injection system, ensuring a consistent fuel supply.
Key components include the pump housing, diaphragm or plunger, inlet and outlet valves, and a mechanical linkage to the engine (e.g., a camshaft lobe or eccentric shaft). These parts work together to create suction and pressure for fuel delivery.
Engine-driven fuel pumps are reliable, simple in design, and do not require an external power source like electricity. They are also less prone to issues related to electrical failures, making them suitable for older or simpler vehicle systems.
Common issues include diaphragm failure, clogged inlet/outlet valves, or worn mechanical linkages. These problems can be resolved by inspecting and replacing damaged components, cleaning the pump, and ensuring proper installation and maintenance. Regular checks are essential to prevent fuel delivery issues.
