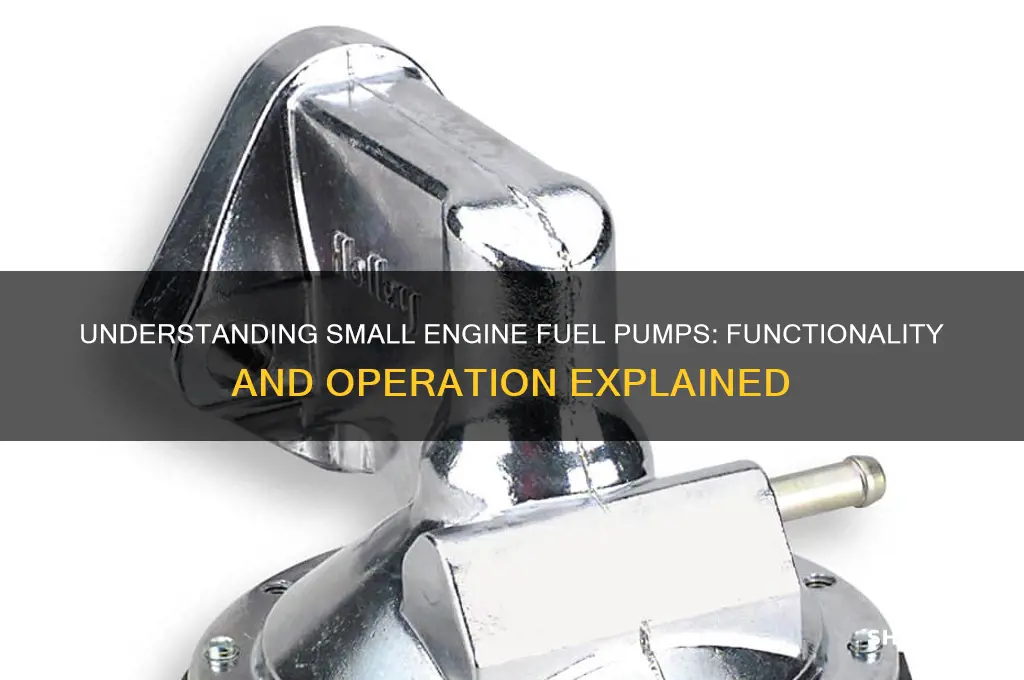

Small engine fuel pumps are essential components in combustion engines, responsible for delivering fuel from the tank to the carburetor or fuel injection system. Typically driven by the engine's camshaft or an electric motor, these pumps operate by creating a vacuum that draws fuel through a series of valves and chambers. In mechanical pumps, a diaphragm or plunger moves to create suction, while electric pumps use a motor-driven impeller to generate pressure. The fuel is then pressurized and transported through lines, ensuring a consistent and controlled flow to the engine. This process is critical for maintaining optimal performance, as it prevents fuel starvation and ensures efficient combustion, even under varying engine loads and conditions. Understanding how these pumps work is key to troubleshooting issues and maintaining the reliability of small engines in applications like lawnmowers, generators, and outboard motors.
Explore related products
What You'll Learn
- Pump Types: Diaphragm, rotary, and turbine pumps explained: their mechanisms and common applications in small engines
- Fuel Flow Process: How fuel is drawn, pressurized, and delivered to the carburetor or fuel injection system
- Pump Components: Breakdown of key parts: inlet, outlet, valves, diaphragm, and electric motor (if applicable)
- Pressure Regulation: Role of pressure regulators in maintaining consistent fuel delivery to the engine
- Troubleshooting Issues: Common problems like clogs, leaks, and pump failure, and their diagnostic methods
Pump Types: Diaphragm, rotary, and turbine pumps explained: their mechanisms and common applications in small engines
Small engine fuel pumps are the unsung heroes that ensure a steady flow of fuel, keeping your lawnmowers, chainsaws, and generators running smoothly. Among the various types, diaphragm, rotary, and turbine pumps stand out for their unique mechanisms and applications. Each type operates differently, catering to specific needs in small engines, and understanding these differences can help you choose the right pump for your equipment.
Diaphragm pumps are a popular choice for small engines due to their simplicity and reliability. These pumps use a flexible diaphragm that moves back and forth, creating a vacuum to draw fuel into the pump and then push it out to the engine. The mechanism is driven by a mechanical linkage connected to the engine’s camshaft or crankshaft. This design is highly efficient for low-pressure applications and is commonly found in carbureted engines like those in older lawnmowers and outboard motors. One key advantage is their ability to handle a wide range of fuels, including ethanol blends, without corrosion issues. However, they can be prone to diaphragm wear over time, requiring periodic replacement.
In contrast, rotary pumps operate using a rotating mechanism, typically a gear or lobe, to move fuel through the system. These pumps are known for their consistent flow rate and ability to handle higher pressures, making them ideal for fuel-injected small engines. Rotary pumps are often used in modern lawn tractors, motorcycles, and portable generators. Their compact design and durability make them a favorite in applications where space is limited and reliability is critical. However, they can be more complex to install and maintain compared to diaphragm pumps, and they may require precise alignment to function optimally.
Turbine pumps, while less common in small engines, are worth mentioning for their high-performance capabilities. These pumps use a turbine wheel to create centrifugal force, pushing fuel through the system at high pressures. They are typically found in high-performance applications like racing go-karts or specialized small aircraft engines. Turbine pumps excel in delivering a consistent fuel supply under extreme conditions but are more expensive and require precise calibration. Their complexity and cost limit their use to niche applications where performance outweighs practicality.
When selecting a fuel pump for a small engine, consider the engine’s fuel delivery system, operating conditions, and maintenance requirements. Diaphragm pumps are ideal for simplicity and versatility, rotary pumps for consistency and higher pressure needs, and turbine pumps for specialized high-performance scenarios. Regular inspection and maintenance, such as checking for leaks or replacing worn components, can extend the life of any pump type. By understanding these mechanisms and applications, you can ensure your small engine operates efficiently and reliably.
