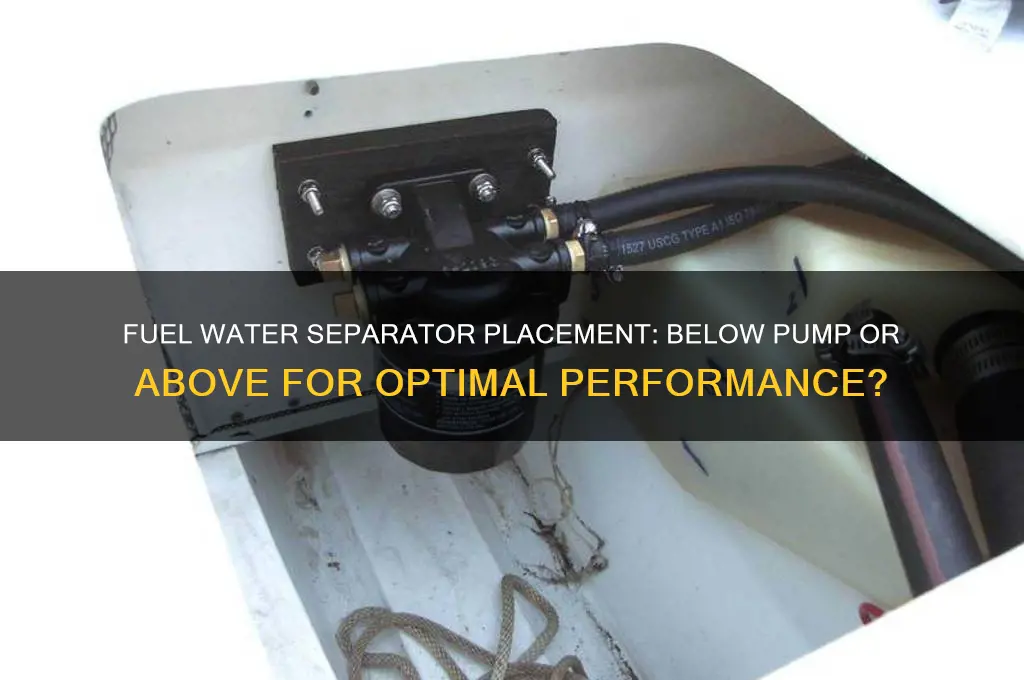

The positioning of a fuel water separator in relation to the fuel pump is a critical consideration in fuel system design, as it directly impacts the system's efficiency and reliability. The question of whether the separator needs to be positioned below the pump arises from the need to ensure proper fuel flow and effective water separation. When the separator is placed below the pump, gravity aids in the collection and drainage of water, preventing it from reaching the pump and potentially causing damage or performance issues. However, this configuration may not always be feasible due to space constraints or system design, prompting a closer examination of alternative setups and their implications on fuel system functionality.
| Characteristics | Values |
|---|---|
| Purpose | To remove water and contaminants from fuel before it reaches the engine. |
| Optimal Position | Below the fuel pump to utilize gravity for water separation and prevent pump damage. |
| Gravity-Assisted Separation | Water, being denser than fuel, settles at the bottom of the separator, allowing for easier drainage. |
| Prevents Pump Damage | Ensures water and debris do not enter the pump, reducing wear and potential failure. |
| Efficiency | Maximizes separation efficiency by allowing water to naturally accumulate at the lowest point. |
| Maintenance | Easier to drain water and clean the separator when positioned below the pump. |
| Flow Direction | Fuel flows downward into the separator, then upward to the pump, aiding in water removal. |
| Compatibility | Most fuel systems are designed with the separator below the pump for optimal performance. |
| Alternative Configurations | In some systems, separators may be positioned above the pump, but this requires additional design considerations to ensure effective separation. |
| Industry Standard | Positioning the fuel water separator below the pump is widely accepted as best practice in automotive and marine applications. |
Explore related products
What You'll Learn
- Optimal Placement for Efficiency: Ensure separator is below pump to prevent airlocks and maintain fuel flow
- Gravity-Assisted Filtration: Positioning below pump uses gravity, aiding water separation and reducing pump strain
- Preventing Air in System: Lower placement minimizes air entry, ensuring consistent fuel delivery to the engine
- Maintenance Considerations: Easier to drain water when separator is below pump, simplifying routine maintenance tasks
- System Reliability: Correct positioning reduces clogs and failures, enhancing overall fuel system reliability
Optimal Placement for Efficiency: Ensure separator is below pump to prevent airlocks and maintain fuel flow
Positioning a fuel water separator below the pump is a critical step in ensuring efficient fuel system operation. This placement leverages gravity to naturally direct water and debris downward, where they can be effectively trapped and drained. When the separator is above the pump, water may not settle properly, increasing the risk of it being drawn into the fuel lines and causing contamination. This simple adjustment can prevent costly repairs and downtime, making it a fundamental best practice in fuel system design.
Consider the mechanics of fuel flow: as fuel is drawn through the system, any water or particulate matter must be separated before reaching the engine. By placing the separator below the pump, you create a natural low point where contaminants accumulate. This setup allows for easier maintenance, as drain valves can be positioned at the bottom of the separator, ensuring complete removal of water during routine checks. For example, in marine applications, where water contamination is a common issue, this configuration is often mandatory to protect sensitive engines.
Airlocks are another significant concern when the separator is not positioned correctly. If the separator is above the pump, air bubbles can become trapped, disrupting fuel flow and causing engine stalling or poor performance. By keeping the separator below the pump, you minimize the risk of airlocks, as any air in the system will rise naturally and can be vented more effectively. This is particularly important in systems with long fuel lines or those operating in varying orientations, such as in agricultural or construction equipment.
To implement this optimally, follow these steps: first, assess your current fuel system layout and identify the lowest feasible point for the separator. Ensure the separator is installed with a slight downward angle toward the drain valve to facilitate water removal. Second, use transparent or semi-transparent fuel lines between the separator and the engine to monitor for water or debris. Finally, establish a regular maintenance schedule, including draining the separator at least monthly or after every 100 hours of operation, depending on fuel quality and environmental conditions.
While this placement is ideal, it’s not always feasible due to space constraints or system design. In such cases, consider adding a secondary separator or using a pump with a self-priming feature to mitigate risks. However, whenever possible, prioritize the below-pump configuration for maximum efficiency and reliability. This small but impactful change can significantly extend the life of your engine and reduce the likelihood of fuel-related issues.
Diagnosing Car Issues: Alternator vs. Fuel Pump Failure Signs
You may want to see also
Explore related products
Gravity-Assisted Filtration: Positioning below pump uses gravity, aiding water separation and reducing pump strain
Positioning a fuel water separator below the pump leverages gravity to enhance filtration efficiency. When the separator is installed at a lower elevation, gravity naturally pulls water—which is denser than fuel—toward the bottom of the separator. This passive force aids in separating water from the fuel, reducing the workload on the pump and the filter element. The result is a more effective separation process that minimizes the risk of water contamination reaching the engine.
Consider the mechanics: fuel enters the separator, and gravity assists in settling water droplets to the bottom, where they can be drained periodically. This setup not only improves filtration but also extends the life of the filter element by preventing premature clogging. For optimal performance, ensure the separator is installed at least 6–12 inches below the pump level. This height differential maximizes gravity’s effect without causing fuel flow restrictions.
Practical implementation requires attention to detail. Use clear tubing or sight glasses to monitor water accumulation and drain the separator regularly—ideally before water levels exceed 10% of the separator’s capacity. In marine or high-moisture environments, where water contamination is more likely, this positioning becomes critical. Pairing gravity-assisted filtration with a high-quality separator rated for your fuel system’s flow rate (e.g., 10–20 gallons per hour for small engines) ensures consistent performance.
Comparatively, systems where the separator is positioned above the pump rely solely on the pump’s force to push fuel through the filter, increasing strain and reducing efficiency. Gravity-assisted setups, however, work in harmony with the pump, creating a smoother flow and reducing energy consumption. This approach is particularly beneficial in diesel systems, where water contamination poses a greater risk due to fuel density and combustion sensitivity.
In summary, positioning the fuel water separator below the pump is a strategic choice that harnesses gravity to improve filtration, reduce pump strain, and safeguard engine performance. By following installation best practices and maintaining the system diligently, operators can ensure reliable fuel delivery and prolong the life of their equipment. This simple yet effective design principle underscores the importance of thoughtful system layout in fuel management.
Audi A4 Fuel Pump Cost: What to Expect for Replacement
You may want to see also
Explore related products
Preventing Air in System: Lower placement minimizes air entry, ensuring consistent fuel delivery to the engine
Air pockets in a fuel system are the bane of consistent engine performance. When air enters the fuel lines, it disrupts the smooth flow of fuel, leading to sputtering, hesitation, and even engine stall. This is where the strategic placement of a fuel water separator comes into play. Positioning the separator below the fuel pump is a crucial tactic in the battle against air infiltration.
Gravity becomes your ally in this setup. By placing the separator lower, any air bubbles that may have formed in the fuel naturally rise to the top of the separator, away from the fuel outlet. This ensures that only clean, air-free fuel is drawn into the pump, guaranteeing a steady and reliable supply to the engine.
Imagine a scenario where the separator is positioned above the pump. Air bubbles, being less dense than fuel, would accumulate at the bottom of the separator, directly in the path of the fuel pickup. The pump would then ingest these air bubbles, leading to the aforementioned performance issues. Lower placement effectively creates a "trap" for air, preventing it from reaching the pump and subsequently the engine.
This principle is particularly important in systems prone to air entrainment, such as those with long fuel lines or those operating in rough conditions. For example, in marine applications, the constant rocking motion of a boat can cause air to enter the fuel system. A lower-mounted separator acts as a safeguard, minimizing the impact of these external factors on fuel delivery.
While lower placement is beneficial, it's not a standalone solution. Regular maintenance, including draining the separator to remove accumulated water and debris, is essential. Additionally, ensuring tight connections and using high-quality fuel filters further contribute to a reliable fuel system. By combining proper placement with good maintenance practices, you can significantly reduce the risk of air-related fuel delivery problems and keep your engine running smoothly.
Electric Auto Fuel Pump: Determining the Right Amp Requirements
You may want to see also
Explore related products
Maintenance Considerations: Easier to drain water when separator is below pump, simplifying routine maintenance tasks
Positioning a fuel water separator below the pump streamlines maintenance by leveraging gravity. When the separator is lower, water naturally collects at the bottom of the unit, making it easier to access and drain. This setup eliminates the need for complex maneuvers or additional tools to remove accumulated water, reducing the time and effort required for routine checks. For instance, in marine applications, where fuel systems are prone to water contamination, this arrangement ensures that maintenance tasks can be performed swiftly, even in tight engine compartments.
Consider the practical implications of this design choice. If the separator is above the pump, water may not settle efficiently, requiring more frequent and labor-intensive draining procedures. In contrast, a below-pump configuration allows for a simple, gravity-assisted drain process. This is particularly beneficial in diesel systems, where water separation is critical to prevent engine damage. By following this principle, operators can adhere to recommended maintenance schedules—such as draining the separator monthly or after every 100 hours of operation—without unnecessary complications.
From a persuasive standpoint, prioritizing ease of maintenance through proper positioning is a no-brainer. A separator placed below the pump not only simplifies water removal but also minimizes the risk of spills or contamination during the process. This is especially crucial in environments where fuel quality is paramount, such as in agricultural machinery or generator systems. Investing time in correct installation upfront pays dividends in long-term reliability and reduced downtime, making it a best practice for any fuel system setup.
Comparatively, systems with separators above the pump often require additional components like priming pumps or vacuum-assisted drains to manage water effectively. These add-ons increase complexity and potential points of failure. By contrast, a below-pump separator relies on a straightforward, fail-safe principle: gravity. This simplicity aligns with the broader goal of maintenance efficiency, ensuring that even less experienced operators can perform essential tasks with confidence.
In conclusion, positioning the fuel water separator below the pump is a maintenance-friendly decision that simplifies water drainage and enhances system reliability. By adhering to this guideline, operators can ensure that routine tasks are performed quickly and effectively, reducing the risk of water-related fuel issues. Whether for marine, automotive, or industrial applications, this approach underscores the importance of thoughtful design in optimizing maintenance workflows.
Bridging Fuel Pump Relay: A Step-by-Step DIY Guide for Beginners
You may want to see also
Explore related products
System Reliability: Correct positioning reduces clogs and failures, enhancing overall fuel system reliability
Positioning a fuel water separator below the pump is a critical design choice that directly impacts system reliability. This arrangement leverages gravity to naturally draw water and contaminants toward the separator, where they can be effectively trapped and drained. When the separator is placed above the pump, water may not settle efficiently, increasing the risk of it being recirculated into the fuel system. Over time, this can lead to clogs, reduced fuel flow, and even pump failure. By ensuring the separator is below the pump, you create a self-cleaning mechanism that minimizes the accumulation of water and debris, thereby maintaining consistent fuel delivery.
Consider the analogy of a plumbing system: just as a drain trap relies on gravity to hold water and prevent sewer gases from entering, a fuel water separator positioned below the pump uses gravity to collect and isolate contaminants. This simple yet effective principle reduces the workload on the pump and filters, extending their lifespan. For instance, in marine applications, where fuel quality can be inconsistent, this positioning ensures that water and sediment are less likely to reach the engine, preventing costly repairs and downtime.
From a maintenance perspective, correct positioning simplifies the draining process. Most fuel water separators have a drain valve at the bottom, which, when positioned below the pump, allows for easy removal of accumulated water and debris without disassembling the system. Neglecting this placement can result in water pooling in inconvenient locations, making maintenance more time-consuming and less effective. Regular draining intervals—typically every 100 hours of operation or as recommended by the manufacturer—become more efficient and reliable when the separator is optimally positioned.
Finally, the reliability benefits extend beyond immediate clog prevention. By reducing the frequency of pump and filter failures, you lower operational costs and minimize the risk of engine damage caused by contaminated fuel. For example, in diesel engines, water in the fuel can lead to corrosion and injector failure, which are expensive to repair. Positioning the separator below the pump acts as a proactive measure, ensuring that the fuel system operates within its designed parameters and reducing the likelihood of catastrophic failures. This small but significant detail is a cornerstone of robust fuel system design.
Does Your Fuel Pump Make Noise Before Starting? Here's Why
You may want to see also
Frequently asked questions
Yes, it is generally recommended to position the fuel water separator below the pump to ensure proper functionality. This allows gravity to help separate water and contaminants from the fuel before it reaches the pump, reducing the risk of pump damage and ensuring cleaner fuel delivery.
Installing the fuel water separator above the pump can lead to inefficient water separation, as gravity won’t assist in draining water and contaminants. This may result in water and debris being pushed into the pump and fuel system, potentially causing clogs, reduced performance, or damage to the engine.
In some systems, especially those with specific design requirements or additional filtration mechanisms, a fuel water separator may be positioned above the pump. However, this is less common and typically requires a well-designed system with proper drainage and filtration to ensure effective water separation and prevent issues. Always consult the manufacturer’s guidelines for your specific setup.
