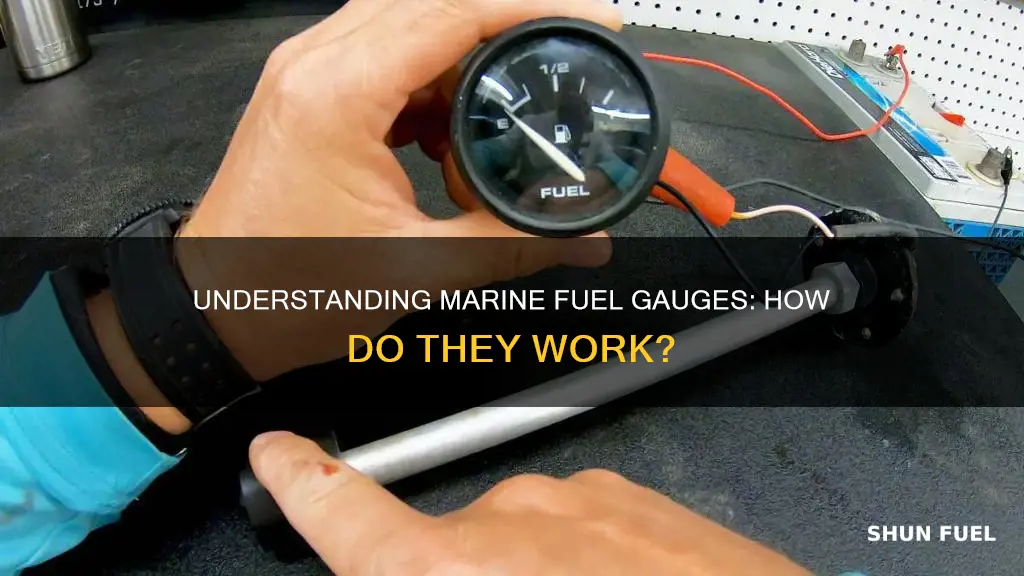

Marine fuel gauges are an essential tool for boaters to stay safe and informed. They are used to measure the amount of fuel in a vessel's tank. The gauge usually consists of a float arm connected to a needle, which is mounted on a gauge face. As the fuel level in the tank changes, the float arm moves up or down, causing the needle to move along the gauge face and indicate the fuel level. The gauge face typically has markings for empty, half, and full, so the user can easily determine the fuel level. Some boat gas gauges are also calibrated to indicate when the fuel tank is below a certain recommended level, which helps avoid running out of fuel. In this article, we will discuss how marine fuel gauges work, the different types available, and how to choose the right one for your boat. We will also provide tips on troubleshooting and replacing fuel gauges and senders.
| Characteristics | Values |
|---|---|
| Purpose | To measure the amount of fuel in a vessel's fuel tank |
| Functionality | A gas sender/fuel sender unit is mounted in the fuel tank and measures the fuel level. It then sends a signal to the fuel gauge via a wire, which interprets the signal and moves the needle on the gauge to show the fuel level. |
| Fuel Gauge Needle | The needle on the gauge moves up or down to indicate the fuel level. |
| Gauge Face | The gauge face typically has markings for empty, half, and full. |
| Gauge Durability | Look for a fuel gauge with domed glass, an anti-fog coating, and a waterproof casing to protect it from scratches and water damage. |
| Gauge Price | Boat gas gauges typically range in price from $30-$40. |
| Sender Price | Boat gas senders typically range in price from $50-$60. |
| Sender Wire | The sender wire connects the fuel gauge and the sender unit. |
| Sender Unit | The sender unit is a variable resistor. When the float falls to the bottom, the reading is empty. |
| Sender Resistance | The sender changes resistance, measured in ohms, as the fuel level drops and the float descends. |
| Sender Types | Dip-type sender, float-type sender, potentiometer, or variable resistor. |
| Gauge Reliability | Reliability and accuracy are important factors when choosing a fuel gauge. |
| Gauge Design | Choose a fuel gauge that matches the look of your dashboard. |
| Gauge Display | The type of display is an important factor when choosing a fuel gauge. |
| Gauge Affordability | Affordability is an important factor when choosing a fuel gauge. |
Explore related products
What You'll Learn
The role of a fuel gauge
The gauge usually consists of a float arm connected to a needle, which is mounted on a gauge face. As the fuel level in the tank changes, the float arm moves up or down, causing the needle to move along the gauge face and indicate the fuel level. The gauge face typically has markings for empty, half, and full, so the user can easily determine the fuel level. Additionally, some boat gas gauges are calibrated to indicate when the fuel tank is below a certain recommended level, helping to avoid running out of fuel.
The fuel gauge works in tandem with a fuel level sender or sending unit, which is connected to the gauge by a sender wire. The sender is a device that is mounted inside the fuel tank and is usually a dip-type or float-type sender, though some models use a potentiometer or variable resistor. The sender moves with the fuel level in the tank, similar to a float in a toilet tank. As the float descends, the sender changes resistance, measured in ohms, and this change in resistance is reflected in the movement of the gauge needle.
To install a fuel gauge, one must first identify the ground wire on the sending unit, typically a black wire, and connect it to a clean ground. The pink sender wire is then connected to the sender terminal on the gauge. Finally, the 12-volt DC positive wire from the gauge is connected to a switched 12-volt DC source. If the wiring is correct, the needle should move when the engine is started.
It is important to choose a fuel gauge that is reliable and accurate, as well as durable to withstand the harsh marine environment. When troubleshooting a fuel gauge, it is important to check the wiring and connections, and if issues persist, the fuel level sender may need to be replaced.
Draining a Fuel Tank: Step-by-Step Guide
You may want to see also
Explore related products
How fuel levels are measured
Marine fuel gauges, also known as boat gas gauges or fuel level indicators, are essential tools for boaters to stay safe and informed. They measure the amount of fuel in a vessel's fuel tank and help in route planning. The gauge consists of a float arm connected to a needle, which is mounted on a gauge face. As the fuel level in the tank changes, the float arm moves up or down, causing the needle to move along the gauge face and indicate the fuel level. The gauge face typically has markings for empty, half, and full, allowing the user to easily determine the fuel level.
The fuel gauge works in conjunction with a fuel level sender or sending unit, which is connected to the fuel gauge by a sender wire. This sender wire is typically pink, per American Boat and Yacht Council standards. The sender is attached to a float that moves with the fuel level in the tank, similar to a float in a toilet tank. As the float descends, the sender changes resistance, measured in ohms. This change in resistance is what moves the needle on the gauge.
To install a fuel gauge, one must first identify the ground wire on the sending unit, typically a black wire. This wire should be connected to a clean ground, such as a metal part of the engine block. Next, the pink sender wire is connected to the sender terminal on the gauge. The 12-volt DC positive wire from the gauge, which can be red or purple, is then connected to a switched 12-volt DC source. If the wiring is correct, the needle on the gauge should move when the engine is turned on.
Troubleshooting a marine fuel gauge typically involves checking the wiring and connections. If the gauge is reading full all the time, it may be broken or receiving an incorrect signal. One can disconnect the sender wire at the gauge, and if the gauge drops to empty, it indicates an issue with grounding or a short circuit in the sending unit. Checking the ohms with an ohmmeter or multimeter can help determine if the sender wire or gauge is faulty. If the gauge is good, one can check the ground at the sender and repair any breaks in the sender wire.
Fuel Tank Full: Mileage Drop or Myth?
You may want to see also
Explore related products
Fuel gauge wiring
First, it is essential to understand the basic components of a marine fuel gauge system. The system typically consists of a sending unit or fuel sender, which is mounted inside the fuel tank. This sending unit can be a dip-type or float-type sender, with a float arm connected to a needle on the gauge. As the fuel level changes, the float arm moves, causing the needle to indicate the fuel level on the gauge face.
Now, onto the wiring process:
- Identify the wires: The wiring process begins with identifying the wires involved. There should be a ground wire (usually black) on the sending unit, a pink wire that connects to the sender terminal, and a 12-volt DC positive wire (or a purple wire, according to another source). Additionally, ensure that the tank has a ground wire, which should be connected to the battery negative.
- Connect the wires: Connect the black ground wire from the sending unit to a clean ground, such as a metal part of the engine block. Then, connect the pink wire to the sender terminal on the gauge. The 12-volt DC positive wire should be connected to a switched 12-volt DC source. For the gauge, power can be obtained by connecting to the purple wire on another gauge.
- Verify connections: Ensure that all wires are correctly connected to the appropriate terminals on the gauge. This includes confirming that the ground wire is securely connected to the battery negative.
- Test the gauge: Once the wiring is complete, turn on the key switch to start the engine. The needle on the gauge should respond by moving. If it does not, further troubleshooting may be required, such as checking voltage levels and connections.
- Calibrate the gauge: Some boat gas gauges can be calibrated to indicate when the fuel level falls below a certain recommended level. This helps alert the user to refill the tank.
It is important to note that wiring diagrams and colour codes may vary depending on the specific marine fuel gauge system and boat setup. Always refer to the manufacturer's instructions or consult a professional if you are unsure about the wiring process or encounter any issues.
Finding Fuel Tank Leaks: Quick and Easy Methods
You may want to see also
Explore related products
Troubleshooting a faulty gauge
Troubleshooting a faulty marine fuel gauge can be done through a series of steps. Firstly, it is important to understand the basic mechanism of a fuel gauge. A boat gas gauge, also known as a fuel gauge or fuel level indicator, is a device that measures the amount of fuel in a vessel's fuel tank. It consists of a float arm connected to a needle, which moves up or down as the fuel level changes, causing the needle to move along the gauge face and indicate the fuel level.
Now, if your fuel gauge is faulty, the first step is to determine whether the problem lies with the gauge itself or the sending unit. Check if the gauge is receiving 12 volts of power by turning on the engine's ignition and probing with a multimeter between the ground and the positive terminal on the back of the gauge. It should be marked with a "+" or an "I". If there is no voltage, the fault is in the ignition circuit, and the gauge is likely fine.
If there are 12 volts at the gauge, the issue could be with the sender, the gauge, or its wiring. Disconnect the sending wire, usually marked with an "S" at the back of the gauge. With the wire disconnected, the gauge should jump to its highest possible reading. If it does not, there may be an issue with the gauge itself, and it may need to be replaced.
If the gauge is functioning correctly, the problem lies elsewhere in the system. Check the wire running to the sender by disconnecting it from both the sender and the "S" pin on the back of the gauge. Set your multimeter to the Ohms scale and examine the resistance within the wire. If there is no resistance, the circuit is good, and the sender is likely faulty. In this case, it is recommended to replace both the sender and the gauge to ensure accurate readings.
Additionally, issues may arise from the sending unit's floating arm becoming inoperative. Over time, the floats may lose buoyancy or sink, causing the fuel gauge to indicate an empty tank constantly. Another problem can occur when the rheostat doesn't transmit the correct electrical current to the fuel gauge, even with the floating arm functioning properly. In such cases, both the sender and the gauge require replacement.
Fuel Tanker Trucks: Understanding Liquid Capacity
You may want to see also
Explore related products
Choosing the right fuel gauge
Reliability and Accuracy:
The primary purpose of a fuel gauge is to provide accurate and reliable information about the fuel level in your vessel's tank. Choose a fuel gauge that has been rigorously tested for accuracy and is backed by a solid warranty. This ensures that you can trust the readings and make informed decisions during your journeys.
Design Style and Display:
Select a fuel gauge that complements the design of your dashboard. If you have a modern dashboard, opt for a contemporary fuel gauge that matches its aesthetics. Consider the materials and colour of the gauge to ensure a cohesive and appealing look. Additionally, choose a gauge with a large, easy-to-read display. Look for high-contrast graphics, such as white and blue on a black background, which can be easily viewed from a distance.
Durability:
Marine environments can be harsh, so it's crucial to select a durable fuel gauge that can withstand these conditions. Opt for a fuel gauge with domed glass, an anti-fog coating, and a waterproof casing. These features safeguard the gauge from scratches and water damage, ensuring its longevity and maintaining its accuracy.
Affordability:
Fuel gauges vary in price, typically ranging from $30 to $40, while boat gas senders can cost between $50 and $60. Evaluate your budget and choose an option that aligns with your financial plan. Remember that the cheapest option might not always be the most cost-effective in the long run, so consider the balance between quality and price.
Installation and Compatibility:
Consider the installation process and compatibility with your vessel's existing systems. Ensure that the fuel gauge you choose comes with clear instructions and is compatible with your boat's wiring and fuel sending unit. Proper installation is essential for the accurate functioning of the fuel gauge.
By carefully considering these factors, you can make an informed decision when choosing the right marine fuel gauge. Remember that reliability, accuracy, and durability are paramount to ensure safe and enjoyable voyages.
Expanding Fuel Capacity: Customizing Your 170 Montauk
You may want to see also
Frequently asked questions
Marine fuel gauges, also known as boat gas gauges or fuel level indicators, work by using a gas sender or fuel sender unit. This device is typically mounted inside the fuel tank and connected to a fuel gauge, usually on the boat's dashboard or console. The sender unit measures the fuel level in the tank and sends a signal to the fuel gauge, which interprets this signal and moves the needle on the gauge to show the fuel level.
Most fuel gauges are the standard 2 1/8-inch diameter. They have three connections: ground (black wire), sender (pink wire), and 12-volt DC positive (red or purple wire). The gauge face typically has markings for empty, half, and full, with a needle that moves to indicate the fuel level.
If your gauge is not working, first rule out other causes such as a connection issue. If your gauge is still not working, disconnect the sending wire and see if the gauge moves to "full". If it does, the problem is likely with the sender wire or unit. You can test the sender wire with an ohms multimeter. If the wire is working, the sender unit is likely damaged and will need to be replaced.
When choosing a marine fuel gauge, it is important to consider factors such as reliability, accuracy, design style, type of display, durability, and affordability. Look for a gauge that is durable and can withstand the harsh marine environment. It should be reliable and accurate to ensure the safety of the boat's occupants. Choose a gauge that matches the design of your dashboard.
