Katerina Swanson
If you have an outdoor fuel tank, it's important to know how to read the gauge to ensure you don't run out of fuel. Most oil tanks have a float-style gauge to check fuel levels. The gauge is typically a transparent cylinder with a float or disc inside, marked with sections like F for Full, 3/4, 1/2, 1/4, and E for Empty. The float's position indicates the fuel level. While the gauge doesn't provide an exact measurement, you can estimate the number of gallons remaining by knowing your tank's size and capacity. To check if your gauge is working, remove the outer case and press the float down; if it returns to its original position, it's functional.
| Characteristics | Values |
|---|---|
| Gauge type | Float-style |
| Gauge location | Typically located on the top of the tank |
| Gauge appearance | Transparent cylinder with markings and an indicator disc or float inside |
| Markings | F for Full, 3/4, 1/2, 1/4, and E for Empty |
| Reading method | Observe where the disc or float aligns with the markings |
| Precision | Not meant to be precise; reading the top of the float may provide a more accurate measurement |
| Testing the gauge | Remove the outer case and press the float down; if it returns to its original position, the gauge is working |
| Estimating gallons | Divide the total capacity of the tank by the fraction indicated by the float to estimate remaining gallons |
Explore related products
What You'll Learn
The float gauge is designed to offer an estimate of fuel levels
The float gauge is a key component of an oil tank, featuring a hinged arm with a floating end that moves up and down with the oil in the tank. This is the most common type of float gauge found on a home heating oil tank. The float gauge is designed to offer an estimate of fuel levels, but it is not always accurate. It is important to understand how to read the gauge to ensure you get a relatively accurate measurement. The float gauge typically has a transparent cylinder with an indicator disc or float inside. The disc or float will be positioned around one of the markings to show the level of fuel in the tank. The markings are usually standard, with F for Full, 3/4, 1/2, 1/4, and E for Empty.
When reading the gauge, it is important to note that it indicates the fuel level present in your tank but does not provide information on how many gallons you have remaining. To estimate the number of gallons in your tank, you need to know the size of your tank and its total capacity. For example, a 275-gallon tank at 1/2 would have roughly 120-138 gallons remaining. It is worth noting that the float gauge is not meant to provide an exact measurement, and some imprecision is expected.
If you are unsure whether your float gauge is working correctly, there is a simple test you can perform. Carefully remove the outer casing and gently press the float down. If the float returns to its original position when released, the gauge is working properly. However, if the float does not move back to its original position, it is a sign that the float mechanism is faulty and may require expert intervention.
Expanding Isuzu Box's Range: Installing a Second Fuel Tank
You may want to see also
Explore related products
$129.99 $138.99
The gauge is not infallible and may malfunction
There are a few ways to check if your gauge is malfunctioning. One way is to remove the outer casing and manually push the float downwards. If the float does not rise back up to its original position, this is a clear sign that the float is faulty and requires expert intervention. Another way to check is to fill the fuel tank until it is full. This can sometimes dislodge a stuck fuel gauge floater. You can also try gently tapping the fuel gauge with your hand. If it starts working after that, the gauge was likely faulty.
If you suspect that your gauge is faulty, you can use a manual method to assess your fuel levels. One way is to use a slender stick that is long enough to reach the entire height of your oil tank. After a recent refill, immerse the stick into the tank, allowing it to touch the bottom. Withdraw the stick and note the level where the wet oil mark ends, marking this point as your "full" line. As you consume the oil, you can reintroduce the stick to gauge the remaining oil level.
If your gauge is faulty, it is important to contact an expert for assistance.
Cleaning Your VW Beetle Fuel Tank: Step-by-Step Guide
You may want to see also
Explore related products

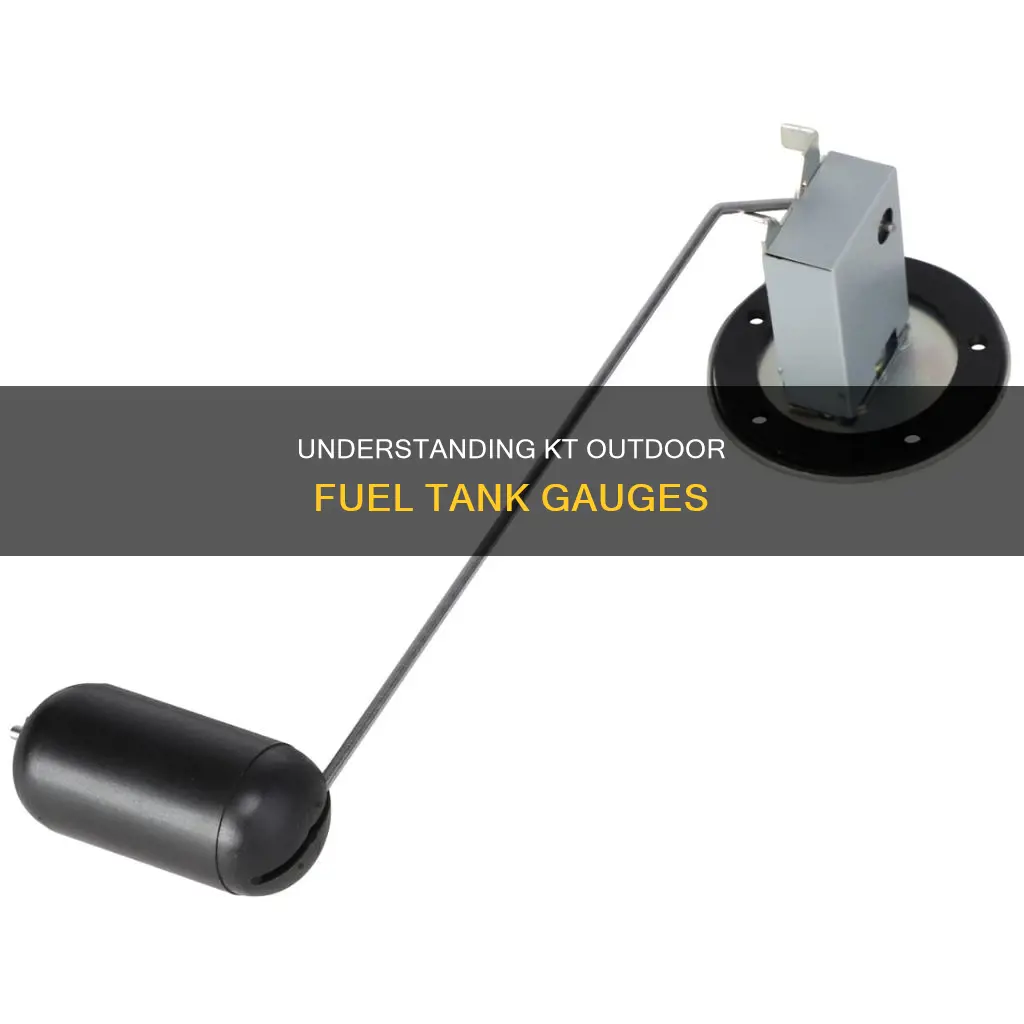

The float gauge features a hinged arm that floats on the oil surface
The float gauge is a key component of an oil tank, providing an estimate of the fuel level. It features a hinged arm that floats on the oil surface inside the tank. This hinged arm is attached to an indicator disc inside a transparent cylinder. The disc typically has marked sections like F for Full, 3/4, 1/2, 1/4, and E for Empty. By observing where the disc is positioned, you can gauge the approximate amount of heating oil remaining in your tank.
The float gauge operates on the principle of buoyancy, with the hinged arm floating at the oil surface due to its lower density compared to the oil. This mechanism allows the float to follow the fluid level, providing a visual indication of the oil level. It is important to note that the float gauge does not provide an exact measurement of the oil level or the number of gallons remaining. Instead, it offers an estimate, and the precision may vary depending on factors such as the quality of the float mechanism and the presence of sludge.
To read the float gauge accurately, it is recommended to observe where the centre of the disc aligns with the provided markings. This approach eliminates the need for precise tracking of the disc's top or bottom edge. Additionally, it is crucial to understand that the float gauge might not always provide an accurate reading due to potential malfunctions in the float mechanism. For instance, wear and tear, a stuck arm, or sludge accumulation can affect the float's movement and, consequently, the accuracy of the reading. Therefore, it is advisable to test the float gauge periodically to ensure its proper functionality.
In the event that your tank's gauge is not functioning or your tank does not have a float gauge, there is a manual method to assess your fuel levels. This method involves using a slender stick that is long enough to reach the bottom of your oil tank. After a recent refill, immerse the stick into the tank, allowing it to touch the bottom. When you withdraw the stick, note the level of the wet oil mark, which becomes your reference "full" line. As you consume the heating oil, you can re-insert the stick to compare the new wet mark with the "full" line, helping you estimate the remaining oil level.
The Cost of Long-Range Fuel Tanks: How Much?
You may want to see also
Explore related products
$66.68 $71.01
The float gauge is typically located on top of the tank
Reading the top of the float may provide a more precise measurement. If you are unsure, you can also check where the markings hit the middle of the float. While the gauge indicates the fuel level in the tank, it does not tell you how many gallons are left. To estimate the number of gallons remaining, you need to know the size of your tank. For example, a 275-gallon tank at 1/2 would have roughly 135 gallons remaining.
If the float gauge is at the bottom of the gauge or not visible, the tank is empty or close to empty. You can test if your float gauge is working by removing the outer case and gently pressing the float down. If it returns to its original position, the gauge is working properly. If it does not, the float mechanism may be faulty due to wear and tear, a stuck arm, or sludge accumulation.
Draining the Fuel Tank of Your Captiva: A Step-by-Step Guide
You may want to see also
Explore related products
The float gauge does not tell you how many gallons are left
The float gauge is a key component of the oil tank, featuring a hinged arm that floats on the oil surface inside the tank. It is designed to offer an estimate of your fuel levels. It is a non-electrical hardware device that uses the principle of material buoyancy to follow fluid levels. The float gauge does not tell you how many gallons are left, but it does indicate the level of fuel present in the tank. For instance, if the float gauge indicates a quarter of a tank of fuel, it does not tell you how many gallons are left, but you can estimate that you have around 60 gallons left if you have a 275-gallon tank.
The float gauge is typically a transparent cylinder with an indicator disc or float ball inside, which is made from either rigid or flexible material that is buoyant in water and other liquids. The cylinder is usually marked with sections like F for Full, 3/4, 1/2, 1/4, and E for Empty. The position of the disc or ball within these markings indicates the level of fuel in the tank. For example, if the disc is aligned with the 1/4 mark, it means the tank is a quarter full.
The float gauge does not provide an exact measurement of the number of gallons remaining. To estimate the number of gallons left in the tank, you need to know the size of your tank and its total capacity. For instance, if you have a 275-gallon tank and the float gauge indicates a quarter tank of fuel, you can estimate that you have around 60 gallons left (240/0.25 = 60). This estimation helps determine when it is time to refill the tank.
Additionally, the float gauge might not always provide an accurate reading due to a malfunction in the float mechanism. Over time, the mechanism can degrade, the arm can get stuck, or the float can become enveloped in sludge, affecting its functionality and preventing it from delivering precise readings. Therefore, it is important to regularly test the float gauge to ensure it is functioning correctly.
Fuel Tank Repair: Permatex on Nylon — Does it Work?
You may want to see also
Frequently asked questions
To check if your KT outdoor fuel tank gauge is working, carefully remove the outer case and gently press the float down. If the float bobs back up to its original position, the gauge is working. If it stays down, the gauge is faulty and you should contact a professional for repair.
KT outdoor fuel tank gauges typically have a transparent cylinder with an indicator disc or float inside. The disc or float will be positioned at one of the markings to indicate the level of fuel in the tank. The markings are usually standard and look like a car's fuel gauge: F, 3/4, 1/2, 1/4, and E for Full, Three-Quarters, Half, Quarter, and Empty respectively.
To estimate the number of gallons left, you need to know the size of your tank and its total capacity. For example, if you have a 275-gallon tank (a common size) and the gauge indicates 1/4, you divide 275 by 4 to get approximately 68 gallons remaining.
If your KT outdoor fuel tank gauge is not working, you can use a manual method to measure the fuel level. Take a slender stick that is long enough to reach the bottom of the tank. Immerse the stick into the tank and note the level of the wet oil mark. This will be your "full" line. As the oil level decreases, you can reintroduce the stick and compare the new wet mark to the "full" line to estimate the remaining oil level.
