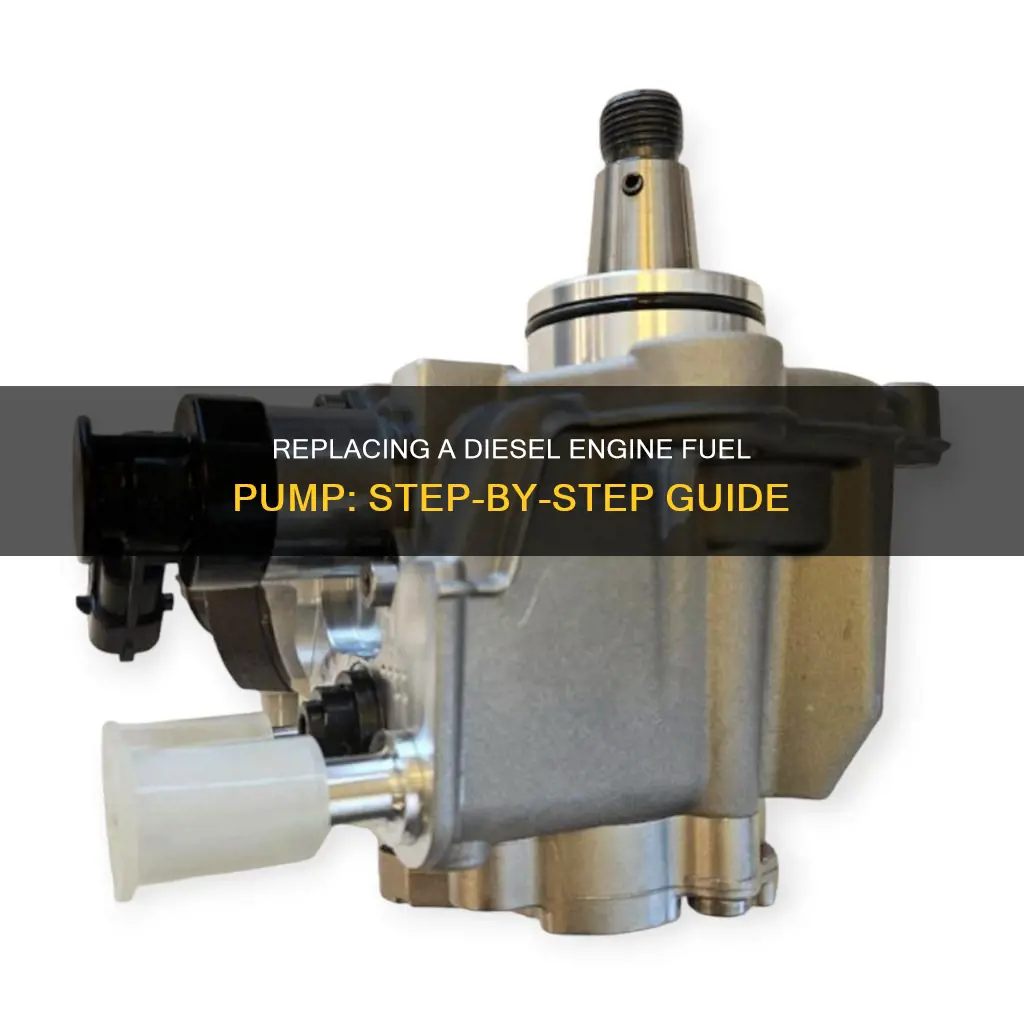

Replacing A Diesel Engine Fuel Pump: A Step-By-Step Guide

Replacing a diesel engine fuel pump can be a complex task, but with the right tools and knowledge, it is definitely achievable. This guide will provide a step-by-step process to help you understand the process, ensuring you can replace the fuel pump safely and effectively. It's important to follow the manufacturer's instructions and take safety precautions to avoid any potential issues.

Fuel Pump Location: Identify the fuel pump's position under the hood or in the tank

The location of the fuel pump in a diesel engine can vary depending on the vehicle's make and model. However, there are some general guidelines to help you identify its position. Firstly, it is often located under the hood, typically near the front of the engine compartment. This is a common placement for fuel pumps in many diesel engines, as it allows for easy access and provides sufficient cooling for the pump. When you open the hood, look for a black plastic cover or a small panel that might conceal the pump. It is usually positioned close to the firewall, which is the inner wall of the engine compartment.

In some cases, the fuel pump can also be found inside the fuel tank. This design is more common in older diesel engines or certain vehicle models. If the pump is located in the tank, it will be mounted on the inside of the tank, often near the bottom. You might need to remove the tank to access it, so it's important to have the necessary tools and knowledge for this task. When inspecting the tank, look for any signs of damage or corrosion, as this could affect the pump's performance and longevity.

To determine the exact location, you can refer to your vehicle's service manual or consult an online resource specific to your diesel engine. These sources will provide detailed diagrams and instructions tailored to your engine type. Alternatively, you can also inspect the vehicle yourself by carefully examining the engine compartment and fuel tank area. Look for any visible connections, hoses, or wiring that might indicate the pump's position.

Identifying the fuel pump's location is crucial before attempting any repairs or replacements. If the pump is under the hood, ensure you have the necessary tools and knowledge to access and remove it without causing any damage to the surrounding components. For pumps located in the fuel tank, be prepared for a more complex process that may require specialized equipment and careful handling. Always prioritize safety and consult professional guidance if you are unsure about any step during the replacement process.

Remove Old Pump: Disconnect electrical connections and release clips to take out the old pump

To replace a diesel engine fuel pump, the first step is to carefully remove the old pump. This process requires some technical knowledge and the right tools to ensure a successful replacement. Here's a step-by-step guide to help you through the removal process:

Start by locating the fuel pump, which is typically positioned near the engine's fuel tank. It is often secured in place with various mounting brackets and clips. Carefully inspect the pump and identify the electrical connections that power it. These connections are usually in the form of wires or connectors, and they need to be disconnected to remove the pump. Use the appropriate tools, such as wire cutters or crimping pliers, to carefully cut or release the electrical connections. Take note of the wire colors or any markings to ensure proper reconnection during the installation of the new pump.

Once the electrical connections are disconnected, you'll need to release the clips or fasteners that hold the pump in place. These clips are often located around the pump's mounting area. Carefully pry open the clips using a flathead screwdriver or a specialized tool designed for this purpose. Be gentle to avoid damaging the clips or the surrounding components. After releasing the clips, you should be able to lift the old fuel pump out of its position.

It is essential to handle the old pump with care during the removal process. Inspect the pump for any signs of damage or wear, especially if it has been in use for an extended period. Properly disposing of or recycling the old pump is crucial to ensure environmental safety.

By following these steps, you can effectively remove the old diesel engine fuel pump, making way for the installation of a new one. Remember to take your time and exercise caution to avoid any potential issues during the replacement process.

Install New Pump: Align the new pump, secure it, and reconnect wiring

To install a new diesel engine fuel pump, follow these steps:

Align the New Pump: Begin by carefully positioning the new fuel pump in place. Ensure that it is aligned with the existing mounting holes and brackets. Take note of any slight adjustments needed to achieve a precise fit. The pump should be securely attached to the engine block or frame using the appropriate fasteners.

Secure the Pump: Once aligned, proceed to fasten the pump in place. Use the recommended fasteners, such as bolts or screws, and ensure they are tightened to the specified torque specifications. Double-check that the pump is firmly attached and won't come loose during operation.

Reconnect Wiring: After securing the pump, it's crucial to reconnect the wiring. Locate the electrical connections for the fuel pump and carefully detach the old wiring. Identify the corresponding terminals on the new pump and ensure a proper match. Connect the wiring securely, ensuring that all connections are tight and free from any loose contacts. Double-check the wiring harness for any potential issues or damage before reinstalling it.

Final Checks: Once the new fuel pump is installed and wired, perform some final checks. Start the engine and monitor its performance, ensuring that the fuel pump is functioning correctly. Check for any unusual noises or vibrations, and verify that the fuel pressure is within the recommended range. If everything is in order, you can proceed with further testing and adjustments to ensure optimal engine operation.

Test and Bleed: Ensure proper function and bleed air from the system

After replacing the diesel engine fuel pump, it is crucial to test and bleed the system to ensure it functions correctly and to remove any air bubbles that could cause issues. Here's a step-by-step guide to performing this task:

Step 1: Prepare the Vehicle

Before beginning, ensure the vehicle is parked on a level surface and the engine is off. Allow the fuel system to cool down if it has been recently used. Locate the fuel pump module, which is typically found near the engine. This module houses the fuel pump and related components.

Step 2: Test the Fuel Pump

Use a fuel pressure gauge to test the pump's functionality. Connect the gauge to the fuel rail or a suitable test point. Start the engine and observe the fuel pressure reading. A healthy fuel pump should produce the recommended pressure as specified by the vehicle's manufacturer. If the pressure is insufficient, it may indicate a faulty pump or a clogged filter, requiring further investigation.

Step 3: Bleed the Fuel System

Bleed the fuel system to remove air bubbles and ensure proper fuel flow. Start by opening the fuel tank's vent valve, allowing air to enter the system. Then, slowly open the fuel pump's bypass valve, which is usually located on the fuel pump module. This action will release any trapped air. Listen for the fuel pump to prime, which is a gentle humming sound. Keep the engine idling for a few minutes to allow the system to stabilize.

Step 4: Check for Air Locks

After bleeding, inspect the system for any air locks. Check for bubbles in the fuel lines and at the fuel filter. If air bubbles are present, they can be removed by slightly tightening the fuel filter or using a fuel line vacuum pump. Ensure all connections are secure and free of debris.

Step 5: Monitor and Adjust

Monitor the fuel pressure gauge during the bleeding process. Adjust the fuel pump's bypass valve as needed to maintain the desired pressure. If the pressure drops significantly, it may indicate a persistent air leak or a need for further troubleshooting.

Step 6: Final Checks

Once the bleeding process is complete, shut off the engine and check for any fuel leaks. Ensure all connections are tight and secure. Start the engine again and verify that the fuel pressure holds steady. If everything is functioning correctly, you've successfully tested and bled the fuel system, ensuring optimal performance after the fuel pump replacement.

Refill Fuel: Add diesel fuel and check for leaks before starting the engine

Before you begin the process of replacing a diesel engine fuel pump, it's crucial to ensure that the fuel system is properly prepared and refilled. Here's a step-by-step guide to refilling the fuel and checking for any potential leaks:

Step 1: Prepare the Fuel Tank

Start by locating the diesel fuel tank, which is typically found near the engine. Ensure that the tank is empty or at least partially drained to make room for the new fuel. If the tank is not empty, drain the remaining fuel using an appropriate drain valve or by removing the fuel line. This step is essential to avoid any complications during the replacement process.

Step 2: Add Fresh Diesel Fuel

Once the tank is prepared, it's time to refill it with fresh diesel fuel. Open the fuel filler cap and carefully pour in the new diesel fuel. Ensure that you use the correct type of diesel fuel recommended for your engine. Check the fuel gauge or dipstick to confirm that the tank is full. It's a good practice to add a small amount of fuel at a time and check the level frequently to avoid overfilling.

Step 3: Check for Leaks

After refilling the fuel tank, it is vital to inspect the system for any potential leaks. Start by checking the fuel lines for any signs of damage, cracks, or loose connections. Inspect the fuel pump module and the connections to the fuel pump itself. Look for any visible fuel leaks around the fuel injectors, valves, or other fuel-related components. If you notice any leaks, tighten connections or replace damaged parts to ensure a secure and leak-free system.

Step 4: Start the Engine and Monitor

With the fuel tank refilled and leaks addressed, it's now safe to start the engine. Turn the ignition key or start the engine using the appropriate method for your vehicle. Monitor the engine's behavior during startup and operation. Listen for any unusual noises and watch for any signs of excessive smoke or fuel leakage. If everything appears normal, you can proceed with the fuel pump replacement process, ensuring that the engine has a reliable fuel supply.

Remember, proper fuel management and leak checks are essential safety measures when dealing with diesel engines. Always follow the manufacturer's guidelines and recommendations for your specific vehicle to ensure a successful fuel pump replacement.
