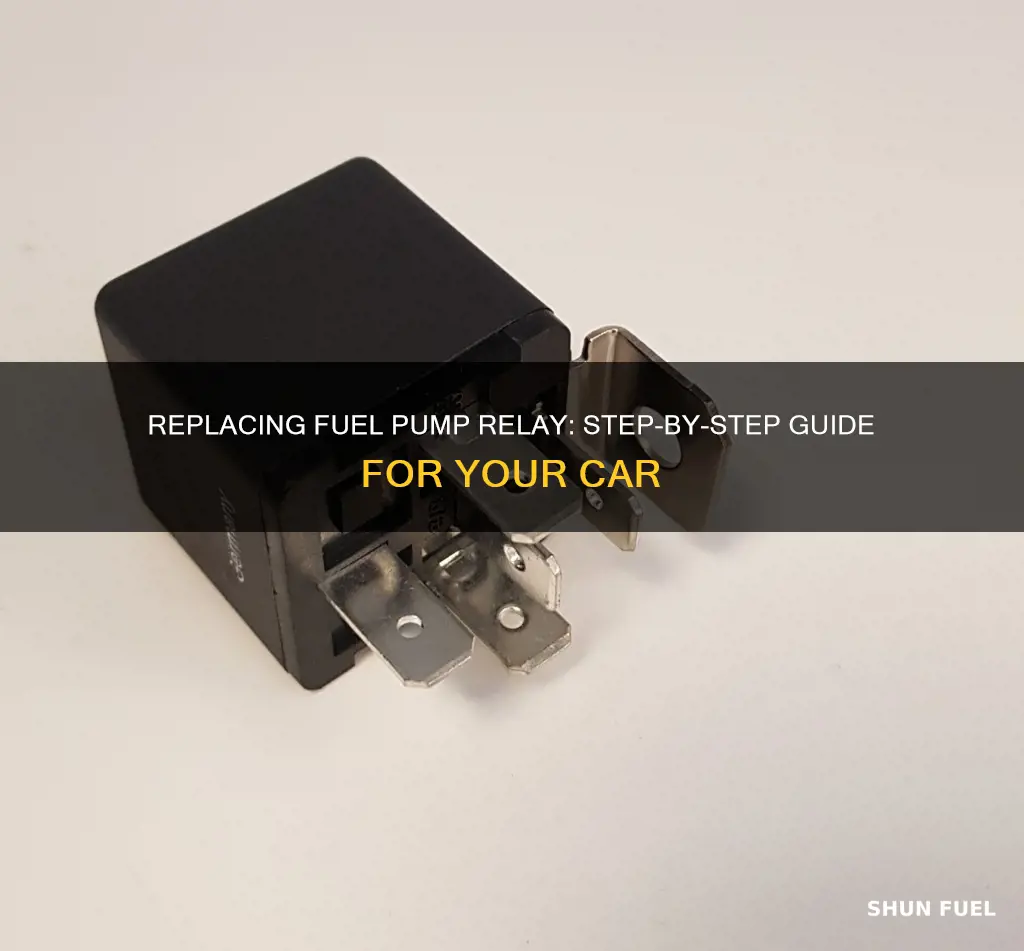

The fuel pump relay is a vital component of your vehicle's fuel system. It helps to pressurise the fuel system when the ignition is turned on, ensuring the engine receives fuel while starting. When this relay fails, the engine will not start until the starter motor has pumped up sufficient oil pressure to send electricity to the fuel pump and run it. This can cause the cranking of the engine to last longer than normal. In this article, we will cover the steps to replace a fuel pump relay, including how to locate the relay, disconnect the power, and install a new one.
| Characteristics | Values |
|---|---|
| Step 1 | Turn on the ignition key to run. Listen for the fuel pump to actuate. Also, listen to the fuel pump relay for any buzzing or clicking noise. |
| Step 2 | Start the engine. Check that there is oil pressure. On some vehicles, there will only be an oil light indicator. When the indicator light goes out, then there is oil pressure. |
| Step 3 | Park your vehicle on a flat, hard surface. Make sure that the transmission is in park (for automatics) or in 1st gear (for manuals). |
| Step 4 | Open the vehicle’s hood to disconnect your battery. Remove the ground line from the negative post of the battery to turn off the power to the fuel pump and sending unit. |
| Step 5 | Locate the fuel pump relay using the diagram on the fuse box cover. Using the schematic on the fuse box cover, look for the fuse for the fuel pump relay when you open the fuse box. |
| Step 6 | Remove the fuel pump relay from the fuse box. Pay attention to how the relay comes out as the new one needs to go in the same way. |
| Step 7 | Drive the vehicle around the block. During the test, listen for any unusual noise from the fuel pump or fuel pump relay. Also, accelerate the engine quickly to make sure that the fuel pump is working correctly. |
| Step 8 | Monitor the dash for any engine lights. If your engine light comes on after replacing the fuel pump relay, then there may be further diagnosis of the fuel pump assembly needed or even a possible electrical issue within the fuel system. |
Explore related products
What You'll Learn
How to locate the fuel pump relay
Locating the fuel pump relay is a crucial step in diagnosing fuel system issues and aiding in emergencies. The location of the fuel pump relay can vary depending on the vehicle's make and model, so it's important to consult the owner's manual or online resources for specific relay locations. Here are some general steps to help you locate the fuel pump relay:
Start by checking the owner's manual, which often includes a diagram showing the relay's location. The manual will also have a detailed diagram of the relay locations, helping you identify the specific relay. Next, look under the hood, as most relays are found in the fuse box. The fuse box is usually black and located in the engine bay. The relay itself is a cube-shaped or rectangular object with multiple electronic connection pins or terminals. You can look for labels that indicate its purpose, such as 'fuel pump'.
If you're having trouble locating the relay, inspect the fuse box cover, as it may have a diagram indicating each relay's position. With the key in the 'on' position, you may also hear a click from the relay. Additionally, many car forums and websites offer specific relay locations for different vehicle models. When in doubt, don't hesitate to consult a professional mechanic, who can quickly locate and inspect the relay.
Replacing the Fuel Pump in Your 1999 Jeep Cherokee
You may want to see also
Explore related products
How to disconnect the battery
To disconnect the battery, open the vehicle's hood and remove the ground line from the negative post of the battery. This will turn off the power to the fuel pump and sending unit.
The fuel pump relay is usually located in the engine compartment inside the fuse box. It is often found in the vehicle's long black box with the other relays and fuses, although the location can vary. To find the fuel pump relay, use the diagram on the fuse box cover. If your fuse box cover doesn't have any schematics on it, you can refer to the engine compartment fuse box diagram in your owner's handbook.
Once you have located the fuel pump relay, pay attention to how it comes out as the new one will need to go in the same way. You can then remove the fuel pump relay from the fuse box.
Before disconnecting the battery and replacing the fuel pump relay, it is important to test the vehicle to ensure that the fuel pump relay is not functioning correctly. To do this, turn on the ignition key and listen for the fuel pump to actuate. You should also listen for any buzzing or clicking noises from the fuel pump relay. If this sound is not audible, it is an indication that the pump relay may not be functioning properly.
After starting the engine, check that there is oil pressure. On some vehicles, there will only be an oil light indicator. When the indicator light goes out, there is oil pressure. You should then drive the vehicle around the block, listening for any unusual noises from the fuel pump or fuel pump relay. Accelerate the engine quickly to ensure that the fuel pump is working correctly.
Replacing Fuel Lines in a Mac 3200: A Step-by-Step Guide
You may want to see also
Explore related products
How to listen for unusual noises
To replace a fuel pump relay, you first need to locate the relay. Most fuel pump relays are located in the engine compartment inside the fuse box. You can use the diagram on the fuse box cover to help you find it. Once you've found it, disconnect your battery and remove the ground line from the negative post of the battery to turn off the power to the fuel pump. Then, remove the fuel pump relay from the fuse box, paying attention to how it comes out so that you can put the new one in the same way.
To listen for unusual noises, start by turning on the ignition key and listening for the fuel pump to actuate. You should hear a humming noise. If you don't hear this, it could be a sign that the pump relay is not functioning properly. You should also listen for any buzzing or clicking noises, which could indicate a stuck pump or relay issue. Once the engine is running, accelerate quickly to make sure the fuel pump is working correctly. If you hear any unusual noises, such as a high-pitched whine or loud buzzing, this could be a sign that the pump is worn or overworked, or that there is an electrical issue.
Replacing the Fuel Pump in Your Classic 89 S10
You may want to see also
Explore related products
How to check the dash for engine lights
To replace a fuel pump relay, you must first locate it. Most fuel pump relays are located in the engine compartment inside the fuse box, usually in a long black box with the other relays and fuses. However, the location can vary, so if your fuse box cover doesn't have any schematics, you can look up the engine compartment fuse box diagram in your owner's handbook.
Next, open the vehicle's hood and disconnect the battery by removing the ground line from the negative post. This will turn off the power to the fuel pump.
Now, you can remove the fuel pump relay from the fuse box, paying attention to how it comes out so that you can insert the new one in the same way.
To check the dash for engine lights, simply monitor the dashboard for any warning lights. Red warning lights mean you need to take immediate action, while amber or other-coloured lights often indicate that something needs to be checked by a mechanic. If you see a check engine warning light, get your car checked as soon as possible to avoid potentially serious damage, such as a blown head gasket or a seized engine. Other common dashboard lights include low engine coolant levels, low tyre pressure, and low windshield washer fluid. If you're unsure about the meaning of a warning light, you can refer to your owner's manual as warning icons vary with each manufacturer.
Fuel Pump Pulse Dampener: Necessary Upgrade or Unnecessary Expense?
You may want to see also
Explore related products
How to park your vehicle
To replace a fuel pump relay, you'll first need to locate the relay. Most fuel pump relays are located in the engine compartment inside the fuse box. You can use the diagram on the fuse box cover to help you find it. Once you've found it, disconnect your battery and remove the ground line from the negative post of the battery to turn off the power to the fuel pump and sending unit. Remove the fuel pump relay from the fuse box, paying attention to how it comes out so that you can put the new one in the same way.
Now, for the topic at hand: how to park your vehicle. First, stop your vehicle at a safe distance from the vehicle behind you. Use your turn signal and slowly drive forward. When your side mirror is even with the first line of the parking space, begin turning to align your vehicle with the centre of the space. Check that you have a reasonable amount of free space on both sides of your vehicle. Once you're in the parking space, make sure your vehicle is correctly aligned within the space and with any vehicles parked on either side. Adjust your position until you have an even gap to both sides of your car and you are well within the parking space. Be careful not to hit any nearby vehicles with your car door as you exit your car. Finally, shift gears to "Park" (P), turn off the engine, and set your parking brake.
Replacing Probe Jack in GE Dual Fuel Ovens
You may want to see also
Frequently asked questions
The fuel pump relay is usually located in the engine compartment inside the fuse box. It is usually in a long black box with other relays and fuses.
When the ignition is turned on, the pump relay should produce a humming or buzzing noise. If this sound is not audible, it is an indication that the pump relay may not be functioning as it should.
First, disconnect your battery and remove the ground line from the negative post of the battery to turn off the power to the fuel pump. Then, locate the fuel pump relay using the diagram on the fuse box cover. Remove the fuel pump relay from the fuse box, paying attention to how it comes out so that you can insert the new one in the same way.
