Fuel pumps are essential components in modern vehicles, responsible for delivering fuel from the tank to the engine. Understanding how they turn off is crucial for diagnosing issues and ensuring efficient operation. Typically, fuel pumps are controlled by a relay that receives signals from the vehicle’s engine control unit (ECU). When the ignition is turned off, the ECU sends a signal to the relay, cutting power to the pump and halting fuel delivery. Additionally, some systems incorporate an inertia switch or safety shutoff mechanism that automatically disables the pump in the event of a collision or sudden impact. This dual-safety approach ensures the pump stops functioning when the engine is not running or during emergencies, preventing fuel leaks and potential hazards.
| Characteristics | Values |
|---|---|
| Mechanism | Fuel pumps typically turn off via an electrical signal from the Engine Control Unit (ECU) or a dedicated fuel pump relay. |
| ECU Control | The ECU monitors engine status and sends a signal to the fuel pump relay to cut power when the engine is off or in idle-stop mode. |
| Fuel Pump Relay | Acts as a switch, cutting power to the fuel pump when the ECU sends a deactivation signal. |
| Inertia Switch (Safety Feature) | In some vehicles, an inertia switch shuts off the fuel pump in the event of a collision to prevent fuel leakage and fire. |
| Idle-Stop Systems | In modern vehicles with start-stop technology, the fuel pump turns off when the engine stops at idle to conserve fuel. |
| Manual Override | Some vehicles have a manual fuel pump shut-off switch for emergency situations or maintenance. |
| Pressure Regulation | Fuel pumps may turn off when the fuel pressure regulator detects sufficient pressure in the fuel rail. |
| Time Delay | Some systems include a time delay to ensure fuel pressure stabilizes before shutting off completely. |
| Diagnostic Mode | During diagnostic tests, the fuel pump may be turned off to isolate issues or perform specific checks. |
| Power Loss | The fuel pump automatically turns off when the vehicle's ignition is switched off, cutting power supply. |
Explore related products
What You'll Learn
- Pressure Switch Mechanism: Detects fuel pressure, signals pump to shut off when optimal pressure is reached
- Inertia Switch Function: Cuts power during collisions to prevent fuel pump operation and fire risks
- Relay Control System: Uses electrical relays to activate/deactivate the pump based on engine status
- ECM Shutdown Protocol: Engine Control Module stops the pump when ignition is turned off
- Thermal Protection Feature: Automatically turns off the pump if it overheats to prevent damage
Pressure Switch Mechanism: Detects fuel pressure, signals pump to shut off when optimal pressure is reached
Fuel pumps don’t run indefinitely; they rely on precise mechanisms to shut off once the system reaches optimal pressure. One such mechanism is the pressure switch, a critical component in modern fuel systems. This device acts as a sentinel, continuously monitoring fuel pressure and signaling the pump to disengage when the desired level is achieved. Without it, the system risks over-pressurization, leading to inefficiency, leaks, or even damage. Understanding how this mechanism operates sheds light on the sophistication behind seemingly simple automotive functions.
At its core, the pressure switch operates on a straightforward principle: it responds to physical changes in fuel pressure. Inside the switch, a diaphragm or piston is exposed to the fuel line’s pressure. When the pressure reaches a predetermined threshold—typically around 40 to 60 psi (pounds per square inch) in passenger vehicles—the diaphragm moves, triggering an electrical contact. This contact interrupts the circuit powering the fuel pump, effectively shutting it off. The precision of this mechanism ensures the engine receives fuel at the correct pressure without waste or strain on the pump.
Consider the practical implications of this design. For instance, during cold starts, the fuel pump primes the system by running briefly to build pressure. Once the pressure switch detects the optimal level, it cuts power to the pump, conserving energy and reducing wear. This process repeats with each ignition cycle, demonstrating the switch’s role in balancing performance and efficiency. Mechanics often test this component when diagnosing fuel system issues, as a faulty pressure switch can lead to symptoms like hard starting or erratic engine behavior.
While the pressure switch is reliable, it’s not immune to failure. Common issues include diaphragm wear, electrical contact corrosion, or debris clogging the sensing port. Regular maintenance, such as fuel filter replacements and system inspections, can mitigate these risks. For DIY enthusiasts, testing the switch involves checking for continuity with a multimeter at varying pressures, though professional tools like pressure gauges provide more accurate diagnostics. Understanding these nuances empowers vehicle owners to address problems proactively rather than reactively.
In the broader context of fuel system design, the pressure switch exemplifies the marriage of simplicity and functionality. It’s a testament to how a single component can safeguard an entire system, ensuring longevity and reliability. As automotive technology evolves, this mechanism remains a cornerstone, proving that sometimes the most effective solutions are the ones that directly address the problem at hand. Whether in a compact sedan or a high-performance vehicle, the pressure switch quietly performs its duty, turning off the fuel pump with precision every time.
Jaguar XK8 Fuel Pump Count: Understanding Your Vehicle's System
You may want to see also
Explore related products

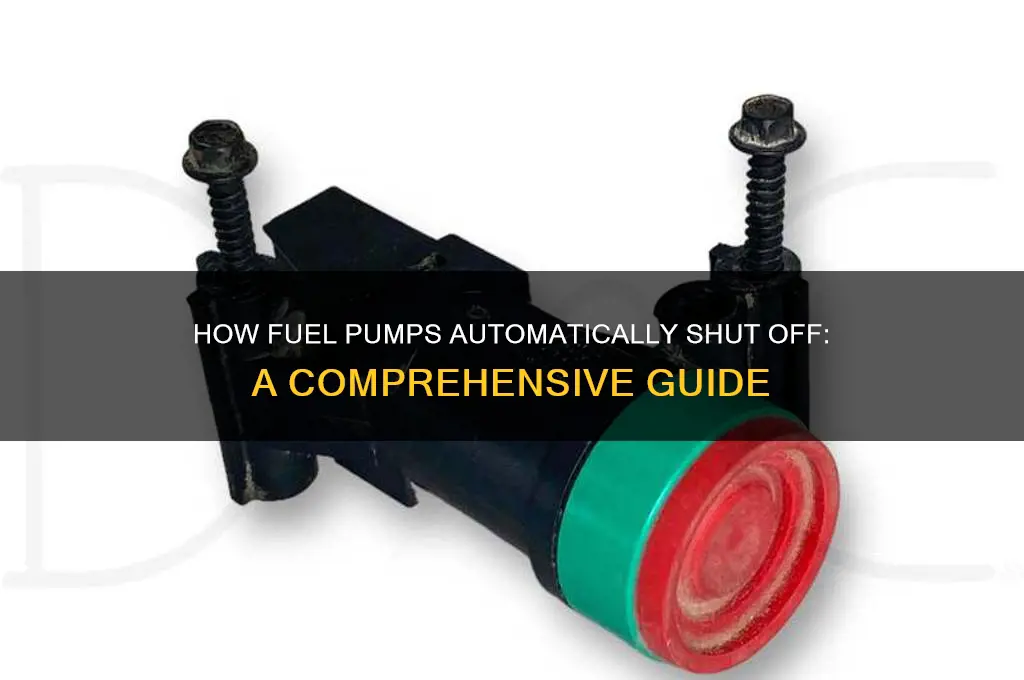

Inertia Switch Function: Cuts power during collisions to prevent fuel pump operation and fire risks
Fuel pumps are critical for delivering fuel from the tank to the engine, but their operation during a collision can pose a significant fire hazard. Enter the inertia switch, a safety device designed to cut power to the fuel pump in the event of a sudden impact. This switch operates on a simple yet ingenious principle: it detects rapid deceleration or acceleration—common during collisions—and triggers a mechanism that interrupts the electrical circuit powering the fuel pump. By doing this, it minimizes the risk of fuel leakage and ignition, potentially saving lives and preventing catastrophic damage.
The inertia switch is typically mounted in a location where it can respond effectively to vehicle movement, such as the interior cabin or trunk. It contains a spring-loaded ball bearing that rests in a recessed position under normal driving conditions. When a collision occurs, the force of the impact causes the ball bearing to dislodge, moving into a position that breaks the electrical connection to the fuel pump. This action is immediate, often occurring within milliseconds of the impact, ensuring the fuel system is deactivated before a fire can start.
To reset the inertia switch after activation, drivers must manually push a button on the device to restore the electrical connection. This design ensures that the fuel pump remains off until the vehicle is in a safe condition to operate again. It’s crucial for vehicle owners to familiarize themselves with the location of the inertia switch, as it may not be immediately obvious. Most vehicles include a diagram in the owner’s manual indicating its position, often near the driver’s side kick panel or in the trunk.
While the inertia switch is a vital safety feature, it’s not foolproof. For instance, it may not activate in low-speed collisions or certain types of impacts. Additionally, older vehicles may lack this feature altogether, making them more vulnerable to fuel-related fires. For those driving older models, retrofitting an inertia switch is a practical upgrade that significantly enhances safety. Modern vehicles often integrate this switch as part of a comprehensive safety system, sometimes combining it with other features like automatic fuel shut-off valves for added protection.
In summary, the inertia switch is a small but critical component in vehicle safety, acting as a first line of defense against fuel-related fires during collisions. Its simple yet effective design ensures rapid response, while its reset mechanism prevents accidental reactivation. Understanding its function and location empowers drivers to respond appropriately in emergencies, making it an essential feature for both new and older vehicles alike.
Step-by-Step Guide: Activating Your Fuel Pump Safely and Efficiently
You may want to see also
Explore related products
Relay Control System: Uses electrical relays to activate/deactivate the pump based on engine status
Fuel pumps don’t run continuously—they activate only when the engine demands fuel. One efficient method to control this is through a relay control system, which acts as a switchboard, toggling the pump’s power based on the engine’s status. This system uses electrical relays, essentially electromagnetic switches, to manage the high current required by the fuel pump while allowing low-current signals from the engine control unit (ECU) to dictate operation. When the ignition is turned on, the ECU sends a signal to the relay, closing its contacts and delivering power to the pump. Conversely, when the engine is off or idle, the relay opens, cutting power and shutting down the pump.
The relay control system is particularly advantageous in modern vehicles due to its ability to integrate with other engine management systems. For instance, during a crash, the ECU can immediately deactivate the fuel pump via the relay to prevent fuel leaks. Similarly, in vehicles with start-stop technology, the relay ensures the pump operates only when the engine is running, conserving energy and reducing wear on the pump. This system’s reliability stems from its simplicity: relays are durable, cost-effective, and capable of handling high currents without overheating, making them ideal for the demanding environment of an engine bay.
Implementing a relay control system requires precise wiring and calibration. The relay must be connected to the ECU, ignition switch, and fuel pump, with a fuse in line to protect against short circuits. Technicians should ensure the relay’s coil voltage matches the vehicle’s electrical system (typically 12V or 24V) and that the contacts can handle the pump’s current draw, often exceeding 10 amps. A common mistake is using a relay with insufficient amperage rating, leading to overheating or failure. Always consult the vehicle’s manual or wiring diagram to verify compatibility.
Compared to direct wiring, a relay control system offers superior safety and efficiency. Direct wiring bypasses the ECU’s oversight, leaving the pump vulnerable to continuous operation, even when the engine is off. This not only wastes fuel but also poses a fire hazard. In contrast, the relay system ensures the pump operates only when necessary, reducing the risk of accidents and extending the pump’s lifespan. For DIY enthusiasts, upgrading to a relay-controlled system is a worthwhile investment, especially in older vehicles lacking modern fuel management features.
In summary, the relay control system is a cornerstone of fuel pump management, balancing simplicity with functionality. By leveraging electrical relays, it provides a fail-safe mechanism to activate or deactivate the pump based on real-time engine status. Whether for safety, efficiency, or integration with advanced technologies, this system exemplifies how a small component can have a significant impact on vehicle performance and reliability. For anyone troubleshooting fuel pump issues or upgrading their vehicle’s electrical system, understanding and utilizing relay control is essential.
Testing Your Suzuki LT250 Quad's 85 Fuel Pump: A Step-by-Step Guide
You may want to see also
Explore related products
ECM Shutdown Protocol: Engine Control Module stops the pump when ignition is turned off
The Engine Control Module (ECM) plays a pivotal role in modern vehicles, acting as the brain that manages critical functions, including fuel pump operation. When the ignition is turned off, the ECM initiates a shutdown protocol to stop the fuel pump, ensuring safety and efficiency. This process is not merely a simple switch-off but a carefully orchestrated sequence designed to prevent fuel system issues and potential hazards.
Steps in the ECM Shutdown Protocol:
- Ignition Signal Detection: The ECM continuously monitors the ignition switch status. When the key is turned to the "off" position, the ECM detects the absence of the ignition signal.
- Fuel Pump Relay Deactivation: In response, the ECM sends a signal to the fuel pump relay, instructing it to open the circuit. This cuts power to the fuel pump, halting its operation.
- Residual Pressure Management: To prevent fuel system issues, the ECM allows residual pressure in the fuel lines to dissipate gradually. This ensures that the system doesn’t experience excessive pressure or fuel leaks during shutdown.
- Diagnostic Check: Before fully disengaging, the ECM performs a quick diagnostic check to confirm the fuel pump has stopped and no errors are present.
Cautions and Considerations:
While the ECM shutdown protocol is reliable, certain factors can disrupt its effectiveness. For instance, a malfunctioning ECM or a faulty fuel pump relay may prevent the pump from turning off, leading to fuel wastage or safety risks. Additionally, in older vehicles without advanced ECM systems, the shutdown process may rely on mechanical switches, which are more prone to failure.
Practical Tips for Vehicle Owners:
- Regularly inspect the fuel pump relay and ECM for signs of wear or damage.
- If the fuel pump continues running after ignition is off, consult a mechanic immediately to diagnose potential ECM or relay issues.
- For vehicles with manual fuel pump shutoff switches (often found in racing or emergency vehicles), ensure the switch is accessible and functional.
The ECM shutdown protocol is a critical safety feature that ensures the fuel pump stops efficiently when the ignition is turned off. Understanding this process highlights the importance of maintaining the ECM and related components to prevent fuel system malfunctions. By staying informed and proactive, vehicle owners can mitigate risks and ensure their vehicle operates safely and efficiently.
Understanding the Fuel Pump Setup in a 2006 Mazda 3
You may want to see also
Explore related products
Thermal Protection Feature: Automatically turns off the pump if it overheats to prevent damage
Fuel pumps, like any mechanical device, are susceptible to overheating, which can lead to catastrophic failure if left unchecked. To mitigate this risk, modern fuel pumps often incorporate a thermal protection feature that automatically shuts down the pump when it detects excessive heat. This mechanism acts as a safeguard, preventing damage to the pump and ensuring the safety of the vehicle and its occupants. By monitoring the pump’s operating temperature, this feature intervenes before critical thresholds are reached, allowing the system to cool down and reset.
The thermal protection feature operates through a thermally sensitive switch or thermal cutoff device integrated into the pump’s design. When the pump’s temperature exceeds a predefined limit—typically around 120°C to 150°C (248°F to 302°F)—the switch activates, cutting power to the pump. This process is instantaneous and requires no manual intervention, making it a reliable fail-safe in high-stress conditions. For example, in electric fuel pumps, this feature is particularly crucial as they generate heat during operation, especially under heavy loads or in hot environments.
While the thermal protection feature is a critical safety measure, it’s important to understand its limitations. If the pump frequently triggers the thermal cutoff, it may indicate an underlying issue, such as a clogged fuel filter, insufficient fuel flow, or electrical problems. In such cases, simply resetting the pump is not enough; a thorough inspection is necessary to address the root cause. Ignoring repeated shutdowns can lead to long-term damage or system failure, defeating the purpose of the protective mechanism.
To maximize the effectiveness of the thermal protection feature, vehicle owners should adopt proactive maintenance practices. Regularly replacing fuel filters, ensuring proper fuel system ventilation, and monitoring for unusual noises or performance issues can prevent overheating. Additionally, avoiding prolonged operation in extreme conditions, such as driving with a low fuel level or in high ambient temperatures, reduces the strain on the pump. By combining this feature with routine care, drivers can extend the lifespan of their fuel pump and maintain optimal vehicle performance.
In summary, the thermal protection feature is a vital component of modern fuel pump systems, offering automatic shutdown to prevent overheating-related damage. While it provides a critical safety net, it should not be relied upon as a substitute for proper maintenance. By understanding how this feature works and taking preventive measures, vehicle owners can ensure their fuel pump operates efficiently and safely, minimizing the risk of unexpected failures on the road.
Understanding the Fuel Pump System in a 2006 Dodge Charger
You may want to see also
Frequently asked questions
A fuel pump typically turns off when the ignition is switched off, as the power supply to the pump is cut, or when a control module (like the ECM) sends a signal to deactivate it.
Yes, some vehicles have safety systems that automatically shut off the fuel pump if the engine overheats to prevent further damage or fire hazards.
A fuel pump does not automatically turn off when the tank is empty, but it may stop functioning due to lack of fuel, which can cause it to run dry and potentially fail.
If a fuel pump turns off while driving, it could be due to a faulty relay, wiring issue, or a malfunctioning control module. Immediate diagnosis is recommended to prevent stalling.
Yes, in vehicles with idle stop-start systems, the fuel pump may turn off temporarily when the engine shuts down at idle to conserve fuel and reduce emissions.
