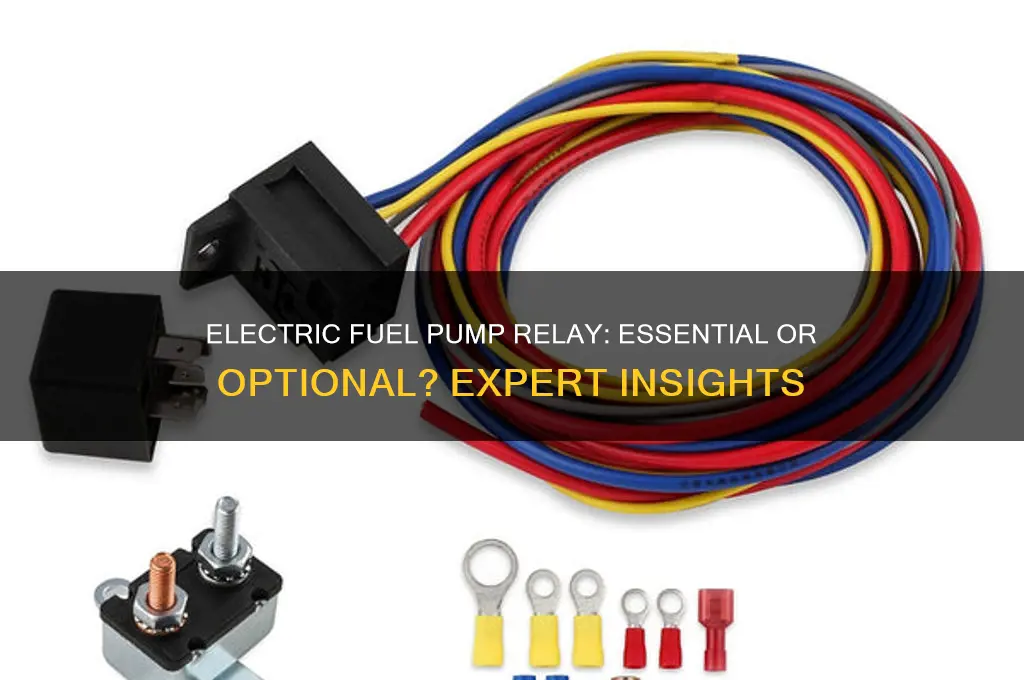

The question of whether an electric fuel pump needs a relay is a common one among automotive enthusiasts and mechanics alike. A relay acts as a switch that allows a low-current circuit (such as the ignition switch) to control a high-current circuit (like the fuel pump), protecting the wiring and components from excessive heat and potential damage. Electric fuel pumps typically draw significant power, and without a relay, the wiring and switch could overheat or fail prematurely. Additionally, a relay ensures the fuel pump operates only when necessary, conserving energy and reducing wear. While some modern vehicles integrate relay functions into their engine control modules, most systems still rely on a standalone relay for optimal performance and safety. Understanding this relationship is crucial for diagnosing fuel system issues and ensuring reliable vehicle operation.
| Characteristics | Values |
|---|---|
| Purpose of Relay | Protects the fuel pump circuit from overcurrent and voltage spikes; extends pump lifespan. |
| Power Handling | Relays handle high current draw (typically 10-20 amps) required by electric fuel pumps. |
| Switching Capability | Relays act as a switch, allowing low-current signals from the ECU to control high-current pump operation. |
| Heat Management | Relays dissipate heat generated by the pump's electrical load, preventing damage to wiring and components. |
| Voltage Drop Prevention | Relays minimize voltage drop between the battery and pump, ensuring consistent fuel pressure. |
| Circuit Protection | Relays include fuses or circuit breakers to protect against short circuits or electrical faults. |
| Compatibility | Most modern vehicles with electric fuel pumps use relays as part of the fuel system design. |
| Installation Requirement | Relays are typically required for proper and safe operation of electric fuel pumps. |
| Diagnostic Importance | Relay failure can cause pump malfunction; checking relay health is part of fuel system diagnostics. |
| Aftermarket Considerations | When upgrading fuel pumps, a compatible relay is often necessary to handle increased power demands. |
Explore related products
What You'll Learn
Relay Function in Fuel Pump Systems
Electric fuel pumps often require a relay to manage the high current draw efficiently. Without a relay, the pump’s power would route directly through the ignition switch, which is not designed to handle such loads. This setup risks overheating the switch, causing premature failure or even fire hazards. The relay acts as an intermediary, allowing the ignition switch to control a low-current circuit that activates the relay, which then switches the high-current circuit for the fuel pump. This design protects the vehicle’s electrical system while ensuring reliable fuel delivery.
Consider the relay as a gatekeeper in the fuel pump system. When the ignition is turned on, the relay receives a signal from the engine control unit (ECU) or ignition switch. It then closes the circuit, supplying power to the fuel pump. This process is critical during engine startup, as the pump must prime the fuel system before combustion begins. Relays also enable features like fuel pump shutoff in the event of an accident or when the engine is turned off, enhancing safety by preventing fuel delivery in non-operational states.
Not all fuel pump systems use relays, particularly in older vehicles with mechanical pumps or low-current electric pumps. However, modern vehicles with high-pressure fuel injection systems almost universally rely on relays. For instance, in a fuel-injected engine, the pump may require up to 20 amps of current, far exceeding the capacity of a typical ignition switch. A relay ensures this current flows safely, while also allowing the ECU to control pump operation based on engine load, speed, and other factors. This integration is essential for optimizing fuel efficiency and performance.
Installing or replacing a fuel pump relay requires attention to detail. Ensure the relay is rated for the pump’s current draw—typically 30–40 amps for most passenger vehicles. Locate the relay near the fuel pump to minimize voltage drop, but avoid areas prone to heat or moisture. When troubleshooting, check for common relay failures like burnt contacts or a stuck internal switch. A multimeter can verify continuity in the control circuit and proper switching of the power circuit. Always consult the vehicle’s wiring diagram to confirm connections and avoid miswiring.
In summary, the relay is a critical component in electric fuel pump systems, safeguarding the vehicle’s electrical system while enabling precise control of fuel delivery. Its role extends beyond mere current management, contributing to safety, efficiency, and performance. Whether upgrading an older vehicle or diagnosing a modern one, understanding the relay’s function and proper implementation is key to maintaining a reliable fuel system.
