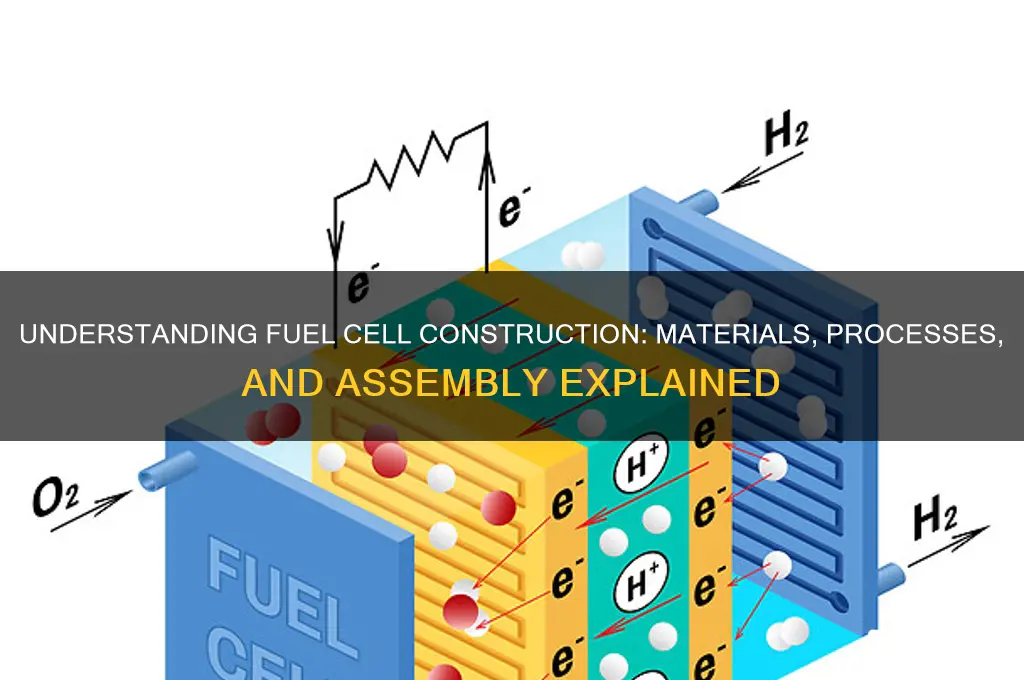

Fuel cells are innovative electrochemical devices that generate electricity through a chemical reaction between hydrogen and oxygen, producing only water and heat as byproducts. The construction of a fuel cell involves several key components, including an anode, a cathode, and an electrolyte membrane. The anode acts as the site where hydrogen molecules are split into protons and electrons, while the cathode facilitates the combination of protons, electrons, and oxygen to form water. The electrolyte membrane, typically made of a polymer material, separates the anode and cathode while allowing proton transfer. Additionally, catalysts, often platinum-based, are applied to the electrodes to enhance reaction efficiency. These components are carefully assembled and sealed within a robust structure to ensure optimal performance, durability, and safety, making fuel cells a promising technology for clean and efficient energy production.
Explore related products
What You'll Learn
- Electrode Materials: Catalysts like platinum on carbon fiber for efficient electrochemical reactions
- Membrane Assembly: Proton exchange membranes (e.g., Nafion) for ion conduction and gas separation
- Bipolar Plates: Graphite or metal plates for electron conduction and structural support
- Sealing Techniques: Gaskets and adhesives to prevent gas leaks and ensure durability
- Stack Integration: Combining cells in series to increase voltage and power output
Electrode Materials: Catalysts like platinum on carbon fiber for efficient electrochemical reactions
Platinum on carbon fiber is a cornerstone of fuel cell efficiency, but its cost and scarcity demand a nuanced approach to its use. The catalyst layer, typically 5-20 micrometers thick, is meticulously engineered to maximize surface area while minimizing platinum loading. A common formulation involves depositing 0.1-0.4 mg/cm² of platinum nanoparticles (2-5 nm in diameter) onto a carbon fiber substrate. This balance ensures sufficient catalytic activity for the oxygen reduction reaction (ORR) while keeping material costs manageable. Advanced techniques like sputtering or chemical vapor deposition (CVD) offer precise control over particle size and distribution, enhancing both performance and durability.
Consider the trade-offs when selecting carbon fiber as the support material. Its high conductivity and corrosion resistance make it ideal for fuel cell environments, but its cost can be prohibitive for large-scale applications. Alternatives like graphite or carbon black are cheaper but may compromise performance. For instance, carbon black’s lower surface area requires a higher platinum loading (up to 0.5 mg/cm²) to achieve comparable efficiency. In contrast, carbon fiber’s structured porosity allows for optimal gas diffusion and electron transport, critical for high-current-density operations. Manufacturers often blend materials, using carbon fiber in the cathode and graphite in the anode, to optimize cost and performance.
Practical implementation requires attention to detail. During fabrication, the platinum-carbon fiber electrode must be uniformly coated to avoid hotspots that accelerate degradation. A common method involves dispersing platinum nanoparticles in a solvent (e.g., isopropanol) with a binder like Nafion, then spraying the mixture onto the carbon fiber substrate. Drying at 80-100°C ensures adhesion without compromising the carbon fiber’s integrity. For researchers or hobbyists, pre-commercialized catalyst-coated carbon fiber papers (e.g., ELAT from Fuel Cell Store) offer a plug-and-play solution, though customization is limited.
Durability is a critical consideration, especially in automotive applications where fuel cells must withstand 5,000-10,000 hours of operation. Platinum dissolution and carbon corrosion are primary failure modes. To mitigate these, manufacturers incorporate stabilizers like tungsten or titanium in the catalyst layer, reducing platinum loss by up to 30%. Additionally, operating the fuel cell at temperatures below 80°C minimizes carbon oxidation. For extreme conditions, consider platinum-free catalysts like iron-nitrogen-carbon (Fe-N-C), though their performance currently lags behind platinum-based systems.
In summary, platinum on carbon fiber remains the gold standard for fuel cell electrodes, but its implementation requires careful optimization. By balancing platinum loading, selecting appropriate support materials, and addressing durability challenges, engineers can maximize efficiency while minimizing costs. Whether for research or commercial production, understanding these nuances is key to unlocking the full potential of fuel cell technology.
Is Hydrogen Fuel Truly Renewable? Exploring Its Sustainability and Potential
You may want to see also
Explore related products
Membrane Assembly: Proton exchange membranes (e.g., Nafion) for ion conduction and gas separation
Proton exchange membranes (PEMs), such as Nafion, are the unsung heroes of fuel cell technology, serving as the critical interface where ion conduction and gas separation occur. These membranes are typically composed of a fluoropolymer backbone with sulfonic acid groups that facilitate proton transport while blocking electrons and reactant gases. The assembly process begins with selecting a high-purity PEM material, often Nafion, due to its exceptional chemical stability and proton conductivity. The membrane is then carefully cut to the desired dimensions, ensuring precision to fit the fuel cell’s architecture. This step is crucial, as even minor imperfections can lead to gas crossover or reduced efficiency.
Once the membrane is prepared, it undergoes a hydration process to activate the sulfonic acid groups, which are essential for proton conduction. This is typically achieved by immersing the membrane in deionized water for 24–48 hours at room temperature. Proper hydration is critical; insufficient moisture reduces conductivity, while excess water can compromise mechanical integrity. After hydration, the membrane is sandwiched between two gas diffusion layers (GDLs), which provide structural support and facilitate gas transport to the catalyst layers. The assembly is then hot-pressed at temperatures ranging from 120°C to 140°C and pressures of 2–5 MPa for 3–5 minutes to ensure uniform bonding and eliminate air gaps.
A key challenge in membrane assembly is maintaining the delicate balance between gas separation and proton conductivity. Nafion’s microstructure, characterized by hydrophilic channels and hydrophobic regions, enables protons to migrate through water-filled pores while preventing hydrogen and oxygen gases from mixing. However, this dual functionality is highly sensitive to operating conditions. For instance, temperatures above 80°C can dehydrate the membrane, reducing conductivity, while excessive humidity can flood the GDLs, impeding gas diffusion. Engineers often incorporate humidification systems to maintain optimal moisture levels, typically between 50% and 80% relative humidity, depending on the fuel cell’s design and application.
Comparatively, alternative PEM materials like polybenzimidazole (PBI) or composite membranes offer advantages in high-temperature operation but lack Nafion’s proven durability and commercial availability. Nafion’s dominance in the market is a testament to its reliability, though ongoing research aims to enhance its performance by incorporating additives or modifying its structure. For practical applications, such as in automotive fuel cells, Nafion membranes are often coated with catalyst layers (e.g., platinum on carbon) during assembly to form a membrane electrode assembly (MEA). This integrated approach minimizes contact resistance and maximizes efficiency, ensuring the fuel cell operates at peak performance.
In conclusion, membrane assembly is a precision-driven process that hinges on material selection, hydration, and integration with supporting layers. Nafion’s unique properties make it the gold standard for PEMs, but its performance is highly dependent on careful handling and operating conditions. By mastering these intricacies, engineers can unlock the full potential of fuel cells, paving the way for cleaner, more efficient energy systems. Whether for transportation, portable electronics, or stationary power, the membrane assembly remains a cornerstone of fuel cell technology, blending science and engineering to bridge the gap between chemical energy and electricity.
Does Target Sell Butane Fuel? Availability and Alternatives Explained
You may want to see also
Explore related products
Bipolar Plates: Graphite or metal plates for electron conduction and structural support
Bipolar plates are the unsung heroes of fuel cell architecture, serving dual roles in electron conduction and structural integrity. Typically positioned between membrane electrode assemblies (MEAs), these plates must balance electrical efficiency with mechanical robustness. Graphite and metal variants dominate this application, each bringing distinct advantages and trade-offs. Graphite plates, for instance, offer superior corrosion resistance and lightweight properties, making them ideal for portable fuel cell systems. Metal plates, often made from stainless steel or titanium, excel in durability and thermal conductivity, though they require coatings to mitigate corrosion. The choice between the two hinges on the specific demands of the fuel cell application, such as operating temperature, power density, and cost constraints.
Consider the manufacturing process for these plates, which demands precision to ensure optimal performance. Graphite plates are typically machined or molded, with tolerances as tight as ±0.02 mm to maintain gas sealing and electrical contact. Metal plates, on the other hand, are often stamped or laser-welded, followed by surface treatments like gold plating or chromium coating to enhance conductivity and corrosion resistance. For example, a 1 kW proton-exchange membrane fuel cell (PEMFC) stack might use 50–100 bipolar plates, each weighing between 50–200 grams, depending on material choice. Proper design and fabrication are critical, as even minor defects can lead to gas leakage, electrical resistance, or mechanical failure, reducing the fuel cell's efficiency by up to 15%.
From a practical standpoint, selecting the right bipolar plate material requires a cost-benefit analysis. Graphite plates, while expensive (up to $50 per plate), offer a lifespan of over 5,000 hours in low-temperature fuel cells. Metal plates, costing around $10–$20 each, are more cost-effective for high-volume applications like automotive fuel cells but may require periodic maintenance due to corrosion. For hobbyists or small-scale projects, graphite plates are recommended for their ease of integration and reliability. Professionals, however, might opt for metal plates in systems operating above 100°C, where graphite's thermal expansion can compromise sealing.
A comparative analysis reveals that graphite plates outperform metal in low-temperature PEMFCs, particularly in portable electronics or backup power systems. Metal plates, however, dominate in high-temperature applications like solid oxide fuel cells (SOFCs), where their thermal stability and mechanical strength are indispensable. For instance, a graphite-based PEMFC stack might achieve an efficiency of 55–60%, while a metal-based SOFC stack can reach 60–70% efficiency due to higher operating temperatures. This underscores the importance of aligning material choice with the fuel cell's operational environment and performance goals.
In conclusion, bipolar plates are a critical yet often overlooked component in fuel cell design. Whether opting for graphite or metal, the decision should be guided by the specific requirements of the application, including temperature, durability, and cost. By understanding the strengths and limitations of each material, engineers and enthusiasts alike can optimize fuel cell performance and longevity. Practical tips include ensuring proper surface treatments for metal plates and maintaining consistent thickness in graphite plates to avoid electrical hotspots. With the right choice, bipolar plates can significantly enhance the efficiency and reliability of fuel cell systems, paving the way for broader adoption in energy-critical applications.
Shrinking Populations: How Decline Fuels Economic, Social, and Global Shifts
You may want to see also
Explore related products
Sealing Techniques: Gaskets and adhesives to prevent gas leaks and ensure durability
Effective sealing is critical in fuel cell construction, as even microscopic leaks can compromise performance, safety, and longevity. Gaskets and adhesives are the primary tools for achieving this, each with distinct advantages and application considerations. Gaskets, typically made from elastomers like silicone or fluoropolymers, provide a compressive seal between mating surfaces. Their resilience allows them to accommodate thermal expansion and mechanical stresses, making them ideal for dynamic environments. For instance, in proton exchange membrane fuel cells (PEMFCs), gaskets are strategically placed around the membrane electrode assembly (MEA) to prevent hydrogen and oxygen cross-contamination. However, gaskets require precise compression to avoid overloading or under-sealing, which can lead to material fatigue or leaks, respectively.
Adhesives, on the other hand, offer a permanent or semi-permanent bond, eliminating the need for mechanical compression. Epoxy and silicone-based adhesives are commonly used due to their chemical resistance and ability to fill surface irregularities. In solid oxide fuel cells (SOFCs), where operating temperatures exceed 500°C, ceramic adhesives are preferred for their thermal stability. Adhesives are particularly useful in sealing complex geometries or micro-channels, where gaskets would be impractical. However, their application requires meticulous surface preparation—degreasing, roughening, and priming—to ensure adhesion strength. Curing times and environmental conditions (e.g., humidity, temperature) must also be strictly controlled to avoid incomplete bonding.
The choice between gaskets and adhesives often hinges on the fuel cell type and operating conditions. For example, in low-temperature PEMFCs, gaskets are favored for their ease of assembly and disassembly, enabling maintenance and repair. In contrast, high-temperature SOFCs rely on adhesives to withstand extreme thermal cycling. Hybrid approaches, combining gaskets for primary sealing and adhesives for secondary reinforcement, are increasingly adopted to enhance reliability. For instance, a gasket might seal the MEA perimeter, while an adhesive secures peripheral components like gas diffusion layers.
Practical tips for optimizing sealing performance include selecting materials compatible with the fuel cell’s chemical environment—for instance, avoiding nitrile gaskets in hydrogen-rich systems due to their susceptibility to hydrogen embrittlement. Regular inspection and replacement of gaskets are essential, especially in applications with frequent thermal cycling. For adhesives, using automated dispensing systems ensures consistent application thickness and reduces the risk of voids or air pockets. Finally, testing seals under simulated operating conditions (e.g., pressure, temperature, humidity) is crucial to validate their integrity before deployment.
In conclusion, sealing techniques are a cornerstone of fuel cell durability and efficiency. Gaskets and adhesives each offer unique benefits, but their successful implementation requires careful material selection, precise application, and rigorous testing. By mastering these techniques, engineers can mitigate gas leaks, extend fuel cell lifespan, and unlock the full potential of this clean energy technology.
Understanding Butanol Fuel Production: A Step-by-Step Manufacturing Process
You may want to see also
Explore related products
Stack Integration: Combining cells in series to increase voltage and power output
Fuel cells, by their nature, produce a relatively low voltage—typically around 0.6 to 1.0 volts per cell, depending on the type and operating conditions. This limitation necessitates a practical solution for applications requiring higher voltages or greater power output. Stack integration addresses this challenge by combining multiple cells in series, effectively multiplying the voltage while maintaining the same current. For instance, a stack of 100 cells can generate 60 to 100 volts, making it suitable for electric vehicles, backup power systems, or portable electronics. This approach is fundamental to scaling fuel cell technology for real-world use.
To build a fuel cell stack, individual cells are connected in series using bipolar plates, which serve dual purposes: separating cells and distributing reactants (hydrogen and oxygen) across the stack. These plates are typically made of graphite or metal-coated carbon, chosen for their conductivity and corrosion resistance. The assembly process requires precision to ensure proper alignment, sealing, and electrical contact between cells. Gaskets or seals are used to prevent gas leakage, while end plates and tie rods compress the stack to maintain structural integrity. Each component must be meticulously designed and assembled to optimize performance and durability.
One critical consideration in stack integration is thermal and water management. As fuel cells operate, they generate heat and water as byproducts, which can affect efficiency and longevity if not properly managed. Cooling systems, such as air or liquid cooling, are often integrated into the stack design to maintain optimal operating temperatures. Additionally, water management systems, including humidifiers and drainage channels, ensure that the membrane remains hydrated without flooding the cell. Balancing these factors is essential for maximizing power output and minimizing degradation over time.
Comparing stack integration to other methods of increasing power output, such as parallel connections, highlights its advantages and limitations. While parallel connections increase current rather than voltage, they require more complex wiring and larger conductors to handle higher amperage. Stack integration, on the other hand, simplifies the electrical architecture by directly increasing voltage, which is particularly beneficial for high-power applications. However, the series configuration means that the performance of the entire stack is limited by the weakest cell, necessitating rigorous quality control during manufacturing and operation.
For practical implementation, engineers must consider the specific requirements of the application. For example, a fuel cell stack in a passenger vehicle might consist of 50 to 100 cells to achieve the necessary voltage for propulsion, while a stationary power system could require hundreds of cells for higher output. Regular maintenance, such as monitoring cell voltage and replacing degraded components, is crucial to ensure long-term reliability. By mastering stack integration, developers can unlock the full potential of fuel cells, making them a viable alternative to traditional energy sources in a variety of contexts.
How G Fuel Works: Ingredients, Effects, and Energy Boost Explained
You may want to see also
Frequently asked questions
A fuel cell consists of an anode, a cathode, and an electrolyte membrane. The anode is where fuel (e.g., hydrogen) is oxidized, the cathode is where oxygen is reduced, and the electrolyte allows ions to pass through while separating the reactants.
Common materials include platinum or other catalysts for the electrodes, polymer membranes (e.g., Nafion) for the electrolyte, and carbon paper or graphite for gas diffusion layers. The choice of materials depends on the type of fuel cell (e.g., PEMFC, SOFC).
The electrolyte membrane is typically made by casting or extruding a polymer material, such as perfluorinated sulfonic acid (PFSA), into a thin, flexible sheet. It is then treated to ensure proper ion conductivity and durability before being assembled into the fuel cell stack.
