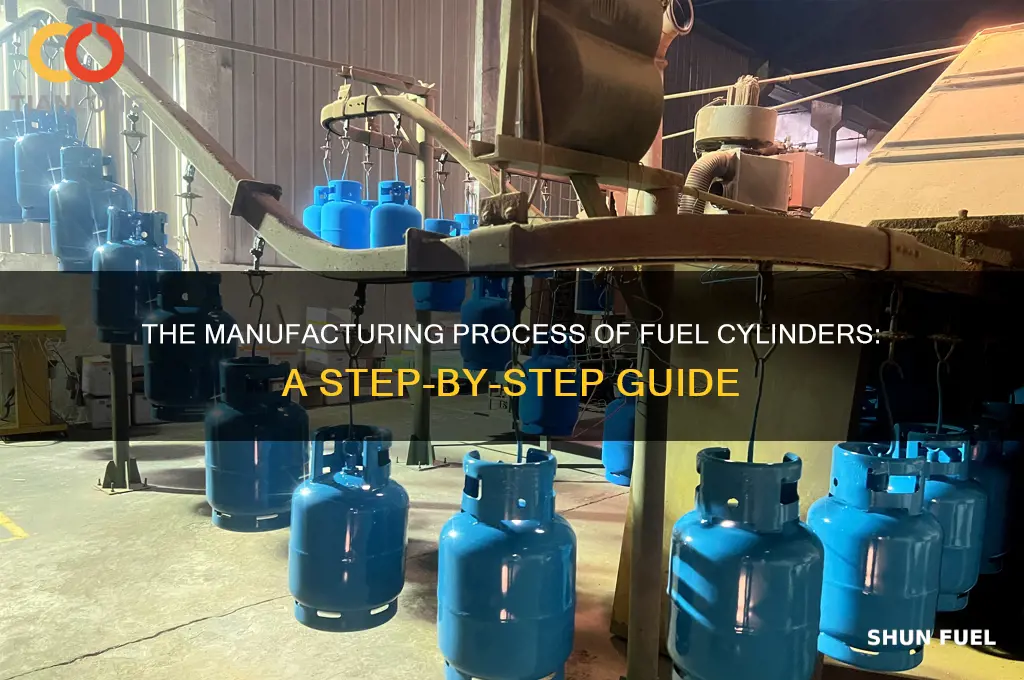

Fuel cylinders, essential for storing and transporting compressed gases like propane, butane, or natural gas, are manufactured through a precise and multi-stage process. Production begins with the selection of high-strength materials, typically steel or aluminum, which are chosen for their durability and corrosion resistance. The manufacturing process involves cutting and shaping the raw material into cylindrical forms, followed by welding or seamless extrusion to create a robust structure. The cylinder then undergoes heat treatment to enhance its strength and pressure resistance. Next, it is subjected to rigorous testing, including hydrostatic pressure tests, to ensure it meets safety standards. Finally, the cylinder is coated with protective paint or finishes to prevent rust and corrosion, and it is fitted with valves and safety mechanisms before being inspected and certified for use. This meticulous process ensures fuel cylinders are safe, reliable, and capable of withstanding high pressures in various applications.
| Characteristics | Values |
|---|---|
| Material | Typically high-strength steel or aluminum alloys (e.g., 6061-T6 aluminum). |
| Manufacturing Process | Deep drawing, spinning, or hydroforming for cylindrical shape. |
| Welding | Longitudinal and circumferential seams welded using TIG or MIG techniques. |
| Heat Treatment | Annealing or quenching to enhance strength and durability. |
| Surface Treatment | Galvanization, painting, or powder coating for corrosion resistance. |
| Pressure Testing | Hydraulic or pneumatic testing at 1.5x working pressure. |
| Valve Installation | Precision-machined valves with safety mechanisms (e.g., excess flow valves). |
| Certification | Compliance with standards like ISO 11119, DOT, or UN regulations. |
| Capacity Range | Typically 5 to 50 liters (or 1.3 to 13.2 gallons). |
| Wall Thickness | 1-3 mm depending on size and pressure rating. |
| Pressure Rating | 200-300 bar (2900-4350 psi) for common fuel cylinders. |
| Weight | 5-20 kg (11-44 lbs) depending on size and material. |
| Lifespan | 15-20 years with regular inspection and maintenance. |
| Markings | Stamped with manufacturer details, serial number, and test date. |
| Safety Features | Burst discs, pressure relief valves, and flame arrestors. |
| Applications | LPG, CNG, acetylene, and other fuel storage and transportation. |
Explore related products
What You'll Learn
- Material Selection: Choosing steel or aluminum based on strength, weight, and corrosion resistance for cylinder durability
- Seamless Tube Formation: Heating and piercing solid billets to create hollow tubes without seams for safety
- Heat Treatment: Strengthening the cylinder through controlled heating and cooling to enhance material properties
- Welding Processes: Joining cylinder components using precise welding techniques to ensure structural integrity
- Testing and Certification: Conducting pressure, leak, and quality tests to meet safety and regulatory standards
Material Selection: Choosing steel or aluminum based on strength, weight, and corrosion resistance for cylinder durability
Steel and aluminum dominate the material choices for fuel cylinders due to their distinct properties, each offering advantages and trade-offs in strength, weight, and corrosion resistance. Steel, an alloy of iron and carbon, boasts superior tensile strength, making it ideal for high-pressure applications. For instance, cylinders designed to withstand pressures exceeding 300 bar often utilize steel to ensure structural integrity under extreme conditions. However, this strength comes at the cost of increased weight, which can be a drawback in portable or vehicular applications where every kilogram matters.
Aluminum, on the other hand, is prized for its lightweight nature, weighing approximately one-third as much as steel. This makes aluminum cylinders a preferred choice for applications requiring mobility, such as in forklifts or recreational vehicles. Despite its lower density, aluminum can still achieve sufficient strength through alloying and heat treatment processes. For example, 6061-T6 aluminum, a common alloy, offers a tensile strength of around 275 MPa, which, while lower than steel, is often adequate for medium-pressure fuel storage.
Corrosion resistance is another critical factor in material selection. Steel, particularly when galvanized or coated, can resist corrosion effectively, but it remains susceptible to rust in harsh environments. Aluminum, however, naturally forms a protective oxide layer that provides excellent resistance to corrosion, even in saline or acidic conditions. This makes aluminum cylinders particularly suitable for marine or outdoor applications where exposure to moisture and chemicals is common.
The choice between steel and aluminum ultimately hinges on the specific demands of the application. For high-pressure, stationary systems where weight is less of a concern, steel’s superior strength and durability make it the optimal choice. Conversely, in scenarios where portability and corrosion resistance are paramount, aluminum’s lightweight and self-protecting properties offer clear advantages. Engineers must carefully weigh these factors, often using finite element analysis (FEA) or material testing, to ensure the selected material meets safety standards and performance requirements.
Practical tips for material selection include considering the operating environment—aluminum for corrosive settings, steel for high-stress conditions—and evaluating the lifecycle costs. While aluminum may be more expensive upfront, its longevity in corrosive environments can offset initial costs. Additionally, hybrid designs, such as steel liners with aluminum outer shells, are emerging as innovative solutions to combine the strengths of both materials. By understanding these nuances, manufacturers can optimize fuel cylinder designs for durability, safety, and efficiency.
Understanding the Production Process of Biodiesel Fuels: A Comprehensive Guide
You may want to see also
Explore related products
Seamless Tube Formation: Heating and piercing solid billets to create hollow tubes without seams for safety
The process of creating seamless tubes begins with a solid cylindrical billet, typically made of steel or aluminum, which is heated to a precise temperature range of 1100°C to 1250°C (2012°F to 2282°F). This critical step, known as homogenization, ensures the material becomes uniformly malleable, reducing the risk of cracking or uneven deformation during the subsequent piercing process. The billet is then positioned in a rotary piercer, where a mandrel is thrust through its center, displacing the material radially and outwardly to form a hollow tube. This method, often referred to as the Mannesmann process, is favored for its ability to produce tubes with consistent wall thickness and superior structural integrity, essential for fuel cylinders that must withstand high internal pressures.
Instructively, the piercing operation requires meticulous control over speed and force to avoid defects. The mandrel advances at a rate proportional to the billet’s rotation, typically 1 to 3 meters per second, while the applied force is monitored to ensure it remains within the material’s yield strength. Post-piercing, the tube undergoes a series of rolling and stretching operations to achieve the desired diameter and length. For fuel cylinders, this stage is crucial as it determines the tube’s capacity and pressure rating, with common sizes ranging from 5 to 20 liters for portable applications. Manufacturers often employ ultrasonic testing at this stage to detect any microscopic flaws that could compromise safety.
Comparatively, seamless tubes offer distinct advantages over welded alternatives, particularly in high-pressure applications like fuel storage. Welded cylinders, while cost-effective, introduce potential weak points at the seam, which can fail under stress or corrosion. Seamless tubes, by contrast, distribute stress uniformly across their structure, making them ideal for fuels like propane or natural gas, which operate at pressures up to 25 bar (362.5 psi). This inherent safety feature is why seamless cylinders are mandated in industries such as automotive, aerospace, and residential heating, where failure could have catastrophic consequences.
Descriptively, the final stages of seamless tube formation involve heat treatment and surface finishing. The tube is annealed at temperatures around 700°C (1292°F) to relieve internal stresses and improve ductility, followed by shot blasting to remove surface impurities. A protective coating, often zinc or epoxy-based, is then applied to enhance corrosion resistance, a critical factor for outdoor fuel storage. The cylinder is pressure-tested to 1.5 times its rated capacity, ensuring it meets regulatory standards such as ISO 11119-3. This rigorous process culminates in a product that not only ensures safety but also extends the cylinder’s lifespan, reducing the need for frequent replacements.
Persuasively, investing in seamless tube technology for fuel cylinders is a decision rooted in both safety and economics. While the initial production cost is higher than welded alternatives, the long-term benefits—reduced maintenance, lower failure rates, and compliance with stringent safety regulations—make it a prudent choice. For instance, a seamless propane cylinder can last over 20 years with proper care, compared to 10–15 years for a welded counterpart. As industries increasingly prioritize sustainability and risk mitigation, seamless tube formation stands out as a reliable, forward-thinking solution for fuel storage needs.
Seafoam Fuel Stabilizer: Does It Really Protect Your Engine?
You may want to see also
Explore related products
Heat Treatment: Strengthening the cylinder through controlled heating and cooling to enhance material properties
Heat treatment is a critical process in the manufacturing of fuel cylinders, transforming raw materials into robust, reliable containers capable of withstanding high pressures and harsh conditions. By subjecting the cylinder to controlled heating and cooling cycles, manufacturers can alter the material’s microstructure, enhancing properties like strength, hardness, and ductility. This process is not merely a step in production but a science-driven technique that ensures the cylinder’s longevity and safety.
Consider the typical heat treatment cycle for a steel fuel cylinder. The process begins with heating the cylinder to a specific temperature, often between 850°C and 950°C, depending on the alloy composition. This stage, known as austenitization, dissolves carbides and other phases within the material, creating a uniform structure. The cylinder is then rapidly cooled, or quenched, using oil, water, or air. Water quenching, for instance, cools the cylinder at a rate of approximately 20°C per second, ensuring the formation of martensite—a hard, strong phase of steel. However, this rapid cooling can introduce brittleness, necessitating a subsequent tempering step.
Tempering is a low-temperature heat treatment, usually performed between 200°C and 650°C, that reduces brittleness while maintaining hardness. For fuel cylinders, tempering is crucial to balance strength and toughness, ensuring the material can withstand both internal pressure and external impacts. For example, a cylinder tempered at 350°C for two hours will exhibit a tensile strength of around 1200 MPa and a yield strength of 1000 MPa, ideal for high-pressure applications. Manufacturers must carefully select tempering temperatures and durations to achieve the desired material properties without compromising safety.
A comparative analysis of heat treatment methods reveals the importance of precision. Induction heating, for instance, offers faster and more localized heating compared to traditional furnace methods, reducing energy consumption and minimizing distortion. However, it requires specialized equipment and expertise. Similarly, cryogenic treatment, involving cooling to temperatures as low as -196°C, can further enhance fatigue resistance but adds complexity and cost. Manufacturers must weigh these factors to determine the most effective heat treatment strategy for their specific cylinder design and application.
In practice, heat treatment is not a one-size-fits-all process. Factors like cylinder thickness, alloy composition, and intended use dictate the specific parameters. For instance, a thin-walled cylinder may require a gentler quenching medium to avoid warping, while a cylinder designed for extreme temperatures might undergo additional stress-relieving treatments. Regular testing, such as hardness measurements and impact tests, ensures the heat treatment process consistently meets safety standards. By mastering this intricate process, manufacturers can produce fuel cylinders that are not only strong but also safe and durable for real-world applications.
Does Techron Fuel Additive Really Improve Engine Performance and Efficiency?
You may want to see also
Explore related products
Welding Processes: Joining cylinder components using precise welding techniques to ensure structural integrity
Welding is the backbone of fuel cylinder manufacturing, where precision and technique determine the vessel's safety and longevity. The process begins with selecting the appropriate welding method, typically TIG (Tungsten Inert Gas) welding or MIG (Metal Inert Gas) welding, both of which offer the control needed for joining thin-walled components without compromising structural integrity. TIG welding, for instance, uses a non-consumable tungsten electrode and an inert gas shield to produce clean, strong welds, making it ideal for high-pressure applications like fuel cylinders. MIG welding, while faster, is often used for thicker materials or when production speed is a priority.
The welding process demands meticulous preparation. Components must be cleaned to remove contaminants like oil, grease, or oxides, as these can weaken the weld. Pre-heating the base material may be necessary to reduce the risk of cracking, especially in high-strength alloys. For example, stainless steel cylinders often require pre-heating to 200–300°C to minimize thermal stress during welding. The welder must also maintain a consistent travel speed and amperage to ensure uniform penetration and fusion, typically ranging from 50 to 200 amps depending on the material thickness and welding method.
Quality control is non-negotiable in welding fuel cylinders. Post-weld inspections, such as dye penetrant testing or radiographic testing, are essential to detect defects like cracks, porosity, or lack of fusion. These flaws can compromise the cylinder's ability to withstand internal pressures, which often exceed 200 bar in fuel applications. Additionally, welders must adhere to industry standards like ISO 3834 (quality requirements for fusion welding) to ensure consistency and reliability. A single oversight in this stage can lead to catastrophic failure, underscoring the critical nature of precision in welding.
Comparing welding techniques reveals trade-offs between speed, cost, and quality. While MIG welding is more cost-effective and faster, TIG welding offers superior weld quality and is often preferred for critical joints in fuel cylinders. Automated welding systems, such as robotic TIG welding, are increasingly used in high-volume production to enhance consistency and reduce human error. However, these systems require significant upfront investment and skilled operators to program and maintain them. The choice of technique ultimately depends on the cylinder's intended use, material, and regulatory requirements.
In practice, welders must balance technical skill with adherence to safety protocols. Personal protective equipment (PPE), including welding helmets, gloves, and respirators, is mandatory to protect against arc flash, fumes, and spatter. Environmental controls, such as proper ventilation and fume extraction systems, are equally important to mitigate health risks. For instance, exposure to hexavalent chromium in stainless steel welding fumes can cause respiratory issues if not managed properly. By combining technical precision with safety measures, welders ensure that fuel cylinders not only meet structural requirements but also safeguard users and the environment.
GTP's Role in Fueling Vesicle Formation: Mechanisms and Insights
You may want to see also
Explore related products
Testing and Certification: Conducting pressure, leak, and quality tests to meet safety and regulatory standards
Pressure testing is the cornerstone of fuel cylinder safety, ensuring the vessel can withstand the stresses of its intended use. Hydrostatic testing, for instance, subjects the cylinder to pressures up to 1.5 times its rated working pressure, holding it for a minimum of 30 seconds. This process, mandated by standards like ISO 11119-3, identifies weaknesses before the cylinder enters service. Pneumatic testing, using compressed air or nitrogen, offers a lighter alternative but requires meticulous control to avoid over-pressurization. Both methods must be conducted in controlled environments, with trained personnel monitoring for deformation, leaks, or failure.
Leak testing complements pressure testing by verifying the integrity of seals, valves, and welds. The most common method, the bubble test, involves submerging the cylinder in water while pressurized with air. Any escaping bubbles indicate a leak that must be addressed. For precision, helium mass spectrometer testing is employed, detecting leaks as small as 1x10^-8 mbar·L/s. This level of scrutiny is critical for high-pressure cylinders used in industries like automotive or aerospace, where even microscopic leaks can lead to catastrophic failures.
Quality control extends beyond testing to encompass material inspection, dimensional checks, and surface finish evaluation. Ultrasonic testing, for example, detects internal flaws in the cylinder wall, while visual inspection ensures compliance with surface finish standards (e.g., Ra < 25 μm for corrosion resistance). Dimensional checks verify wall thickness, diameter, and thread specifications, ensuring compatibility with fueling systems. These steps, often automated in modern manufacturing, reduce human error and ensure consistency across production batches.
Certification is the final hurdle, requiring compliance with regional and international standards such as DOT 49 CFR in the U.S., UNECE R110 in Europe, or GB 5100 in China. Manufacturers must maintain detailed records of testing procedures, results, and traceability for each cylinder. Third-party auditors, like TÜV or UL, conduct periodic inspections to validate adherence to these standards. Without certification, cylinders cannot be legally sold or used, making this step as critical as the testing itself.
Practical tips for manufacturers include investing in automated testing equipment to enhance accuracy and efficiency, training staff on the latest regulatory updates, and implementing a robust quality management system (QMS) like ISO 9001. For end-users, verifying the certification markings on cylinders and adhering to recommended inspection intervals (typically every 5–10 years) ensures ongoing safety. In both cases, vigilance and adherence to standards are non-negotiable in the high-stakes world of fuel cylinder production and use.
Natural Resources: The Hidden Spark Igniting Global Conflict and Strife
You may want to see also
Frequently asked questions
Fuel cylinders are typically made from high-strength materials such as steel, aluminum, or composite materials like carbon fiber. The choice of material depends on the intended use, pressure requirements, and safety standards.
Cylinders are usually formed through a process called deep drawing or spinning, where a flat metal sheet is shaped into a cylindrical form. For composite cylinders, layers of material are wrapped around a mold under high pressure and heat.
Safety measures include rigorous testing for pressure resistance, leak detection, and adherence to international standards (e.g., ISO, DOT). Cylinders are also inspected for defects and treated with corrosion-resistant coatings.
Cylinders undergo hydrostatic testing, where they are filled with water and pressurized to levels higher than their intended use to ensure structural integrity. They are also checked for leaks and certified before distribution.
