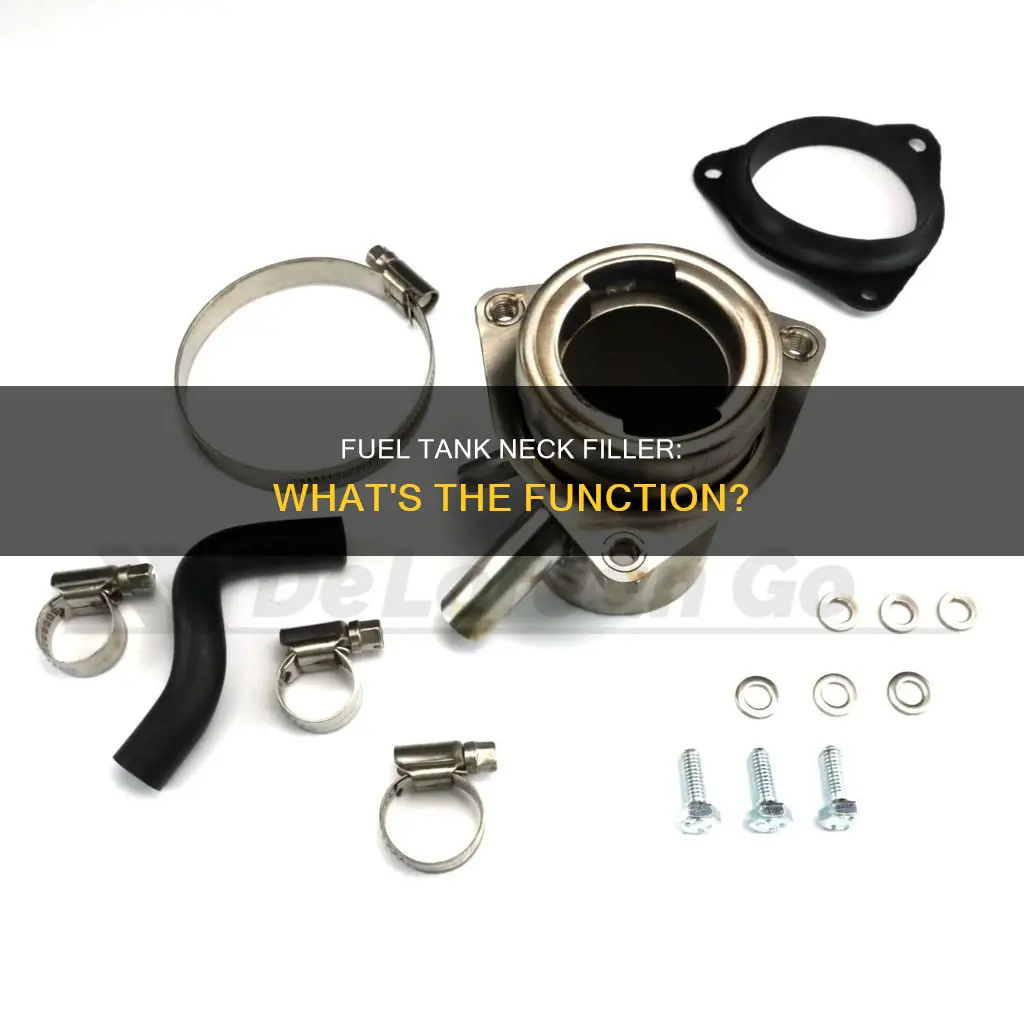

The fuel filler neck is a crucial component of a vehicle's fuel system, acting as a conduit for fuel to enter the tank safely. It is typically made of tubular steel, connecting the fuel filler inlet and the rubber fuel hose attached to the gas tank. Over time, the neck may rust or the rubber hose may crack, leading to fuel leaks. Replacing the fuel filler neck involves a meticulous process, including locating and lowering the fuel tank, disconnecting various components, and carefully inspecting and cleaning the rubber hose and related parts. Proper sealing and ventilation are critical to prevent fuel leakage and ensure the safe release of fuel vapors.
| Characteristics | Values |
|---|---|
| Material | Metal, Steel, Stainless Steel, Zinc Plated Steel, Billet Aluminum |
| Color | Gray |
| End 1 Outside Diameter | 2 inches |
| End 2 Outside Diameter | 2 inches (51mm) |
| Length | 6.5 inches (165mm) to 23 inches (584mm) |
| Attachment Method | Threaded |
| Hose Included | No |
| Seal Included | No |
| Vent Line Included | No |
| Hose Attachment | Rubber Hose with Steel Hose Clamp |
| Hose Replacement | If cracked, the hose must be replaced |
| Breather Valve | Allows fuel vapors to escape into the canister but not water or debris |
| One-Way Valve | Prevents objects from entering the fuel tank |
Explore related products
What You'll Learn
- The fuel filler neck is made of steel and is connected with steel screws
- The rubber hose must be inspected for cracks and replaced if necessary
- The neck is sealed with a steel hose clamp to prevent fuel leakage
- The breather valve releases fuel vapours into the canister
- The fuel tank must be lowered to replace the filler neck
The fuel filler neck is made of steel and is connected with steel screws
The fuel filler neck is a crucial component in a vehicle's fuel system, connecting the fuel filler inlet and the rubber fuel hose on the gas tank. It is typically made of steel, a durable material that can withstand the weight of the fuel and the pressure of the filling process.
The fuel filler neck is a solid piece of formed tubular steel, designed to be strong and sturdy. It is connected to the body inlet cutaway using steel screws, ensuring a secure and tight fit. This connection is vital as it prevents fuel leakage and potential damage to the vehicle. Steel is an ideal material for this purpose due to its strength and resistance to corrosion.
The steel screws used to fasten the fuel filler neck play a critical role in maintaining the integrity of the fuel system. They provide a firm hold, preventing any loosening or shifting of the neck during vehicle operation. Steel screws are also highly resistant to rust and corrosion, ensuring the long-term reliability of the connection.
In addition to the steel construction of the fuel filler neck and screws, a steel hose clamp is often used around the rubber hose to further seal the connection and prevent fuel leakage. This multi-layered approach ensures the safety and efficiency of the fuel system.
Over time, the fuel filler neck may rust, creating leaks, and the rubber hose may weather-crack, causing similar issues. Regular maintenance and inspection of these components are crucial to identify and address any potential problems.
Fuel Tank Installation Guide for 1966 Mustang
You may want to see also
Explore related products
The rubber hose must be inspected for cracks and replaced if necessary
The rubber hose is an important component of the fuel tank filler neck. It is attached to the vehicle's fuel tank and connected to the fuel filler neck, which is usually made of steel. Over time, the rubber hose can become weather-cracked, causing fuel leaks. Therefore, it is essential to inspect the rubber hose for any cracks during the process of replacing the fuel filler neck.
- Locate the fuel tank: Go under the vehicle and find the fuel tank.
- Lower the fuel tank: Use a transmission jack or a similar tool to lower the fuel tank slightly by loosening and removing the straps.
- Disconnect the harness: Reach up to the top of the fuel tank and disconnect the harness from the connector. This harness is for the fuel pump or sending unit, typically on older vehicles.
- Access the rubber hose: Lower the fuel tank further to gain access to the rubber hose attached to the fuel tank.
- Inspect the rubber hose: Carefully examine the rubber hose for any signs of cracks or damage.
- Replace if necessary: If there are any cracks or damage to the rubber hose, it must be replaced with a new one.
It is crucial to ensure that the rubber hose is in good condition to prevent fuel leaks. A steel hose clamp is typically used around the rubber hose to seal the fuel filler neck and prevent leaks. By following these steps and replacing the rubber hose if necessary, you can help maintain the proper functioning and safety of the fuel tank filler neck system.
Installing an ATI Auxiliary Fuel Tank: A Step-by-Step Guide
You may want to see also
Explore related products
The neck is sealed with a steel hose clamp to prevent fuel leakage
The fuel filler neck is a crucial component in a vehicle's fuel system, serving as the conduit between the fuel filler inlet and the rubber fuel fill hose connected to the gas tank. Over time, the fuel filler neck is susceptible to rust, which can lead to leaks. Additionally, the rubber hose can become weather-cracked, further exacerbating the issue of fuel leakage. To address this, the fuel filler neck is sealed with a steel hose clamp, ensuring a tight connection and preventing any fuel from leaking out.
The process of sealing the neck involves placing a clamp around the rubber hose that connects to the fuel filler neck. This clamp is then tightened securely, allowing the fuel filler neck to twist while maintaining the clamp's position. It is imperative not to reuse old clamps as they may not hold tightly, leading to vapour leaks.
When replacing the fuel filler neck, it is essential to follow specific steps to ensure a proper seal and prevent leaks. Firstly, locate the fuel tank and lower it using a transmission jack or a similar tool. Remove the fuel filler cap cable from the fuel neck and set it aside. Disconnect the harness from the connector, which can be found on top of the fuel tank.
The next steps involve removing the old fuel filler neck and preparing for the installation of the new one. After inspecting and, if necessary, replacing the rubber hose, the new fuel filler neck can be twisted into the rubber hose. A new clamp is then placed on the hose, and it is tightened to secure the connection. Finally, the fuel tank is raised back into position, and the vent hose is attached using another new clamp.
By following these steps and ensuring a tight seal with the steel hose clamp, the fuel filler neck prevents fuel leakage, maintaining the vehicle's fuel system integrity.
The Heavy Haul: Loaded Fuel Tanker Weights Explored
You may want to see also
Explore related products
$9.74 $12.99
$13.99 $14.99
The breather valve releases fuel vapours into the canister
The breather valve is usually located at the highest point of the fuel tank. It is a hose with a small filter that leads to the boot floor, venting to the atmosphere under the car. This hose can also lead to a charcoal canister, where the fuel vapours are filtered and drawn out by the vacuum line to the manifold. The charcoal canister also releases excess tank pressure through a small rubber hose at the bottom of the canister.
If the canister purge valve is not opening properly, it can impact gas mileage as vapours will be vented to the environment instead of being used in combustion. A stuck-open purge valve can also create a vacuum leak, allowing too much air into the engine and affecting the car's air-to-fuel ratio. This can cause rough idling and difficulty starting the engine.
The breather valve plays a crucial role in the EVAP system by releasing fuel vapours into the charcoal canister, preventing their escape into the atmosphere, and ensuring they are used efficiently in the engine's combustion process.
Lawn Mower Fuel Tank: Checking the Check Valve
You may want to see also
Explore related products
$14.97 $19.99
$5.98
$18.98 $22.99
The fuel tank must be lowered to replace the filler neck
The fuel filler neck is a crucial component of a vehicle's fuel system, allowing for the convenient refuelling of the tank. It is constructed of tubular steel and is connected to the fuel tank by a rubber hose. Over time, the neck can become damaged, corroded, or clogged, leading to leaks or even complete failure.
Replacing a fuel filler neck can be challenging, but with the right tools and knowledge, it can be accomplished. The process typically involves locating and accessing the neck, removing the old neck, and installing a new one.
In some cases, the fuel tank must be lowered to gain access to the filler neck for replacement. This is often the case when dealing with the lower part of the neck, which can be buried in the body of the vehicle. To lower the fuel tank, a jack stand should be placed under the jacking point locations, following the vehicle's owner's manual for proper jacking locations. Once the vehicle is secured on the jack stands, the fuel tank straps can be loosened and removed, allowing the tank to be lowered.
It is important to note that the fuel tank should only be lowered enough to gain access to the filler neck. Once the replacement is complete, the tank can be raised back into position and secured with the straps.
Adjusting Fuel Tank Sending Unit: A Step-by-Step Guide
You may want to see also
Frequently asked questions
The fuel filler neck is a solid piece of formed tubular steel that joins the fuel filler inlet and the rubber fuel fill hose on the gas tank.
The fuel filler neck is connected to the body inlet cutaway with steel screws and is fitted inside a rubber hose attached to the vehicle’s fuel tank. There is a one-way valve inside the fuel filler neck that prevents objects from entering the fuel tank.
The fuel filler neck can fail due to exterior damage or the presence of vapors. Over time, the neck can also rust, creating leaks, and the rubber hose can become weather-cracked, causing fuel leaks.
To replace a fuel filler neck, you will need to locate and lower the fuel tank, disconnect the harness, and remove the fuel filler neck. You will then need to inspect and clean the rubber hose, replace the breather valve if necessary, and install a new fuel filler neck and vent hose.
It is recommended to have the vehicle at a quarter tank of fuel or less when removing the fuel filler neck. It is also important to use new clamps when attaching the new fuel filler neck and vent hose to prevent vapor leaks.
