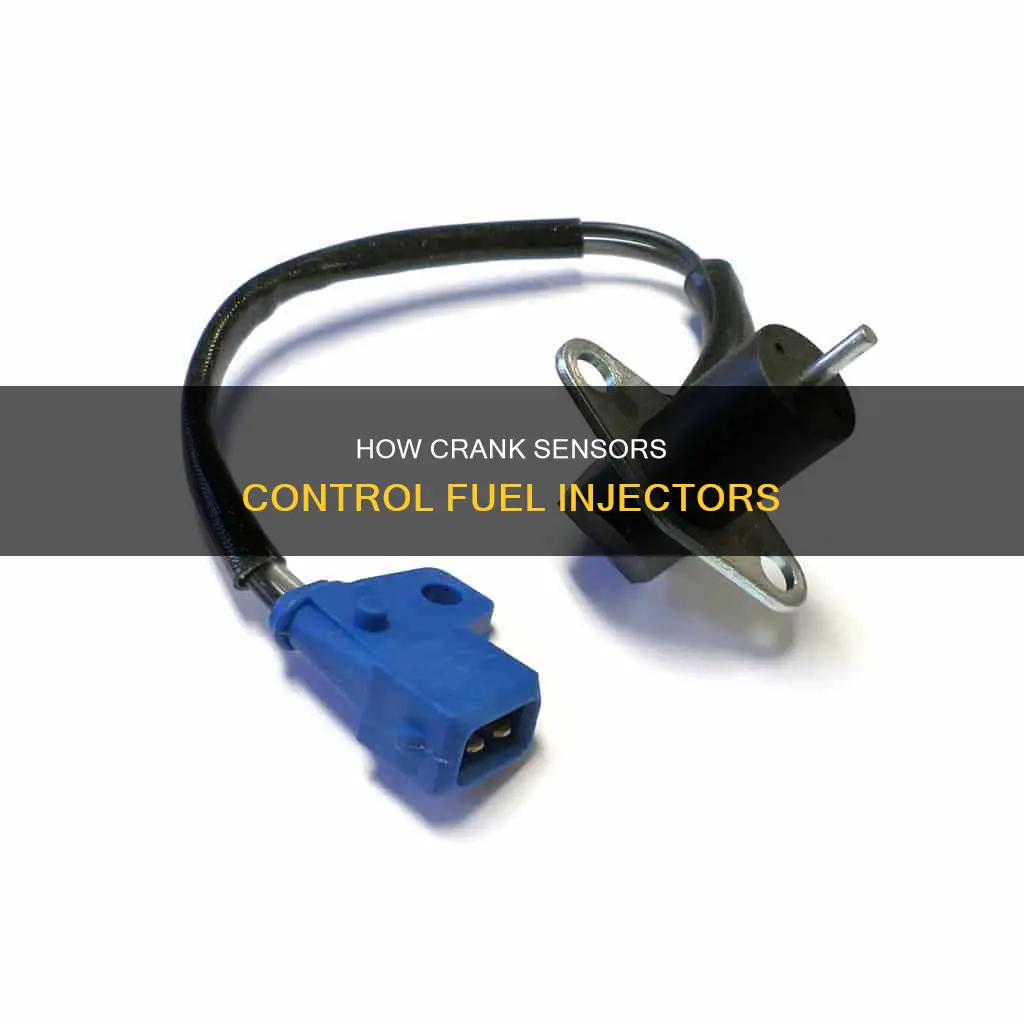

The crankshaft position sensor is an important component of an engine, as it communicates the position of the crankshaft to the engine computer, which in turn controls the fuel injectors and ignition spark. A faulty crankshaft position sensor can cause issues with the engine, such as a lack of spark or injector pulse, resulting in a no-start condition. Therefore, it is crucial to diagnose and replace faulty crankshaft position sensors promptly to ensure the engine runs smoothly.
Explore related products
What You'll Learn
- Crankshaft position sensor issues can cause no injector pulse
- The crank signal will not pass through the PCM to the injectors
- The camshaft position sensor also operates the injectors
- A faulty crank position sensor may cause no spark
- The PCM references the crankshaft position sensor for ignition and injector timing
Crankshaft position sensor issues can cause no injector pulse
The crankshaft position sensor (CKP) is a crucial component of an engine's management system. It plays a pivotal role in orchestrating fuel injection and ignition timing. The CKP's signal helps the engine control unit (ECU) calculate the optimal timing for fuel delivery and spark ignition. If the CKP fails or malfunctions, it can lead to a range of engine performance issues, including rough idling, stalling, reduced power output, and increased fuel consumption.
The CKP detects the presence of a metal tooth or notch on the crankshaft's flywheel or harmonic balancer using either a magnetic or optical sensing mechanism. This precise measurement of the crankshaft's position and rotational speed provides crucial information for the ECU to determine the ideal moment for the spark plug to ignite the air-fuel mixture. This ensures that the combustion process occurs at the optimal time, maximising engine performance and minimising emissions.
When the CKP fails, the crank signal will not pass through the PCM (Powertrain Control Module) to the injectors. This can result in no injector pulse, causing the engine to stall or have difficulty starting. In addition, a faulty CKP can also lead to a lack of spark, further compounding the issue. Therefore, it is essential to diagnose and address any CKP issues promptly to ensure the proper functioning of the engine.
Diagnosing CKP issues can be challenging due to the sensor's hidden location and the complex nature of its signal. However, several techniques can aid in identifying a faulty CKP. These include code reading, where the ECU may store diagnostic trouble codes (DTCs) related to the CKP, and oscilloscope testing, which can capture the CKP's signal waveform and reveal any anomalies or interruptions. Once a faulty CKP is identified, replacing it is relatively straightforward and typically involves disconnecting the battery, locating the sensor, unbolting it, installing a new sensor, and reconnecting the battery.
Water-Soaked Fuel Injectors: What You Need to Know
You may want to see also
Explore related products
The crank signal will not pass through the PCM to the injectors
It seems that the crank signal not passing through the PCM to the injectors could be due to a faulty PCM. This could be caused by a number of factors, including a bad ECM, or issues with the ASD and TCM relays.
Firstly, it is important to understand the role of the PCM, or Powertrain Control Module, in the engine management system. The PCM is essentially the brain of the engine, controlling and monitoring various sensors and actuators to ensure the engine runs smoothly. It receives input from sensors, such as the crankshaft and camshaft sensors, and then sends output signals to actuators, like the fuel injectors, to make sure the engine is performing optimally.
Now, if the crank signal is not reaching the injectors, it could indicate a problem with the PCM's ability to transmit signals. One potential cause could be a faulty Engine Control Module (ECM). The ECM is responsible for interpreting the signals from the PCM and other sensors, and then sending the appropriate signals to the fuel injectors. If the ECM is bad, it may not be relaying the crank signal to the injectors, resulting in a "crank no-start" condition.
Additionally, issues with the ASD (Auto Shut Down) and TCM (Transmission Control Module) relays could be interrupting the signal path. The ASD relay is crucial for power distribution, and a problem with it could affect the PCM's ability to transmit signals. Similarly, the TCM plays a role in managing the engine and transmission, and if it's not providing the necessary signals to the PCM, it could disrupt the crank signal's path to the injectors.
To diagnose the issue, it is recommended to perform thorough testing of the PCM, ECM, and related sensors and relays. This may involve checking for power, grounds, and signal pulses, as well as examining wiring diagrams to ensure proper connections. By systematically testing and eliminating potential causes, the specific reason for the crank signal not passing through the PCM to the injectors can be identified and addressed.
Testing Multi-Port Fuel Injectors: A Step-by-Step Guide
You may want to see also
Explore related products
The camshaft position sensor also operates the injectors
The camshaft position sensor (CMP) is an electronic component used in an internal combustion engine to monitor the rotational speed (RPM) and position of the camshaft. The CMP sensor is a crucial monitoring component in an IC engine. It continually tracks the camshaft, sending data about its rotation and speed to the ECM or Engine Control Module. The CMP sensor helps the engine control systems ensure proper fuel injection and sparking or ignition timing.
The Engine Control Module (ECM) uses the data from the CMP to determine the ignition timing and perform fuel injector control. The CMP sensor detects the cam as it spins alongside the crankshaft and helps the onboard computer to know when the valves are opening or closing. The crankshaft rotates the camshaft, with the cam spinning at twice the crankshaft speed. The car computer uses the information to optimize engine operation.
The CMP sensor is usually located near the primary pulley, flywheel, transmission bell housing, engine cylinder block, or the camshaft itself. Inductive sensors, the most common type, monitor the speed of rotating parts by using a magnet to sense the position of gaps (notches) in a rotating trigger wheel. The pin pole core of the sensor is made of a solenoid winding that encloses soft iron and is connected to a permanent magnet. As the trigger wheel rotates, the passing of the notches across the pin pole core causes changes in the magnetic field, resulting in a sinusoidal AC voltage in the solenoid winding.
The CMP sensor plays a critical role in ensuring the engine's proper functioning. When there is a malfunction in the sensor or an open or short circuit in the wiring, various operational issues can occur due to the loss of timing signals needed for determining the correct spark plug firing sequence and controlling fuel injection and ignition timing. Under the worst-case scenario, a faulty CMP or related circuit issue may result in an engine that cranks but refuses to start or run.
Fuel Injector Failure: Signs Your Car Can't Ignore
You may want to see also
Explore related products
A faulty crank position sensor may cause no spark
A faulty crank position sensor can cause a number of issues with a vehicle's engine, including a no-spark condition. The crank sensor is responsible for signalling to the ECU (engine control unit) when to fire the coils, so a faulty sensor can interrupt this process and prevent the engine from starting.
In some cases, a faulty crank position sensor may not trigger any trouble codes, making diagnosis more challenging. However, if the sensor is not mounted correctly or is malfunctioning, it can disrupt the normal operation of the engine and cause a no-spark condition.
To diagnose a faulty crank position sensor, one can check the sensor's mounting and connections. If it is not mounted correctly or has come loose, this could be the reason for the no-spark issue. In some cases, the sensor may need to be pulled out and inspected further, which may involve accessing the tone ring.
It is important to note that other factors could also contribute to a no-spark condition, such as a bad coil or issues with the distributor. Therefore, comprehensive diagnostics, including checking for trouble codes and verifying the condition of related components, are crucial to accurately identify the root cause of the problem.
A faulty crank position sensor can disrupt the engine's normal operation, leading to a no-spark condition and preventing the engine from starting. Proper diagnosis and addressing the sensor issue or any other underlying causes are necessary to restore the vehicle's functionality.
Understanding Diesel Injector PSI: Performance and Maintenance
You may want to see also
Explore related products
The PCM references the crankshaft position sensor for ignition and injector timing
The crankshaft position sensor is an important component of an engine's fuel injection and ignition system. It provides the Powertrain Control Module (PCM) with the necessary information to determine the crankshaft's position and, consequently, the appropriate timing for fuel injection and ignition.
The PCM, also known as the Engine Control Unit (ECU), is the brain of the engine that controls various functions, including fuel injection and ignition timing. By referencing the crankshaft position sensor, the PCM can accurately time the fuel injection and ignition events, ensuring that they occur at the precise moment required for efficient engine operation.
The crankshaft position sensor works in conjunction with the camshaft position sensor to provide a complete picture of the engine's operation. While the camshaft position sensor informs the PCM of the cylinder's position (compression or exhaust stroke), the crankshaft position sensor provides information about the crankshaft's rotational position and speed.
By combining these inputs, the PCM can calculate the appropriate timing for fuel injection and ignition. This ensures that the fuel injectors deliver the right amount of fuel at the right time, and the ignition system ignites the air-fuel mixture at the optimal moment for efficient combustion and engine performance.
A faulty crankshaft position sensor can cause issues with the engine's performance. If the sensor fails or becomes intermittent, it may result in a loss of spark and injector pulse, leading to a "no-start" condition or erratic engine behaviour. Therefore, it is crucial to monitor the crankshaft position sensor's health and replace it if necessary to maintain the engine's proper operation.
Fuel Injectors: Power Boost or Myth?
You may want to see also
Frequently asked questions
Yes, the crank sensor does control the fuel injectors.
The crank sensor, also known as the crankshaft position sensor, provides the crankshaft position (CKP) to the PCM, which is used as a reference for all ignition and injector timing.
If the crank sensor fails, it may result in no spark and no injector pulse, causing the vehicle not to start.
A gentle tap with a spanner on the sensor may bring it back online temporarily. However, it is recommended to replace the sensor as soon as possible.
Yes, the camshaft position (CMP) sensor also plays a role in operating the fuel injectors. The CMP sensor tells the PCM if the number one cylinder is on the compression or exhaust stroke.
