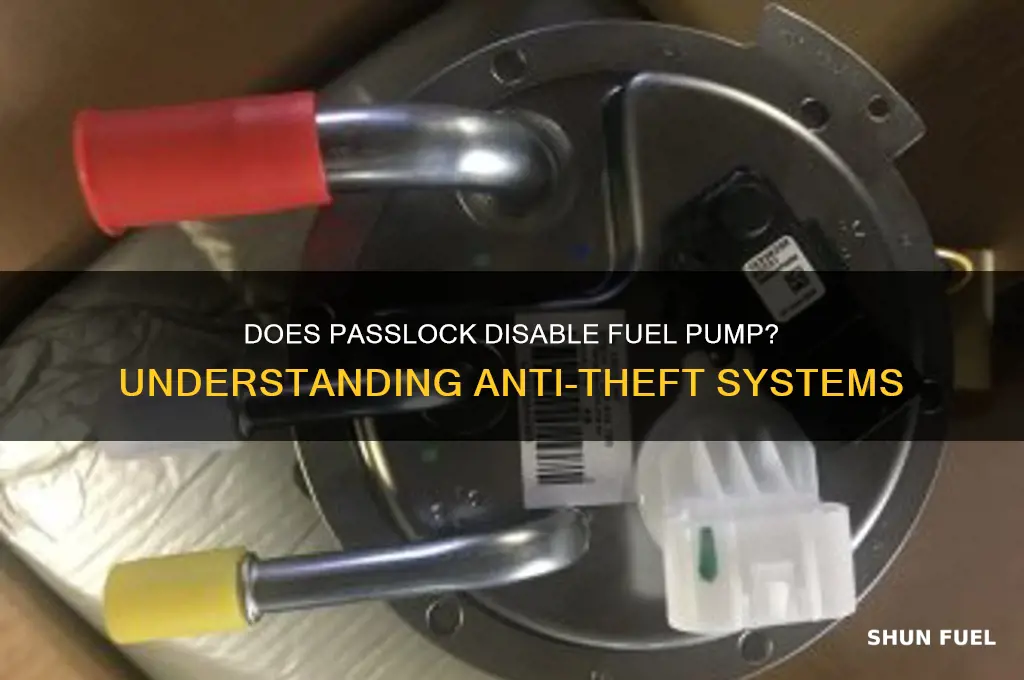

The question of whether a passlock system disables the fuel pump is a common concern among vehicle owners, particularly those with General Motors (GM) vehicles equipped with this anti-theft feature. Passlock, designed to prevent unauthorized starting of the engine, operates by interrupting the ignition circuit when it detects an incorrect key or tampering. While its primary function is to cut off the starter signal, there is often confusion about whether it also affects the fuel pump. Understanding the interaction between the passlock system and the fuel pump is crucial for diagnosing issues such as a no-start condition, as it helps determine whether the problem stems from the anti-theft mechanism or another component of the vehicle’s fuel or ignition system.
| Characteristics | Values |
|---|---|
| Does Passlock Disable Fuel Pump? | Yes, Passlock can disable the fuel pump as a security measure. |
| Purpose | To prevent vehicle theft by cutting off fuel supply when unauthorized access is detected. |
| Trigger Mechanism | Incorrect key, tampered ignition, or faulty Passlock sensor. |
| System Component | Passlock system (includes sensor, module, and fuel pump relay). |
| Symptoms of Activation | Engine cranks but doesn’t start, stalling, or no-start condition. |
| Reset Method | Turn the key to the "On" position and wait for the security light to turn off (typically 10 minutes). |
| Common Affected Vehicles | Chevrolet, GMC, Pontiac, Buick, and other GM vehicles (1990s–2000s). |
| Diagnostic Codes | P1629, P1630, or B2960 (related to Passlock system issues). |
| Bypass Methods | Resistor bypass, VATS module replacement, or professional reprogramming. |
| Reliability | Known for false triggers due to aging components or wiring issues. |
| Modern Alternative | Replaced by more advanced immobilizer systems in newer vehicles. |
Explore related products
What You'll Learn
- Passlock System Basics: Understanding how Passlock security systems interact with vehicle fuel pump operations
- Fuel Pump Shutdown: Does Passlock automatically disable the fuel pump when triggered
- Anti-Theft Mechanism: Role of Passlock in preventing unauthorized vehicle starts via fuel pump control
- Diagnostic Trouble Codes: Identifying Passlock-related codes that may affect fuel pump functionality
- Bypass Methods: Techniques to reset or bypass Passlock if it disables the fuel pump
Passlock System Basics: Understanding how Passlock security systems interact with vehicle fuel pump operations
The Passlock system, a cornerstone of General Motors' vehicle security since the mid-1990s, operates as a sophisticated anti-theft mechanism. At its core, Passlock integrates a resistor-based key and an Engine Control Module (ECM) to verify the legitimacy of the ignition key. When the correct key is used, the ECM receives a specific resistance value, allowing the vehicle to start. However, if an unauthorized key or bypass method is detected, the system triggers a security protocol. One critical aspect of this protocol involves the fuel pump, a component essential for engine operation. Understanding this interaction is key to diagnosing and resolving Passlock-related issues.
Passlock's interaction with the fuel pump is designed to immobilize the vehicle by interrupting fuel delivery. When the system detects a security breach, such as an incorrect key or tampering, it sends a signal to the ECM to disable the fuel pump relay. This action cuts off the electrical signal to the fuel pump, preventing it from activating. As a result, the engine cannot receive fuel, effectively rendering the vehicle inoperable. This mechanism is a deliberate security measure to deter theft, but it can also cause frustration for owners experiencing false triggers or system malfunctions.
Diagnosing Passlock-related fuel pump issues requires a systematic approach. Start by checking for diagnostic trouble codes (DTCs) using an OBD-II scanner, as codes like P1629 or P1630 often indicate Passlock system malfunctions. Next, inspect the fuel pump relay and wiring harness for signs of damage or corrosion. If the relay tests faulty, replacing it may resolve the issue. However, if the problem persists, the Passlock sensor or ECM may require attention. In some cases, reprogramming the ECM or replacing the Passlock module becomes necessary. Always consult a professional or vehicle-specific manual for accurate procedures.
For vehicle owners, understanding the Passlock system’s behavior can save time and money. For instance, if the security light flashes rapidly upon starting the vehicle, it indicates a Passlock fault. In such cases, the fuel pump may remain disabled until the issue is resolved. A temporary workaround involves turning the key to the "On" position for 10 minutes, allowing the system to reset. However, this is not a permanent solution and highlights the need for proper diagnosis. Proactive measures, such as using only OEM keys and avoiding aftermarket bypass devices, can prevent Passlock-related fuel pump issues.
In summary, the Passlock system’s interaction with the fuel pump is a critical security feature that can also be a source of frustration when malfunctions occur. By understanding its operation, diagnosing issues systematically, and taking preventive measures, vehicle owners can mitigate the impact of Passlock-related fuel pump disabilities. Whether addressing a flashing security light or a no-start condition, knowledge of this system empowers owners to tackle problems effectively and maintain their vehicle’s security integrity.
