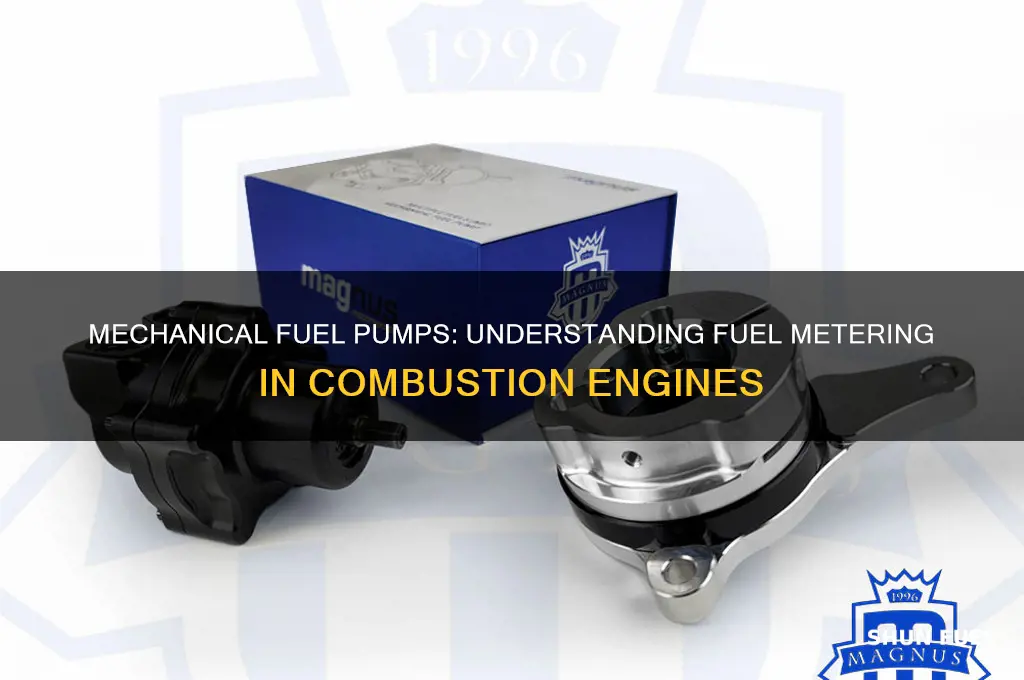

Mechanical fuel pumps play a crucial role in internal combustion engines by metering the precise amount of fuel required for efficient combustion. Unlike electric fuel pumps, which rely on external control systems, mechanical pumps are directly driven by the engine's camshaft or crankshaft, ensuring synchronization with engine speed. These pumps typically use a diaphragm or plunger mechanism to draw fuel from the tank and deliver it to the carburetor or fuel injection system. The metering process is controlled by the pump's design, which includes a pressure regulator and a series of valves that adjust fuel flow based on engine demand. This mechanical precision ensures that the correct fuel-to-air ratio is maintained across varying engine loads and speeds, optimizing performance, fuel efficiency, and emissions. Understanding how these pumps meter fuel provides valuable insights into the fundamentals of engine operation and the evolution of fuel delivery systems.
| Characteristics | Values |
|---|---|
| Pump Type | Mechanical fuel pump (diaphragm or plunger type) |
| Fuel Metering Mechanism | Pulsating or intermittent fuel delivery based on engine speed and demand |
| Operation Principle | Driven by a camshaft or eccentric lobe on the engine |
| Fuel Delivery | Delivers fuel to the carburetor or injection system in measured amounts |
| Pressure Regulation | Pressure is regulated by a spring-loaded diaphragm or valve |
| Flow Rate | Varies with engine RPM; typically 3-7 gallons per hour (GPH) at idle |
| Fuel Pressure | Typically 4-6 PSI (pounds per square inch) for carbureted systems |
| Efficiency | Less efficient than electric fuel pumps; dependent on engine speed |
| Maintenance | Requires periodic inspection for leaks, diaphragm wear, or valve issues |
| Compatibility | Primarily used in carbureted engines; not suitable for fuel injection |
| Noise Level | Produces audible ticking or clicking noise during operation |
| Reliability | High reliability in carbureted systems but prone to wear over time |
| Cost | Generally cheaper than electric fuel pumps |
| Environmental Impact | Less precise fuel delivery can lead to higher emissions |
| Modern Usage | Rarely used in modern vehicles; mostly found in classic or vintage cars |
Explore related products
What You'll Learn
- Diaphragm Pump Operation: Diaphragm flexes, creating vacuum to draw fuel, then pressure to deliver it
- Rotary Vane Mechanism: Rotating vanes move fuel through chambers, metering flow by speed
- Pressure Regulation Valve: Maintains constant fuel pressure, adjusting flow to engine demand
- Fuel Pump Cam Drive: Eccentric cam drives pump, synchronizing fuel delivery with engine cycles
- Flow Control Orifice: Restricts fuel flow, ensuring precise metering to carburetor or injectors
Diaphragm Pump Operation: Diaphragm flexes, creating vacuum to draw fuel, then pressure to deliver it
The diaphragm pump's operation hinges on a simple yet ingenious mechanism: a flexible diaphragm that alternates between creating a vacuum and generating pressure. This dual action is the key to its ability to meter fuel efficiently. When the diaphragm flexes inward, it expands the pump chamber, creating a vacuum that draws fuel into the pump through the inlet valve. This process ensures a consistent and controlled intake, which is crucial for precise fuel metering.
Consider the sequence of events: as the diaphragm moves outward, it compresses the fuel, forcing it through the outlet valve and into the carburetor or fuel injection system. This rhythmic flexing—inward for suction, outward for discharge—mimics the heartbeat of the engine, delivering fuel in measured doses. For example, in a small engine like a lawnmower, the diaphragm pump might cycle 60 to 80 times per minute, ensuring a steady fuel supply without overfeeding the system.
One practical tip for maintaining diaphragm pump efficiency is to inspect the diaphragm regularly for cracks or wear. A compromised diaphragm can lead to fuel leaks or inconsistent metering, reducing engine performance. Additionally, ensure the inlet and outlet valves are clean and free of debris, as clogs can disrupt the vacuum and pressure cycles. For older pumps, replacing the diaphragm every 2–3 years can prevent unexpected failures, especially in high-demand applications like marine engines.
Comparing the diaphragm pump to other mechanical fuel pumps, such as plunger or rotor types, highlights its advantages. Diaphragm pumps are simpler in design, with fewer moving parts, making them more reliable and easier to maintain. They also excel in low-pressure applications, where precise metering is essential. For instance, in agricultural equipment, diaphragm pumps are preferred for their ability to handle varying fuel demands efficiently, even in dusty or dirty environments.
In conclusion, the diaphragm pump’s operation is a masterclass in simplicity and functionality. By leveraging the flexing motion of a diaphragm to create vacuum and pressure, it meters fuel with precision and reliability. Whether in small engines or specialized machinery, understanding and maintaining this mechanism ensures optimal performance and longevity.
