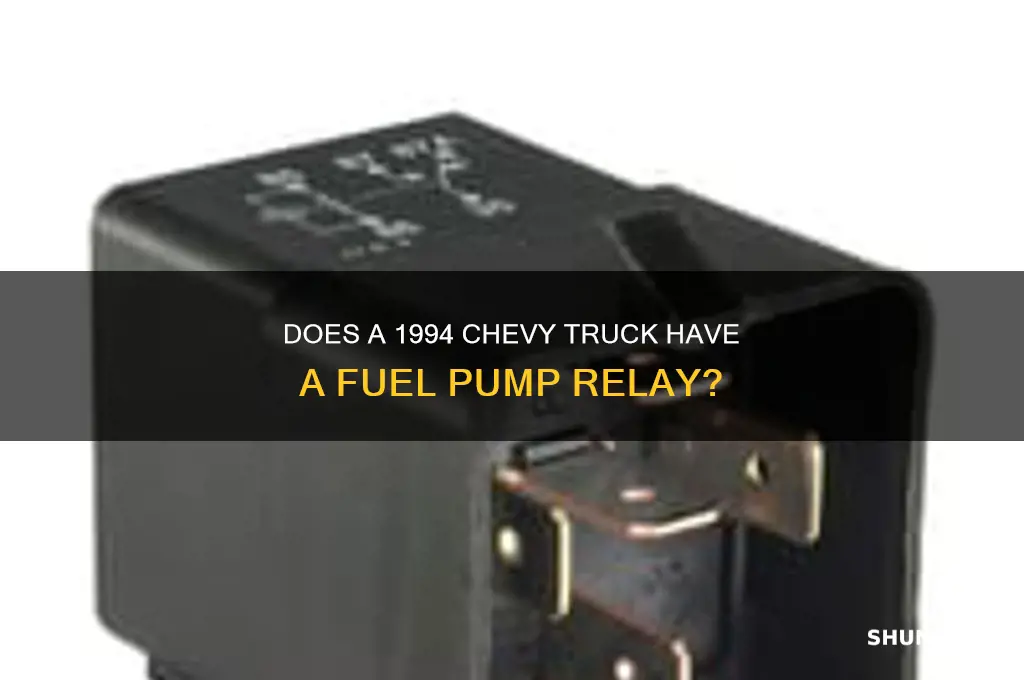

The 1994 Chevy truck, a popular model among enthusiasts and everyday drivers alike, often raises questions about its electrical and fuel systems. One common inquiry is whether it is equipped with a fuel pump relay, a crucial component responsible for controlling the fuel pump's operation. Understanding the presence and function of this relay is essential for troubleshooting fuel delivery issues, ensuring optimal performance, and maintaining the vehicle's reliability. In the case of the 1994 Chevy truck, the fuel pump relay is indeed a standard feature, typically located in the underhood fuse/relay box, and plays a vital role in managing the fuel system's efficiency.
| Characteristics | Values |
|---|---|
| Year and Model | 1994 Chevrolet Truck (C/K Series) |
| Fuel Pump Relay Presence | Yes, equipped with a fuel pump relay |
| Relay Location | Typically located in the underhood fuse/relay box |
| Relay Function | Controls power to the fuel pump to prevent continuous operation |
| Relay Part Number | Varies by specific model; common part numbers include AC Delco D1566A |
| Symptoms of Relay Failure | Engine cranks but doesn’t start, no fuel pressure, intermittent stalling |
| Testing Method | Use a multimeter to check for continuity or swap with a known good relay |
| Replacement Cost | $10–$30 (varies by brand and retailer) |
| Compatibility | Compatible with most 1994 Chevy C/K trucks (confirm with VIN or manual) |
| Related Components | Fuel pump, fuel pump fuse, ECM (Engine Control Module) |
| Maintenance Tip | Inspect relay and connections during routine maintenance to prevent issues |
Explore related products
What You'll Learn
Location of fuel pump relay in 1994 Chevy truck
The 1994 Chevy truck, a stalwart of American roads, relies on a fuel pump relay to manage the electrical current to its fuel pump. This relay acts as a switch, ensuring the pump doesn’t run continuously, which could lead to overheating or unnecessary wear. Locating this relay is crucial for troubleshooting fuel delivery issues, such as a no-start condition or erratic engine performance. While the exact location varies slightly depending on the model (e.g., C/K 1500, 2500, or 3500), the relay is typically housed in the underhood fuse/relay box. This box is usually mounted on the driver’s side fenderwell, near the firewall, and is secured with a removable lid for easy access.
To locate the fuel pump relay in a 1994 Chevy truck, start by opening the hood and identifying the fuse/relay box. This box is often labeled with a diagram on the underside of its lid, indicating which relay corresponds to the fuel pump. If the diagram is missing or unclear, consult the truck’s owner’s manual or a Chilton/Haynes repair guide for specific guidance. Once the box is open, the fuel pump relay is typically a square or rectangular module with a tab for easy removal. It’s important to note that some models may have the relay integrated into the main fuse block, so inspect carefully if it’s not immediately visible.
A practical tip for verifying the correct relay is to swap it with another relay of the same type in the box (e.g., the horn relay) and test the vehicle’s functionality. If the fuel pump begins operating when the key is turned to the "on" position (but not started), you’ve identified the correct relay. However, exercise caution when swapping relays, as incorrect placement can cause unrelated systems to malfunction. Always return the relays to their original positions after testing.
For those tackling this task without prior experience, consider using a multimeter to test the relay’s terminals for continuity or voltage. This diagnostic approach ensures accuracy and eliminates guesswork. Additionally, if the relay is faulty, replacement is straightforward: simply pull the old relay out and insert a new one, ensuring it clicks securely into place. Genuine GM parts are recommended for reliability, though aftermarket options are available at a lower cost.
In summary, the fuel pump relay in a 1994 Chevy truck is a critical component located in the underhood fuse/relay box, typically near the firewall. Identifying and testing this relay requires attention to detail, but with the right tools and knowledge, it’s a manageable task for most DIY enthusiasts. Proper maintenance of this relay ensures consistent fuel delivery, keeping your truck running smoothly for years to come.
Do 4Runner Fuel Pumps Weaken Over Time? A Detailed Analysis
You may want to see also
Explore related products
Symptoms of a faulty fuel pump relay
A faulty fuel pump relay in a 1994 Chevy truck can manifest in several ways, often mimicking symptoms of other fuel system issues. One of the most common signs is difficulty starting the engine, especially after the vehicle has been sitting for a while. This occurs because the relay fails to send power to the fuel pump, preventing it from priming the system with fuel. If the truck cranks but doesn’t start, or starts only after multiple attempts, the relay may be intermittently failing.
Another symptom is stalling or sputtering during acceleration or at high speeds. When the relay malfunctions, it can cut power to the fuel pump momentarily, causing a temporary loss of fuel pressure. This results in an inconsistent fuel supply to the engine, leading to hesitation or stalling. Drivers may notice the truck runs fine at idle but struggles under load, such as when climbing hills or towing.
A less obvious but equally telling sign is a sudden drop in fuel efficiency. A failing relay can cause the fuel pump to run continuously or cycle on and off erratically, leading to excessive fuel consumption. If you’ve ruled out other factors like a clogged air filter or faulty oxygen sensor, the relay could be the culprit. Monitoring fuel mileage over a few tanks can help confirm this issue.
Diagnosing a faulty fuel pump relay requires a systematic approach. Start by checking the relay itself for physical damage or corrosion. Swap it with a similar relay in the fuse box (e.g., the horn relay) to see if the issue persists. If the problem moves to the new relay’s function, the relay is likely at fault. Additionally, use a multimeter to test for power at the relay’s terminals when the ignition is turned on. No power indicates a wiring issue, while power without pump activation points to a faulty relay.
Preventive maintenance can extend the life of the fuel pump relay. Regularly inspect the fuse box for signs of overheating or moisture, which can accelerate relay failure. If you live in a humid or corrosive environment, consider applying dielectric grease to the relay terminals during routine maintenance. Replacing the relay proactively after 100,000 miles or if symptoms arise can save you from unexpected breakdowns. Always use a relay that matches the original specifications to ensure compatibility.
Understanding Fuel Pump Pressure: Key Factors and Measurement Techniques
You may want to see also
Explore related products
How to test the fuel pump relay
The 1994 Chevy truck, like many vehicles of its era, relies on a fuel pump relay to manage the electrical current to the fuel pump. This relay acts as a switch, ensuring the pump doesn’t run continuously, which would overheat and drain the battery. Testing the fuel pump relay is a straightforward process that can diagnose issues like a no-start condition or inconsistent fuel delivery. By understanding its function and location, you can save time and avoid unnecessary repairs.
To begin testing, locate the fuel pump relay, typically found in the under-hood fuse/relay box. Consult your vehicle’s manual for the exact position, as it may vary by model. Once identified, swap the fuel pump relay with a similar relay in the box, such as the horn or A/C relay, ensuring they have the same pin configuration. Start the engine; if it runs, the original relay is likely faulty. If not, the issue may lie elsewhere, such as the fuel pump itself or the wiring. This simple swap test is a quick way to isolate the relay as the problem.
For a more precise diagnosis, use a multimeter to test the relay’s terminals. With the ignition off, check for continuity between the power (usually pin 87) and ground (pin 85) terminals. Turn the ignition to the "on" position and listen for a clicking sound, indicating the relay is engaging. If the relay clicks but there’s no continuity, the internal contacts may be damaged. Apply 12 volts directly to the relay’s coil (pins 86 and 85) to force it open; if it doesn’t respond, replace the relay.
A common mistake is overlooking the relay’s orientation when swapping or testing. Relays are not always interchangeable, even if they look similar, so ensure the replacement has the same specifications. Additionally, always disconnect the battery before handling electrical components to prevent short circuits. Testing the fuel pump relay systematically narrows down potential issues, making it a critical step in troubleshooting fuel system problems in a 1994 Chevy truck.
How Fuel Pumps Automatically Stop: The Science Behind the Mechanism
You may want to see also
Explore related products
Replacement process for a 1994 Chevy fuel pump relay
The 1994 Chevy truck does indeed have a fuel pump relay, a critical component in the vehicle's fuel delivery system. Located under the hood in the relay center, this relay acts as a switch, controlling power to the fuel pump. When it fails, the truck may experience symptoms like difficulty starting, stalling, or a complete loss of power. Identifying and replacing a faulty fuel pump relay can restore your truck's performance and prevent further issues.
Locating the Relay: Begin by consulting your truck’s manual to pinpoint the exact location of the fuel pump relay. In most 1994 Chevy models, it’s housed in the under-hood fuse/relay box. The box lid typically has a diagram labeling each relay. If the diagram is missing or unclear, cross-reference with online resources or a repair guide. Once identified, use a relay puller tool or a flathead screwdriver to carefully extract the relay from its slot, ensuring not to damage surrounding components.
Testing and Replacement: Before replacing the relay, test it to confirm it’s faulty. Swap the fuel pump relay with another relay of the same type (e.g., the horn relay) in the fuse box. If the fuel pump activates or the horn stops working, the relay is likely defective. Purchase a replacement relay from an auto parts store, ensuring it matches the original part number. Installation is straightforward: insert the new relay into the correct slot, ensuring it clicks securely into place.
Post-Replacement Checks: After replacing the relay, start the truck to verify the fuel pump operates correctly. Listen for the pump’s hum, which should last 2-3 seconds when the ignition is turned on. If the truck starts without issues, take it for a short drive to ensure performance is restored. If problems persist, inspect the fuel pump fuse, wiring, or the pump itself, as the relay may not have been the sole cause of the issue.
Preventive Maintenance Tips: To prolong the life of your fuel pump relay and related components, keep the under-hood area clean and free of debris. Regularly inspect the fuse/relay box for corrosion or loose connections. Additionally, avoid frequent short trips, as they can cause the fuel pump to overwork, increasing the risk of relay failure. By staying proactive, you can minimize the chances of unexpected breakdowns and maintain your truck’s reliability.
Do Electric Fuel Pumps Bleed Off? Understanding Fuel System Mechanics
You may want to see also
Explore related products
Common issues with 1994 Chevy truck fuel pump relays
The 1994 Chevy truck’s fuel pump relay is a critical component, but it’s prone to failure due to its location under the hood, where it’s exposed to heat, moisture, and vibration. Over time, these conditions can cause the relay’s internal contacts to corrode or burn, leading to intermittent or complete loss of fuel pump operation. Symptoms of a failing relay include difficulty starting the engine, stalling, or a complete inability to start, often misdiagnosed as a fuel pump issue. To verify the relay’s condition, use a multimeter to test for continuity across the terminals when the ignition is turned on. If there’s no power, the relay is likely faulty.
One common issue is the relay’s plastic housing becoming brittle and cracking, especially in colder climates. This allows moisture to infiltrate, accelerating corrosion and causing the relay to fail prematurely. A temporary fix involves sealing the cracks with epoxy, but replacing the relay is the most reliable solution. Aftermarket relays are widely available and often more durable than the original equipment. When replacing the relay, inspect the wiring harness for damage, as frayed wires can cause similar symptoms.
Another frequent problem is the oil pressure switch, which is wired in series with the fuel pump relay. If the switch fails or becomes clogged with debris, it can prevent the relay from activating, even if the relay itself is functional. To diagnose this, bypass the oil pressure switch temporarily by connecting the wires leading to the relay directly. If the fuel pump operates, the switch is the culprit. Cleaning or replacing the switch is necessary to restore proper function.
Lastly, voltage drops across the relay circuit can cause the fuel pump to operate inefficiently, leading to poor performance or stalling under load. This is often due to loose or corroded connections at the relay or battery terminals. Clean all connections with a wire brush and apply dielectric grease to prevent future corrosion. If the issue persists, measure the voltage at the relay with the engine running; a significant drop from the battery voltage indicates a wiring problem that requires further investigation.
In summary, diagnosing and addressing fuel pump relay issues in a 1994 Chevy truck requires a systematic approach. Start with visual inspections and simple tests, then move to more complex diagnostics if needed. Regular maintenance, such as cleaning connections and protecting the relay from environmental factors, can extend its lifespan and prevent unexpected breakdowns. Always keep a spare relay in your toolkit, as this is a common failure point in these trucks.
Bypassing Your Motorcycle's Fuel Pump: A Step-by-Step DIY Guide
You may want to see also
Frequently asked questions
Yes, a 1994 Chevy truck is equipped with a fuel pump relay, which is typically located in the underhood fuse/relay box.
The fuel pump relay in a 1994 Chevy truck is usually found in the main fuse/relay box under the hood, often labeled as "FUEL PUMP" or "FP."
The fuel pump relay controls the power supply to the fuel pump, ensuring it only operates when the engine is running or being started, which helps conserve energy and prevent overheating.
You can test the fuel pump relay by swapping it with a relay of the same type (e.g., the horn relay) or using a multimeter to check for continuity and proper switching when activated.
