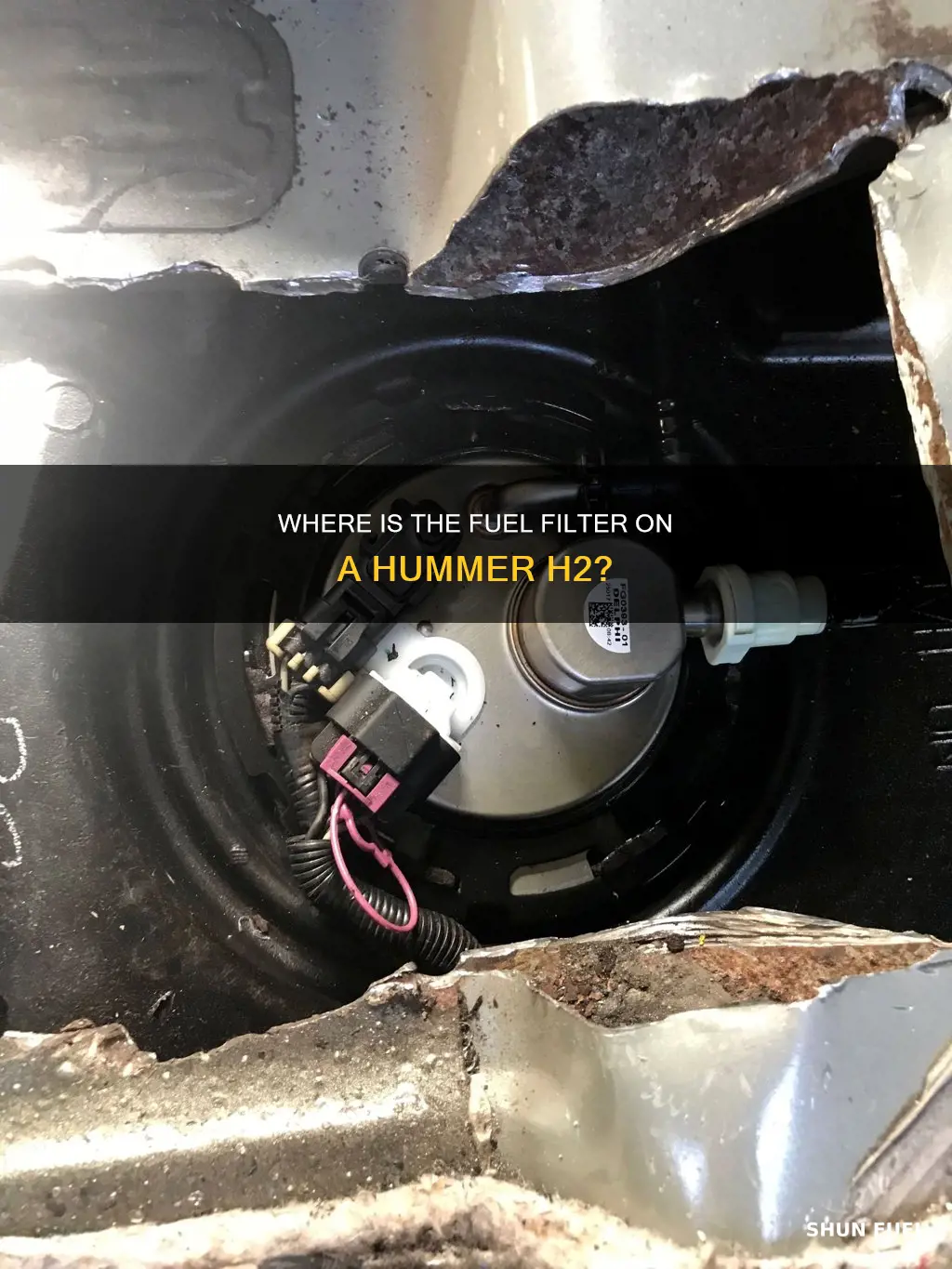

The 2004 Hummer H2 has a fuel filter that is located inside the fuel tank, which is a different design from the 2003 model, where the filter is on the outside of the tank. The fuel filter is part of the fuel tank sending unit and is housed with the fuel pump. The fuel pump supplies fuel through the fuel filter and the fuel feed pipe to the fuel injection system. The fuel filter prevents large debris from entering the fuel system and damaging the fuel injectors.
Explore related products
$63.99 $74.99
What You'll Learn
The 2004 Hummer H2 fuel filter is in the fuel tank
The 2004 Hummer H2 fuel filter is located inside the fuel tank. This is different from the 2003 model, where the filter is located on the outside of the tank, in front of it.
In-tank fuel filters are usually strainers rather than actual filters. They prevent large debris from entering the fuel system. The 2004 H2's fuel system is a returnless, on-demand design, meaning the fuel pressure regulator is part of the fuel sender assembly. This eliminates the need for a return pipe from the engine, reducing the internal temperature of the fuel tank.
The fuel pump supplies high-pressure fuel through the fuel filter and the fuel feed pipe to the fuel injection system. The fuel filter is made of cellulose or synthetic-based filter media that traps tiny contaminants, such as rust particles and dirt, present in the fuel as it flows from the fuel tank to the fuel injectors.
The filter media is sealed within a cylindrical-shaped housing that resembles a tiny soda can. The fuel filter is non-serviceable and must be replaced as part of the sending unit, which includes the fuel pump and regulator. This requires removing the fuel tank and costs around $500.
Silica Beads: A Safe Fuel Tank Additive?
You may want to see also
Explore related products
It's a returnless, on-demand fuel system
The 2004 Hummer H2 has a returnless, on-demand fuel system, where the fuel filter is contained in the fuel sender assembly inside the fuel tank. This design eliminates the need for a return pipe from the engine, as the unused fuel is directed back into the tank after passing through a pressure regulator.
Returnless fuel systems, also known as returnless fuel injection systems, are becoming more common in newer vehicles. Unlike traditional return-style fuel systems, returnless systems do not have a return line to return unused fuel from the engine to the tank. Instead, the fuel is picked up via the fuel screen sock at the bottom of the tank and then routed to the fuel pump, which supplies the required fuel pressure and volume to the engine.
The main advantage of a returnless system is that it reduces the internal temperature of the fuel tank by preventing hot fuel from returning from the engine to the tank. This, in turn, results in lower evaporative emissions, which is beneficial from an environmental standpoint. Additionally, returnless systems are cheaper and more compact, as they only require one fuel line and do not need a vacuum line to the regulator.
However, one disadvantage of returnless systems is that they may require a new pump, regulator, and plumbing if retrofitted to an older vehicle. The placement of the fuel filter in a returnless system can also impact the longevity of the system and the ease of service and repair. In the case of the 2004 Hummer H2, the fuel filter is located inside the fuel tank, which can make it more difficult to access and replace compared to a conventional location outside the tank.
Fire Truck Fuel Tanks: Size and Capacity Explored
You may want to see also
Explore related products
Fuel filter replacement is recommended if the car has been unused for 3-6 months
The 2004 Hummer H2 has a fuel filter located inside the fuel tank. This is a fairly standard setup, with the filter being housed with the fuel pump.
Now, regarding fuel filter replacement, it is generally recommended to replace the fuel filter if your car has been sitting unused for 3-6 months. This is because gasoline is perishable and will degrade over time, potentially forming compounds that can damage the fuel system. Replacing the fuel filter in this scenario is a preventive measure to ensure the engine's health and performance.
The fuel filter plays a crucial role in maintaining the health and performance of your Hummer H2's engine. It helps remove contaminants, such as dirt, rust, and other impurities, from the fuel before it reaches the fuel injectors. Over time, the fuel filter can become clogged with these contaminants, leading to potential engine problems.
- Difficulty starting the engine: If your car is having trouble starting or takes a while to start, it could indicate a clogged filter, preventing fuel from flowing smoothly to the engine.
- Rough idling and strong vibrations: Excessive vibrations while idling or rough cruising at slow speeds could be a sign of a clogged fuel line or filter.
- Sluggish performance: If you experience steady highway cruising followed by struggles at slower speeds, it may suggest a clogged filter. Higher speeds require more fuel flow, masking the issue, while lower speeds and reduced fuel flow can reveal the clog.
- Engine stalling: In some cases, a clogged filter can cause the engine to stall or even shut off while driving.
It is important to note that the replacement intervals for fuel filters vary depending on vehicle age and usage. Newer vehicles may have lifetime filters, while older models typically recommend replacement between 20,000 and 150,000 miles. Regular maintenance and following the manufacturer's recommendations in the owner's manual are essential for optimal engine performance and longevity.
Understanding the Fuel Tank Pressure Sensor Functionality
You may want to see also
Explore related products
Fuel filters trap contaminants like rust and dirt
Fuel filters are essential for maintaining the cleanliness and efficiency of a vehicle's fuel system. They prevent contaminants such as dirt, rust, and debris from reaching the engine. By trapping these impurities, fuel filters ensure smooth engine operation and help prevent costly repairs and downtime.
Fuel filters are typically made of pleated paper or synthetic material designed to trap particles efficiently. Most fuel filters will trap particles 3 microns or larger in size, and some will trap even smaller particles. The filtering efficiency increases as the filter gets dirtier, but so does the resistance to flow. Over time, fuel filters can become clogged due to contaminated fuel, normal wear and tear, or lack of maintenance, leading to a range of engine problems.
In the case of the 2004 Hummer H2, the fuel filter is located inside the fuel tank. It is part of the fuel tank sending unit and is housed with the fuel pump. The fuel pump supplies high-pressure fuel through the fuel filter and the fuel feed pipe to the fuel injection system. While the fuel filter is designed to last the life of the vehicle, it may need to be replaced if it becomes clogged or if there is a leak.
A clogged fuel filter can restrict fuel flow to the engine, leading to a significant drop in pressure and a decrease in flow as the engine speed increases. This can cause difficulty in starting the vehicle or even make it impossible to start. Therefore, it is important to regularly inspect and maintain the fuel filter to ensure optimal performance and prevent engine problems.
Draining Fuel Tank on Harley Ultra Limited: Step-by-Step Guide
You may want to see also
Explore related products
The fuel filter is part of the fuel tank sending unit
The 2004 Hummer H2 has a returnless, on-demand fuel system. This means that the fuel pressure regulator is part of the fuel sender assembly, and there is no need for a return pipe from the engine. This design reduces the internal temperature of the fuel tank and results in lower evaporative emissions.
The fuel filter is made of cellulose or synthetic-based filter media and is sealed within a cylindrical-shaped housing. It is located right in front of the fuel tank on the left frame rail. Replacing the fuel filter is a fairly easy job, but it is a bit fiddly as the filter is tucked above the cross member in the middle of the truck. Once the filter is located, the pipe can be pulled out by squeezing the tab together.
It is important to note that the fuel filter should be replaced if there is any fuel leakage or if foreign fluids, bad fuel, or water enters the fuel system. Additionally, if the fuel pump has been replaced or work has been performed on the fuel tank, a new fuel filter should be installed.
Hauling Fuel Oil: Tanker Endorsement Needed?
You may want to see also
Frequently asked questions
Yes, the fuel filter is located inside the fuel tank.
If your car has sat unused with gas in the tank for more than 3 to 6 months, the fuel filter should be replaced. If clogging is suspected, have the cause investigated and resolved as soon as possible.
Consult the vehicle maintenance schedule to determine when to replace the fuel filter.
You will need to drop the gas tank. The fuel pump is located inside.
The fuel pump, filter, and regulator must be replaced as a whole unit, which costs around $500.
