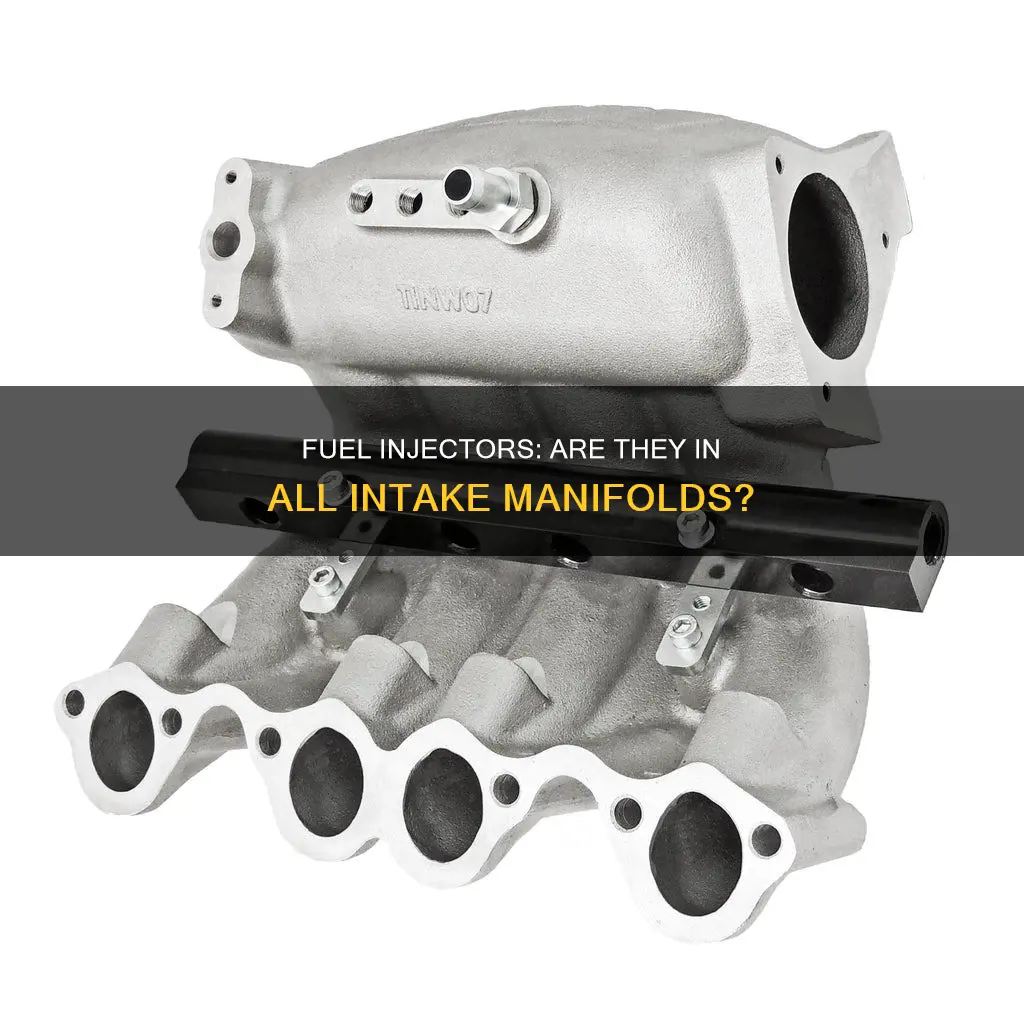

The intake manifold is a crucial component of an internal combustion engine, responsible for managing the flow of air into the engine's cylinders. In certain types of fuel injection systems, such as port fuel injection, the intake manifold also plays a role in mixing fuel with the incoming air before it enters the cylinders. The intake manifold is typically made of metal or plastic and is mounted on top of or to the side of the engine block. It receives air from the air intake system, which can include components like air filters and throttle bodies, and directs it into the combustion chambers. While the fuel rail is responsible for delivering pressurized fuel to the injectors, the intake manifold acts as a mounting point for these injectors, as well as other components like fuel pressure regulators and intake air temperature sensors.
| Characteristics | Values |
|---|---|
| Intake manifold | Distributes air to the cylinders of the engine |
| Distributes fuel in certain types of fuel injection systems | |
| Serves as a mounting point for fuel injectors | |
| Fuel rail | Delivers fuel to the injectors |
| Maintains the required pressure to ensure proper fuel delivery to the injectors | |
| Is a metal pipe or rail | |
| Is part of the fuel delivery system in an engine equipped with fuel injection |
Explore related products
What You'll Learn
Multi-port injection systems
In a multi-port injection system, the fuel injectors are situated upstream of the cylinders' intake valves. The fuel pressure regulator, connected to the fuel rail, governs fuel flow while the control diaphragm and pressure spring control the inlet valve opening and fuel return. The engine speed and load vary the pressure in the intake manifold, affecting the injection timing and fuel-air mixture.
One of the key advantages of multi-port injection systems is their ability to maximise fuel efficiency. By injecting fuel directly into the port before the intake valve, there is negligible fuel deposition outside the intake valves, minimising fuel wastage. This also contributes to reduced emissions, making these systems more environmentally friendly.
Compared to single-point injection (SPI) systems, multi-port injection offers several benefits. Firstly, it enables cylinder-specific injection, providing greater flexibility in injection timing for each cylinder. Secondly, it improves performance through pulse width control of each injector. Additionally, multi-port injection systems are known for their reliability, improved hot starts, reduced vapor emissions, and faster prime on restarts.
While multi-port injection systems are generally more expensive and complex than carburettors, they offer superior fuel efficiency, extended engine life, and improved performance. They are designed to work with various engine sizes and RPM ranges, making them versatile and widely adopted in the automotive industry.
Fuel Injectors in 2003 Ford Mustang: How Many?
You may want to see also
Explore related products
Single-point injection systems
However, SPI systems also have some drawbacks. There can be a time lag for driver input and uneven fuel delivery between cylinders. The injection timing must be precise to minimise unburnt fuel and emissions. Modern manifold injection systems have largely moved away from SPI systems towards multi-point injection (MPI) systems, where each cylinder has its own fuel injector. As a result, SPI systems are now considered obsolete.
Fuel Injector Rod Repairs: Cost and Maintenance Tips
You may want to see also
Explore related products
Continuous vs intermittent injection
Fuel injection is the introduction of fuel in an internal combustion engine, most commonly automotive engines, by the means of a fuel injector. The fuel injector is effectively a spray nozzle that performs the final stage in the delivery of fuel into the engine. The injector is located in the combustion chamber, inlet manifold, or throttle body. The term fuel injection comprises various distinct systems with fundamentally different functional principles. The only thing all fuel injection systems have in common is the absence of carburetion.
Manifold injection is a mixture formation system for internal combustion engines with external mixture formation. It is commonly used in engines with spark ignition that use petrol as fuel. In a manifold-injected engine, the fuel is injected into the intake manifold, where it begins forming a combustible air-fuel mixture with the air. The injection timing and measuring of the fuel amount can be controlled either mechanically or by an engine control unit.
Manifold injected engines can use either continuous or intermittent injection. In a continuously injecting system, the fuel is injected continuously, and there are no operating modes. An example of a continuous injection system is the Bosch K-Jetronic, which was a mechanical injection system that used a continuous flow of fuel from the injectors. This system is now obsolete.
In intermittently injecting systems, there are usually four different operating modes. In a simultaneously intermittently injecting system, there is one single, fixed injection timing for all cylinders. Therefore, the injection timing is ideal only for some cylinders, and there is always at least one cylinder that has its fuel injected against the closed intake valve(s). This causes fuel evaporation times to differ for each cylinder. Examples of intermittently injecting systems include the Bosch Mono-Jetronic, which is a single-point injection system, and the Bosch D-Jetronic, which used a pulsed flow of fuel.
Intake manifolds for fuel-injected engines are available from various trusted brands and can be used to ramp up the horsepower of your vehicle.
Testing Fuel Injector Harness: Multimeter Use and Application
You may want to see also
Explore related products
Air-fuel mixture
An engine needs air, fuel, and spark to generate power. The air-fuel mixture is ignited by spark plugs, creating a series of small explosions that generate the energy required to propel a vehicle. The ideal air-fuel mixture for a gasoline engine is 14.7 parts air to 1 part fuel, known as the stoichiometric ratio. This ratio ensures the complete combustion of the mixture, resulting in only harmless water and carbon dioxide as byproducts.
The stoichiometric ratio, however, is not always the goal. Maximum power is typically achieved with a slightly richer mixture, while drivability is better at a cruise rpm with a slightly leaner mixture. Additionally, the real-world mixture depends on factors such as the molecular structure of the gasoline and operating conditions. For example, an engine operating at high altitudes will experience decreased air density, requiring adjustments to the fuel flow to maintain optimal performance.
The air-fuel mixture can be monitored and adjusted to maximize performance, economy, and prevent engine damage. Modern vehicles use a powertrain control module (PCM) to command the mixture, making decisions based on feedback from various sensors, particularly oxygen sensors. By monitoring the fuel trim data using a scan tool, one can determine if the engine is running rich or lean.
The air-fuel mixture is also crucial in aircraft engines, where the term "full rich" describes a mixture as rich as possible without significant power loss. During takeoff, a full-rich mixture is required for maximum power. However, the same mixture would be intolerable at high altitudes due to the decreased air density. Therefore, mixture regulation is necessary for satisfactory engine operation above certain altitudes.
In manifold injection systems, the fuel is injected into the intake manifold, forming a combustible air-fuel mixture. Modern manifold injection systems typically use multi-point injection (MPI), with one fuel injector per cylinder, allowing for cylinder-specific injection and more precise control over the air-fuel mixture.
Fuel Injectors: Why They Make a Winding Noise
You may want to see also
Explore related products
Fuel rail vs intake manifold
The intake manifold and the fuel rail are both crucial components of an internal combustion engine, but they have distinct functions and characteristics.
The intake manifold is responsible for distributing air to the cylinders of the engine. It is typically made of metal or plastic and is mounted on top of or to the side of the engine block. In some fuel injection systems, the intake manifold also mixes fuel with the incoming air before it enters the cylinders. This mixture is then sucked into the cylinders by the pistons during the intake stroke. The intake manifold often serves as a mounting point for various components, including fuel injectors, fuel pressure regulators, intake air temperature sensors, and idle air control valves.
On the other hand, the fuel rail is a critical component of the fuel delivery system in modern internal combustion engines equipped with fuel injection. It is a metal pipe or rail, usually made of aluminium or stainless steel, that delivers pressurized fuel to the fuel injectors. The fuel rail receives fuel from the fuel pump and maintains the required pressure to ensure the proper delivery of fuel to the injectors. The fuel injectors then spray the fuel into the combustion chambers of the engine. The design and configuration of the fuel rail may vary depending on factors such as engine type, fuel injection system, and performance requirements.
The main difference between the two components is that the intake manifold primarily deals with air distribution (and sometimes fuel), while the fuel rail specifically focuses on delivering pressurized fuel to the injectors. The intake manifold is responsible for ensuring that air is distributed evenly to the cylinders, and in some cases, it also mixes fuel with the air. In contrast, the fuel rail's primary role is to act as a conduit, delivering fuel from the fuel pump to the injectors and ensuring that each cylinder receives the proper amount of fuel for combustion.
Both the intake manifold and the fuel rail are essential for the proper functioning of the engine. The intake manifold ensures that the engine receives the necessary air for combustion, while the fuel rail ensures that the fuel is delivered at the correct pressure and amount for optimal combustion. Together, they contribute to the overall performance and efficiency of the engine.
Understanding the Working of a Diesel Fuel Injector Pump
You may want to see also
Frequently asked questions
No, not all intake manifolds have fuel injectors. The intake manifold is responsible for distributing air to the cylinders of the engine. In some fuel injection systems, the intake manifold also mixes fuel with the incoming air before it enters the cylinders.
The intake manifold plays a crucial role in the operation of an internal combustion engine by managing the flow of air into the engine's cylinders. It is typically made of metal or plastic and is mounted on top or to the side of the engine block.
The intake manifold deals with air distribution and, in some cases, fuel distribution. The fuel rail, on the other hand, is responsible for delivering pressurized fuel to the fuel injectors. The fuel rail is a critical component of the fuel delivery system in modern internal combustion engines.
Some examples of fuel-injected intake manifolds include the Edelbrock, Professional Products, Dorman, FAST, Ford Racing, Trick Flow, and GM Performance brands. These intake manifolds are designed to enhance the horsepower of your vehicle.
