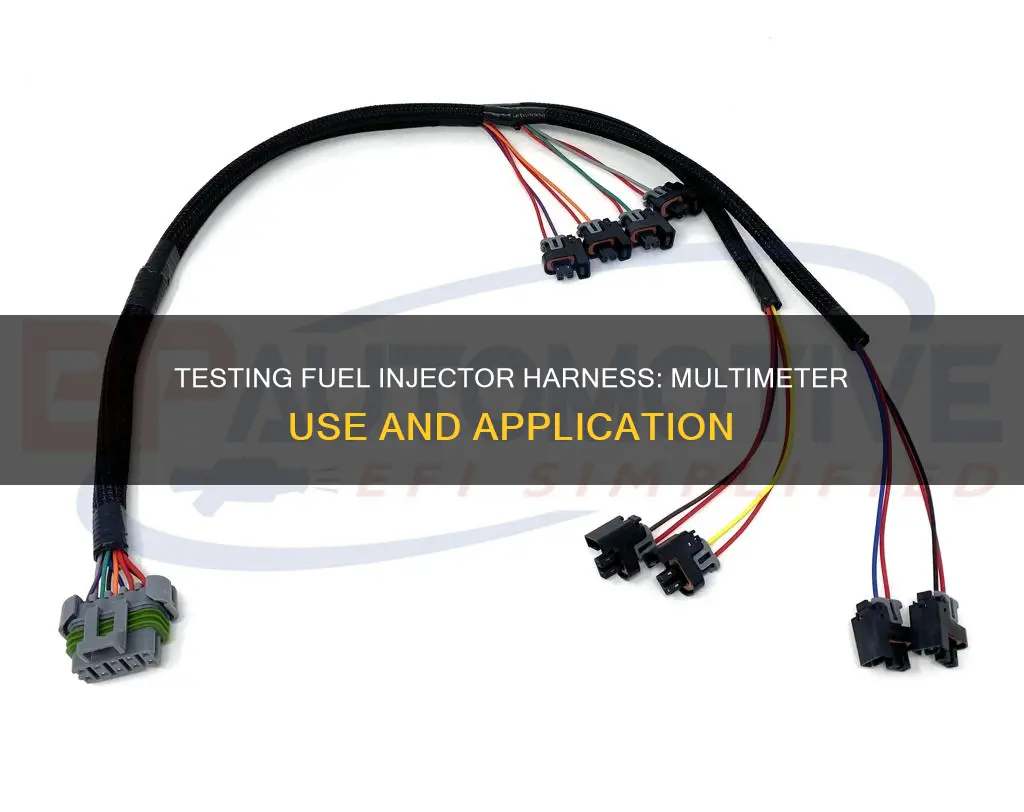

A faulty fuel injector can cause your car's engine to run poorly or even stop working altogether, so it's important to be able to test them for issues. While some fuel injector problems may necessitate a professional mechanic's inspection, others can be diagnosed at home with simple tools such as a multimeter. This device can be used to check the resistance of the injector coil, which can be found in the manual of your car. If you don’t know how to use a multimeter, there are many online guides and videos that can help.
| Characteristics | Values |
|---|---|
| Purpose | To check for faults in the fuel injector harness |
| Tools Required | Multimeter, test light, voltmeter, screwdriver |
| Steps | Turn off the vehicle, remove the injector wiring harness, set the multimeter to measure ohms, place meter leads on prongs inside the connector, repeat with all injectors, inspect any with major differences |
| Other Methods | Checking the injector's coil, checking fuel spray pattern, testing the injector signal from the computer, observing engine idle behaviour when injector connectors are disconnected |
Explore related products
What You'll Learn
Testing the injector's coil
Testing the injector coils is an important step in ensuring the proper functioning of your car's fuel injection system. Here is a detailed guide on how to test the injector coils using a multimeter:
Precautions:
Before beginning the testing process, it is important to adhere to all safety rules associated with fuel systems in your car, especially when dealing with diesel or gasoline under significant pressure. Additionally, exercise caution due to the high voltages involved in the control or test signals fed to the injectors.
Testing Procedure:
- Turn the car on: Start by turning the key to the "ON" position. You want battery power flowing, but avoid starting the engine.
- Set up the multimeter: Set the multimeter, also known as a digital volt-ohm meter (DVOM), to measure DC voltage. If your meter doesn't auto-range, set it to the lowest range possible.
- Connect the negative lead: Touch the negative lead of the multimeter to a ground source. You can usually find an unpainted piece of the car's frame under the hood that is connected to the ground.
- Connect the positive lead: Place the positive lead on the wiring harness terminal. The wiring harness will have two terminals that the prongs on the injector insert into. One terminal will be connected to the ground and will read 0 volts.
- Test voltage: With the leads connected, you should see a voltage reading of around 12 volts for each injector wiring harness. A lower reading indicates excess resistance in the wire, which could be a sign of a faulty injector.
- Repeat for all injectors: Leave the ground lead in position and repeat the voltage test for all injector wiring harnesses.
- Check resistance: If the voltage readings are normal, the next step is to check the resistance of the injectors. Remove the injector wiring harness by pressing down on the tabs and moving the slide lock, if present.
- Set the multimeter to measure ohms: Set the multimeter to the lowest range if it doesn't autorange.
- Test resistance: Place the meter leads on the prongs inside the connector, ensuring they don't touch each other. Common rail injectors typically have a resistance range of 0.2 to 0.5 ohms, while gasoline injectors have higher resistance.
- Compare results: Compare the resistance readings of all the injectors. They should be within half an ohm of each other. Any significant deviation indicates a potential issue with that particular injector, and it should be inspected further.
By following these steps, you can effectively test the injector coils and identify any potential issues with the fuel injection system. If you encounter any difficulties or require further assistance, it is recommended to consult a certified technician.
