Sylvie Willis
Fuel injectors are an essential part of a vehicle's engine, spraying fuel into the cylinders to be combined with air and compressed before being ignited by the spark plug to generate power. When fuel injectors malfunction or become clogged, they can cause issues like rough idling, knocking, decreased fuel efficiency, and smoky exhaust. While certain fuel injector issues may necessitate the expertise of a professional mechanic, others can be identified using DIY techniques and simple tools like a test light. A test light can be used to check for power and pulse signals from the computer on each injector, helping to identify any potential issues. This guide will explore how to test fuel injectors using a regular test light to diagnose and address common problems.
| Characteristics | Values |
|---|---|
| Fuel Injector Function | Spray fuel into the cylinders of the engine |
| Fuel Injector Failure Impact | Engine runs poorly or fails to run |
| Fuel Injector Testing Tools | Test light, digital multimeter, voltmeter, screwdriver, OBDII scanner, diagnostic scanner |
| Fuel Injector Testing Methods | Check for clicking sound, test wires for voltage, check for leaks, test flow rate, check resistance |
| Fuel Injector Maintenance | Track mileage, refer to owner's manual, wear protective gear |
Explore related products
What You'll Learn
Testing for leaks

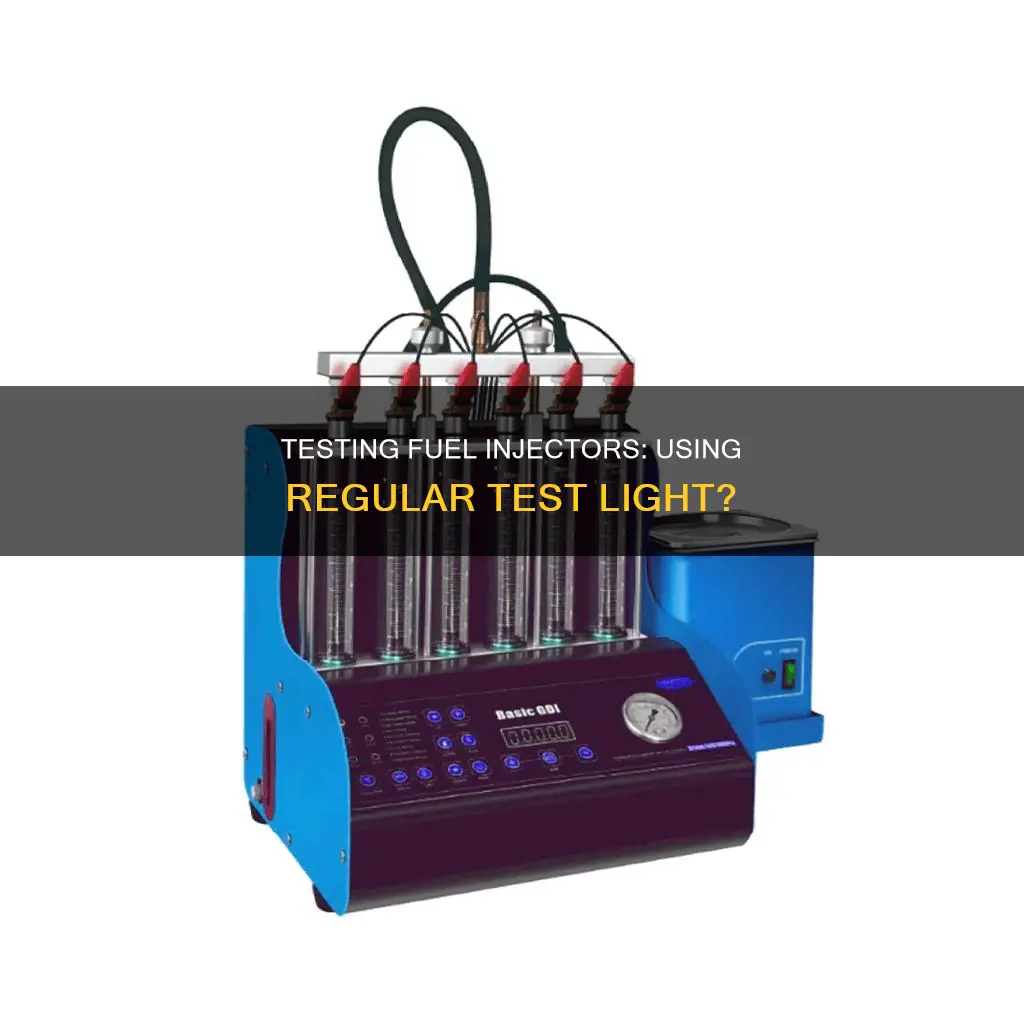

One way to test for leaks is to check the fuel injectors' flow rate. This can be done by setting up a pump with a known pressure, such as 50 psi, and using a pulse tool to pulse the injector at a known rate, such as 100 Hz. A measuring device, such as a flask with graduations of known value, can then be used to collect the fuel and measure the output. If there are drips or a poor flow, it indicates that the injector pintle is not sealing properly.
Another method to test for leaks is to check the fuel injectors' resistance using a digital multimeter. The multimeter should be set to the Ohms scale according to the resistance specifications for the fuel injector, typically reading at least 30 Ohms. If the reading is jumping, it indicates that the coil is partially opened; if the meter reads infinite resistance, the coil is opened; and if the reading is zero, the coil is shorted.
Additionally, a test light can be used to check for power and pulse signals from the computer on each injector. First, locate the two wires going into each injector, which are usually grey and black but can be other colours. One of these wires is a 12-volt constant that should be continuously receiving power. Test each wire for voltage by pressing the sharp end of the test light into the rubber coating around the wire until it penetrates the metal wiring. If the test light remains lit, it indicates a problem in the circuit or a failure in the device driver in the computer.
To confirm that there are leaking injectors, the fuel rail can be slightly raised out of the inlet manifold without disconnecting the fuel lines, and a small napkin or piece of paper can be placed under each injector. The system can then be pressurized by cycling the key on for a few seconds before turning it off and allowing it to sit for about 10 minutes. If there are drops of fuel on any of the napkins, it indicates a leaking injector, and all injectors should be replaced.
It is important to note that a leaking injector can also be identified by checking the cylinder spark plug, which would be wet with fuel and potentially fouled. Additionally, a check engine light can indicate a problem, and an OBDII scanner can be used to check for errors in the vehicle's computer regarding the cylinder or injector.
Fuel Injector Requirements for a 2000 Honda Accord
You may want to see also
Explore related products
Using a digital multimeter
Step 1: Prepare Your Vehicle
Turn off your vehicle and open the hood to access the engine bay. Locate the fuel injectors, which are usually found on the intake manifold, connected by a fuel rail. Refer to your vehicle's service manual if you're unsure of their location.
Step 2: Disconnect the Electrical Connector
Before testing, disconnect the electrical connector from the fuel injector you plan to start with. This is a crucial step to ensure an accurate reading.
Step 3: Set Up the Digital Multimeter
Set the multimeter to the correct value on the Ohms scale. Typically, you'll need to set it to read at least 30 Ohms, but refer to your vehicle's service manual or the injector's specifications for the exact value. This step ensures you get an accurate reading.
Step 4: Test the Injector
With the multimeter set, investigate the electrical terminals of the fuel injector. Polarity doesn't matter here. A resistance reading that doesn't match the specified value in your service manual indicates a problem with the injector. For example, a jumping reading suggests a partially opened coil, while a zero resistance reading indicates a shorted coil.
Step 5: Repeat for Each Injector
Repeat the testing process for each fuel injector. It's important to test them all, as issues can vary across injectors.
Step 6: Interpret the Results
If you find a faulty injector, make a note of the specific issue. A professional mechanic can help interpret the results and advise on necessary repairs or replacements.
Fuel Injector Wiring: Keeping the Injector Always On
You may want to see also
Explore related products
Testing the wires
Firstly, identify the negative terminal on your battery by looking for the negative symbol '-' or the letters 'NEG'. This is important as you will need to connect the test light to the correct terminal. Ensure that the test light is securely connected and that there is a good metal-on-metal connection.
Next, locate the two wires going into each injector. Each fuel injector will have a metal clip plugged into it, with two wires protruding. One of these wires is a 12-volt constant, which should be continuously receiving power from the vehicle's electrical system. These wires are often grey and black but can be other colours.
Now, test each wire for voltage. Take the sharp end of the test light and firmly press it into the rubber coating surrounding each wire, penetrating the metal wiring. Repeat this process for each injector. If you locate an injector with a power issue, make a note of it and continue testing the others.
Once you have identified any injectors with power issues, follow the wires to ensure there are no breaks in the wire that could be preventing electricity from reaching the injector. A break in the wire could be the cause of the power issue.
Finally, if you have identified a problem with the injector or the wire, inform your mechanic. It may be necessary to replace the injector or the vehicle's electronic control unit.
It is important to note that fuel may be present during testing, so standard fire precautions should be taken. Wear protective gloves and eyewear to ensure safety.
Flushing Fuel Injectors: A Step-by-Step Guide to Cleaning
You may want to see also
Explore related products
Testing the battery
Locate the Battery Terminals: Start by locating the battery terminals, which are the metal connections on the top or front of the battery. These terminals will be marked with + (positive) and - (negative) signs or symbols. It's important to ensure you can easily access these terminals for the testing process.
Use a Multimeter: A multimeter is a handy tool for testing the battery. Set the multimeter to measure DC voltage, which is indicated by a solid line and a dashed line above a letter V. Adjust the dial to 20 to allow measurements between 0-20 Volts.
Connect the Probes: Touch the red probe of the multimeter to the positive terminal (usually marked in red or with a + sign) and the black probe to the negative terminal (marked in black or with a - sign). Ensure you have a good metal-to-metal connection for accurate readings.
Interpret the Readings: Observe the reading on the multimeter. If you get a reading with a minus sign (-12.6 instead of 12.6), it indicates that the probes are connected incorrectly. Swap the probe connections and re-measure. A fully charged battery should ideally have a resting voltage of 12.6 Volts. If the reading is 12.2V, your battery is only 50% charged, and a value below 12V indicates a discharged battery.
Test After a Period of Inactivity: For the most accurate resting voltage, test the battery after it has been sitting idle for at least an hour. If possible, leave the car overnight and test the battery in the morning to get a precise gauge of the state of charge. This is important because the battery may give a higher reading if you've recently driven the car, which could be misleading.
Check the Charging System: With the engine running, conduct the same voltage test to evaluate the charging system. A healthy charging system should provide a reading between 13.8V and 14.4V at regular idle speed. Readings outside this range indicate a problem with the charging system, which may be over or under-charging the battery, ultimately reducing its lifespan.
Test Individual Cells (for Older Batteries): Some older batteries allow access to individual cells, which contain a mix of water and sulfuric acid. To test these cells, use a hydrometer-style battery tester to measure the specific gravity of the battery acid. The number of floating balls in the tester will indicate whether the cell is dead or not.
Fuel Injectors: 13B Mazda Rotary Engine's Power Secrets
You may want to see also
Explore related products
Using a diagnostic scanner
To use an OBD2 scanner to check fuel injectors, you will require a compatible scanner and a vehicle equipped with an OBD2 port, both standard features in modern cars produced after 1996. First, locate your vehicle's OBD2 port, usually found under the dashboard. Ensure the ignition is off before plugging the scanner in, then turn on the vehicle but do not start the engine. Power on the scanner and access the "Live Data" or "Data Stream" menu on the scanner for data streams from the ECU.
You can then assess fuel trim, injector pulse width, and cylinder misfire data against normal values to identify any significant deviations that might signal injector issues. Check for specific injector-related trouble codes, such as P0200, that indicate an injector circuit malfunction. Once injector issues have been identified and addressed, clearing injector codes and resetting the system is the next step.
It is important to note that different car models will have different compatibility issues, so not all cars will work with all OBDII scanners. However, there are various good-quality OBDII scanners available, such as the Ancel X7, which is affordable, easy to use, and offers various diagnostic functions.
Finding a Leaking Fuel Injector: A Comprehensive Guide
You may want to see also
Frequently asked questions
First, identify the negative terminal on your battery by looking for the negative symbol (-) or the letters NEG. Then, connect the test light to the positive terminal of the battery. Next, locate the two wires going into each injector. Press the sharp end of the test light firmly into the rubber coating around each wire until it penetrates the metal wiring itself. Test each wire for voltage.
If the test light does not light up, there is an issue with the circuit or the device driver in the computer may have failed. If the test light remains lit, there is a problem with the circuit or the device driver in the computer.
There are several signs that your fuel injectors may be faulty, including rough idling, knocking, poor gas mileage, and smoky exhaust. You can also start the engine and let it idle, then put the tip of a long metal screwdriver against one of the fuel injectors and listen for a clicking sound. If you don't hear anything, the injector may need to be cleaned or replaced.
